Hariki Details

Property	Value
Rupture Count	32
Ruptures Above Sect Min Mag	31
Ruptures w/ Nonzero Rates	1
Magnitude Range	[7.01, 7.54]
Length Range	[26, 103] km
Total Rate	1.6847878E-5 /yr
Multi-Fault Rate	1.6847878E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

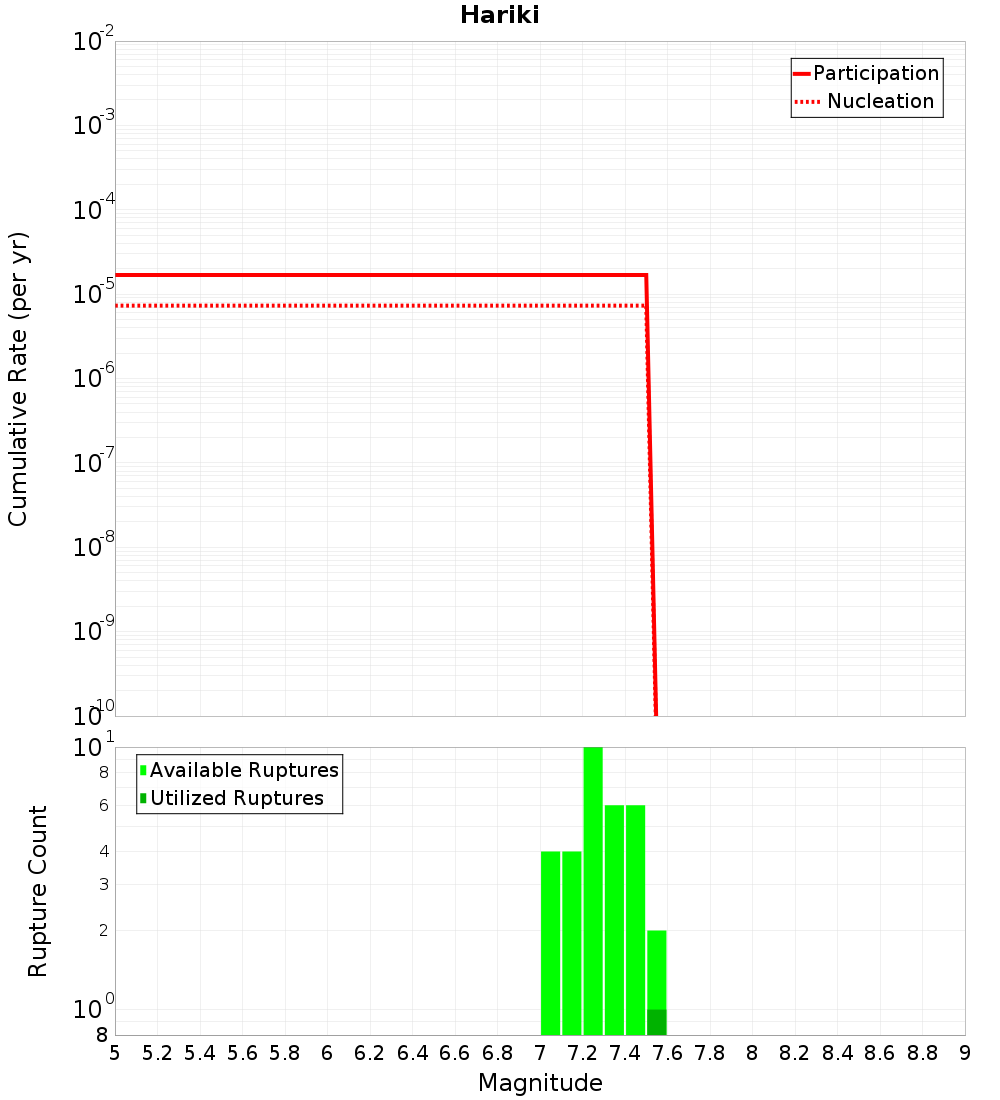

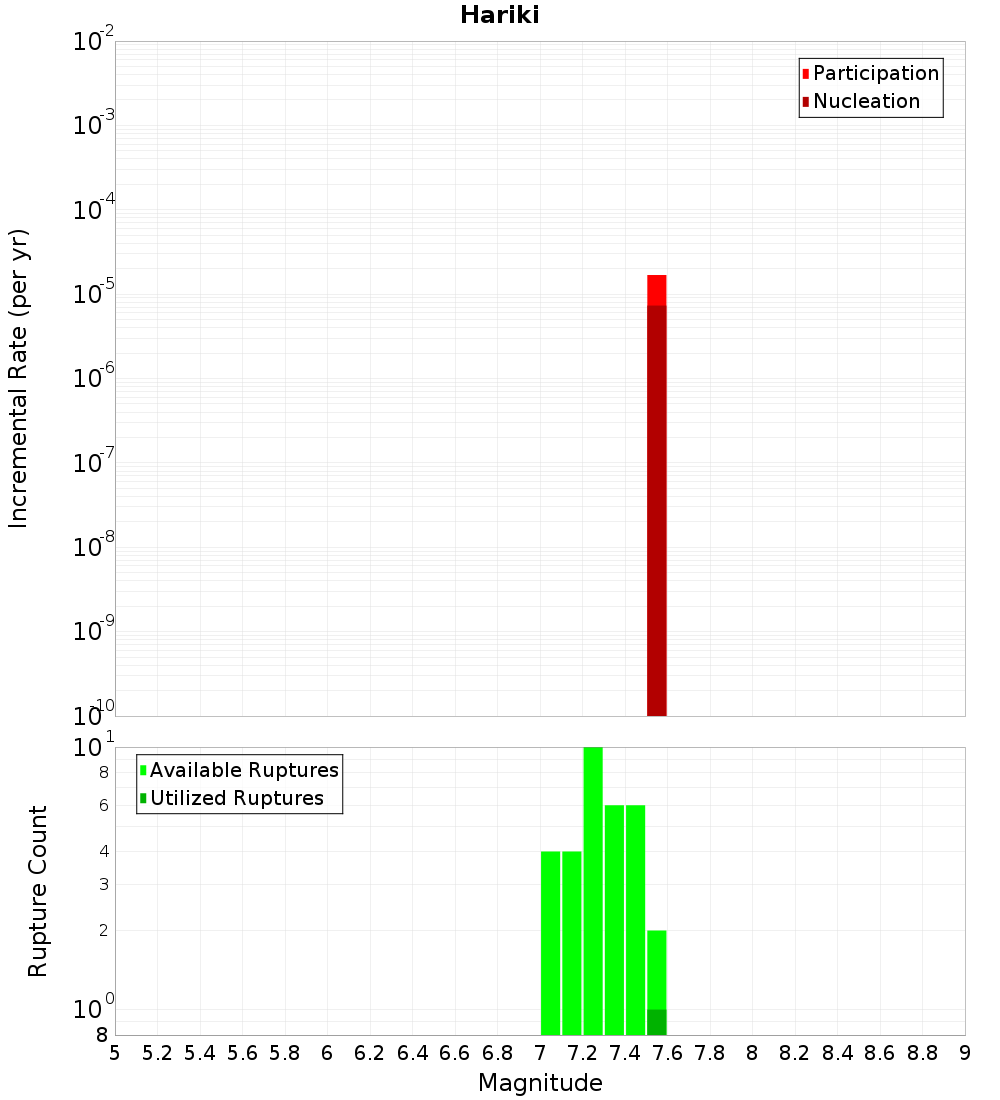

Magnitude-Frequency Distribution

Incremental	Cumulative

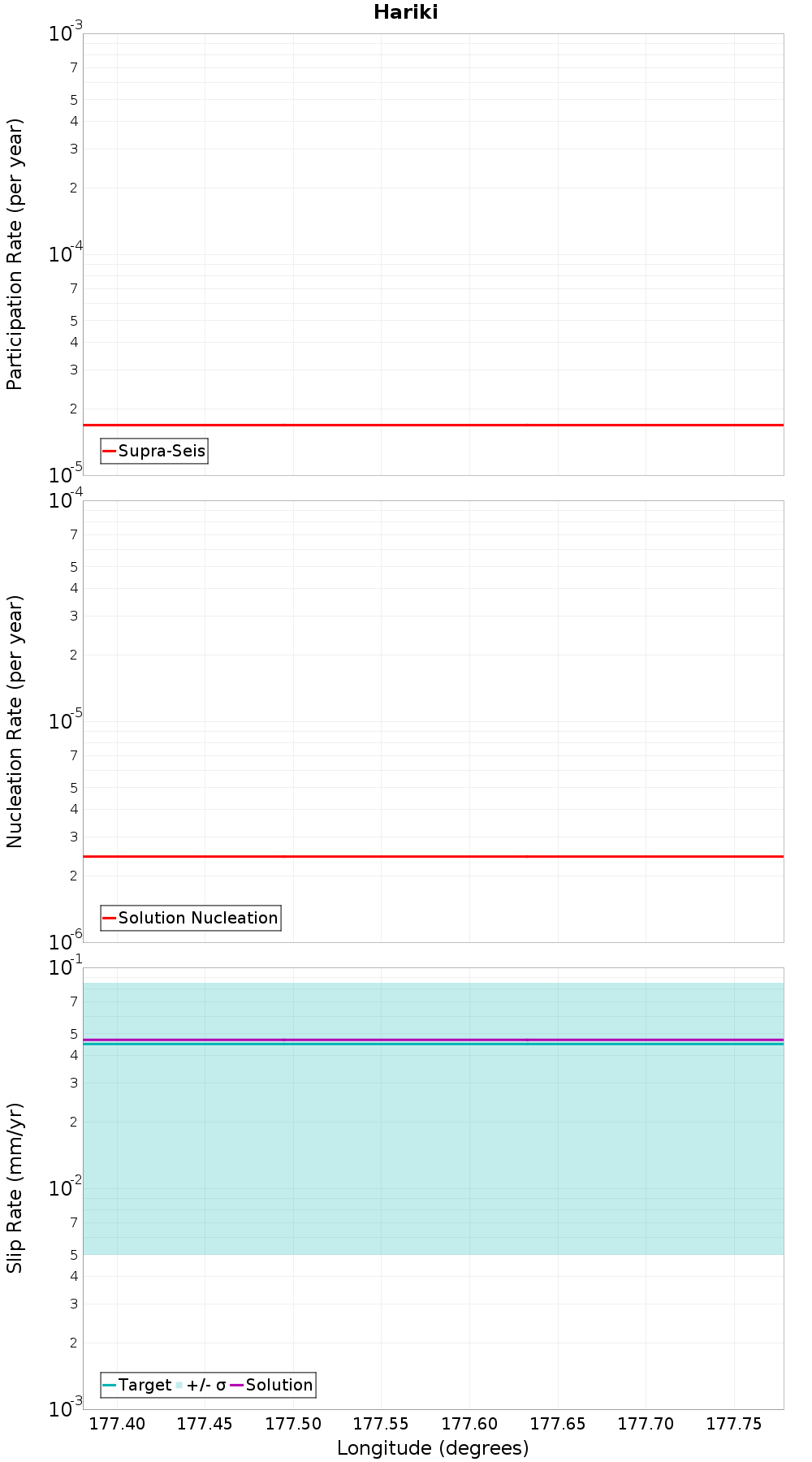

Along-Strike Values

Moment-Rates and b-Values

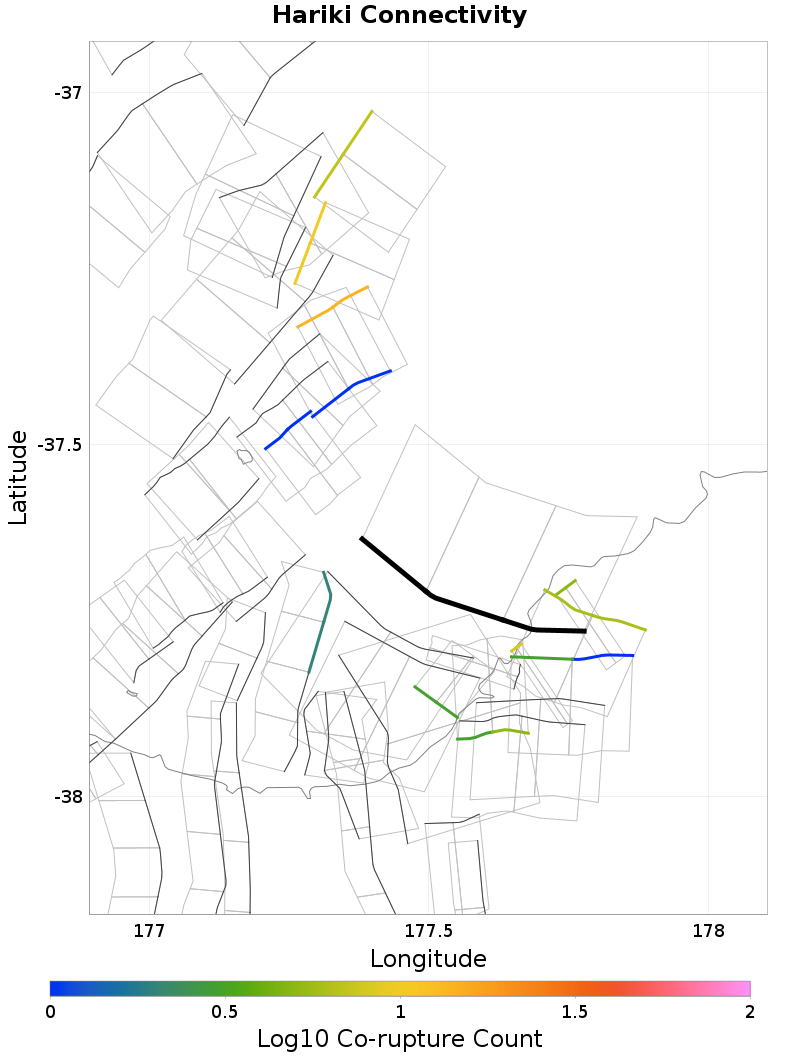

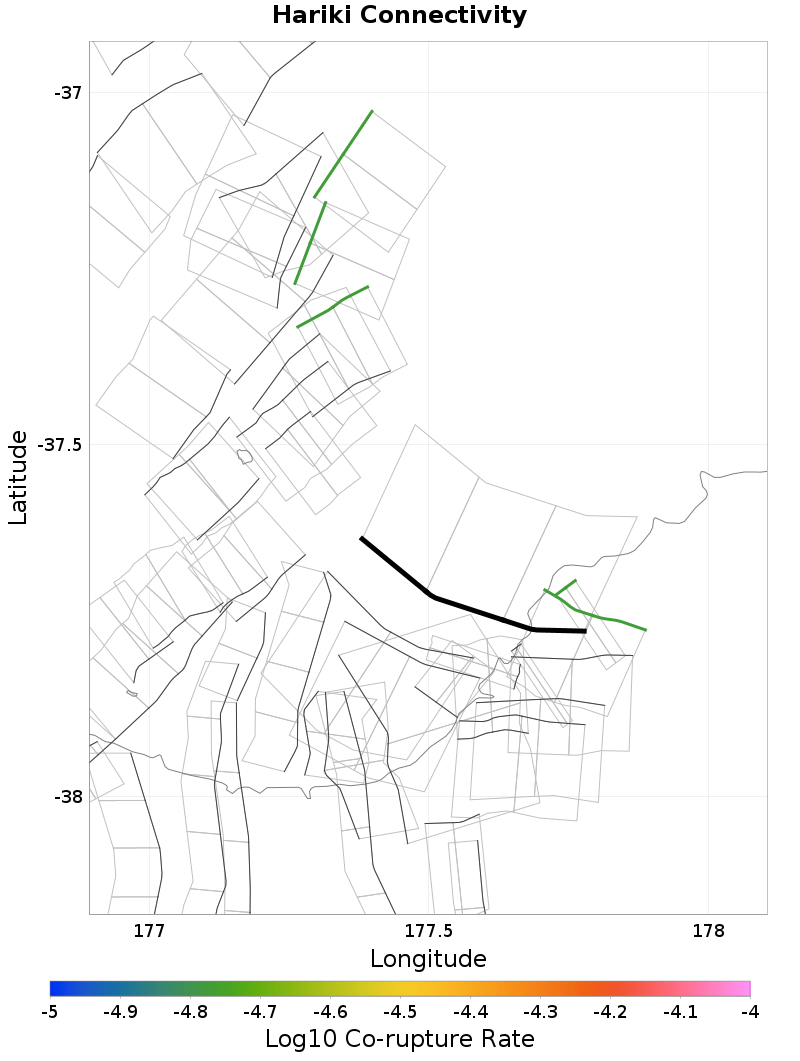

Connectivity

Nearby Sections

Fault Section	Fault Section
Kereu, 0.32 km away	Motu River, 10.75 km away
Raukumara 24, 0.34 km away	Te Arawa 3, 11.17 km away
Raukumara 25, 2.72 km away	Opape 1, 13.53 km away
Raukumara 21, 4.31 km away	Ohae 3, 13.58 km away
Tuatoru 1, 5.5 km away	Raukumara 18, 13.74 km away
Raukumara 20, 5.83 km away	Raukumara 17, 14.19 km away
Te Arawa 1, 6.43 km away	Ohiwa 1, 16.12 km away
Ohae 1, 7.15 km away	Whakaari 4, 17.81 km away
Opotiki 3, 8.05 km away	Otara East 1, 18.63 km away
White Island 2, 9.31 km away	Tuatoru 2, 18.73 km away
Ohae 2, 9.85 km away	Calypso 2, 18.86 km away
Te Arawa 2, 9.86 km away	Waimanawa - Waikaremoana, 19.19 km away

Kereu, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	1.6847878E-5

Raukumara 24, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	1.6847878E-5

Raukumara 25, 2.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	0.0

Raukumara 21, 4.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

Tuatoru 1, 5.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Raukumara 20, 5.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 1, 6.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 8.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

White Island 2, 9.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 9.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 2, 9.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 3, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	1.6847878E-5

Opape 1, 13.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 3, 13.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Raukumara 18, 13.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 17, 14.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Ohiwa 1, 16.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 17.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara East 1, 18.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	1.6847878E-5

Tuatoru 2, 18.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Calypso 2, 18.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 19.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
