Poutu Details
| Property | Value |
|---|---|
| Rupture Count | 30 |
| Ruptures Above Sect Min Mag | 12 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.33, 6.99] |
| Length Range | [13, 61] km |
| Total Rate | 1.1709368E-4 /yr |
| Multi-Fault Rate | 1.1709368E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

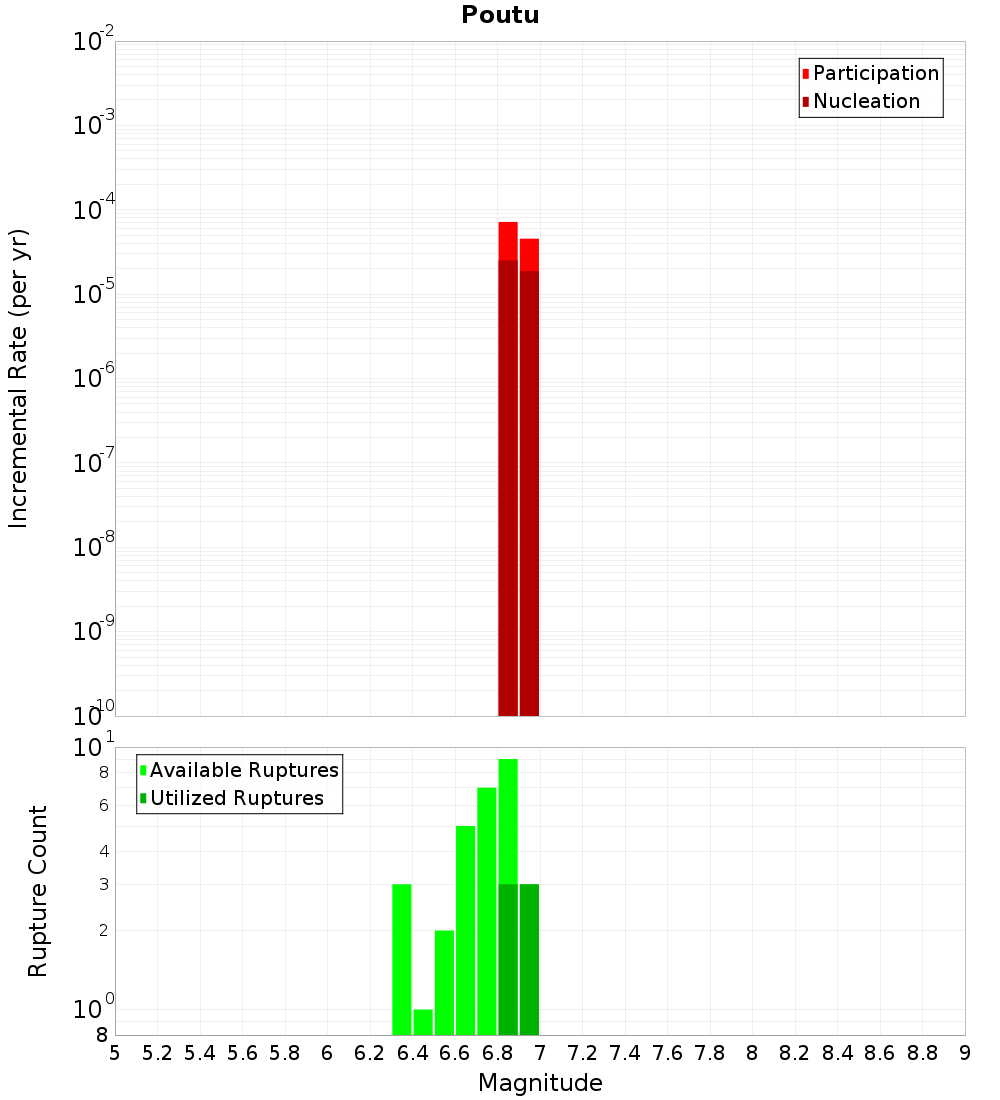

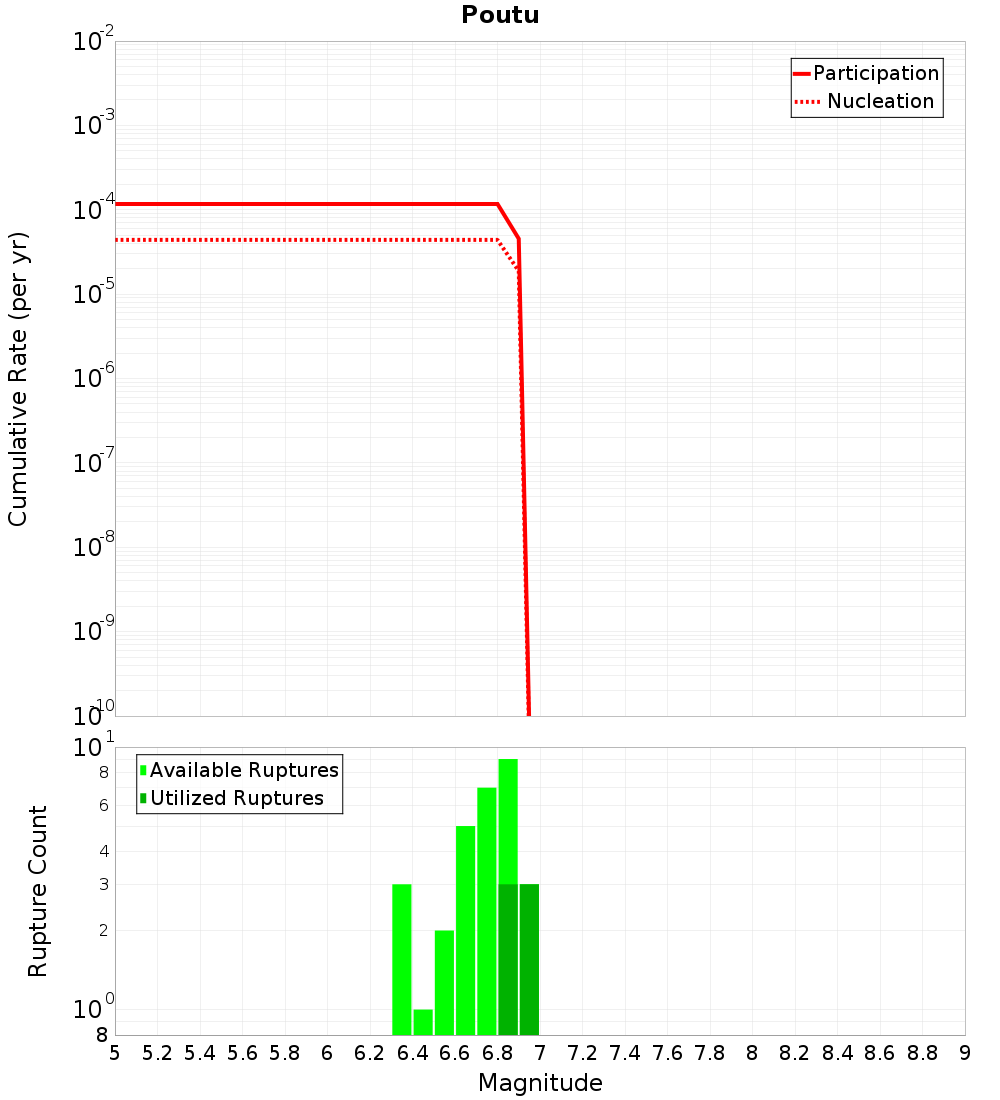

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

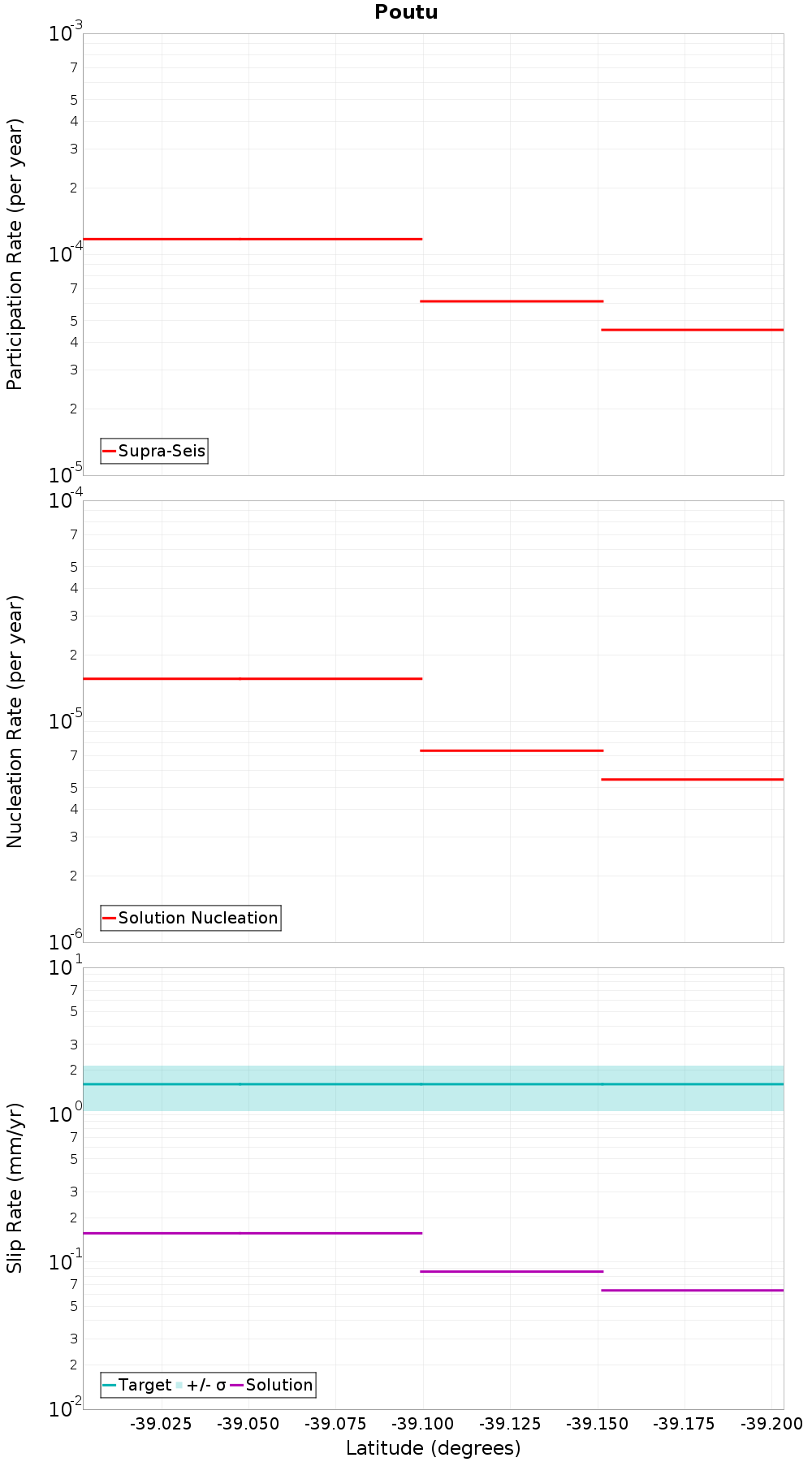

Along-Strike Values
Moment-Rates and b-Values

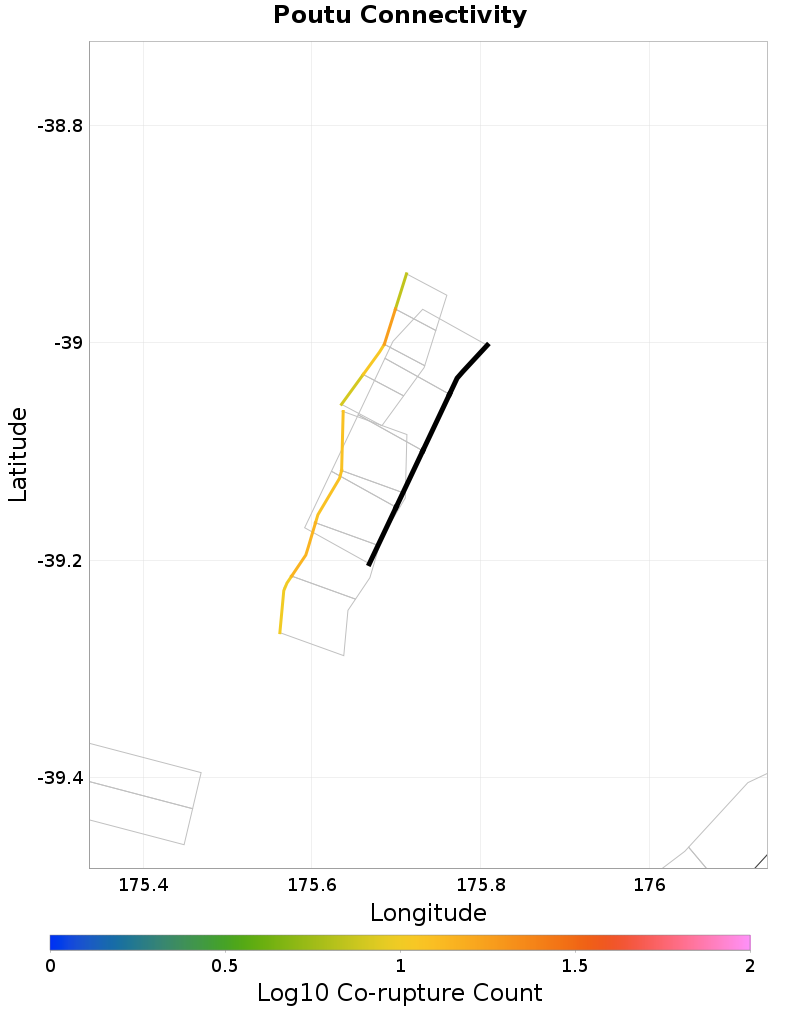

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waihi South, 0.3 km away |
| Waihi West, 0.44 km away |
Waihi South, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 1.1709368E-4 |
Waihi West, 0.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMEdBU01X | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 1.1709368E-4 |
