Wharekauhau Details

PropertyValue
Rupture Count6,417
Ruptures Above Sect Min Mag6,414
Ruptures w/ Nonzero Rates8
Magnitude Range[6.81, 8.46]
Length Range[20, 1,013] km
Total Rate0.0010785863 /yr
Multi-Fault Rate0.0010785863 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults127

Table Of Contents

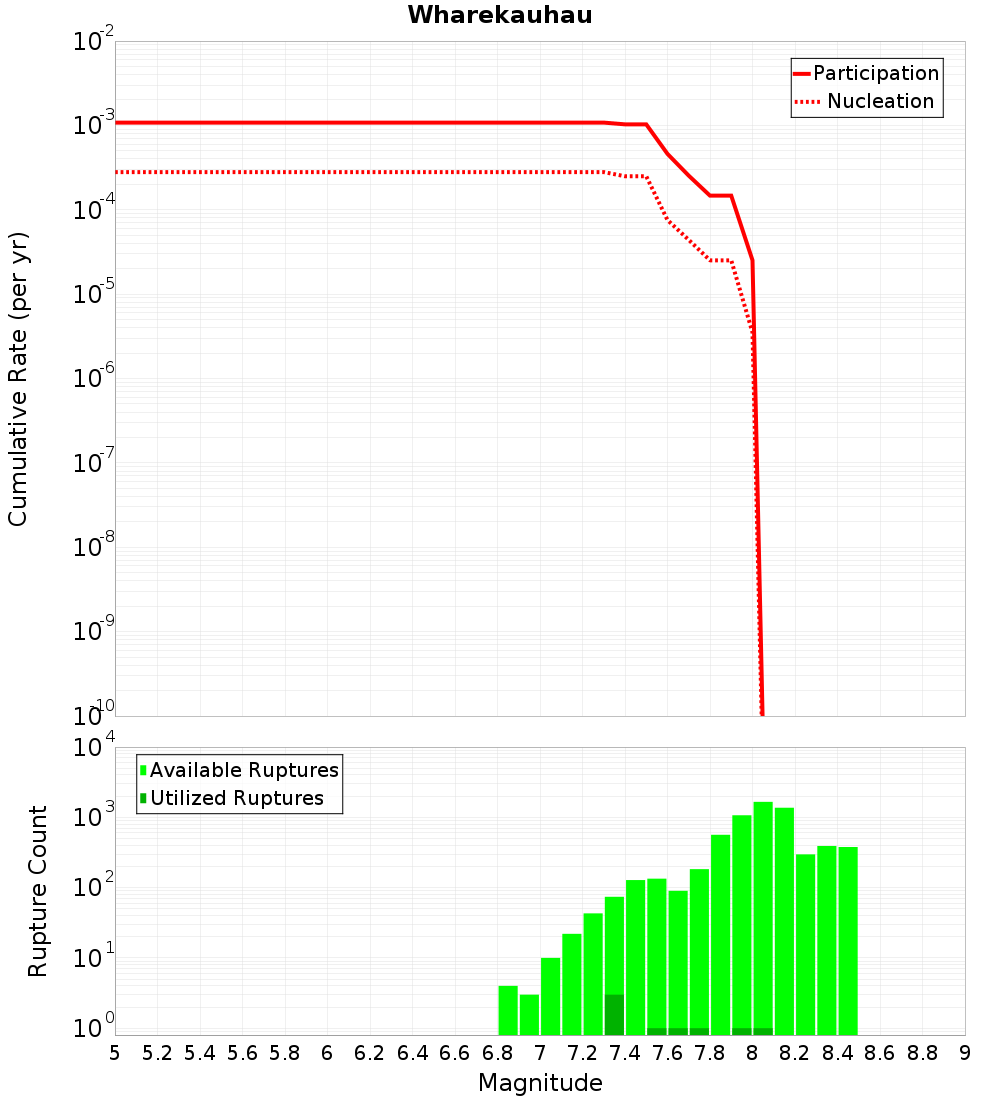

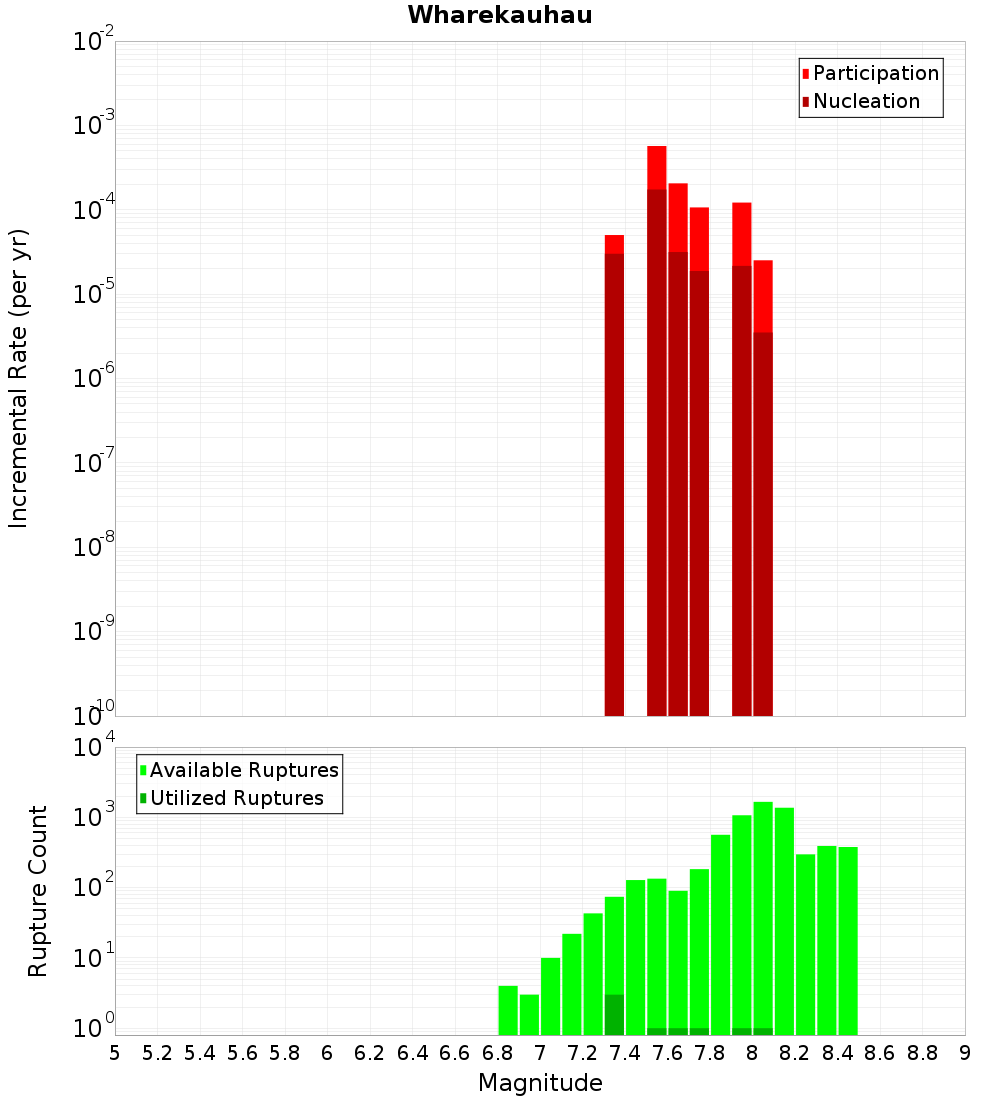

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

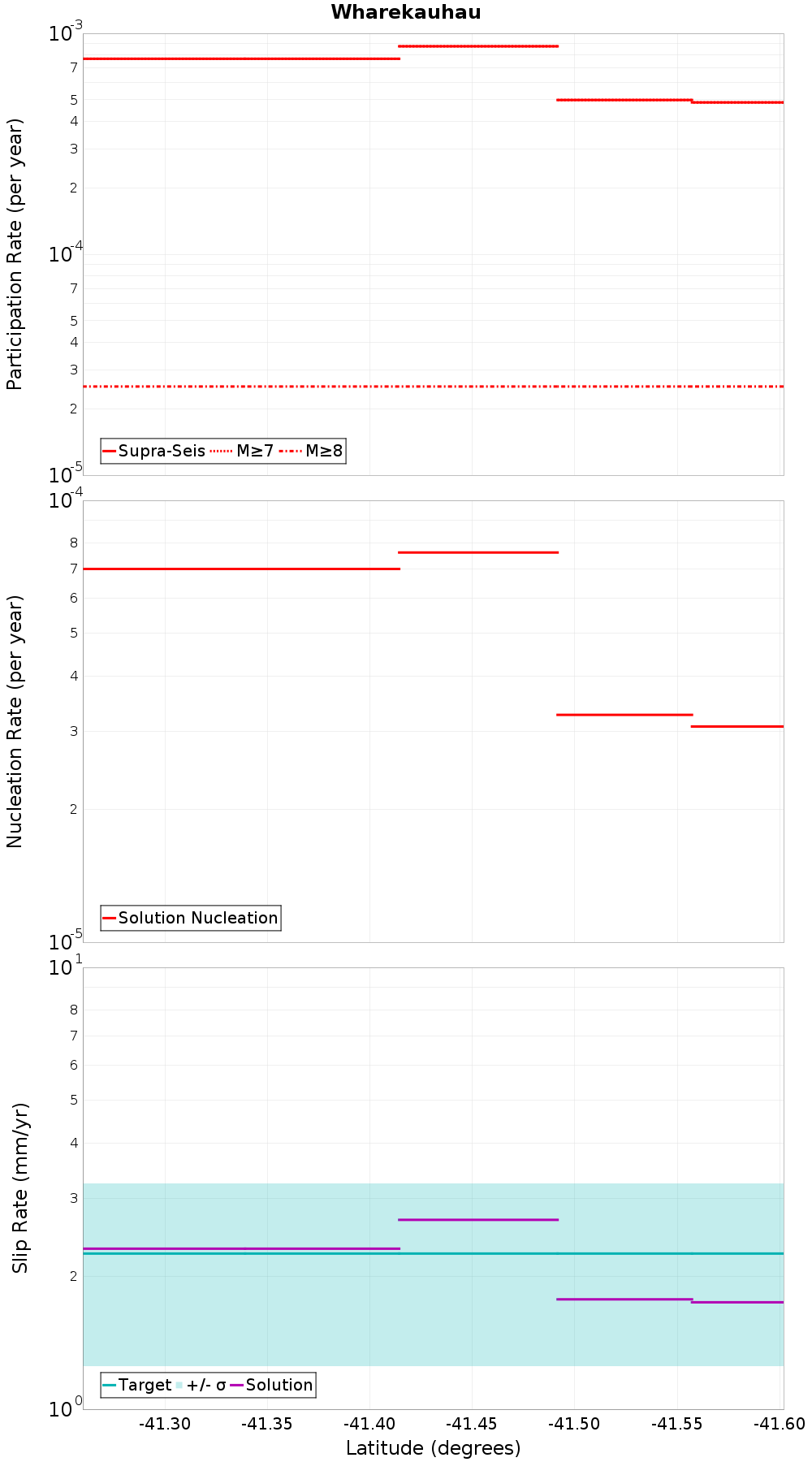

Along-Strike Values

(top)

Along-strike plot

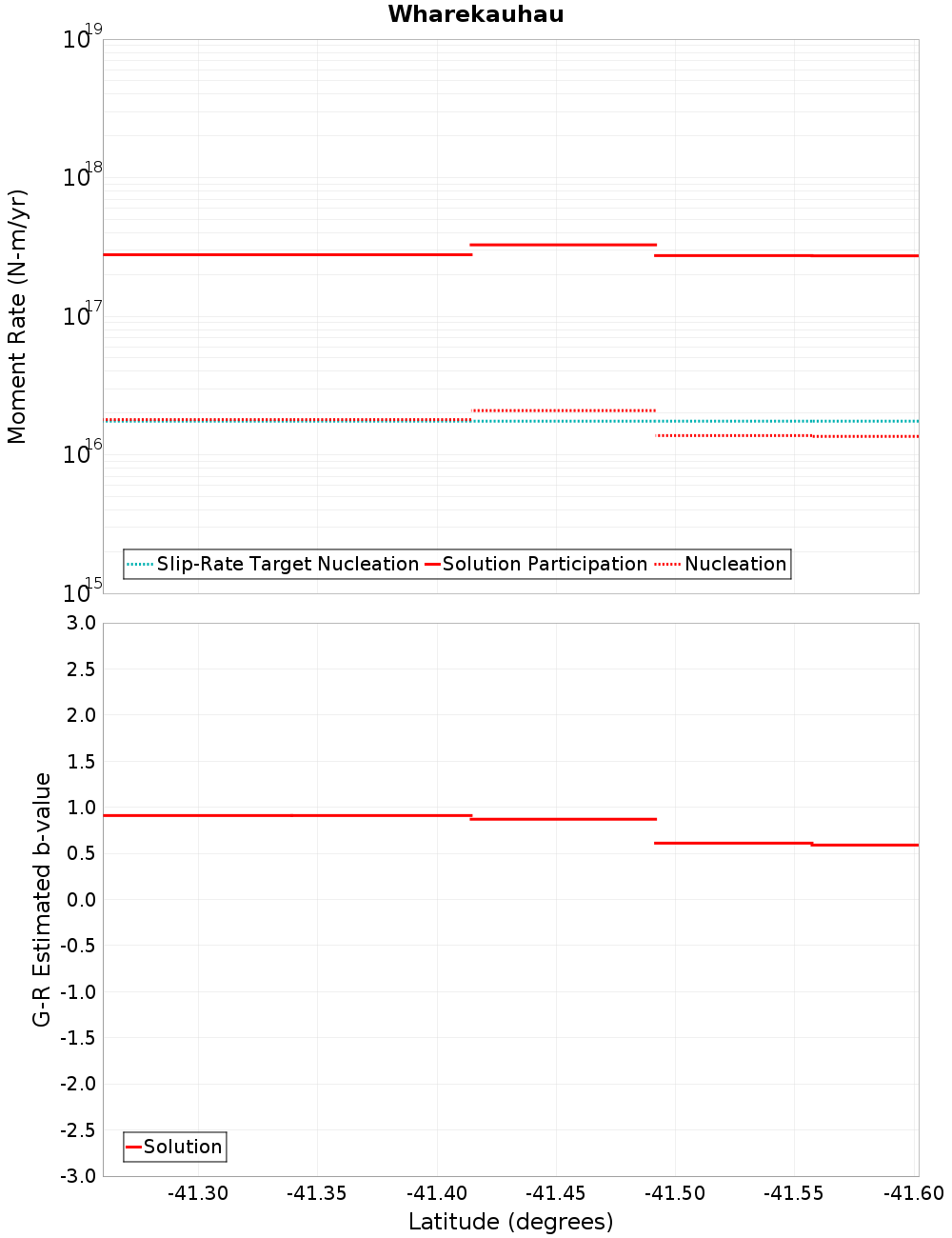

Moment-Rates and b-Values

(top)

Along-strike plot

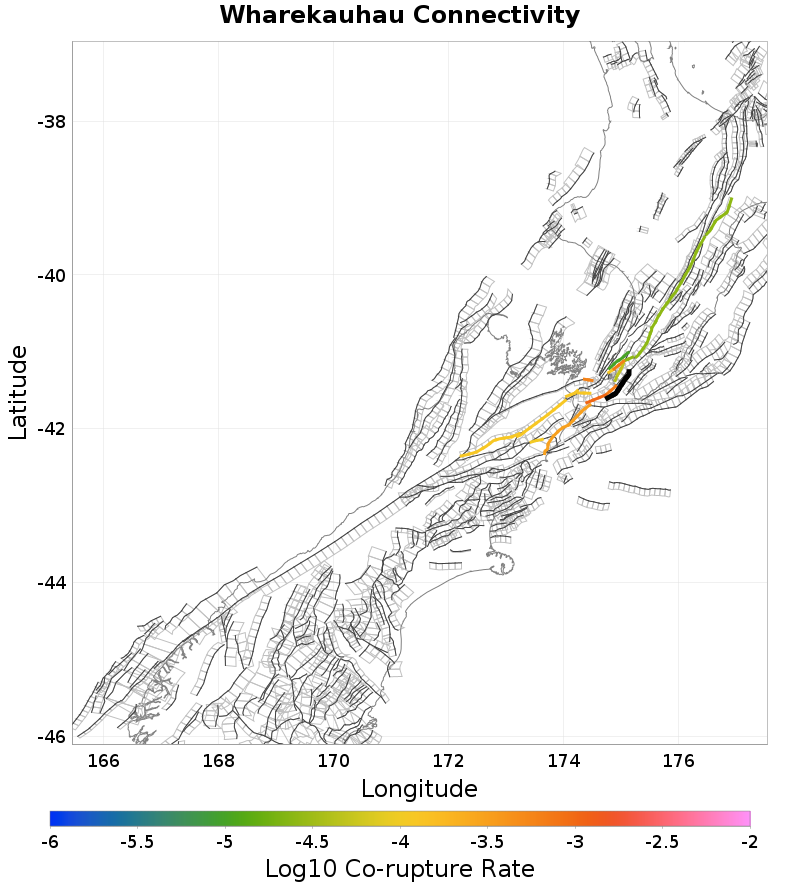

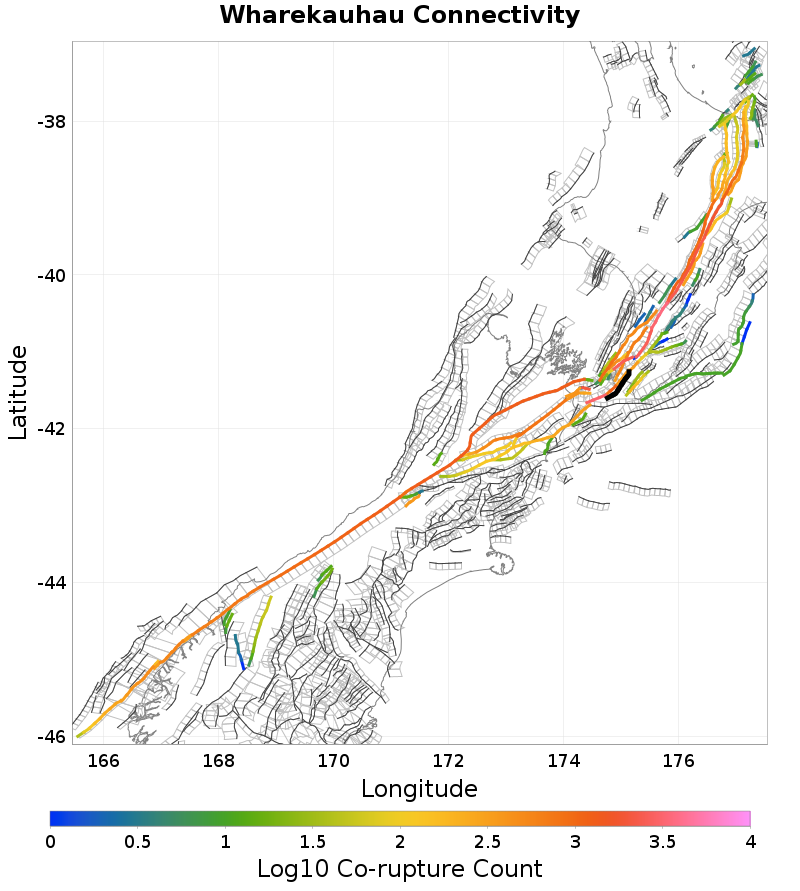

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 4, 0.09 km awayWairau 3, 11.5 km away
Aotea - Evans Bay, 0.17 km awayOtaraia, 12.78 km away
Wairarapa: 1, 0.2 km awayDry River - Huangarua: 1, 12.89 km away
Wairarapa: Needles, 0.3 km awayPukerua - Shepherds Gully: 3, 13.66 km away
Wairarapa: 2, 1.38 km awayCampbell Bank, 13.94 km away
Whitemans Valley, 3.03 km awayOhariu South 2, 15.14 km away
Wellington Hutt Valley: 5, 4.2 km awayPukerua - Shepherds Gully: 2, 15.16 km away
Moonshine, 4.93 km awayPukerua - Shepherds Gully: 1, 15.16 km away
Akatarawa, 6.44 km awayOhariu South 1, 16.29 km away
Wellington Hutt Valley: 3, 7.29 km awayCloudy 3, 16.55 km away
Wellington Hutt Valley: 2, 8.44 km awayVernon 4, 17.31 km away
Ohariu, 10.05 km awayBidwill, 17.72 km away
BooBoo, 10.67 km awayMartinborough, 19.44 km away
Wellington Hutt Valley: 1, 11.26 km away

Wellington Hutt Valley: 4, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count2,640
Co-rupture Rate7.1626017E-4

Aotea - Evans Bay, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate0.0

Wairarapa: 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count1,165
Co-rupture Rate6.7600986E-4

Wairarapa: Needles, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count3,060
Co-rupture Rate0.0010284188

Wairarapa: 2, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count331
Co-rupture Rate0.0

Whitemans Valley, 3.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count552
Co-rupture Rate5.0167473E-5

Wellington Hutt Valley: 5, 4.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count2,415
Co-rupture Rate2.5177385E-5

Moonshine, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count497
Co-rupture Rate9.942581E-6

Akatarawa, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count611
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 7.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Wellington Hutt Valley: 2, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Ohariu, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count1,013
Co-rupture Rate0.0

BooBoo, 10.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate5.9460575E-4

Otaraia, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate0.0

Dry River - Huangarua: 1, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?true
Co-rupture Count207
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 3, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate0.0

Campbell Bank, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 2, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Ohariu South 1, 16.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 16.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count2,023
Co-rupture Rate0.0

Vernon 4, 17.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?true
Directly Connected?false
Co-rupture Count277
Co-rupture Rate1.2165438E-4

Bidwill, 17.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Martinborough, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NDcuMHpMUmZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
