Otakiri Details

Property	Value
Rupture Count	13,955
Ruptures Above Sect Min Mag	13,912
Ruptures w/ Nonzero Rates	71
Magnitude Range	[6.19, 8.20]
Length Range	[10, 587] km
Total Rate	2.464119E-4 /yr
Multi-Fault Rate	2.464119E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	92

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

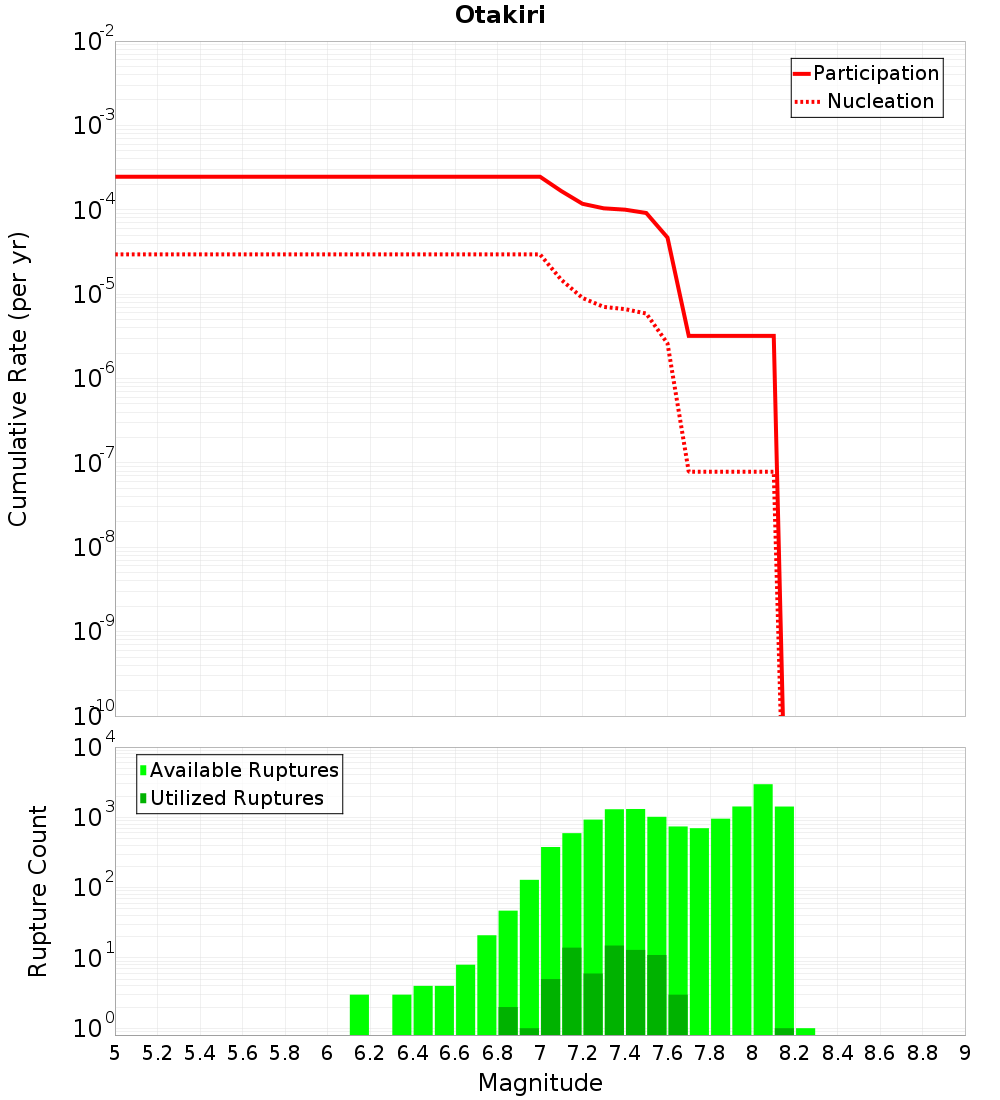

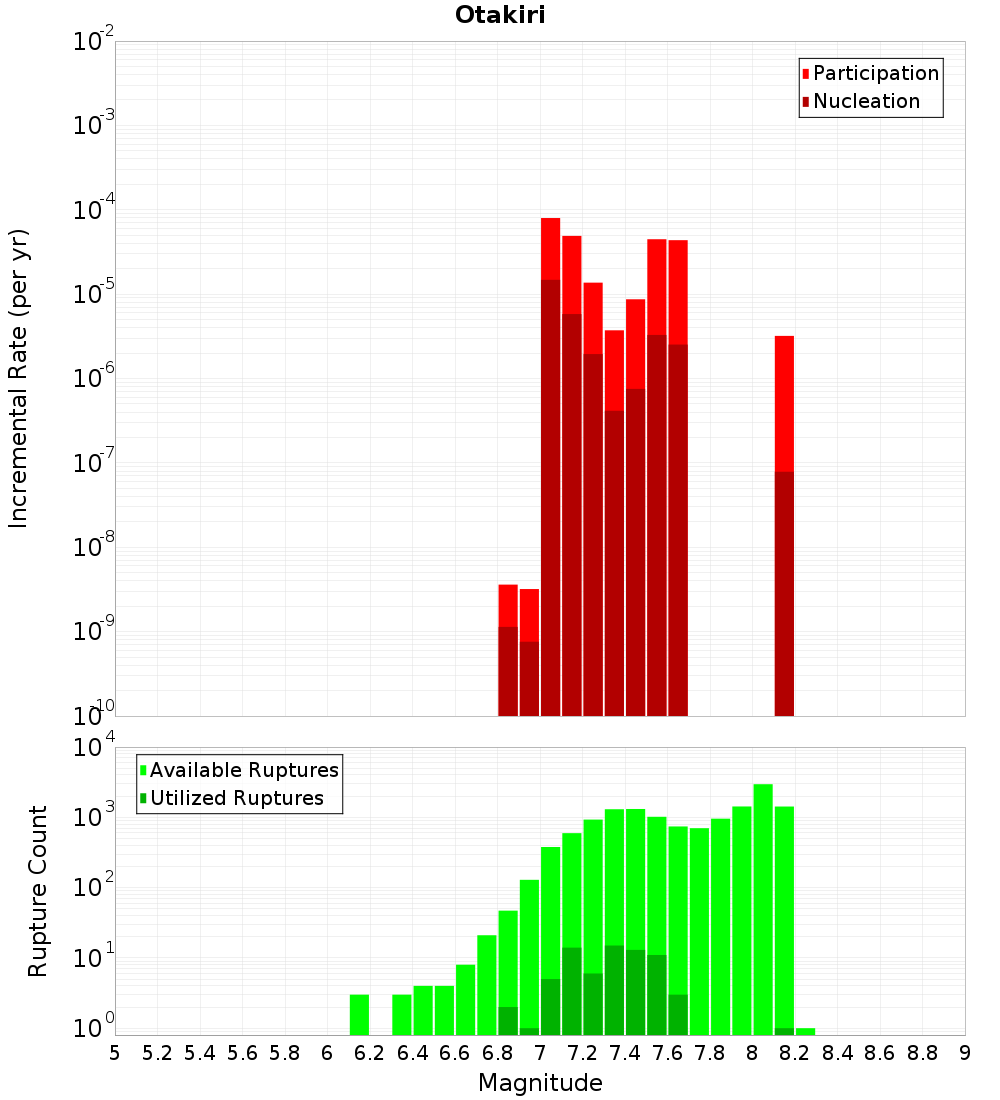

Magnitude-Frequency Distribution

Incremental	Cumulative

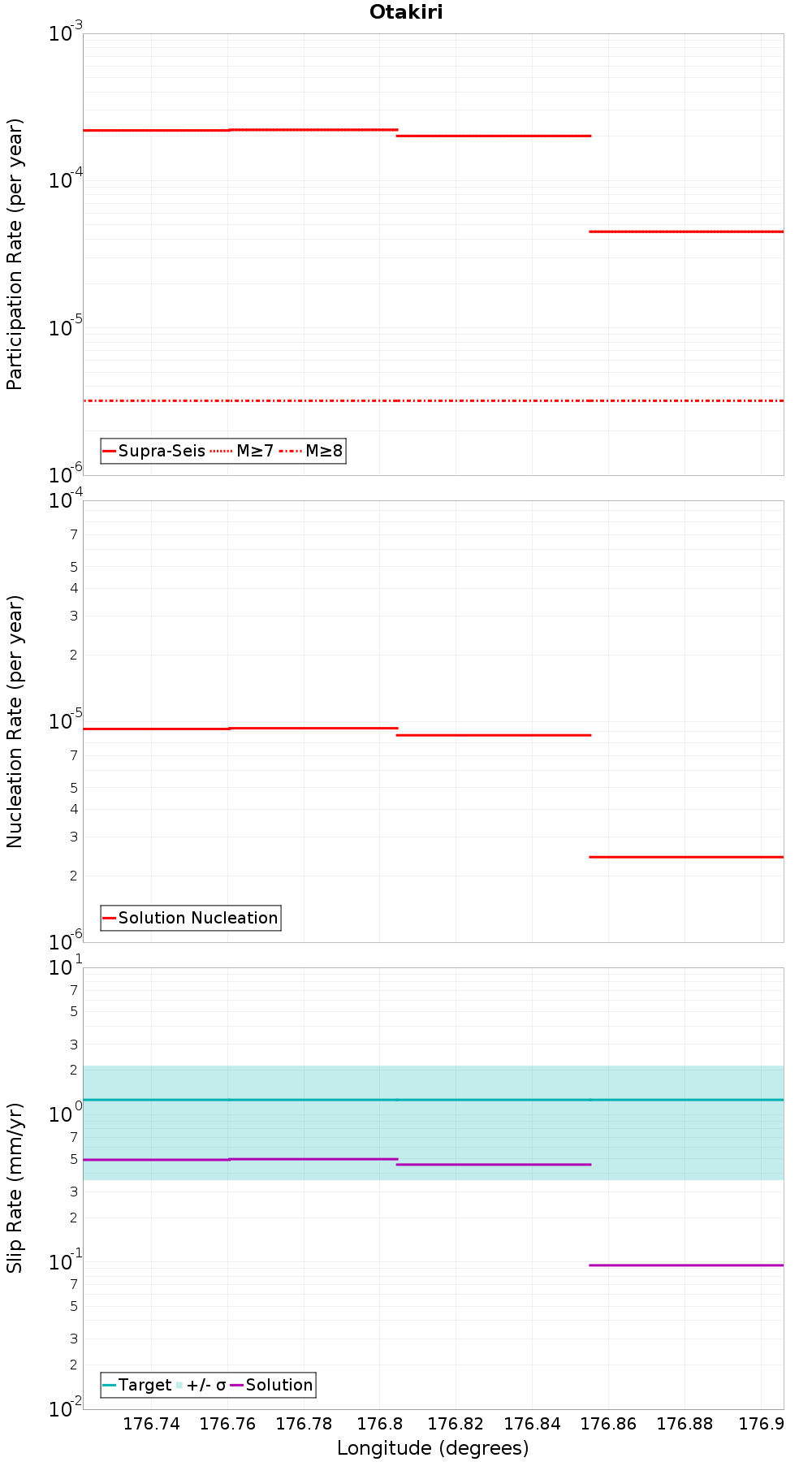

Along-Strike Values

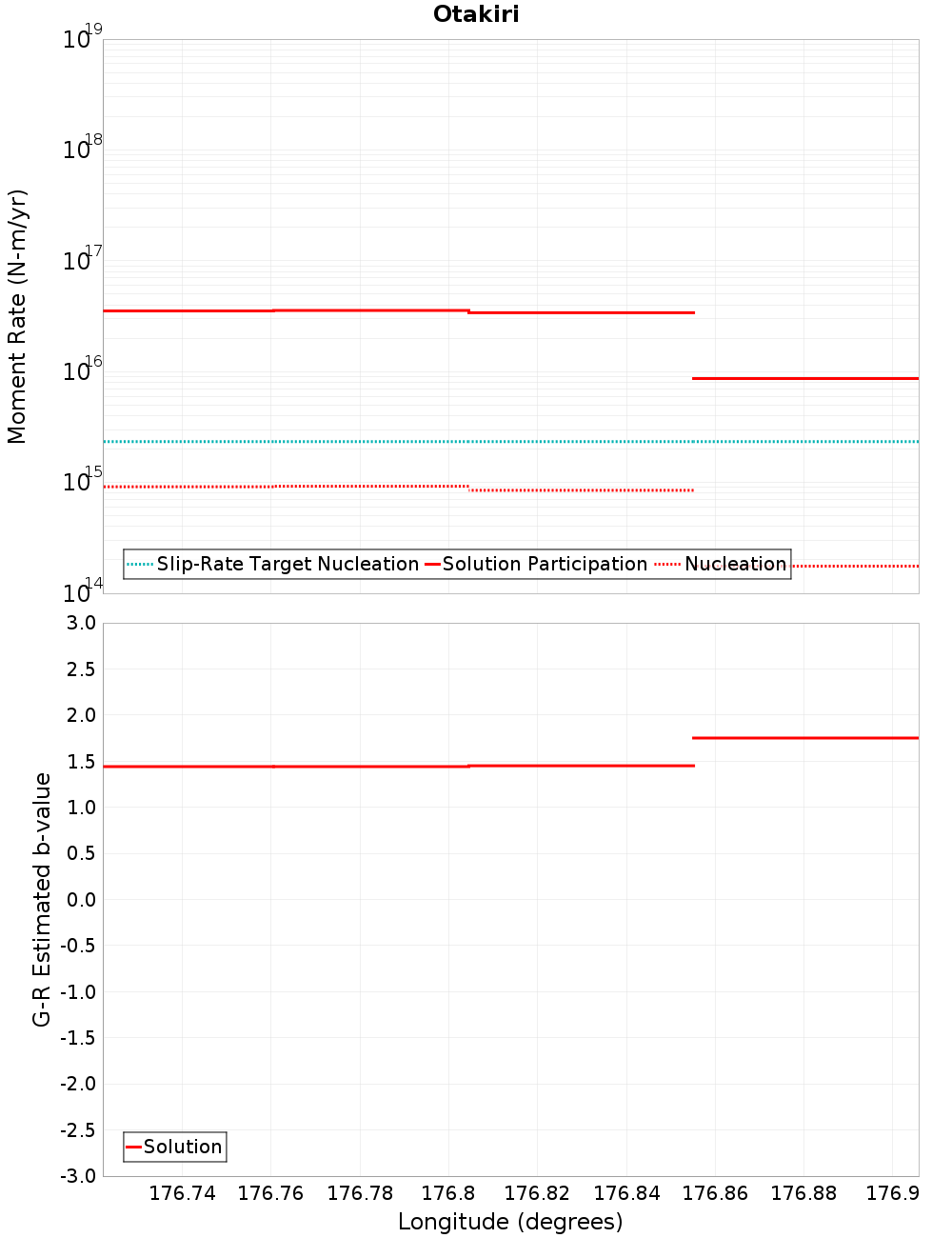

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awakeri, 0.16 km away
Edgecumbe 1987, 0.16 km away
Whakatane: North, 0.27 km away
Waiohau: North, 0.34 km away
Edgecumbe Coastal, 0.37 km away
Braemar, 0.69 km away
White Island 1, 2.46 km away
Matata, 4.47 km away
Rangitaiki 1, 10.94 km away
Waimana: North, 11.29 km away
Waiotahi: North, 16.27 km away
Rangitaiki 2, 17.19 km away

Awakeri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	true
Co-rupture Count	797
Co-rupture Rate	0.0

Edgecumbe 1987, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	true
Co-rupture Count	504
Co-rupture Rate	4.4654138E-11

Whakatane: North, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	true
Co-rupture Count	298
Co-rupture Rate	8.616403E-6

Waiohau: North, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	true
Co-rupture Count	10,024
Co-rupture Rate	3.1995248E-6

Edgecumbe Coastal, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	true
Co-rupture Count	2,282
Co-rupture Rate	9.0217625E-5

Braemar, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	true
Co-rupture Count	2,523
Co-rupture Rate	2.2340208E-4

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	true
Co-rupture Count	11,397
Co-rupture Rate	9.585954E-5

Matata, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	true
Co-rupture Count	120
Co-rupture Rate	2.1120281E-6

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	false
Co-rupture Count	104
Co-rupture Rate	8.078633E-6

Waimana: North, 11.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	false
Co-rupture Count	110
Co-rupture Rate	0.0

Waiotahi: North, 16.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NTAuNTVac3BX
Connected?	true
Directly Connected?	false
Co-rupture Count	2,182
Co-rupture Rate	7.764884E-5
