Ohena 4 Details

Property	Value
Rupture Count	21
Ruptures Above Sect Min Mag	18
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.77, 7.32]
Length Range	[21, 74] km
Total Rate	2.451926E-4 /yr
Multi-Fault Rate	2.451926E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	4

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

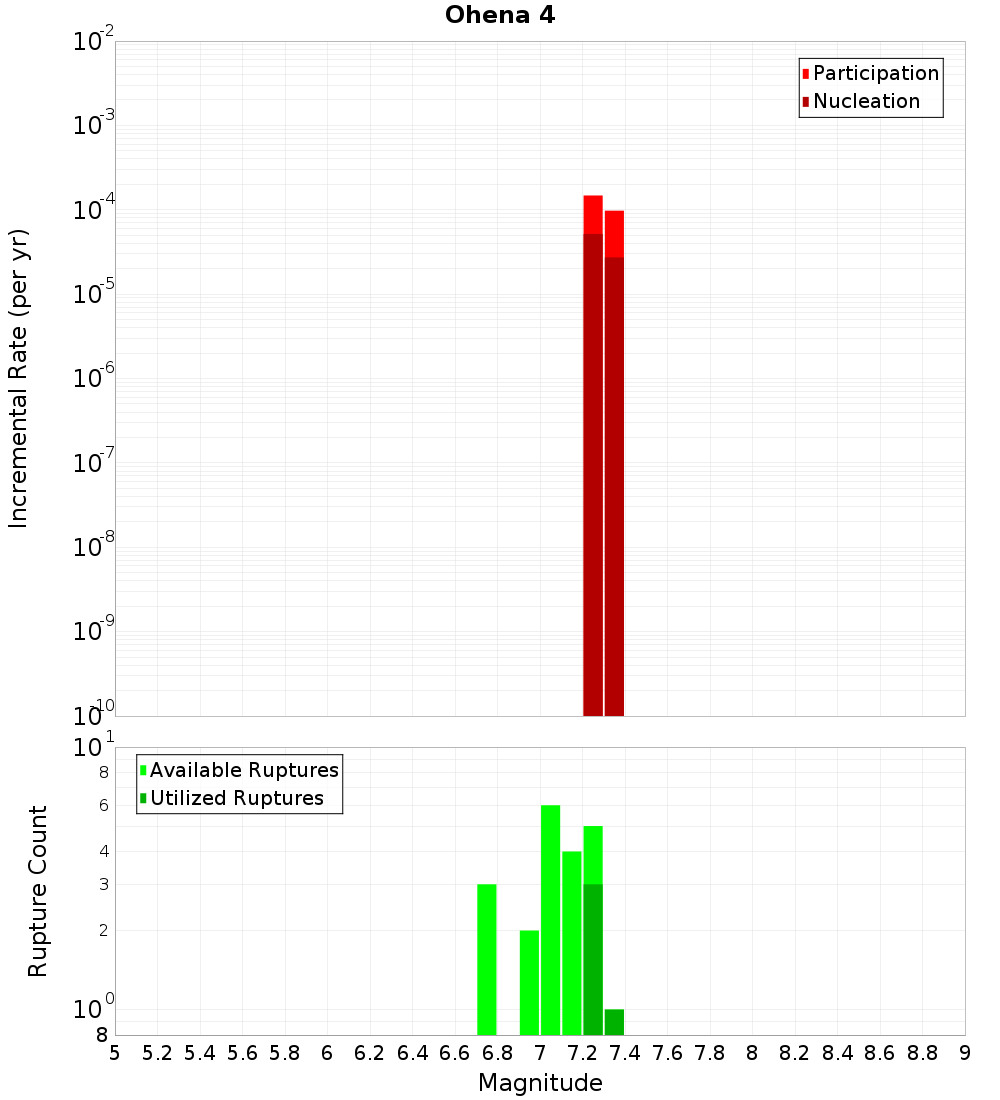

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

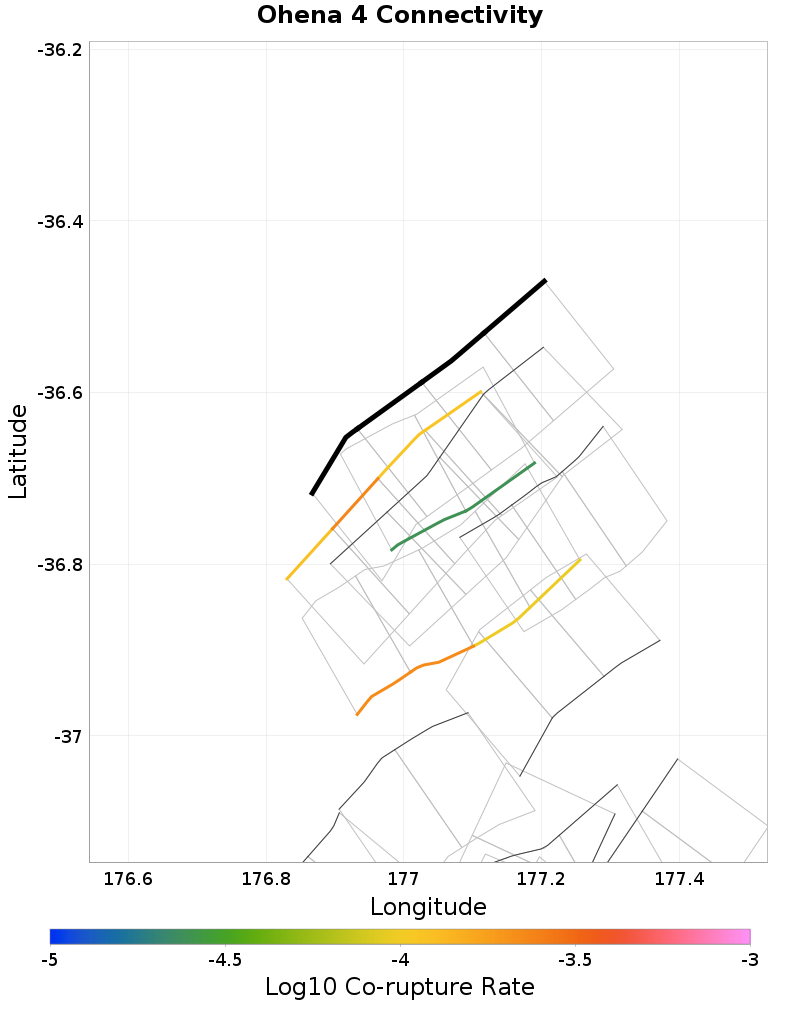

Connectivity

Nearby Sections

Fault Section
Ngatoro South 5, 0.28 km away
Tauranga Trough West 2, 0.37 km away
Ohena 3, 3.91 km away
Ohena 2, 4.58 km away
Tauranga Trough East 2, 14.1 km away
Ngatoro South 2, 14.7 km away

Ngatoro South 5, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	2.4409948E-5

Tauranga Trough West 2, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	2.2078268E-4

Ohena 3, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	2.3395267E-4

Ohena 2, 4.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Tauranga Trough East 2, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ngatoro South 2, 14.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
