Tuakana 7 Details

PropertyValue
Rupture Count168
Ruptures Above Sect Min Mag168
Ruptures w/ Nonzero Rates4
Magnitude Range[6.81, 7.74]
Length Range[21, 228] km
Total Rate3.5410904E-4 /yr
Multi-Fault Rate3.5410904E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults18

Table Of Contents

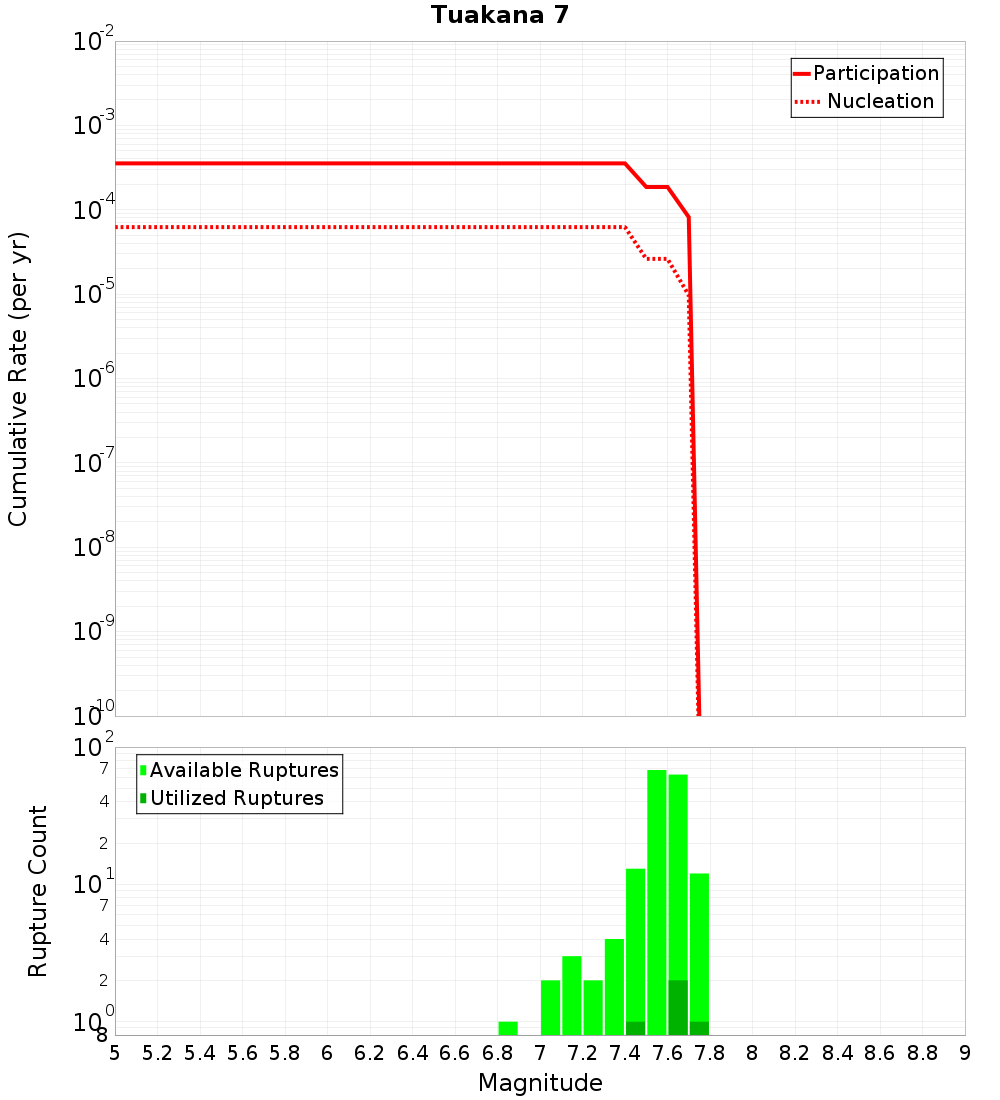

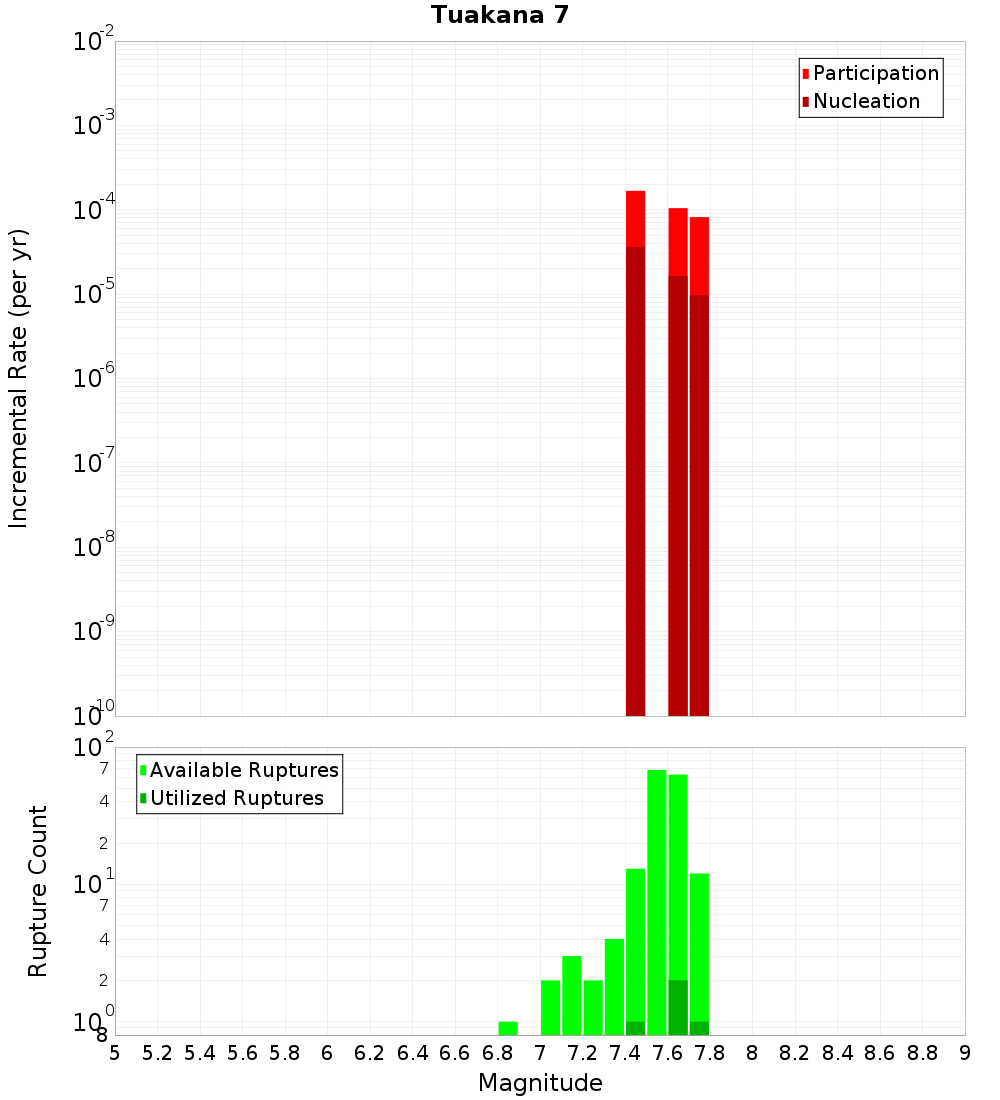

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

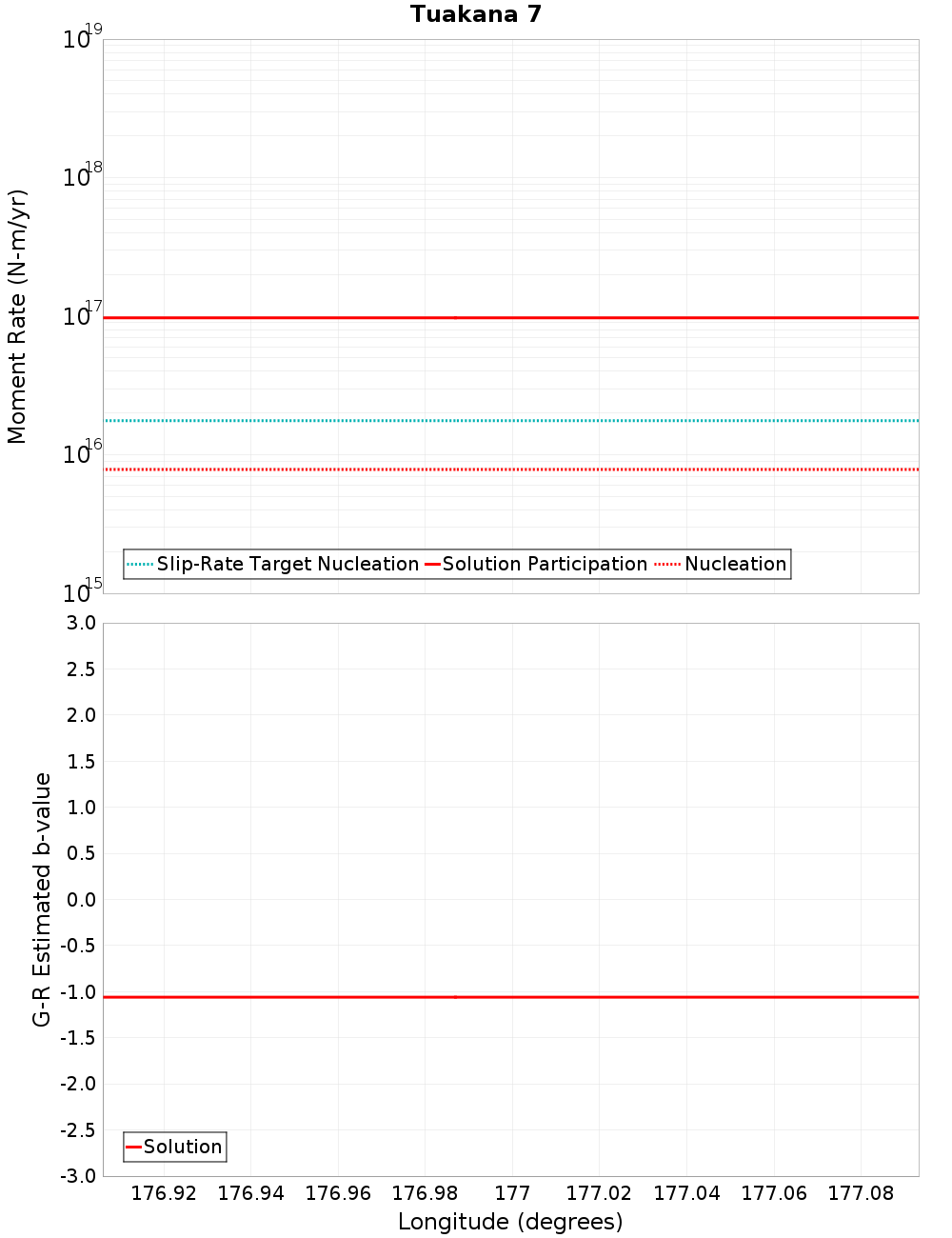

Moment-Rates and b-Values

(top)

Along-strike plot

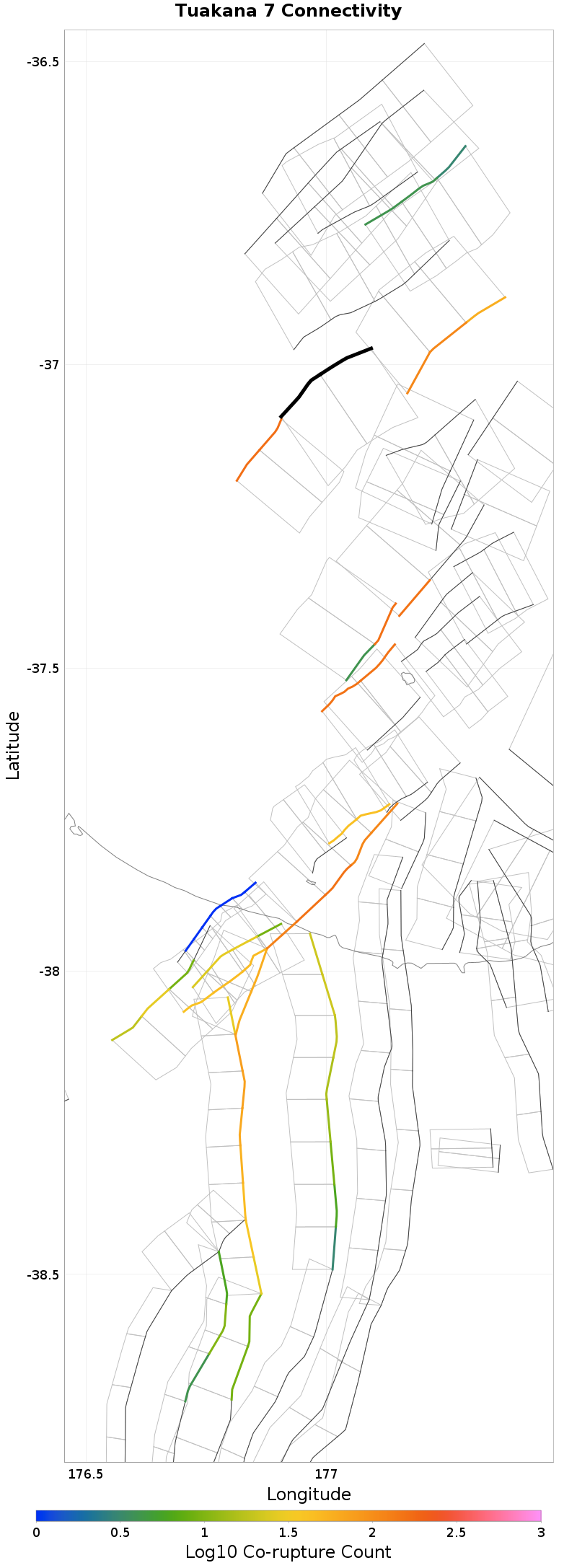

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Otara West 2, 0.31 km away
Tuakana 6, 0.35 km away
Tauranga Trough East 2, 0.52 km away
Otara West 1, 2.35 km away
Volkner 4, 5.78 km away
Tauranga Trough West 2, 6.47 km away
Volkner 3, 13.16 km away
Otara West 3, 14.61 km away
Ngatoro South 2, 19.02 km away
Ohena 2, 19.33 km away

Otara West 2, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 6, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate3.5410904E-4

Tauranga Trough East 2, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?true
Co-rupture Count112
Co-rupture Rate3.5410904E-4

Otara West 1, 2.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 5.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count155
Co-rupture Rate1.8629486E-4

Tauranga Trough West 2, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count159
Co-rupture Rate3.5410904E-4

Otara West 3, 14.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ngatoro South 2, 19.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.6781419E-4

Ohena 2, 19.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
