Wellington Hutt Valley: 1 Details

PropertyValue
Rupture Count2,082
Ruptures Above Sect Min Mag2,080
Ruptures w/ Nonzero Rates7
Magnitude Range[6.53, 8.40]
Length Range[12, 847] km
Total Rate4.487576E-4 /yr
Multi-Fault Rate4.487576E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults92

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

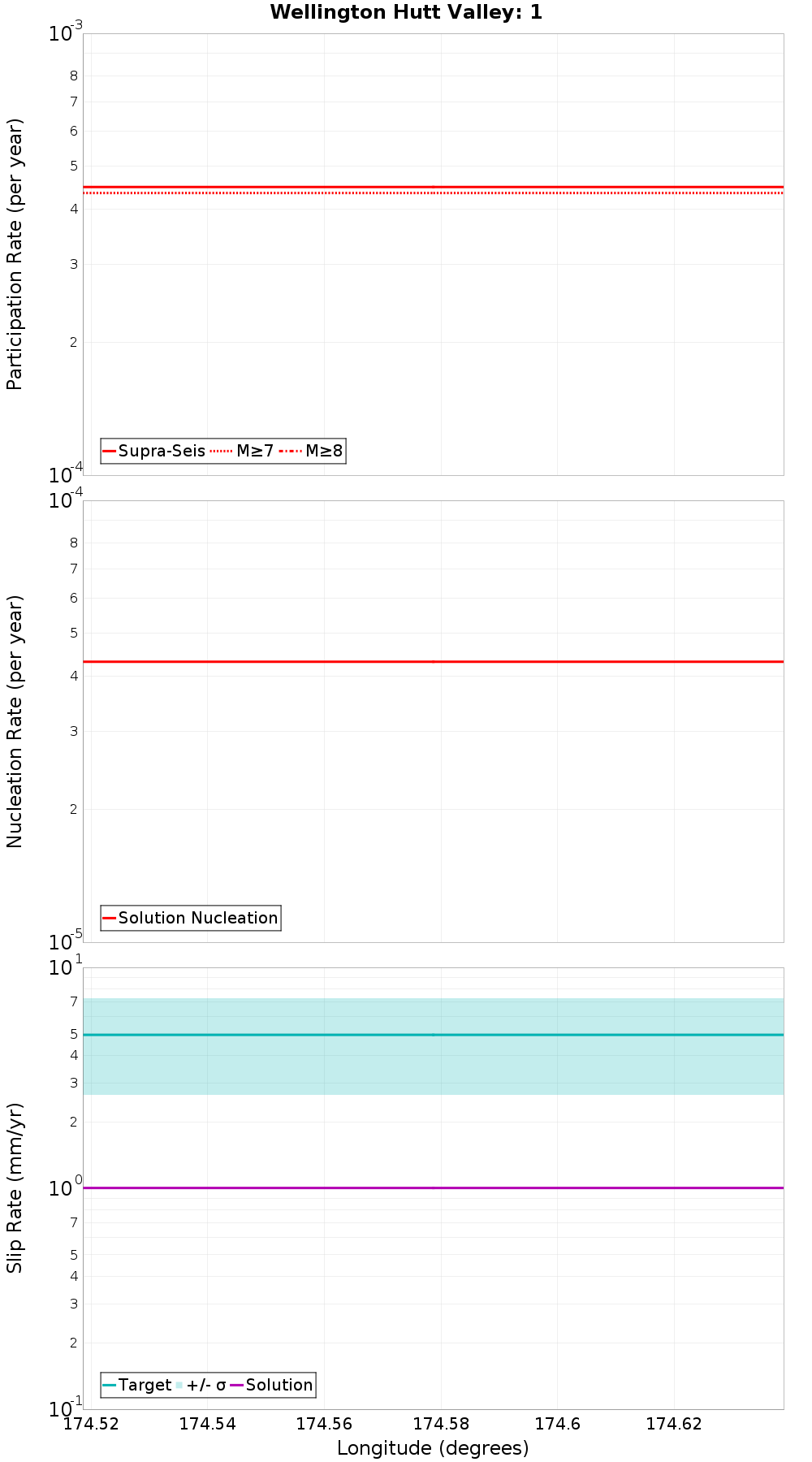

Along-Strike Values

(top)

Along-strike plot

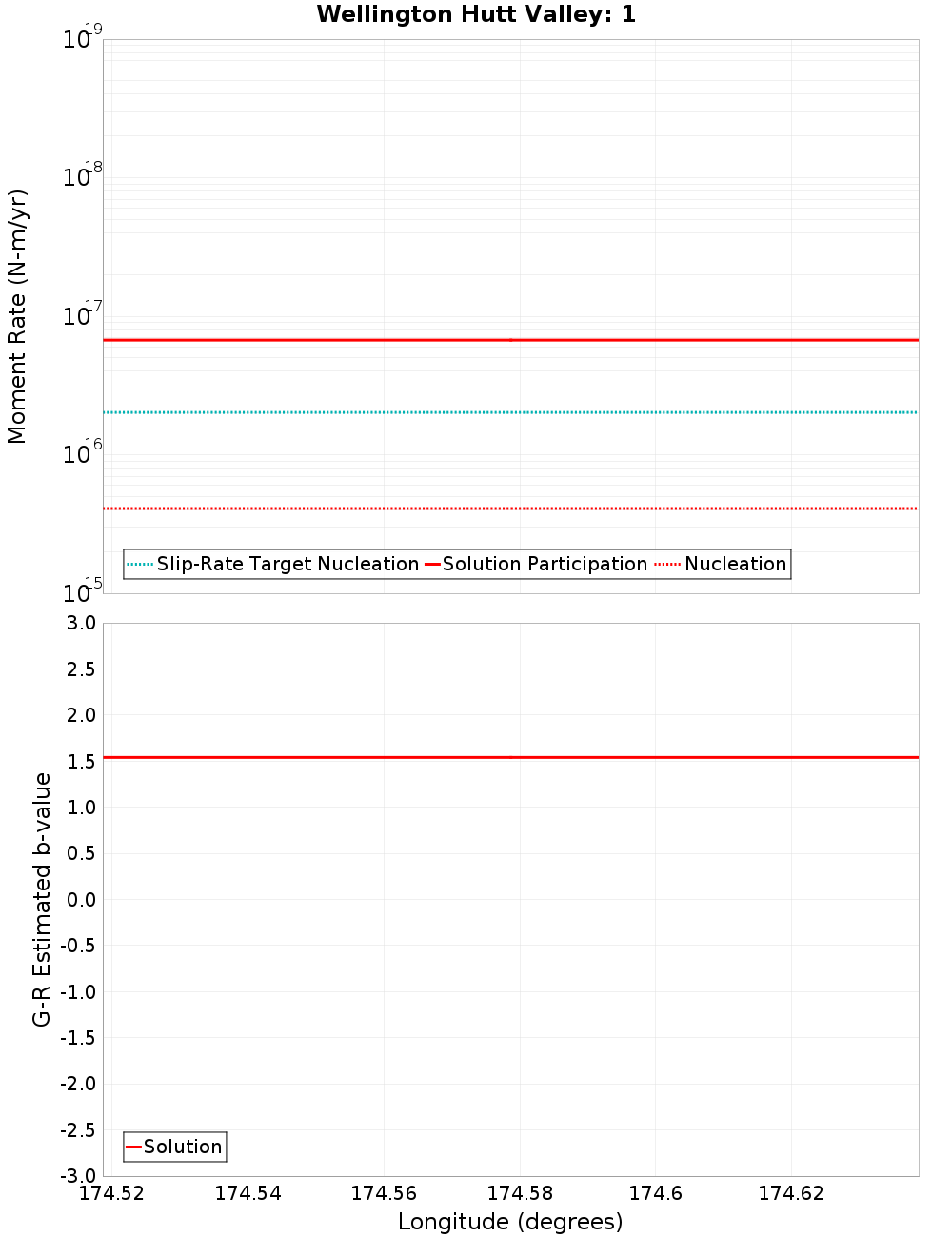

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 2, 0 km awayWharekauhau, 11.26 km away
Wairau 3, 1.05 km awayPukerua - Shepherds Gully: 2, 12.61 km away
Ohariu, 1.65 km awayAotea - Evans Bay, 13.15 km away
Ohariu South 2, 3.83 km awayOkupe 1, 14.1 km away
Ohariu South 1, 3.91 km awayWairarapa: Needles, 14.52 km away
Pukerua - Shepherds Gully: 1, 6.03 km awayCloudy 2, 14.75 km away
Cloudy 3, 6.71 km awayWhitemans Valley, 15.19 km away
Shepherds Gully - Mana, 8.35 km awayWairarapa: 1, 15.62 km away
Wairau 2, 8.4 km awayCloudy 1, 16.22 km away
Wellington Hutt Valley: 3, 8.44 km awayWellington Hutt Valley: 4, 19.11 km away
Vernon 4, 9.17 km awayPukerua - Shepherds Gully: 3, 19.99 km away

Wellington Hutt Valley: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 1.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 1.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?true
Co-rupture Count2,132
Co-rupture Rate2.1431837E-4

Ohariu South 2, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate0.0

Ohariu South 1, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 6.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Cloudy 3, 6.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Shepherds Gully - Mana, 8.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wairau 2, 8.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate9.4651434E-5

Vernon 4, 9.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Wharekauhau, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 2, 12.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count194
Co-rupture Rate0.0

Aotea - Evans Bay, 13.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wairarapa: Needles, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Cloudy 2, 14.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?true
Co-rupture Count1,048
Co-rupture Rate4.35137E-4

Whitemans Valley, 15.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairarapa: 1, 15.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 1, 16.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count902
Co-rupture Rate1.3049143E-4

Wellington Hutt Valley: 4, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count103
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 3, 19.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NjQuMEpScDJr
Connected?true
Directly Connected?false
Co-rupture Count284
Co-rupture Rate0.0
