Fox Peak Details

PropertyValue
Rupture Count31
Ruptures Above Sect Min Mag29
Ruptures w/ Nonzero Rates5
Magnitude Range[7.03, 7.81]
Length Range[28, 199] km
Total Rate4.1105022E-4 /yr
Multi-Fault Rate4.1105022E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults8

Table Of Contents

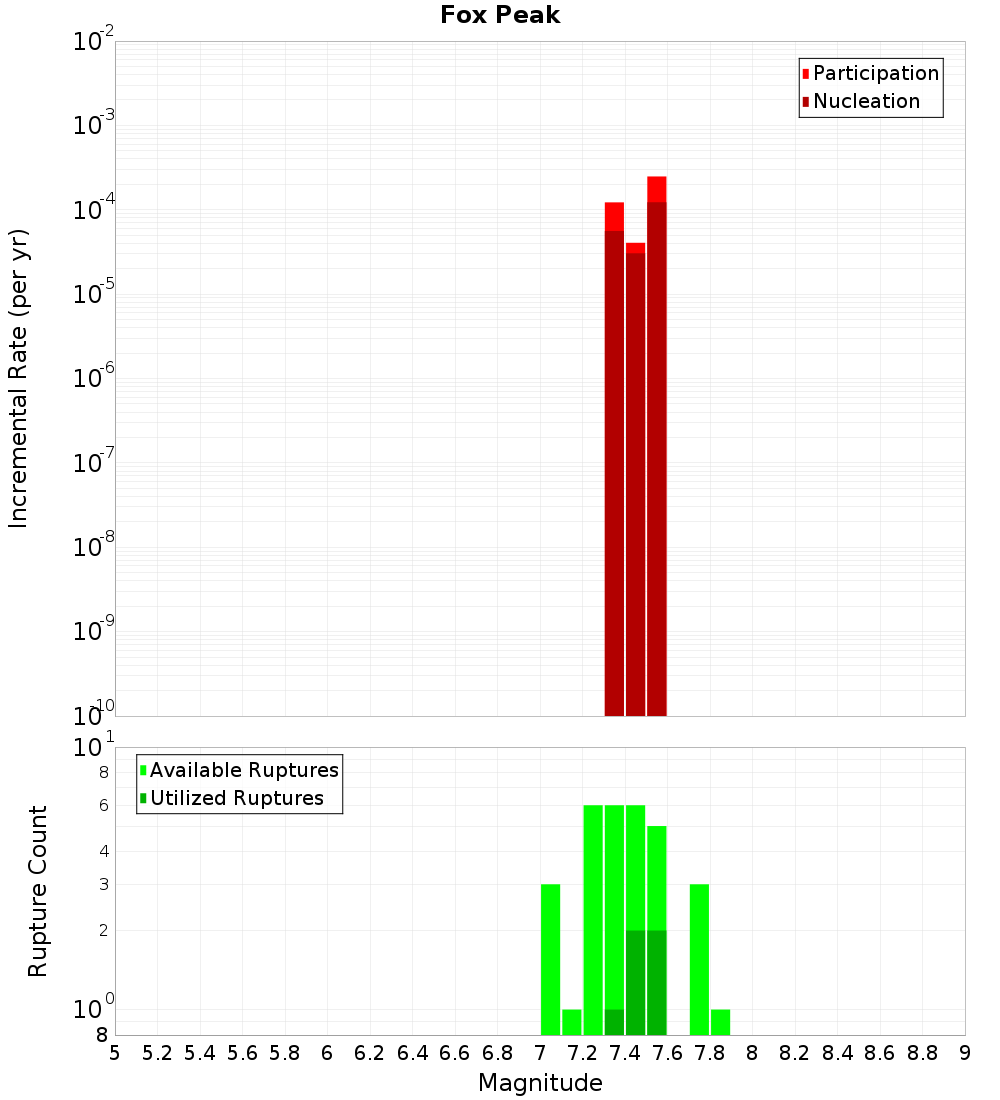

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

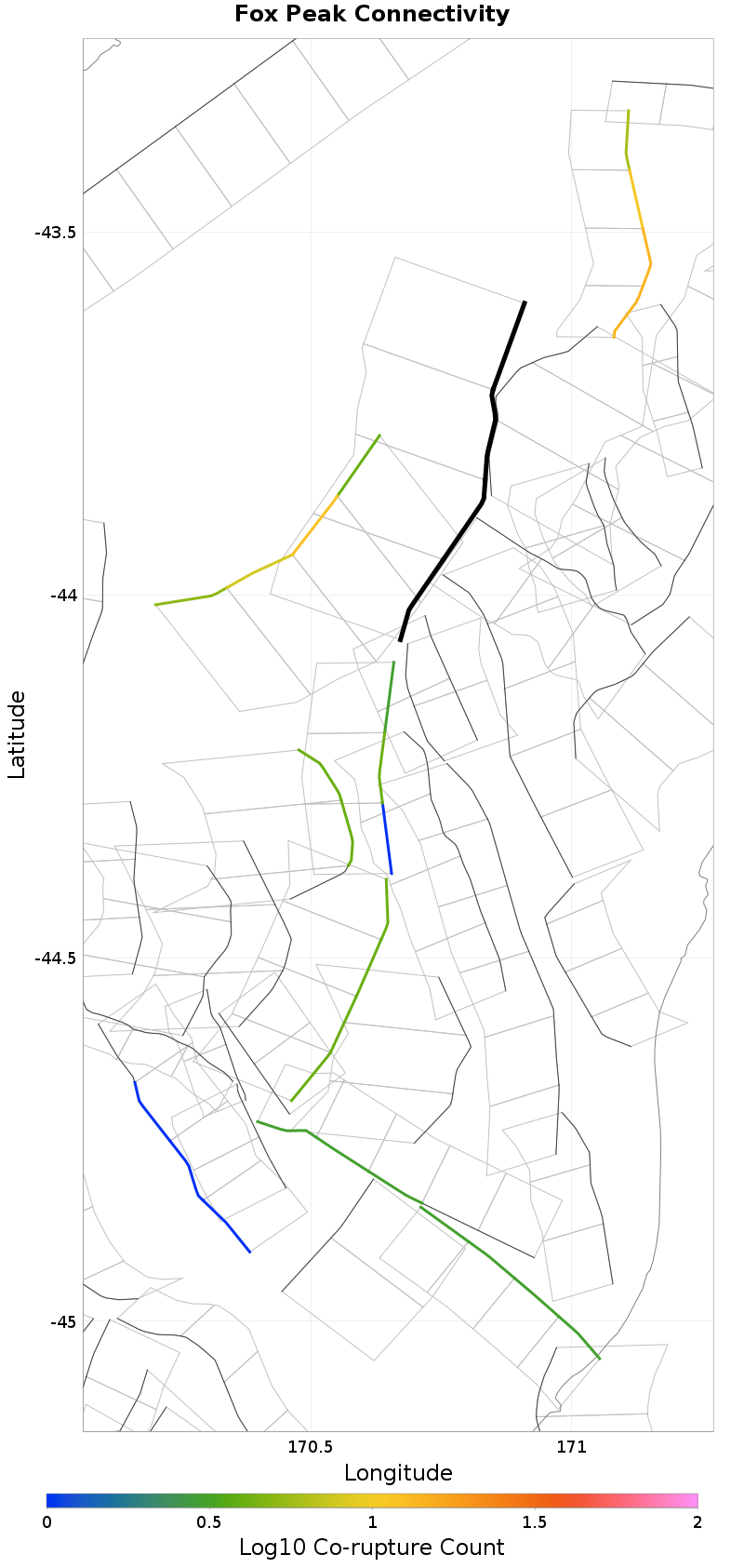

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Irishman Creek, 0.28 km away
Ben McLeod, 0.38 km away
Sugarloaf, 0.68 km away
Opawa, 1.29 km away
Brothers, 1.31 km away
Albury, 2.46 km away
Dalgety, 3.59 km away
Lake Heron, 13.35 km away
Catherine, 13.66 km away
Chamberlain, 14.1 km away
Edith, 16.42 km away

Irishman Creek, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate3.042688E-4

Ben McLeod, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sugarloaf, 0.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opawa, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Brothers, 1.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Albury, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dalgety, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate9.885489E-5

Lake Heron, 13.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate2.5601863E-4

Catherine, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chamberlain, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edith, 16.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5NzguMDd5S0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
