Kaiwara South Details

PropertyValue
Rupture Count88
Ruptures Above Sect Min Mag85
Ruptures w/ Nonzero Rates9
Magnitude Range[6.64, 7.65]
Length Range[17, 168] km
Total Rate2.0555672E-4 /yr
Multi-Fault Rate7.1086724E-5 /yr (34.58%)
Directly-Connected Faults3
All Co-Rupturing Faults9

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

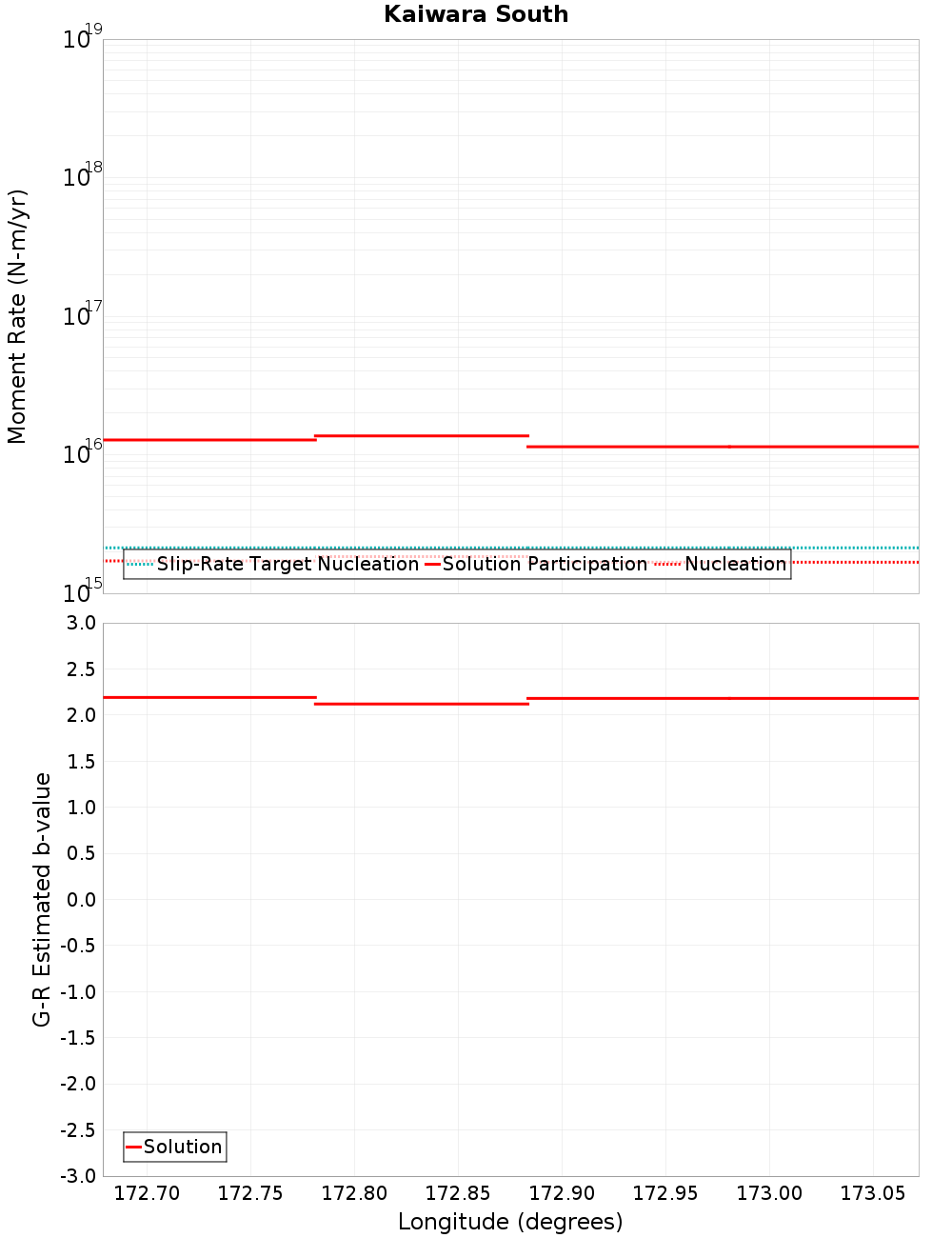

Moment-Rates and b-Values

(top)

Along-strike plot

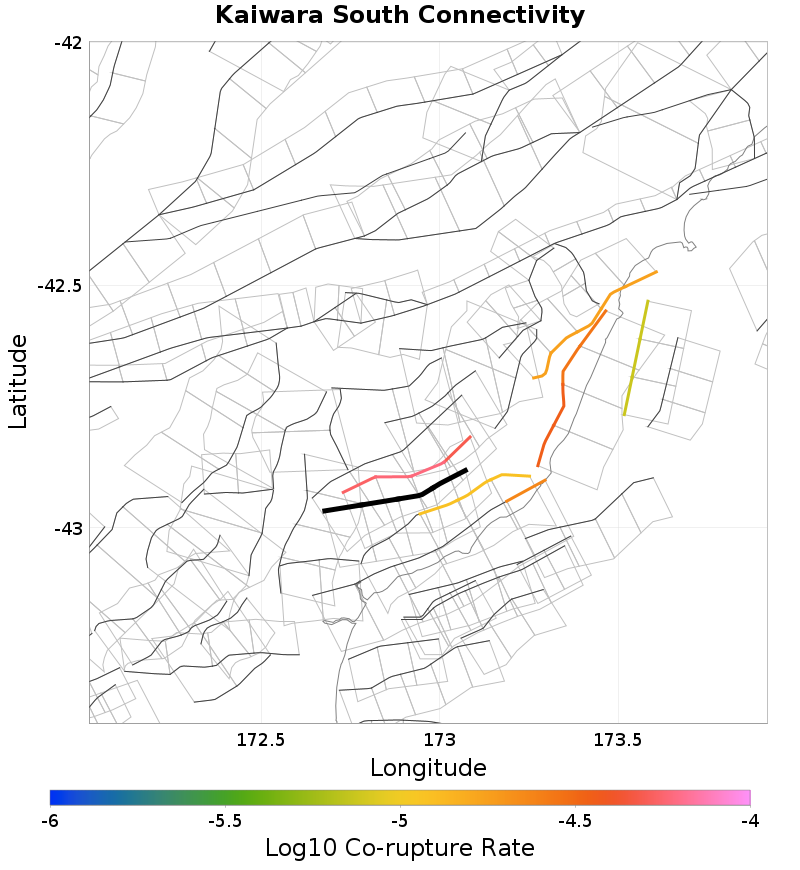

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Doctors, 1.93 km awayVirginia, 12.91 km away
Alexander, 2.77 km awayPancake, 14.89 km away
OmihiLwrHuru, 3.01 km awayMotunau, 15.82 km away
Lowry, 3.01 km awayHawkswood, 16.48 km away
Boby Stream, 6.33 km awayPoint Gibson, 16.82 km away
AmberBlyth, 8.44 km awayStarvation - Ashley, 16.93 km away
Balmoral, 8.47 km awayNorth Canterbury Shelf 2, 17.26 km away
Kaiwara North, 11.67 km awayMt Culverden, 17.85 km away
Mt Arden, 12.38 km awayLeithfield - NCVI - NCVII, 18.08 km away
Leonard Mound, 12.53 km awayNorth Canterbury Shelf 11, 18.87 km away
Hurunui Peak, 12.73 km away

Doctors, 1.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 2.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?true
Directly Connected?true
Co-rupture Count60
Co-rupture Rate7.1086724E-5

OmihiLwrHuru, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate1.2011801E-5

Lowry, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Boby Stream, 6.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate2.3304925E-5

Balmoral, 8.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 11.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leonard Mound, 12.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 12.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motunau, 15.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkswood, 16.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate3.5316727E-5

Point Gibson, 16.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 16.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 2, 17.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 17.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leithfield - NCVI - NCVII, 18.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 11, 18.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
