Whangamata West Details

Property	Value
Rupture Count	4,528
Ruptures Above Sect Min Mag	4,233
Ruptures w/ Nonzero Rates	37
Magnitude Range	[5.94, 7.64]
Length Range	[8, 217] km
Total Rate	0.0010569394 /yr
Multi-Fault Rate	0.0010569394 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	27

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

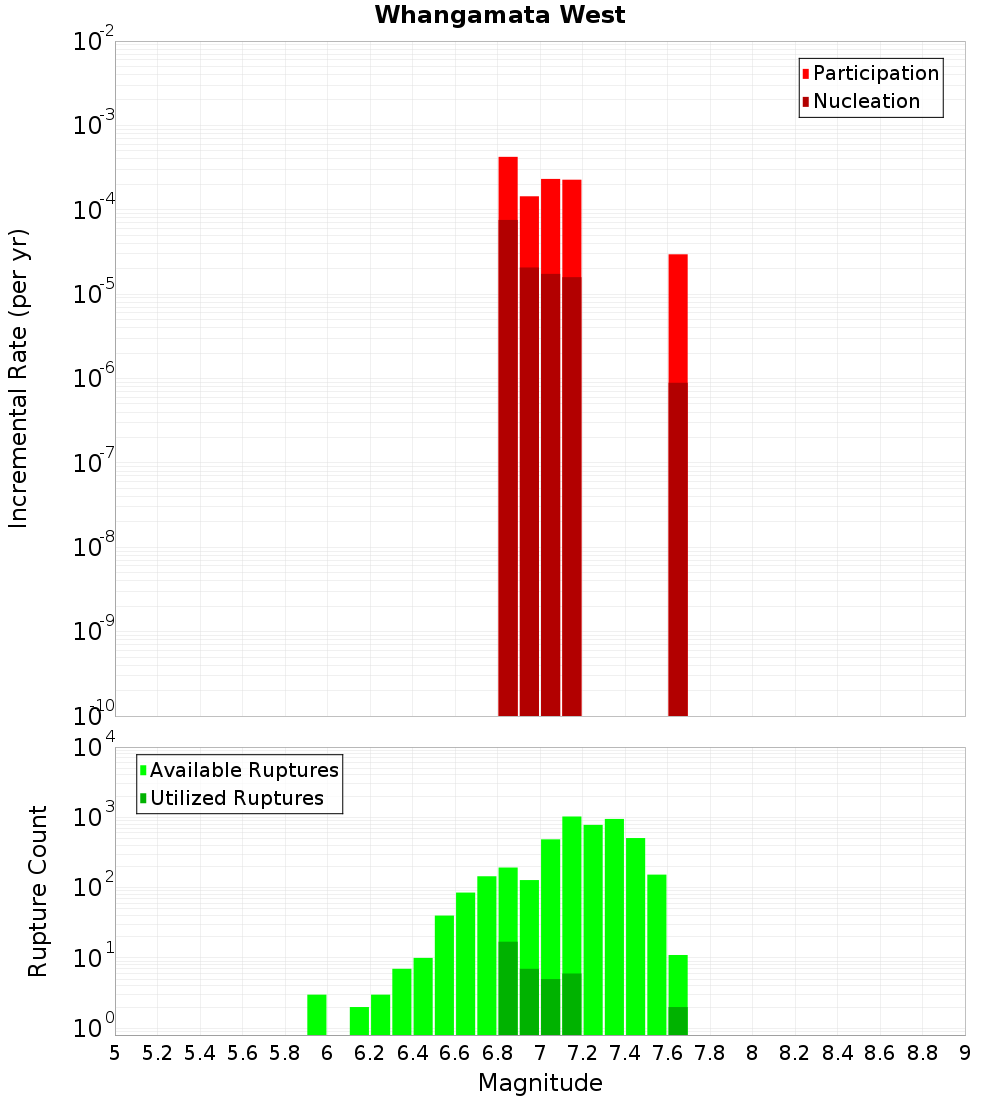

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

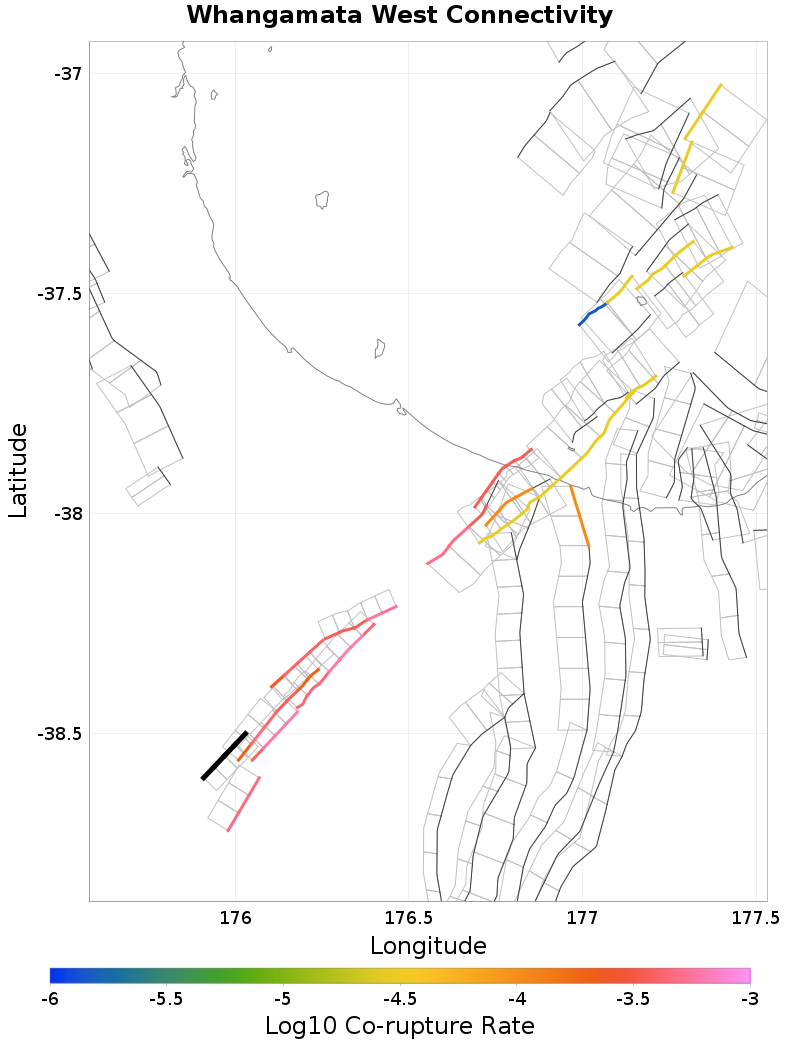

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.12 km away
Orakeikorako, 0.35 km away
Kaiapo, 1.08 km away
Puketerata North, 9.6 km away
Maleme, 13.07 km away
Paeroa, 13.84 km away

Puketerata, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,339
Co-rupture Rate	4.669401E-4

Orakeikorako, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,473
Co-rupture Rate	6.49039E-4

Kaiapo, 1.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?	true
Directly Connected?	true
Co-rupture Count	747
Co-rupture Rate	4.6898713E-4

Puketerata North, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?	true
Directly Connected?	false
Co-rupture Count	1,694
Co-rupture Rate	3.6179952E-4

Maleme, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?	true
Directly Connected?	false
Co-rupture Count	3,152
Co-rupture Rate	4.112893E-4

Paeroa, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5ODcuMGtmRWk5
Connected?	true
Directly Connected?	false
Co-rupture Count	2,370
Co-rupture Rate	6.456501E-4
