Cape Egmont: South Details
| Property | Value |
|---|---|
| Rupture Count | 343 |
| Ruptures Above Sect Min Mag | 341 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.82, 7.83] |
| Length Range | [21, 208] km |
| Total Rate | 4.5088367E-4 /yr |
| Multi-Fault Rate | 2.0240301E-4 /yr (44.89%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 14 |
Table Of Contents

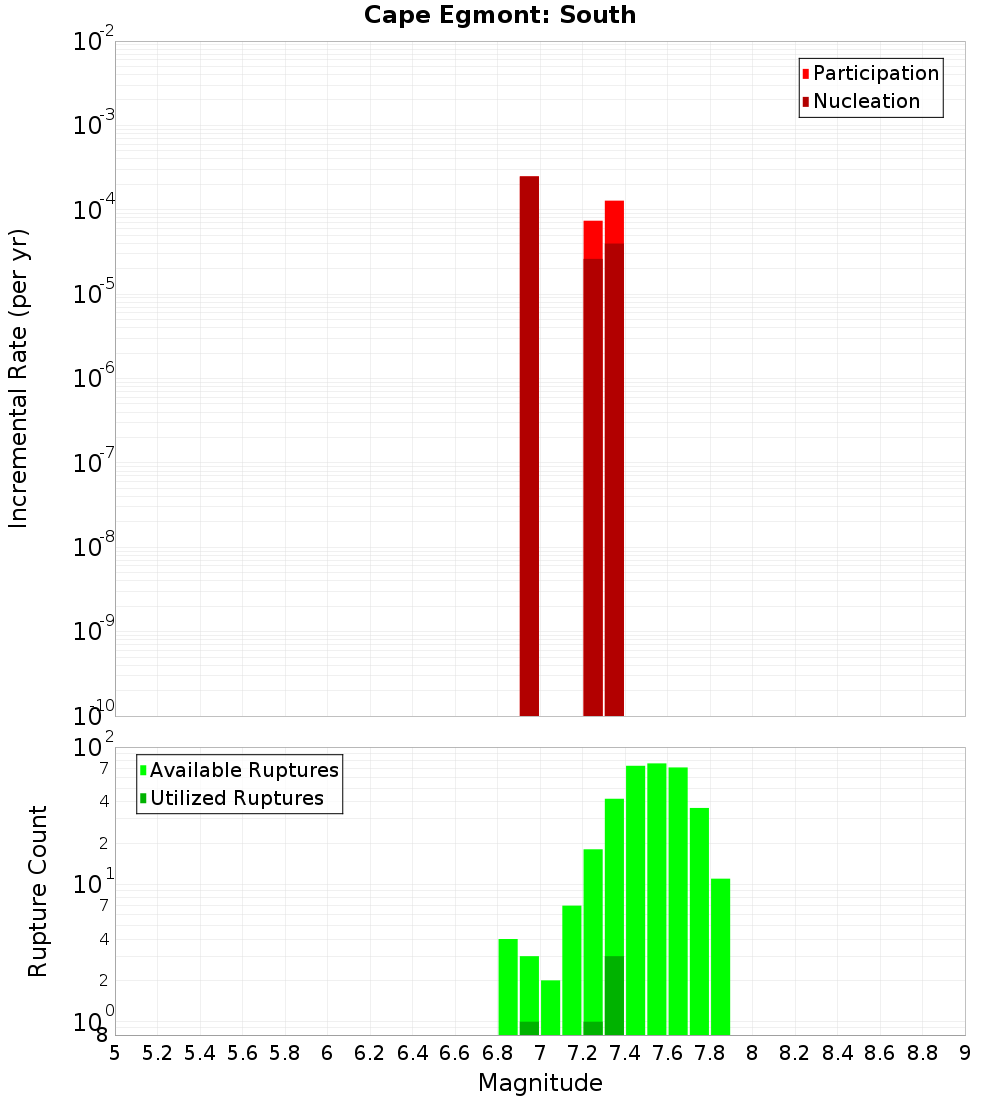

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

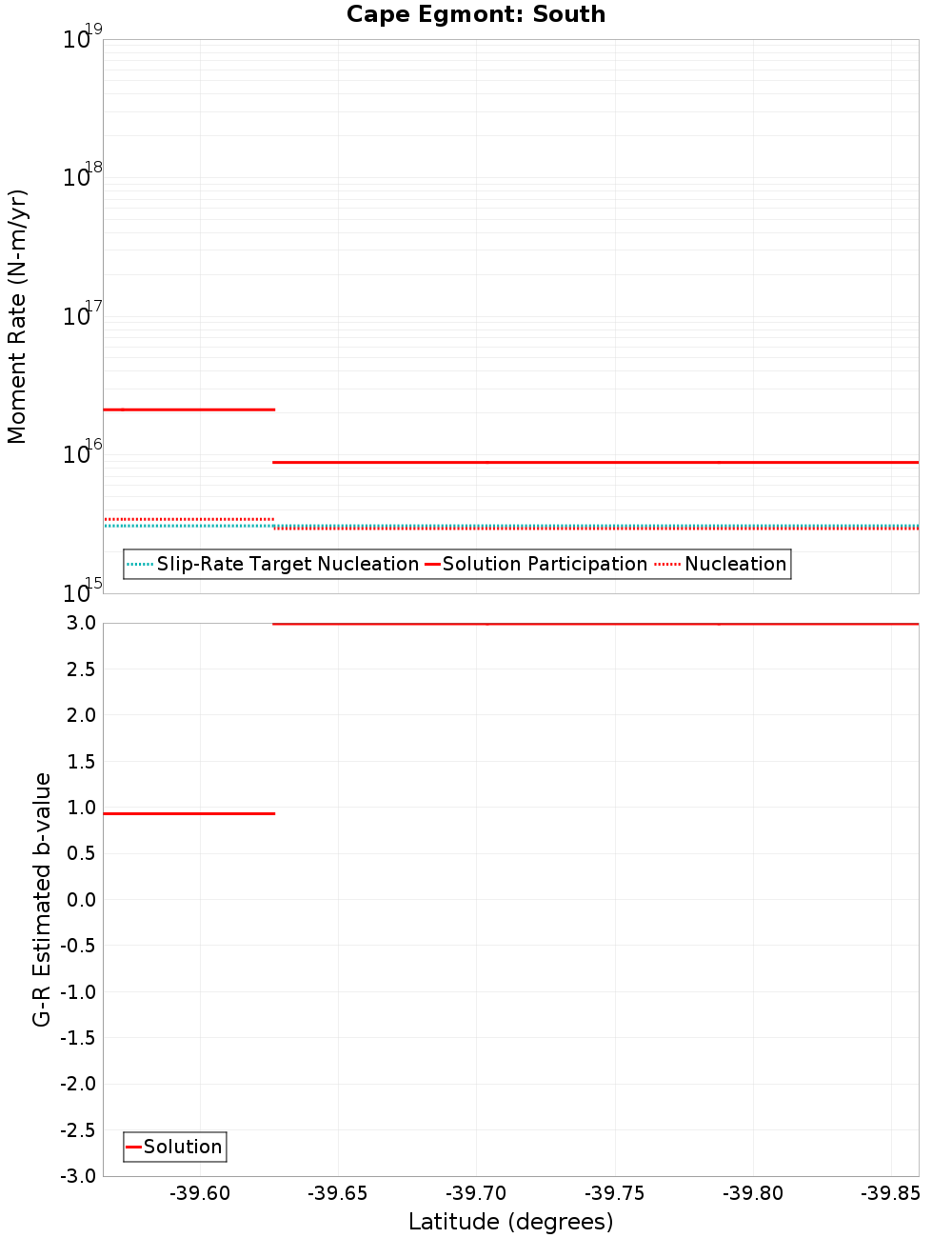

Moment-Rates and b-Values

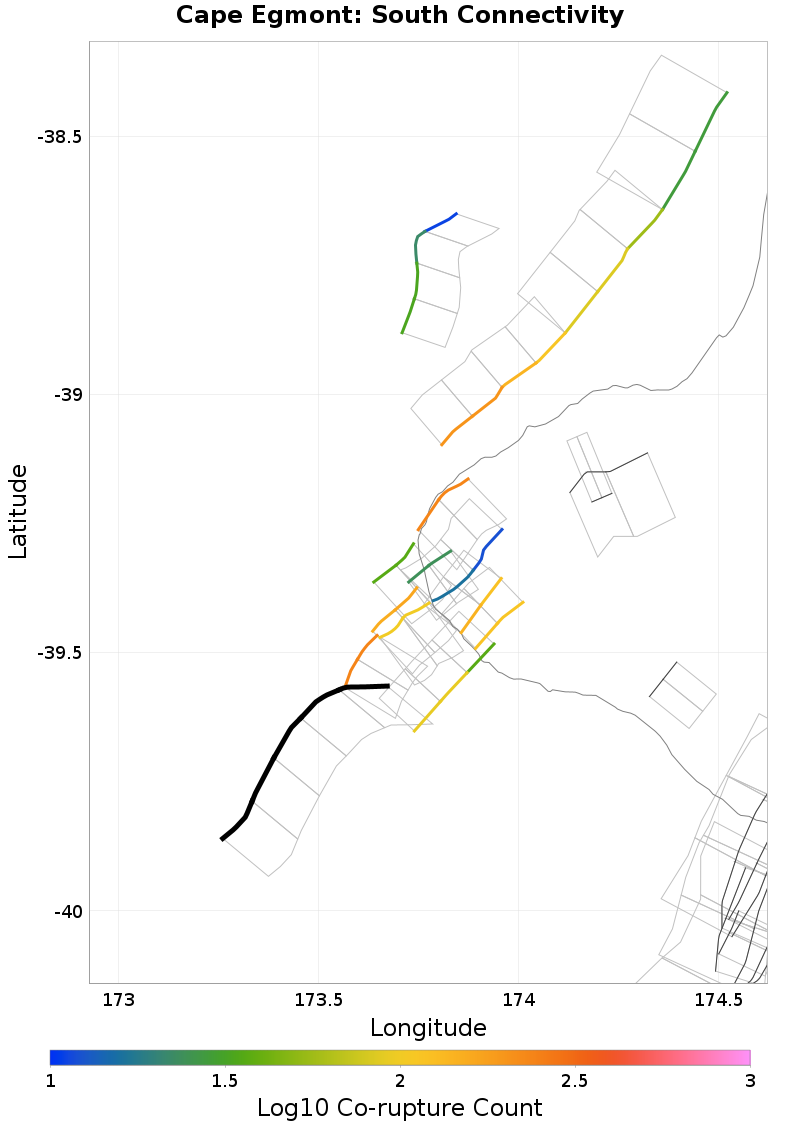

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Egmont: Central, 0.35 km away |
| Pihama, 0.38 km away |
| Manahi 1, 7.93 km away |
| Cape Egmont: North, 10.11 km away |
| Kiri, 18.8 km away |
| Ihaia, 18.91 km away |
| Manahi 2, 19.92 km away |
Cape Egmont: Central, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 241 |
| Co-rupture Rate | 1.2512373E-4 |
Pihama, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 92 |
| Co-rupture Rate | 7.727928E-5 |
Manahi 1, 7.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 100 |
| Co-rupture Rate | 8.38432E-6 |
Cape Egmont: North, 10.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 165 |
| Co-rupture Rate | 1.19862925E-4 |
Kiri, 18.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 117 |
| Co-rupture Rate | 7.415576E-5 |
Ihaia, 18.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 144 |
| Co-rupture Rate | 3.1235131E-6 |
Manahi 2, 19.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 0.0 |
