Kaiapo Details
| Property | Value |
|---|---|
| Rupture Count | 1,236 |
| Ruptures Above Sect Min Mag | 1,141 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.19, 7.52] |
| Length Range | [10, 188] km |
| Total Rate | 5.440263E-4 /yr |
| Multi-Fault Rate | 5.440263E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 22 |
Table Of Contents

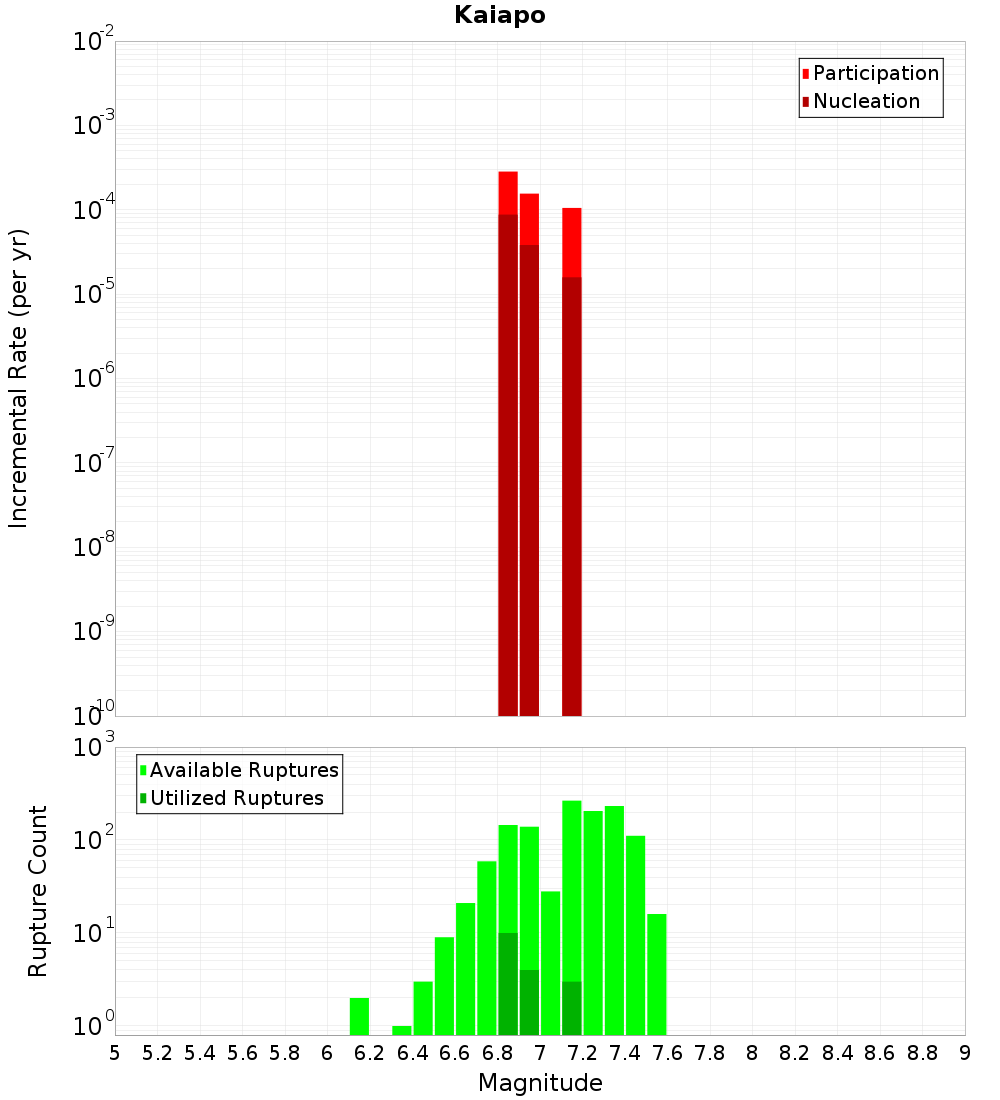

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

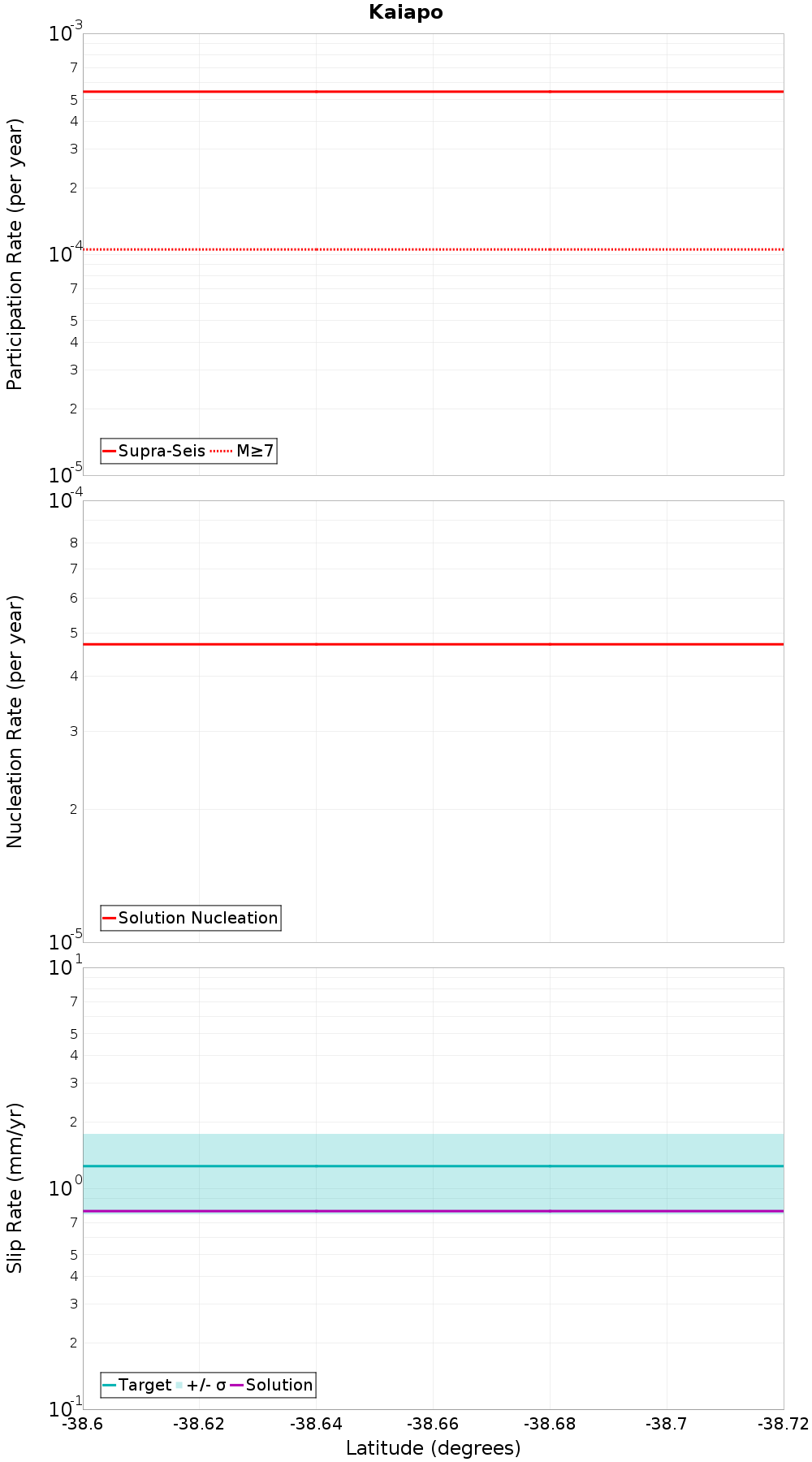

Along-Strike Values
Moment-Rates and b-Values

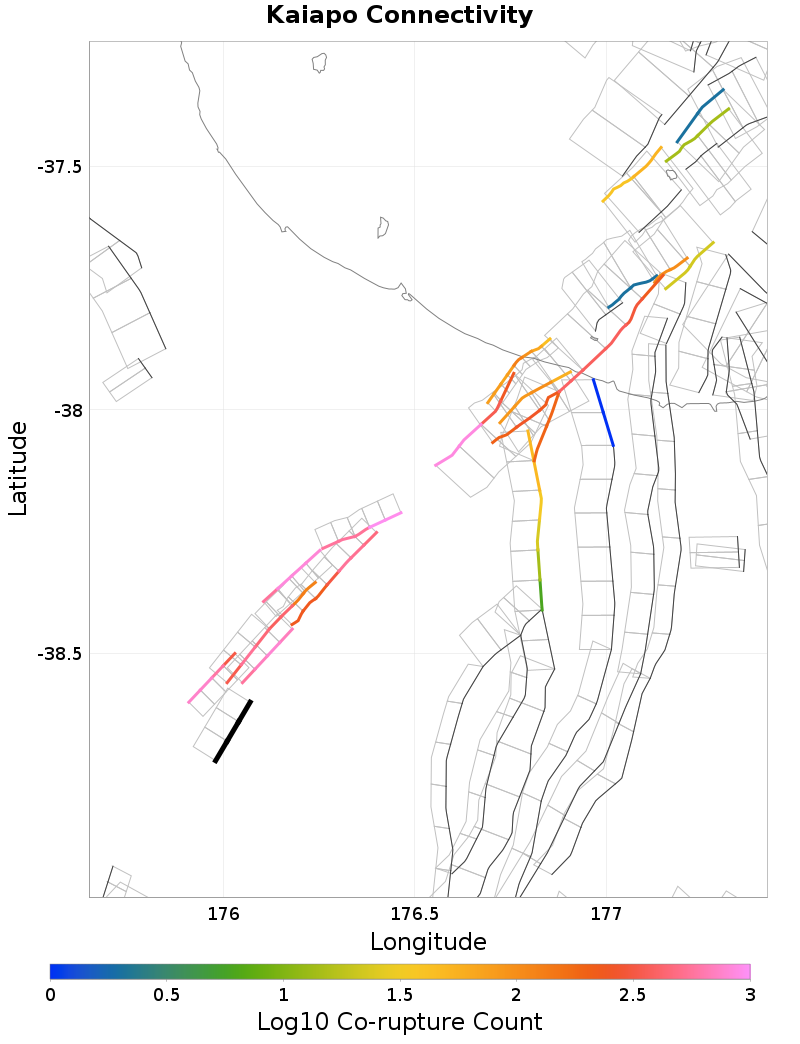

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamata West, 1.08 km away |
| Orakeikorako, 4.37 km away |
| Puketerata, 5.96 km away |
| Puketerata North, 17.13 km away |
| Maleme, 19.74 km away |
Whangamata West, 1.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 747 |
| Co-rupture Rate | 4.658255E-4 |
Orakeikorako, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 783 |
| Co-rupture Rate | 2.7026085E-4 |
Puketerata, 5.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 537 |
| Co-rupture Rate | 2.737655E-4 |
Puketerata North, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 420 |
| Co-rupture Rate | 2.7375904E-4 |
Maleme, 19.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTMuMFFZYlda | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 835 |
| Co-rupture Rate | 2.950516E-4 |
