Fidget Details

PropertyValue
Rupture Count18,829
Ruptures Above Sect Min Mag18,826
Ruptures w/ Nonzero Rates16
Magnitude Range[6.66, 8.52]
Length Range[17, 1,201] km
Total Rate3.4945985E-4 /yr
Multi-Fault Rate3.4945985E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults129

Table Of Contents

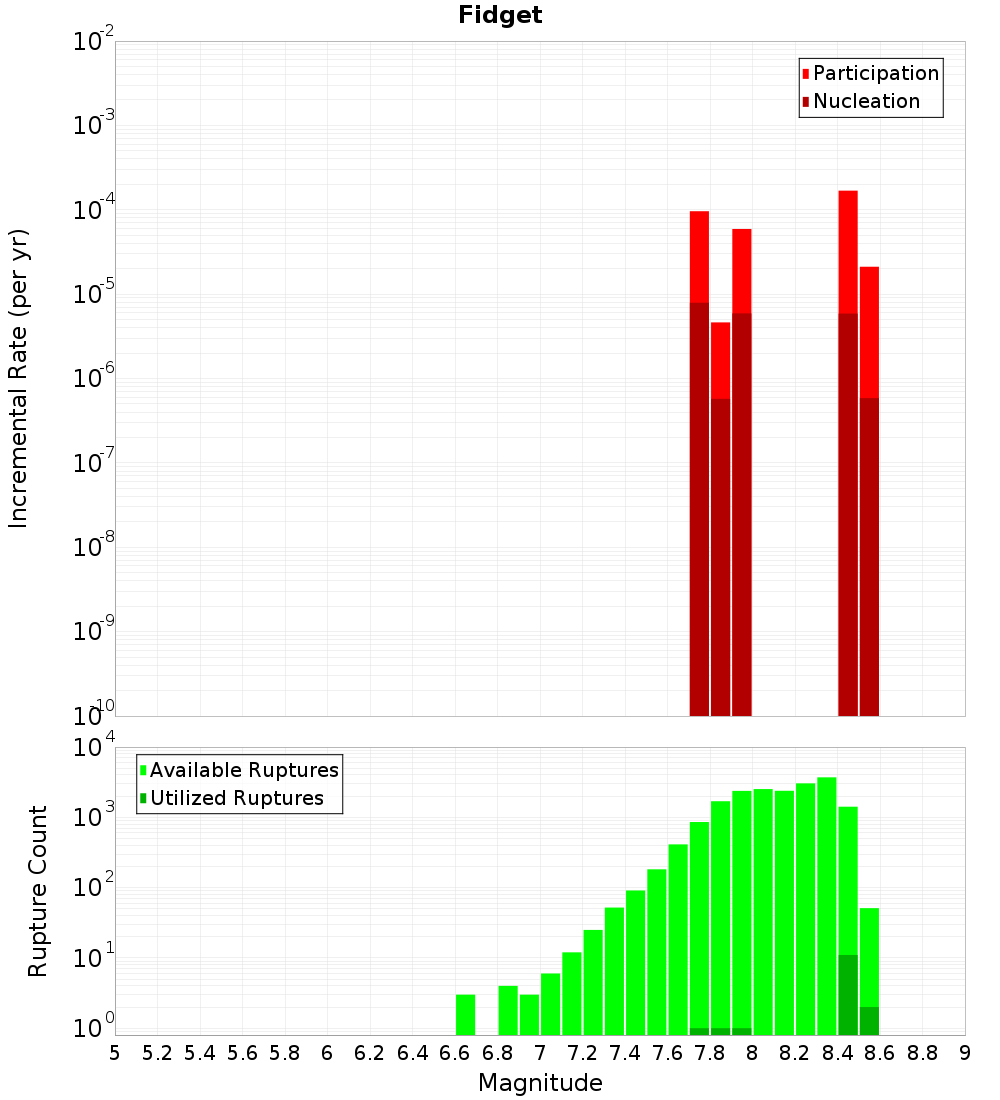

Magnitude-Frequency Distribution

(top)

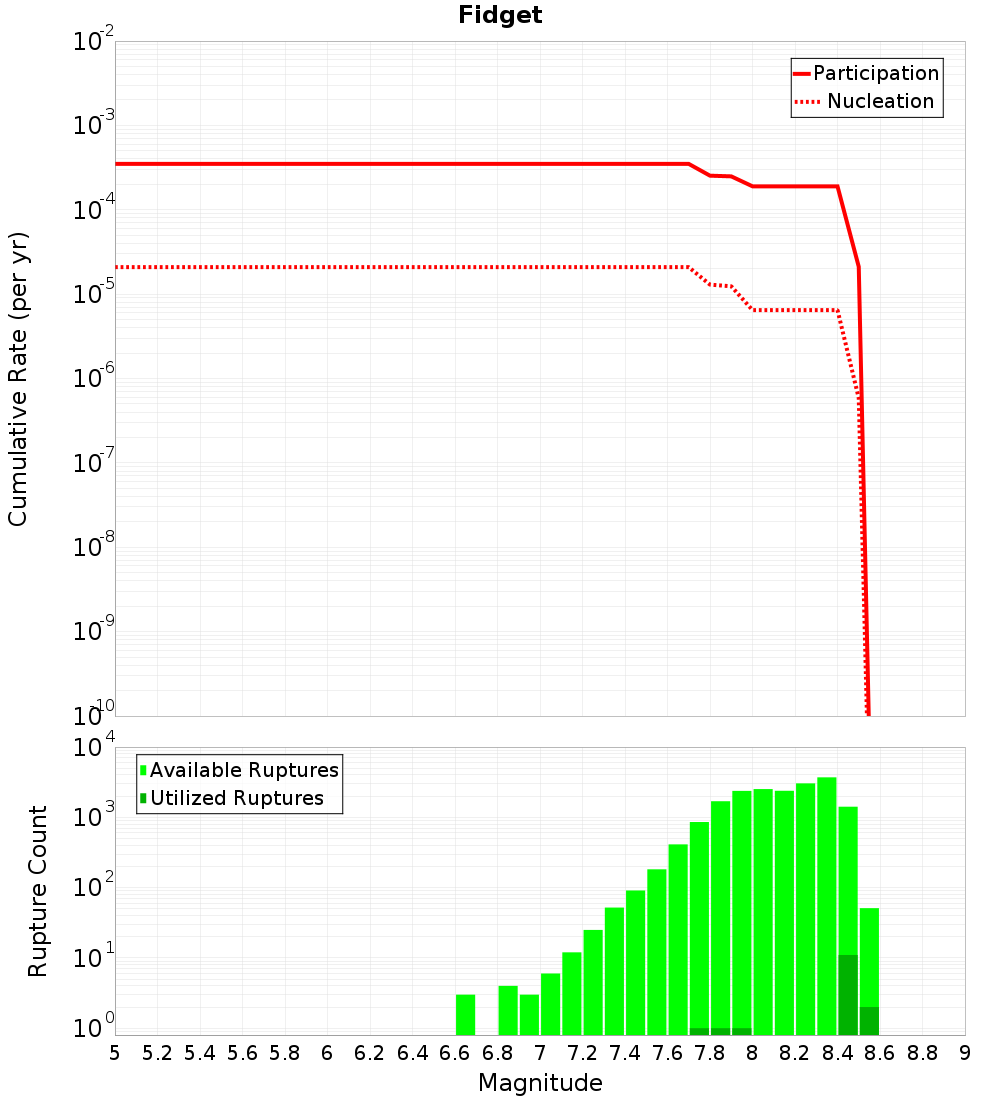

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Papatea, 0 km away
Kekerengu 1, 0 km away
Jordan, 0 km away
Clarence: Northeast, 0.64 km away
Elliott, 3.22 km away
Clarence: Central, 3.22 km away
Hope: Seaward, 13.67 km away
Hope: Te Rapa, 16.07 km away
Awatere: Northeast 1, 17.38 km away
Hope: Conway, 17.56 km away
Awatere: Southwest, 18 km away

Papatea, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?true
Co-rupture Count16,572
Co-rupture Rate3.4945985E-4

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate9.607941E-5

Clarence: Northeast, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate0.0

Elliott, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?true
Co-rupture Count3,345
Co-rupture Rate0.0

Clarence: Central, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?true
Co-rupture Count13,536
Co-rupture Rate2.5338045E-4

Hope: Seaward, 13.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?true
Co-rupture Count539
Co-rupture Rate0.0

Hope: Te Rapa, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?false
Co-rupture Count108
Co-rupture Rate0.0

Awatere: Northeast 1, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 17.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?false
Co-rupture Count438
Co-rupture Rate0.0

Awatere: Southwest, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ5OTguMDNMRW9u
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0
