Mt Stewart Details

Property	Value
Rupture Count	12
Ruptures Above Sect Min Mag	12
Ruptures w/ Nonzero Rates	4
Magnitude Range	[7.16, 7.80]
Length Range	[27, 151] km
Total Rate	7.709439E-5 /yr
Multi-Fault Rate	7.709439E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	5

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

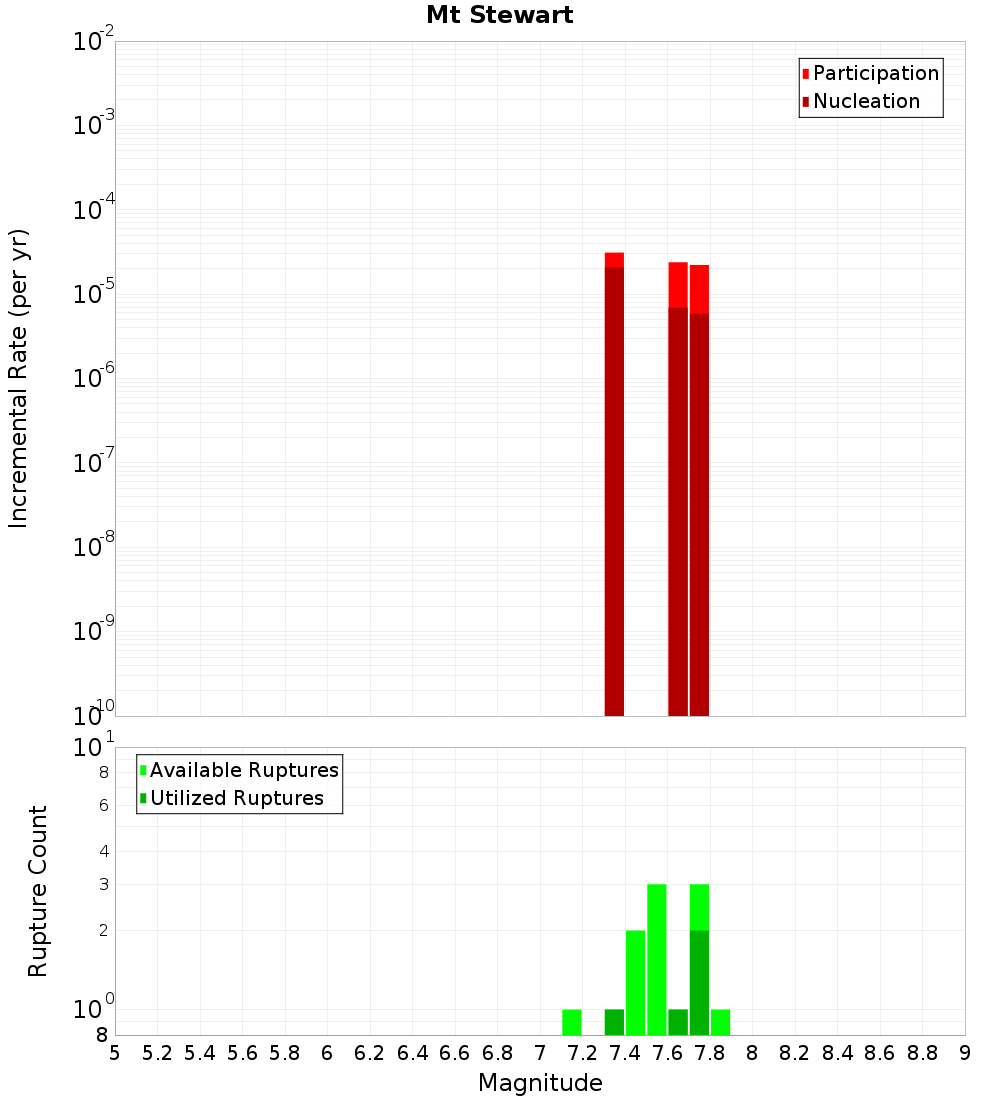

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

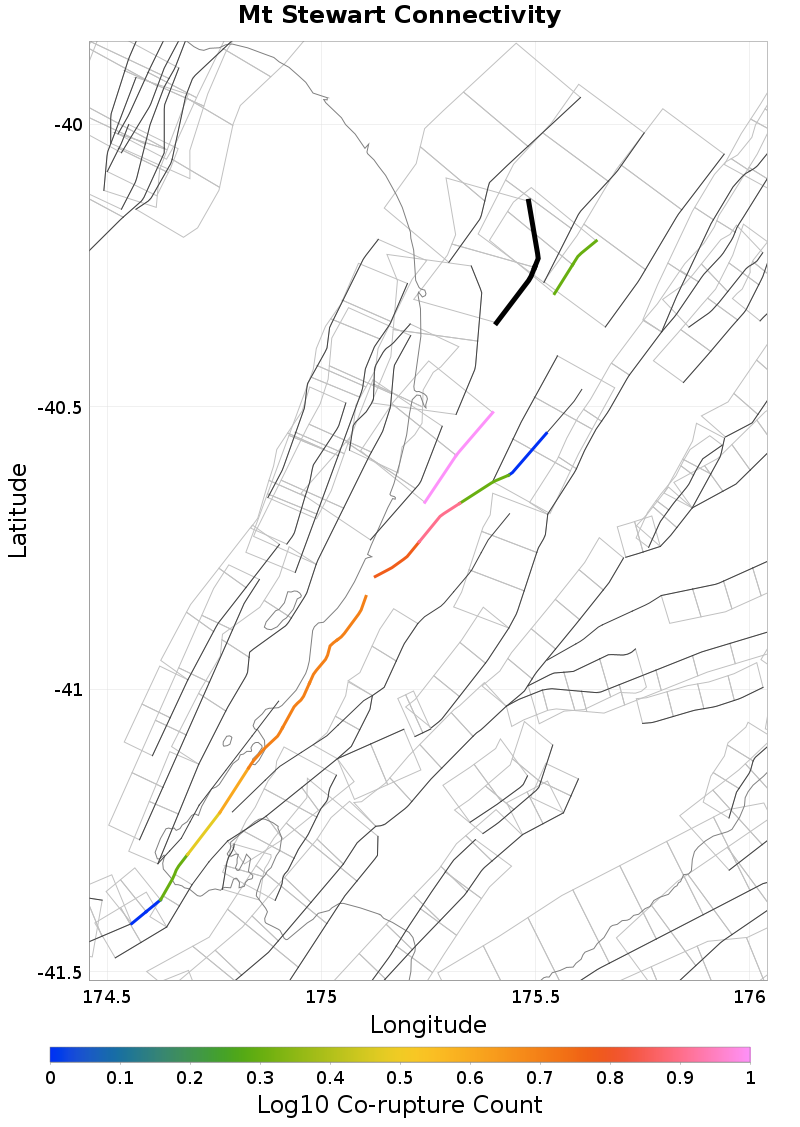

Connectivity

Nearby Sections

Fault Section
Mascarin, 2.19 km away
Rauoterangi, 2.5 km away
Himatangi, 3 km away
Taonui, 4.96 km away
Rangitikei Offshore 1, 5.86 km away
Leedstown, 6.13 km away
Levin Anticline, 11.8 km away
Onepoto, 12.32 km away
Otaheke North, 12.34 km away
Tokomaru, 13.54 km away
Pohangina, 15.28 km away
Poroutawhao, 17.76 km away

Mascarin, 2.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rauoterangi, 2.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Himatangi, 3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Taonui, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	3.1070223E-5

Rangitikei Offshore 1, 5.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leedstown, 6.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Levin Anticline, 11.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	4.6024164E-5

Onepoto, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke North, 12.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tokomaru, 13.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 15.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poroutawhao, 17.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDUuMGM4Z3lI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
