Boby Stream Details

PropertyValue
Rupture Count155
Ruptures Above Sect Min Mag155
Ruptures w/ Nonzero Rates7
Magnitude Range[6.90, 8.11]
Length Range[18, 345] km
Total Rate5.4084074E-5 /yr
Multi-Fault Rate5.4084074E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults16

Table Of Contents

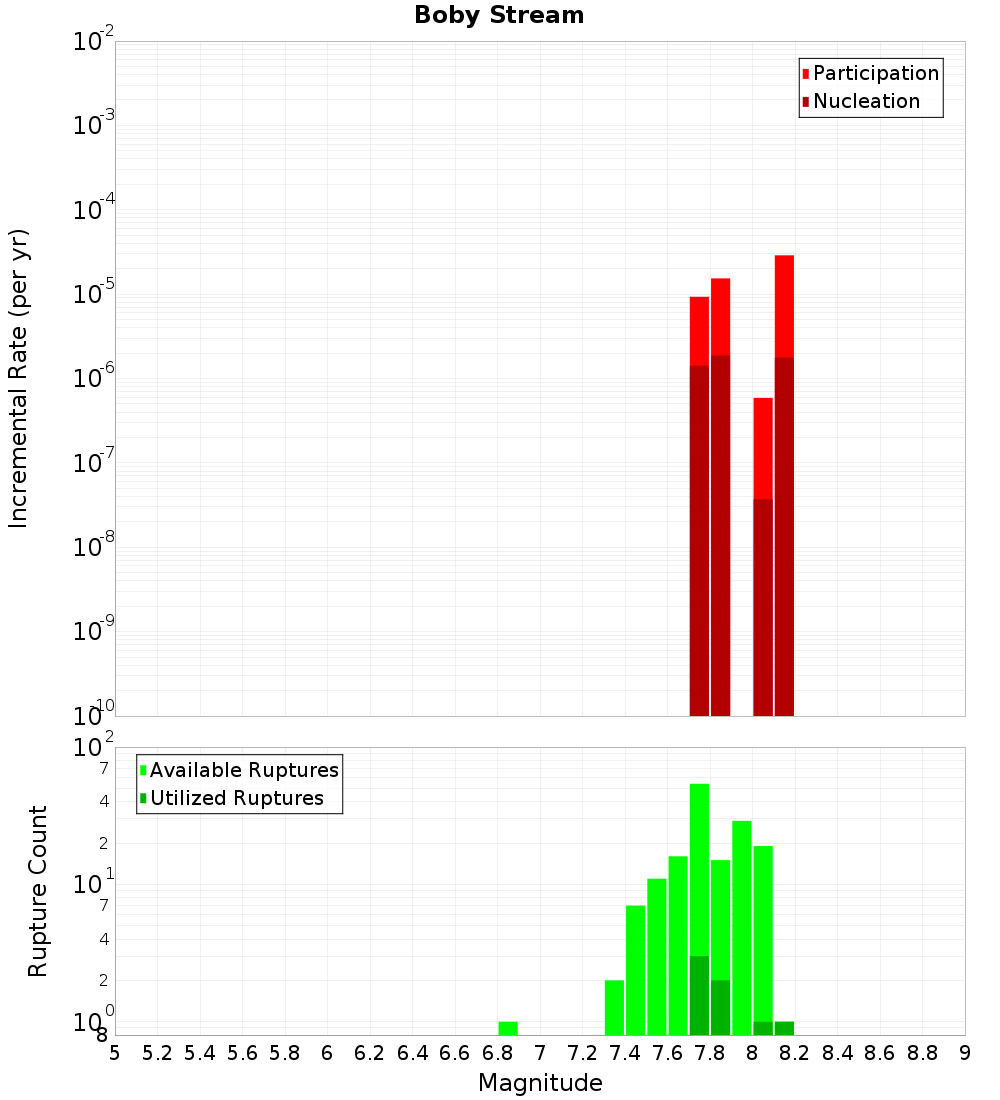

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

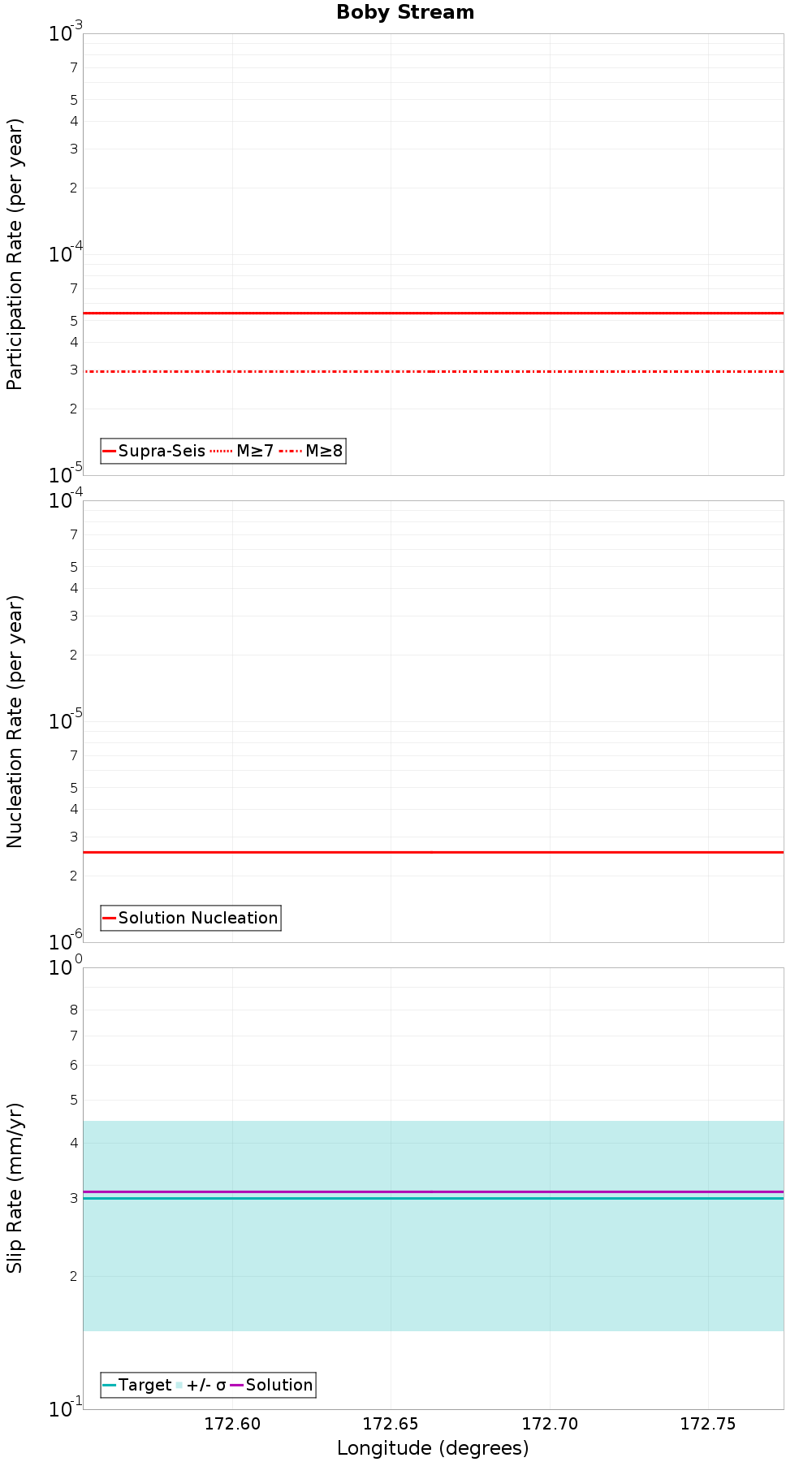

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

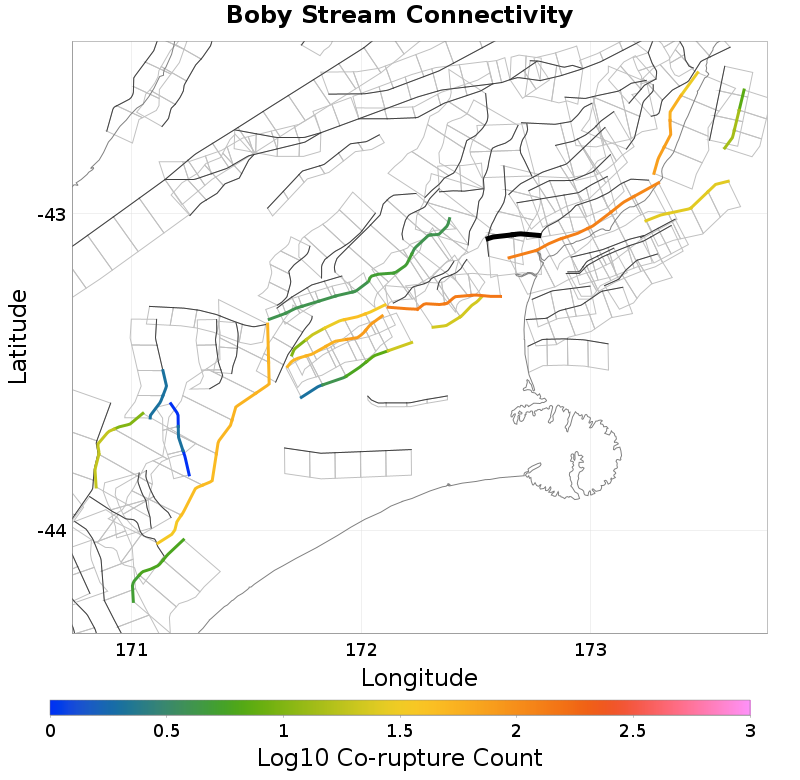

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Doctors, 0.22 km awayLowry, 10.33 km away
Starvation - Ashley, 0.62 km awayAlexander, 10.71 km away
OmihiLwrHuru, 0.79 km awayMotunau, 13.14 km away
AmberBlyth, 3.76 km awayKnowles Top, 13.88 km away
Mt Lawry, 4.87 km awayNorth Canterbury Shelf 2, 14.97 km away
Kaiwara South, 6.33 km awayLeithfield - NCVI - NCVII, 14.97 km away
Mt Arden, 6.78 km awayEsk South, 17.16 km away
Springbank, 9.36 km awayVirginia, 17.33 km away
Pancake, 10 km awayHurunui Peak, 17.4 km away
Lees Valley, 10.27 km awayWaikuku, 17.49 km away

Doctors, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate5.4084074E-5

OmihiLwrHuru, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?true
Directly Connected?true
Co-rupture Count130
Co-rupture Rate5.4084074E-5

Mt Lawry, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 6.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 6.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Pancake, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 10.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Lowry, 10.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motunau, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 2, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leithfield - NCVI - NCVII, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 17.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 17.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 17.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikuku, 17.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMDguMHQ1eThE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
