Grampian Details

PropertyValue
Rupture Count122
Ruptures Above Sect Min Mag121
Ruptures w/ Nonzero Rates6
Magnitude Range[6.99, 7.91]
Length Range[21, 199] km
Total Rate1.6342157E-5 /yr
Multi-Fault Rate1.6342157E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults13

Table Of Contents

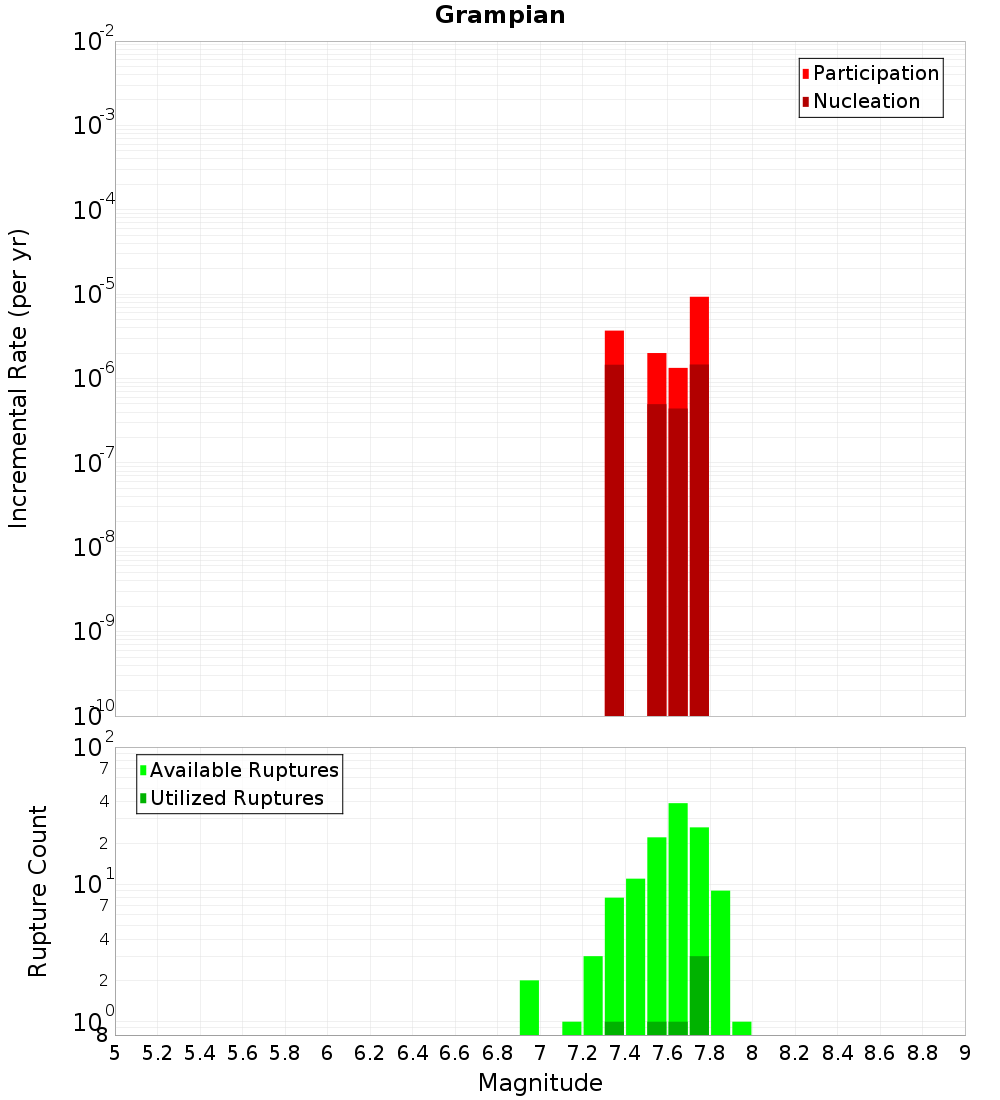

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

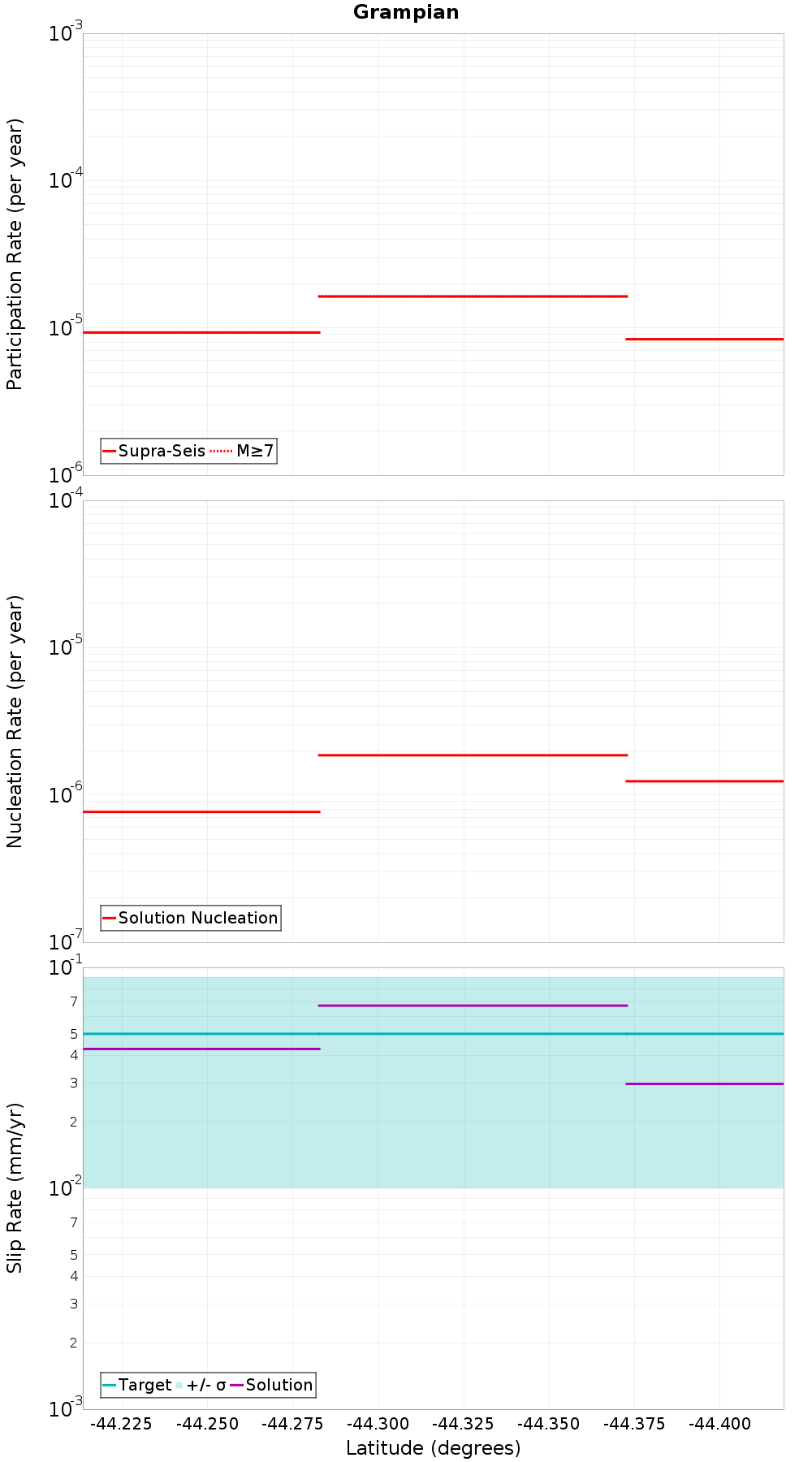

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mt Sutton, 1.54 km away
Dalgety, 4.61 km away
Kirkliston, 4.67 km away
Gibson, 6.29 km away
Irishman Creek, 10.72 km away
Middle Range, 11.17 km away
Chamberlain, 11.5 km away
Falstone, 12.43 km away
Dryburgh, 13.34 km away
Waitangi, 14.38 km away
Hunters, 14.81 km away
Opawa, 15.74 km away
Campbell Hills, 16.45 km away
Albury, 19.63 km away

Mt Sutton, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate9.044743E-6

Dalgety, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate1.5005609E-5

Gibson, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate1.5974875E-6

Irishman Creek, 10.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate9.304806E-6

Middle Range, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Chamberlain, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 12.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 13.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate9.044743E-6

Waitangi, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunters, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opawa, 15.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Hills, 16.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Albury, 19.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
