Waimana: South Details

Property	Value
Rupture Count	30,755
Ruptures Above Sect Min Mag	30,753
Ruptures w/ Nonzero Rates	38
Magnitude Range	[7.02, 8.59]
Length Range	[25, 1,074] km
Total Rate	7.42875E-4 /yr
Multi-Fault Rate	4.35546E-4 /yr (58.63%)
Directly-Connected Faults	7
All Co-Rupturing Faults	114

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

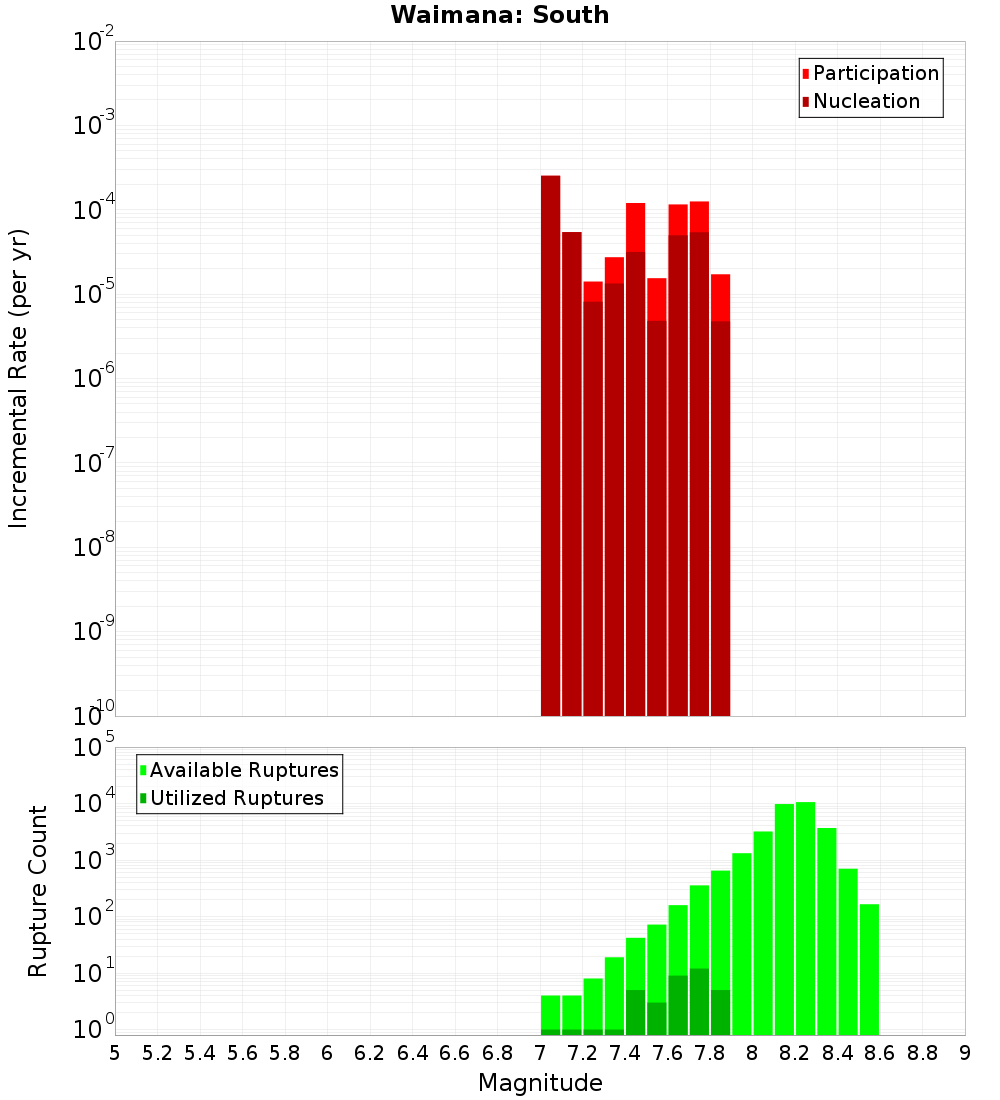

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

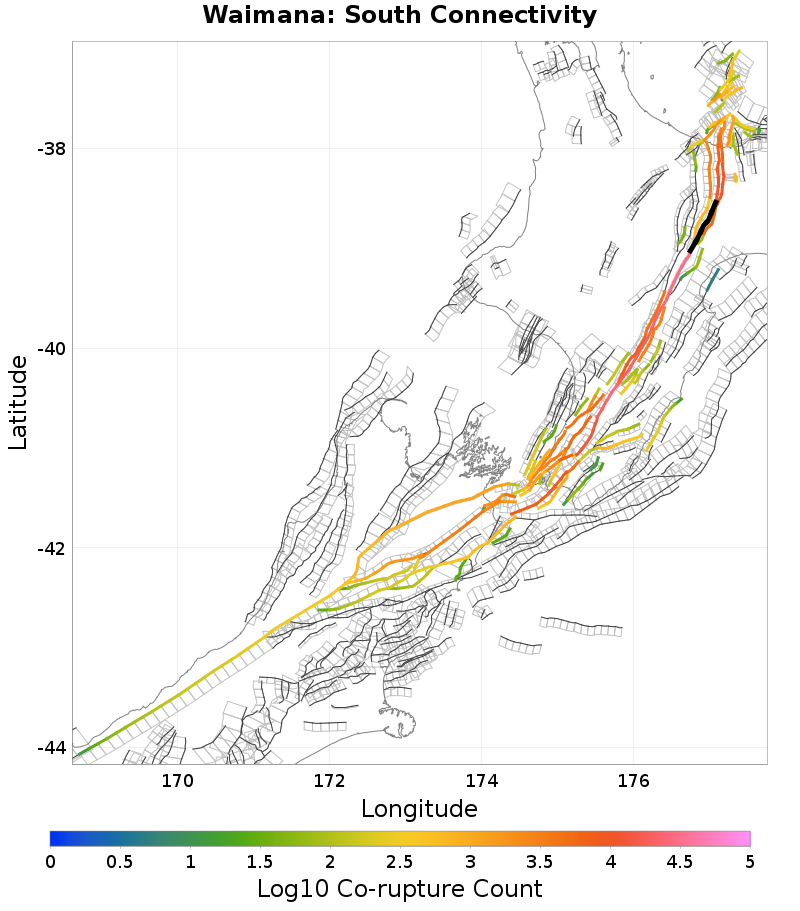

Connectivity

Nearby Sections

Fault Section
Waimana: North, 0 km away
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waiotahi: South, 2.15 km away
Waiotahi: North, 2.4 km away
Waiohau: South, 8.02 km away
Whakatane: North, 8.55 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.57 km away
Waiohau: North, 17.98 km away
Awanui, 18.53 km away

Waimana: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	true
Co-rupture Count	12,447
Co-rupture Rate	1.8059773E-5

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	true
Co-rupture Count	619
Co-rupture Rate	5.490443E-5

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	true
Co-rupture Count	30,212
Co-rupture Rate	3.7899803E-4

Waiotahi: South, 2.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	true
Co-rupture Count	5,753
Co-rupture Rate	1.0103408E-4

Waiotahi: North, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	true
Co-rupture Count	10,758
Co-rupture Rate	3.5129648E-5

Waiohau: South, 8.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 8.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,977
Co-rupture Rate	1.7825214E-4

Patoka - Rangiora, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	false
Co-rupture Count	65
Co-rupture Rate	1.3806592E-5

Ruahine: North, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	false
Co-rupture Count	4,482
Co-rupture Rate	0.0

Wheao: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Whaiti South, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	true
Co-rupture Count	42
Co-rupture Rate	6.940913E-5

Waiohau: North, 17.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	0.0

Awanui, 18.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMjUuMEpnaXpp
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0
