Doctors Details

Property	Value
Rupture Count	55
Ruptures Above Sect Min Mag	52
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.76, 7.73]
Length Range	[17, 169] km
Total Rate	1.7819746E-4 /yr
Multi-Fault Rate	1.2674044E-4 /yr (71.12%)
Directly-Connected Faults	3
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

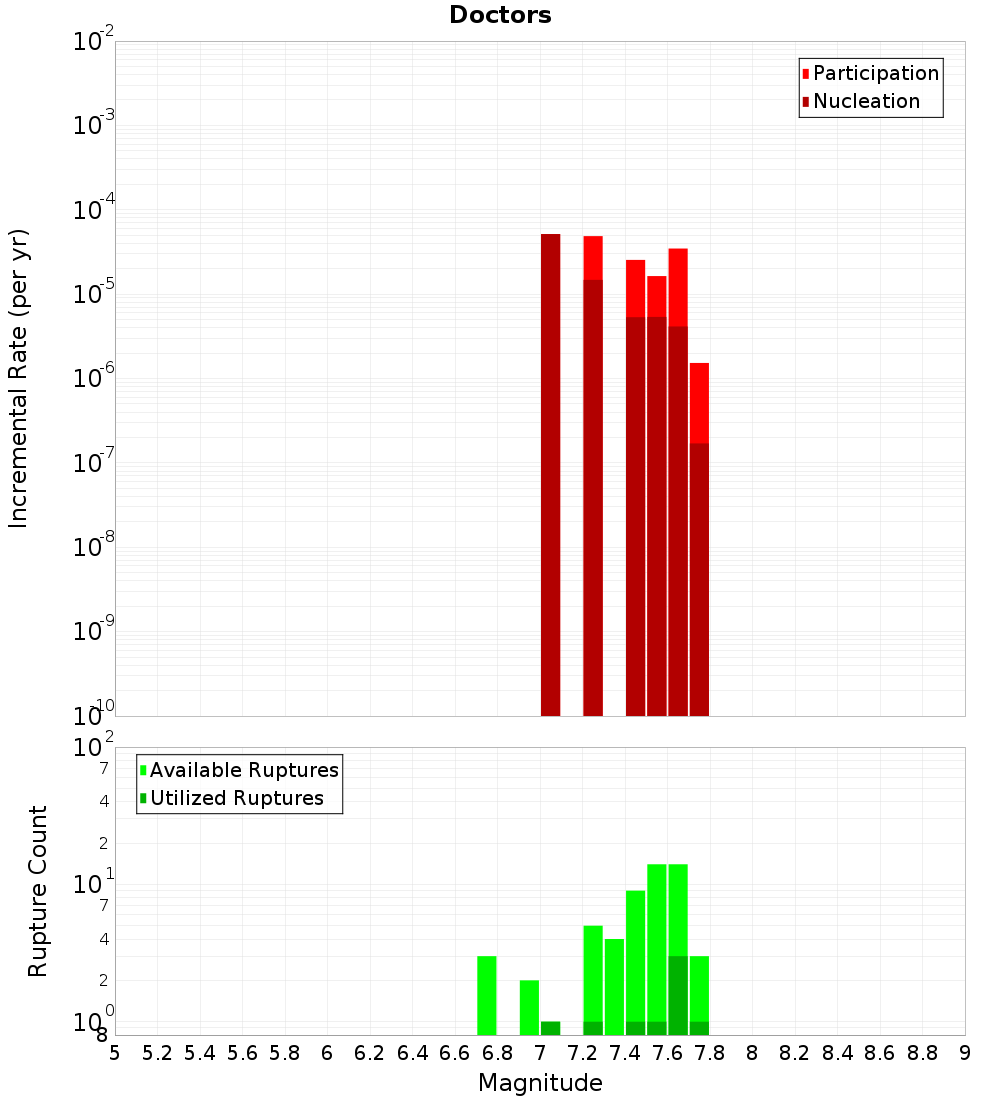

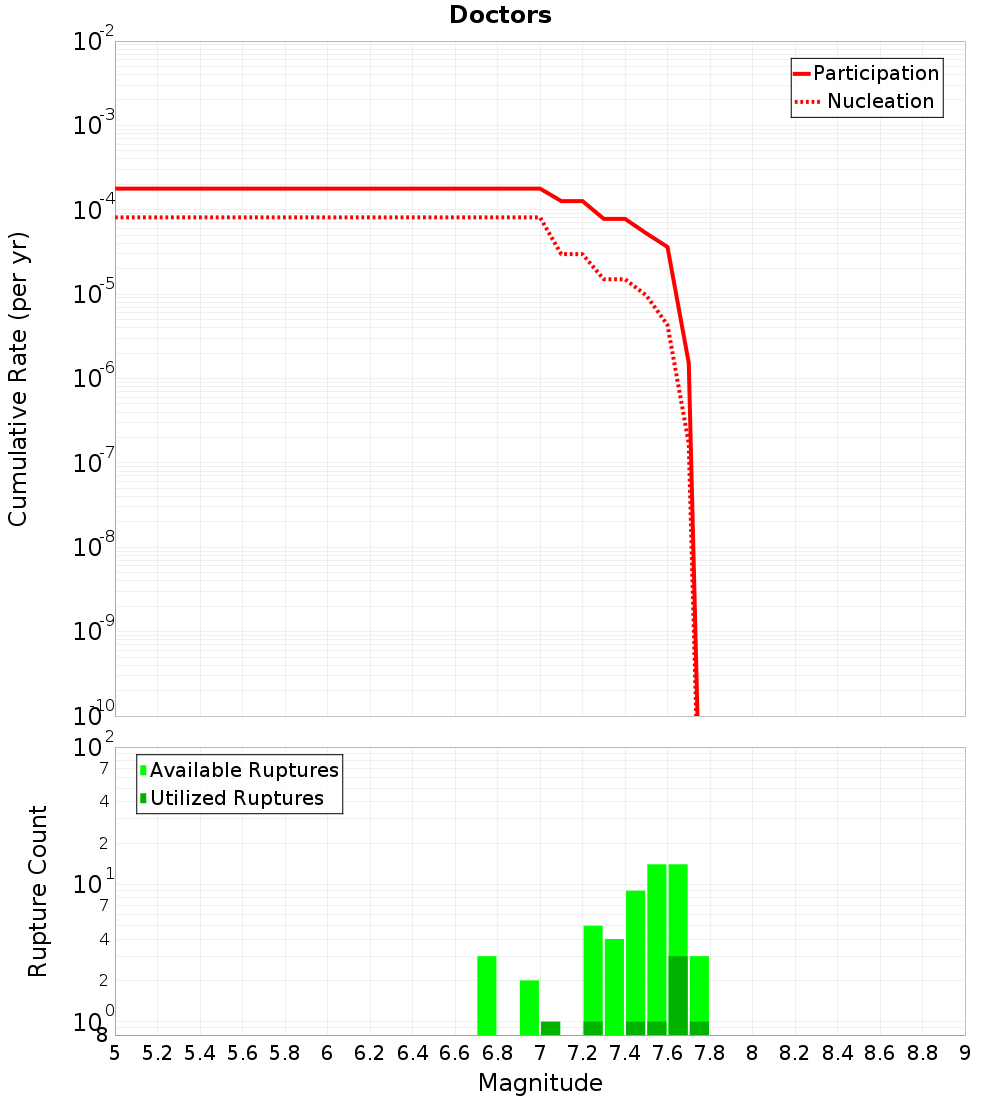

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Boby Stream, 0.22 km away	Starvation - Ashley, 8.76 km away
Balmoral, 0.24 km away	OmihiLwrHuru, 12.16 km away
Lowry, 0.53 km away	Springbank, 12.28 km away
Kaiwara South, 1.93 km away	Knowles Top, 12.44 km away
Mt Culverden, 2.68 km away	Leonard Mound, 12.65 km away
Alexander, 4.38 km away	Pancake, 12.94 km away
Hurunui Peak, 5.51 km away	Lees Valley, 13.52 km away
AmberBlyth, 5.78 km away	Esk North, 14.67 km away
Mt Arden, 5.9 km away	The Humps, 16.95 km away
Mt Lawry, 7.57 km away	Waikuku, 18.79 km away
Virginia, 7.82 km away

Boby Stream, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Balmoral, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lowry, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	1.6368074E-5

Kaiwara South, 1.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Culverden, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	7.416159E-5

Alexander, 4.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	3.621078E-5

Hurunui Peak, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

AmberBlyth, 5.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Arden, 5.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Lawry, 7.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Virginia, 7.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Starvation - Ashley, 8.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

OmihiLwrHuru, 12.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Springbank, 12.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Knowles Top, 12.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leonard Mound, 12.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	4.1818064E-5

Pancake, 12.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lees Valley, 13.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk North, 14.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

The Humps, 16.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Waikuku, 18.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwMzQuMEJyd3pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
