Te Rapa 1 Details

Property	Value
Rupture Count	15,502
Ruptures Above Sect Min Mag	15,501
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.57, 8.59]
Length Range	[15, 1,147] km
Total Rate	2.7121298E-4 /yr
Multi-Fault Rate	2.7121298E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	94

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

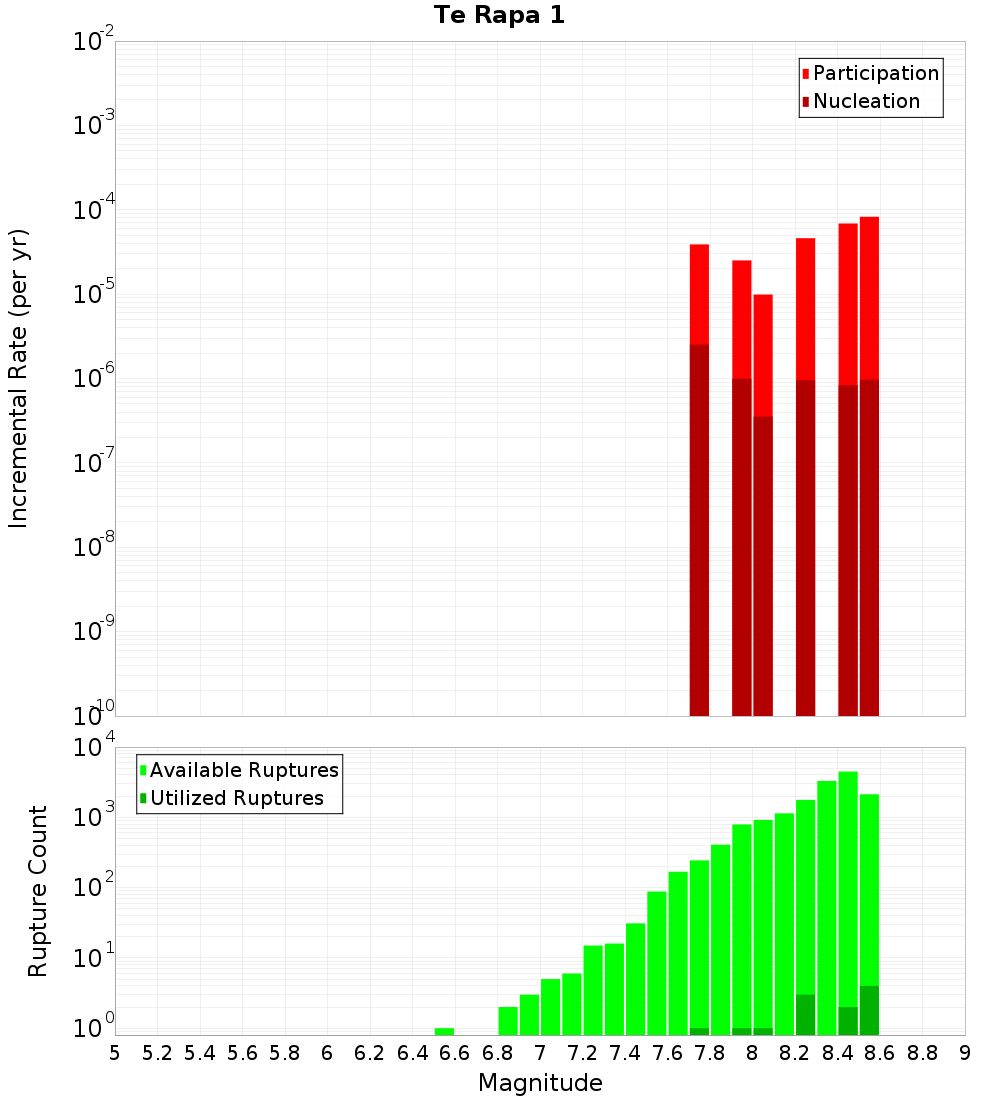

Magnitude-Frequency Distribution

Incremental	Cumulative

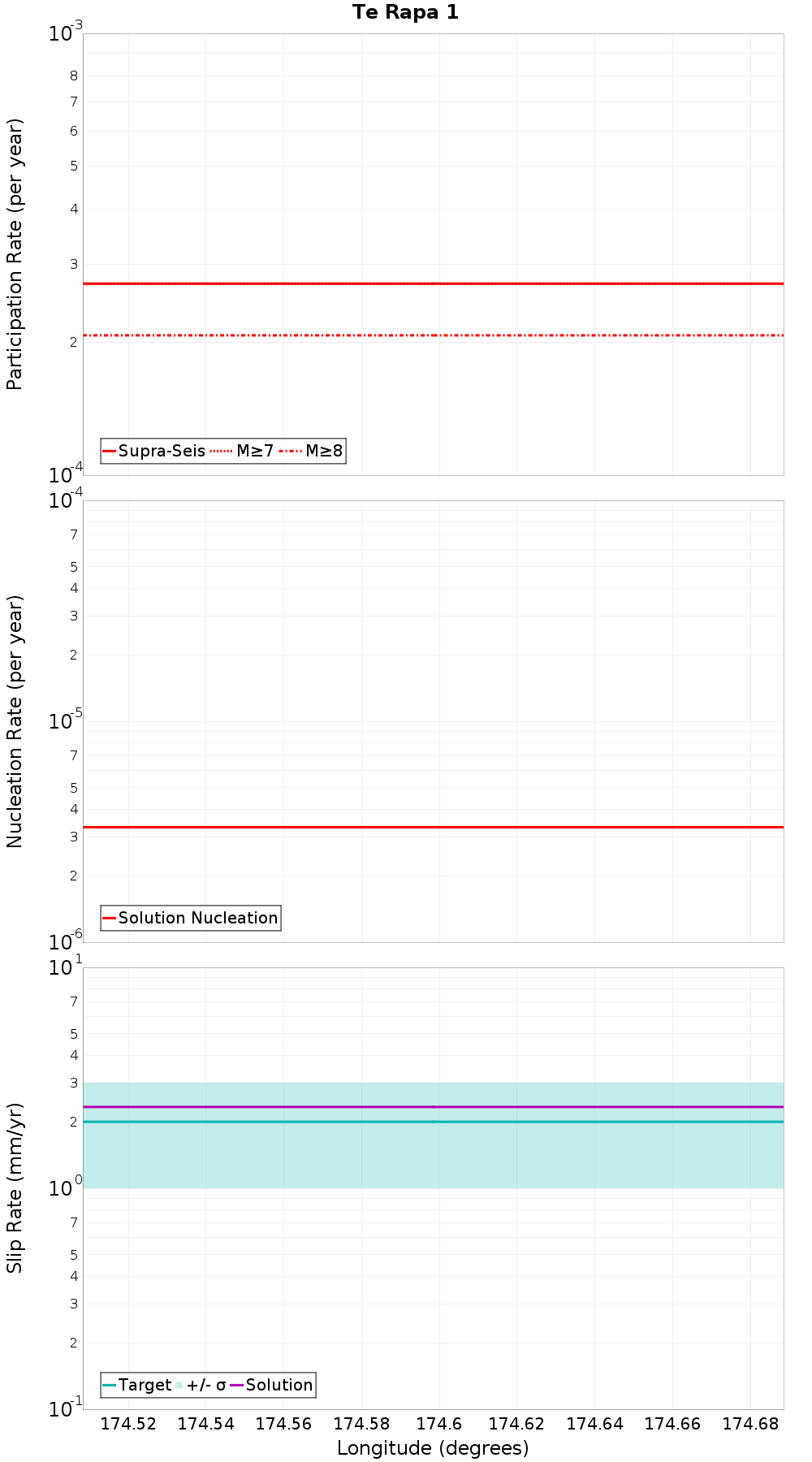

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Te Rapa, 0 km away
Te Rapa 2, 0 km away
Upper Slope, 0.13 km away
Kekerengu Bank, 3.06 km away
Campbell Bank, 3.64 km away
Wharanui, 5.8 km away
Chancet, 8.16 km away
London Hill, 17.64 km away
Needles East 2, 17.81 km away

Hope: Te Rapa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	true
Directly Connected?	true
Co-rupture Count	15,283
Co-rupture Rate	2.7121298E-4

Te Rapa 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	true
Directly Connected?	true
Co-rupture Count	13,547
Co-rupture Rate	2.1327824E-4

Upper Slope, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu Bank, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,131
Co-rupture Rate	5.793474E-5

Campbell Bank, 3.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wharanui, 5.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chancet, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0

London Hill, 17.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	true
Directly Connected?	false
Co-rupture Count	89
Co-rupture Rate	0.0

Needles East 2, 17.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNDguMEZvbVBj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
