Ararata Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 5 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.68, 7.68] |
| Length Range | [9, 88] km |
| Total Rate | 5.4500097E-6 /yr |
| Multi-Fault Rate | 5.4500097E-6 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

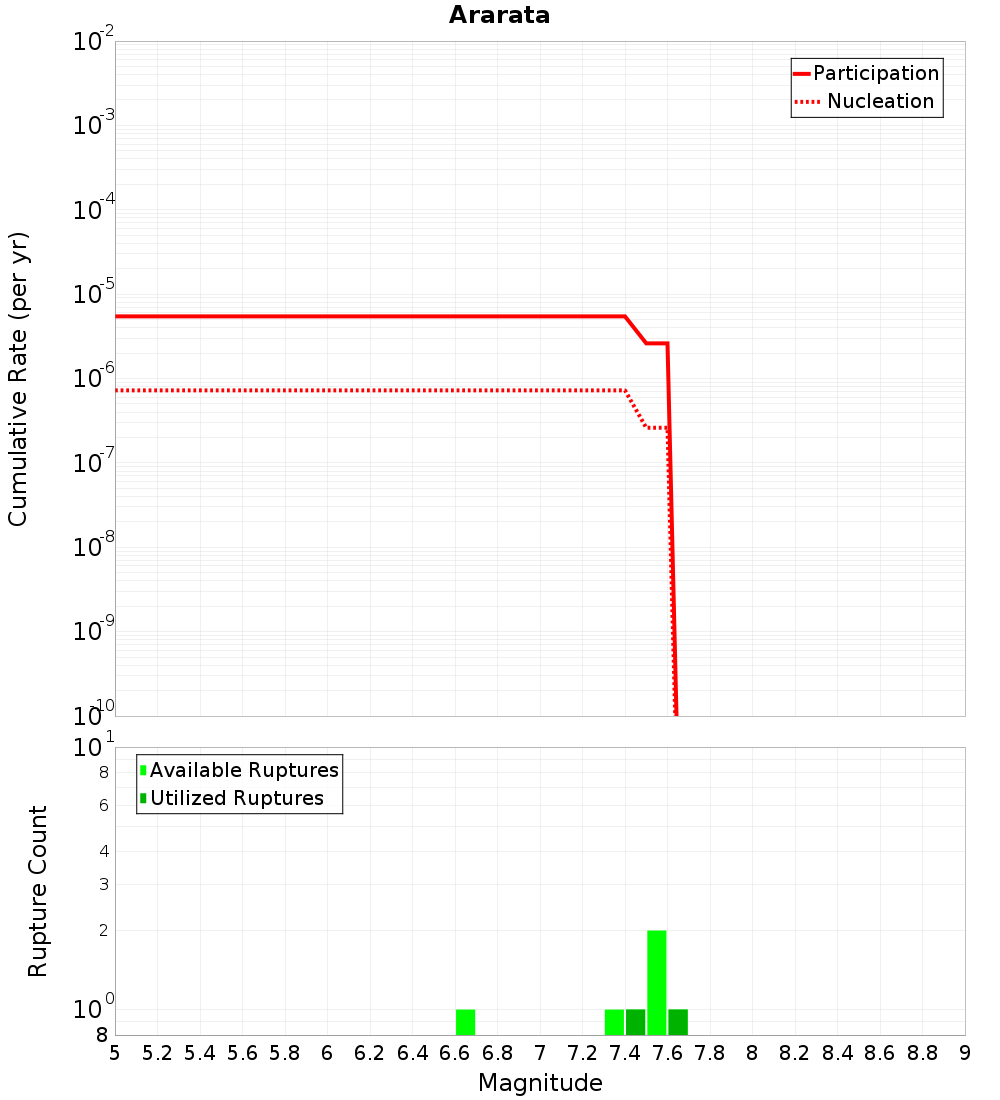

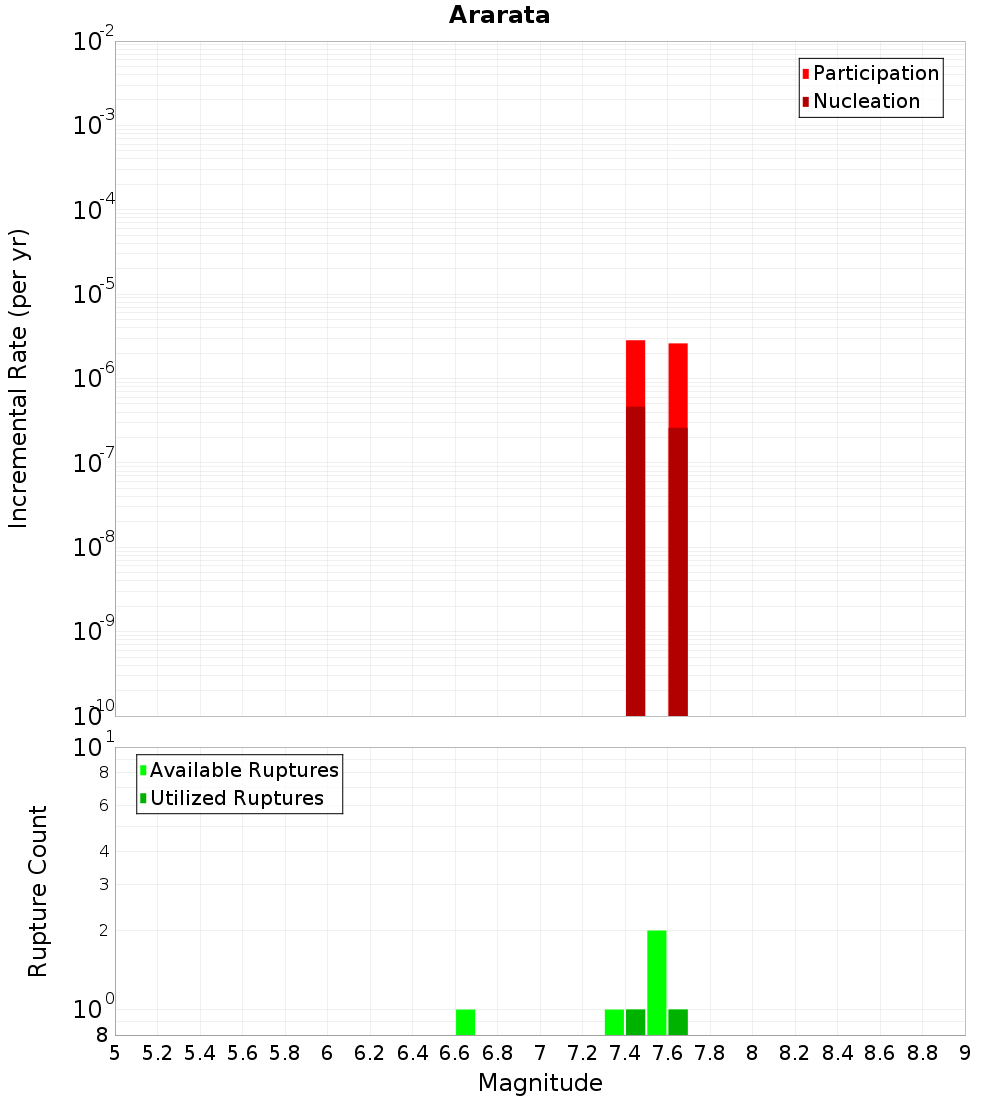

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

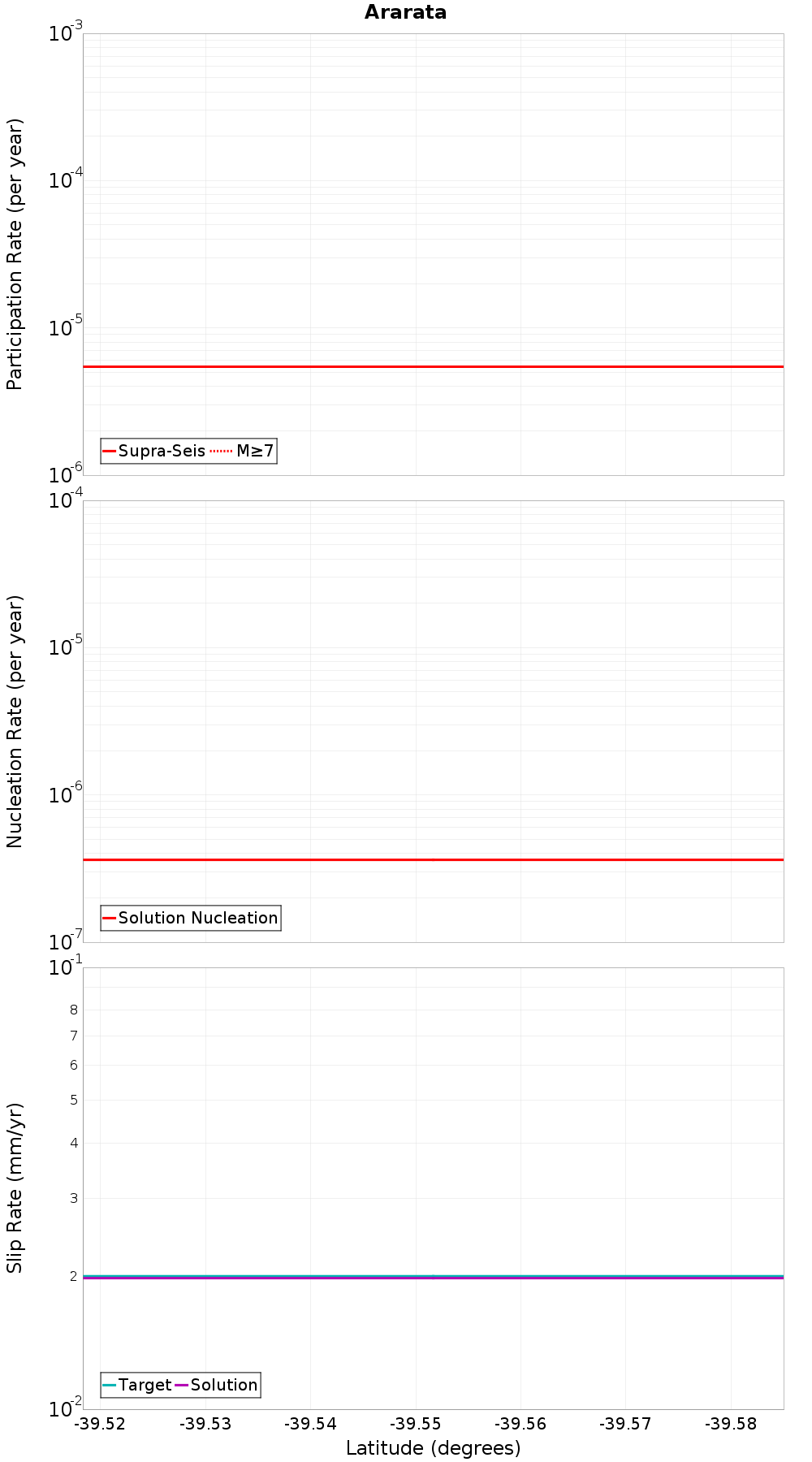

Along-Strike Values
Moment-Rates and b-Values

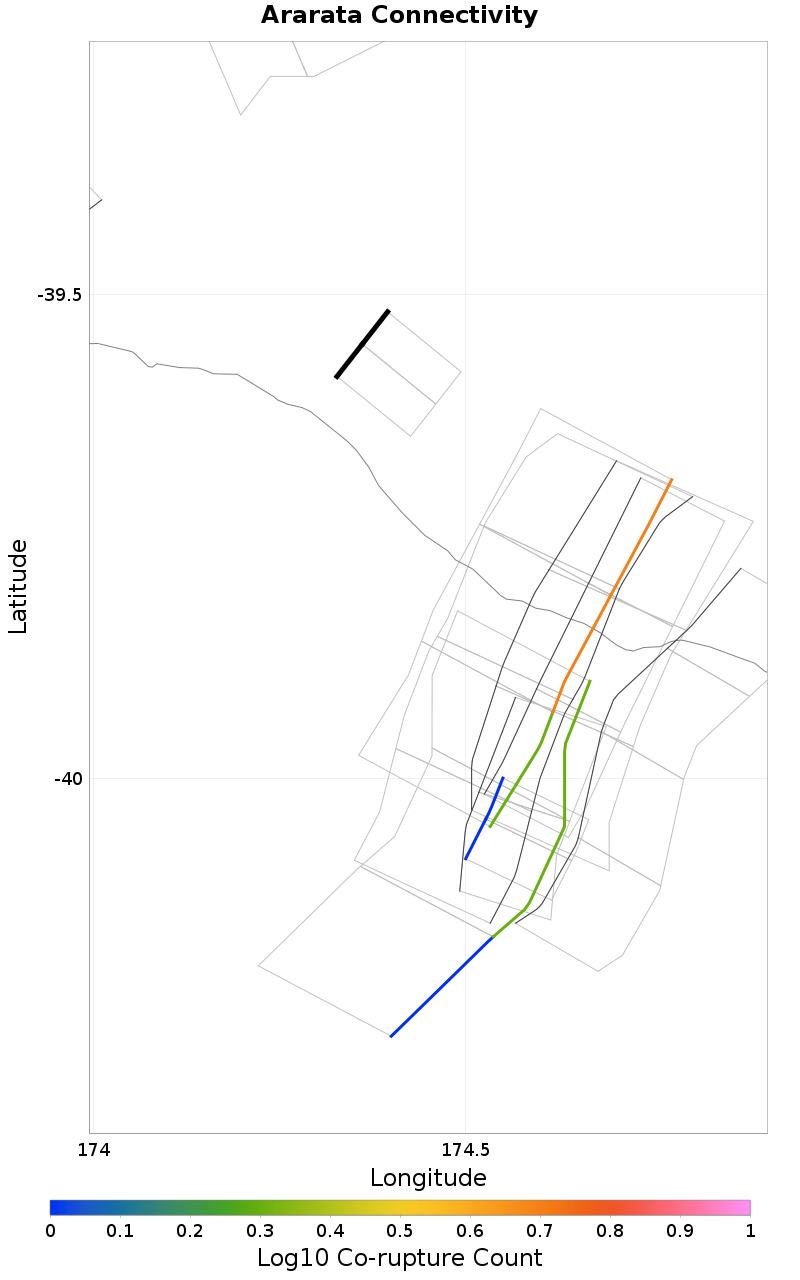

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ridge Road - Okaia 2, 10.1 km away |
| Waitotara 10 & 11, 11.98 km away |
Ridge Road - Okaia 2, 10.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 5.4500097E-6 |
Waitotara 10 & 11, 11.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
