Te Arawa 3 Details

PropertyValue
Rupture Count2,538
Ruptures Above Sect Min Mag2,538
Ruptures w/ Nonzero Rates23
Magnitude Range[6.79, 8.27]
Length Range[13, 528] km
Total Rate1.9472162E-4 /yr
Multi-Fault Rate1.9472162E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults60

Table Of Contents

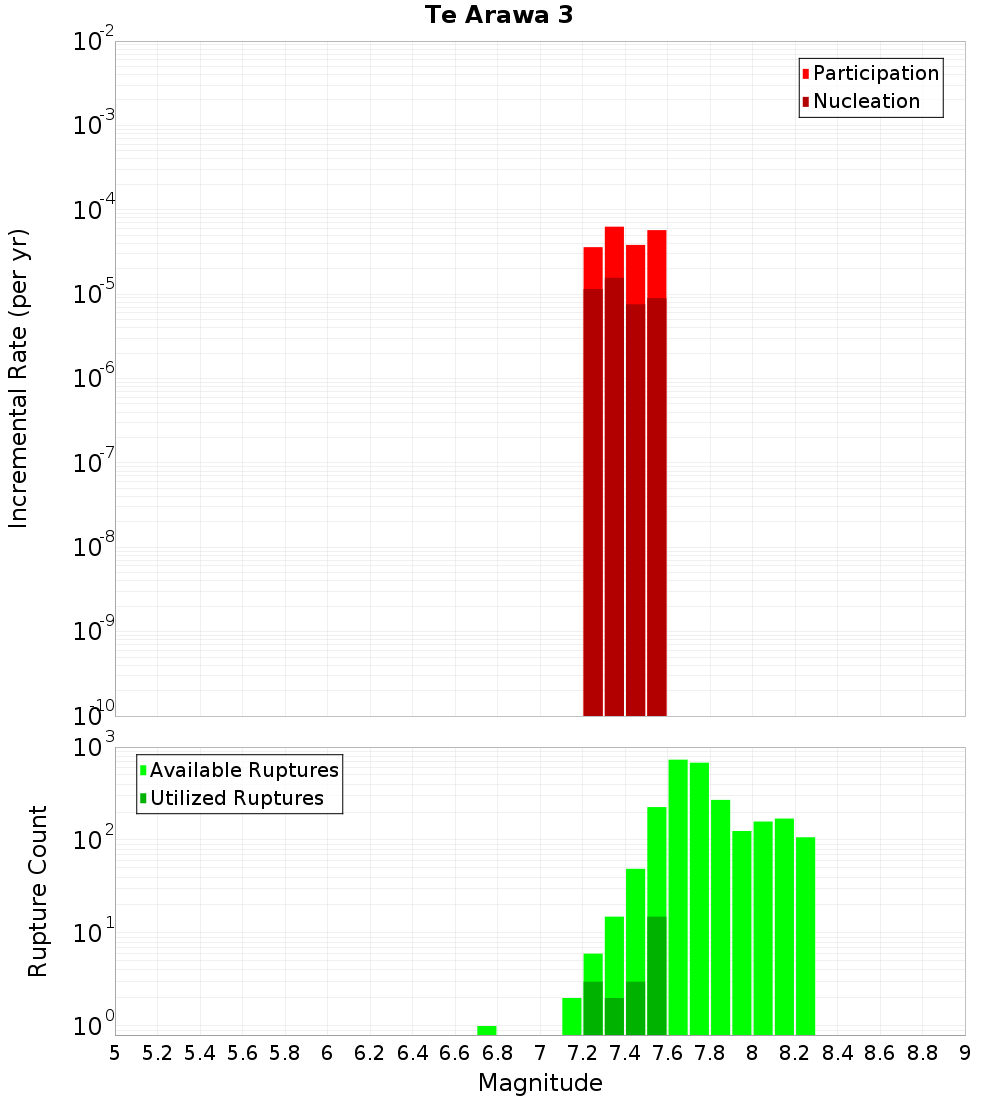

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

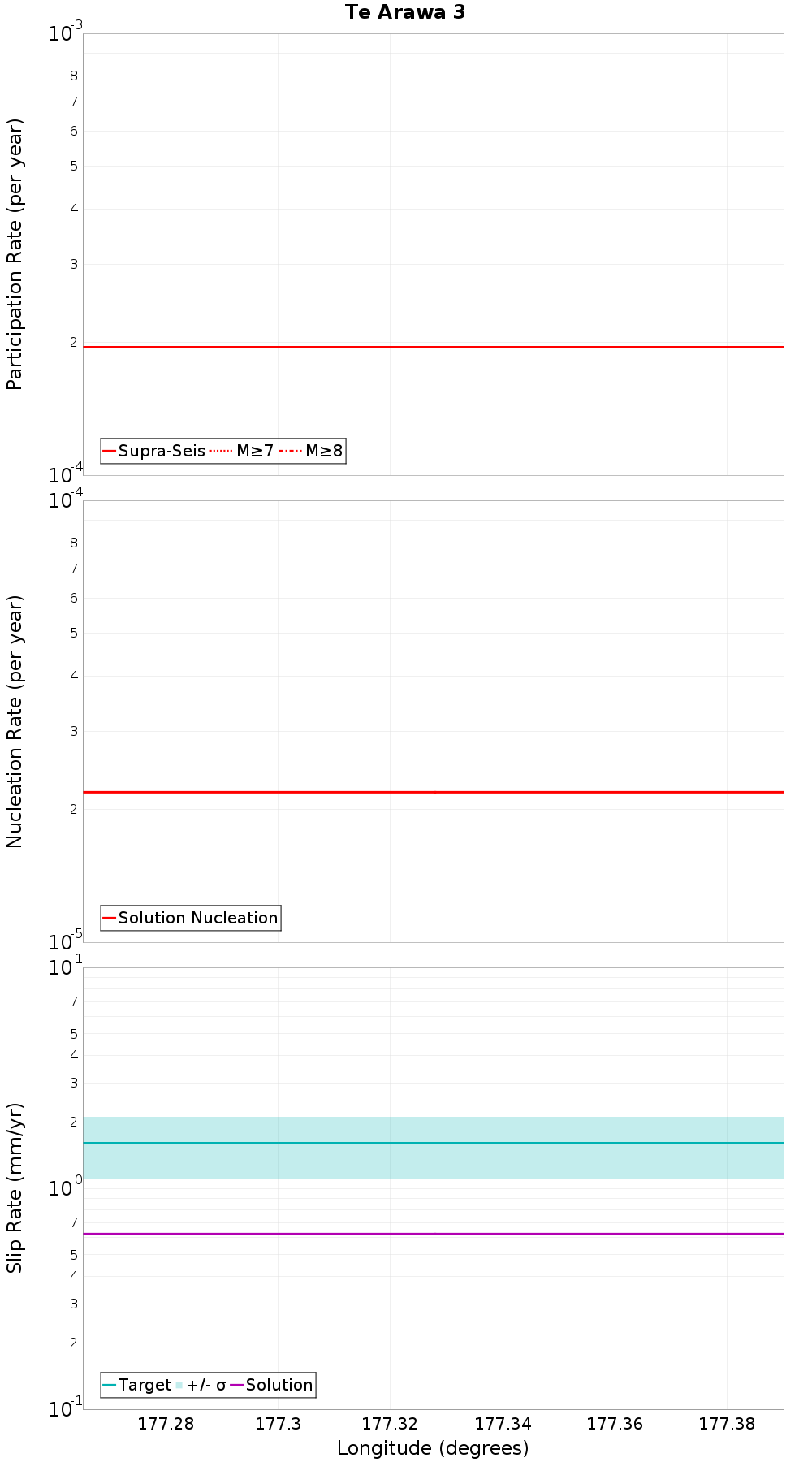

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

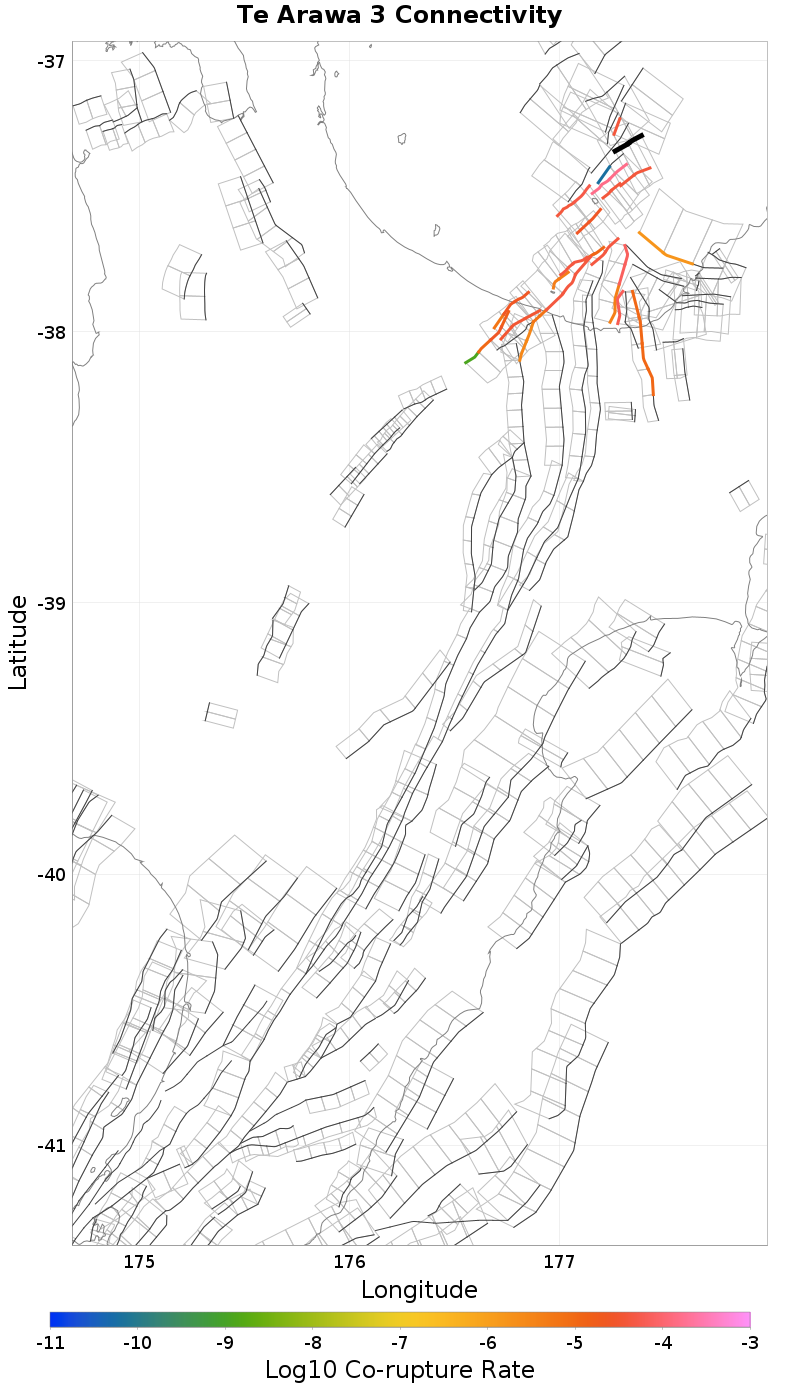

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.11 km away
Te Arawa 2, 1.67 km away
Volkner 4, 1.79 km away
Hariki, 3.21 km away
Otara West 1, 4.41 km away
Otara East 1, 5.22 km away
Te Arawa 1, 5.29 km away
Otara West 2, 8.79 km away
Tuatoru 1, 9.82 km away
Volkner 3, 12.62 km away
Otara East 2, 13.29 km away
Whakaari 4, 14.7 km away
Otara West 3, 16.94 km away
Calypso 2, 18.58 km away
White Island 2, 19.34 km away

Tuatoru 2, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count244
Co-rupture Rate4.0155457E-5

Te Arawa 2, 1.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate6.139995E-11

Volkner 4, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Hariki, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?true
Co-rupture Count323
Co-rupture Rate1.5524985E-6

Otara West 1, 4.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?true
Co-rupture Count739
Co-rupture Rate4.0155457E-5

Te Arawa 1, 5.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?true
Co-rupture Count2,263
Co-rupture Rate1.5456617E-4

Otara West 2, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count97
Co-rupture Rate4.0155395E-5

Volkner 3, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Otara East 2, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count227
Co-rupture Rate0.0

Whakaari 4, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count1,637
Co-rupture Rate5.2077634E-5

Otara West 3, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count85
Co-rupture Rate2.4772644E-5

White Island 2, 19.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1
Connected?true
Directly Connected?false
Co-rupture Count749
Co-rupture Rate4.4337954E-5
