Waitaki Details
| Property | Value |
|---|---|
| Rupture Count | 163 |
| Ruptures Above Sect Min Mag | 160 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.75, 7.91] |
| Length Range | [18, 199] km |
| Total Rate | 1.9978475E-5 /yr |
| Multi-Fault Rate | 1.9978475E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 15 |
Table Of Contents

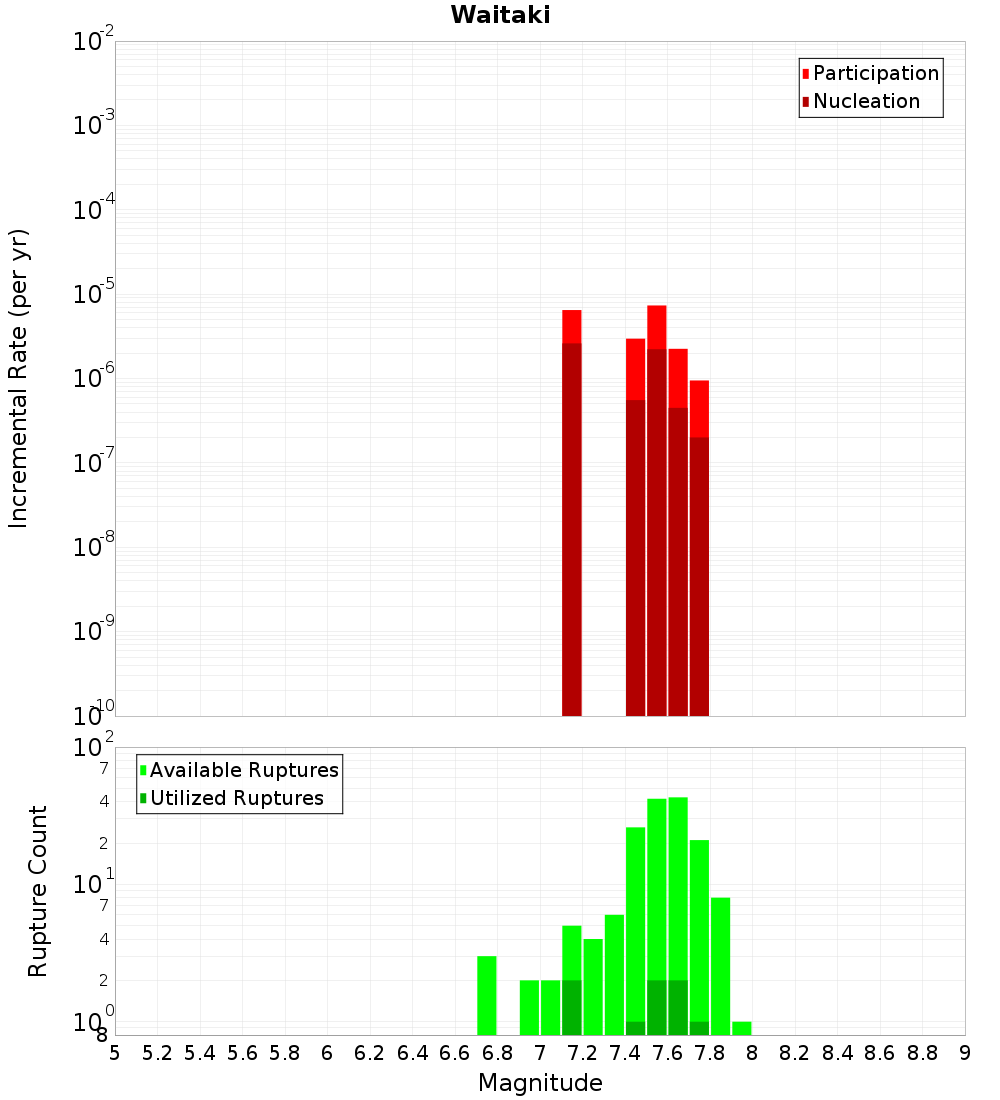

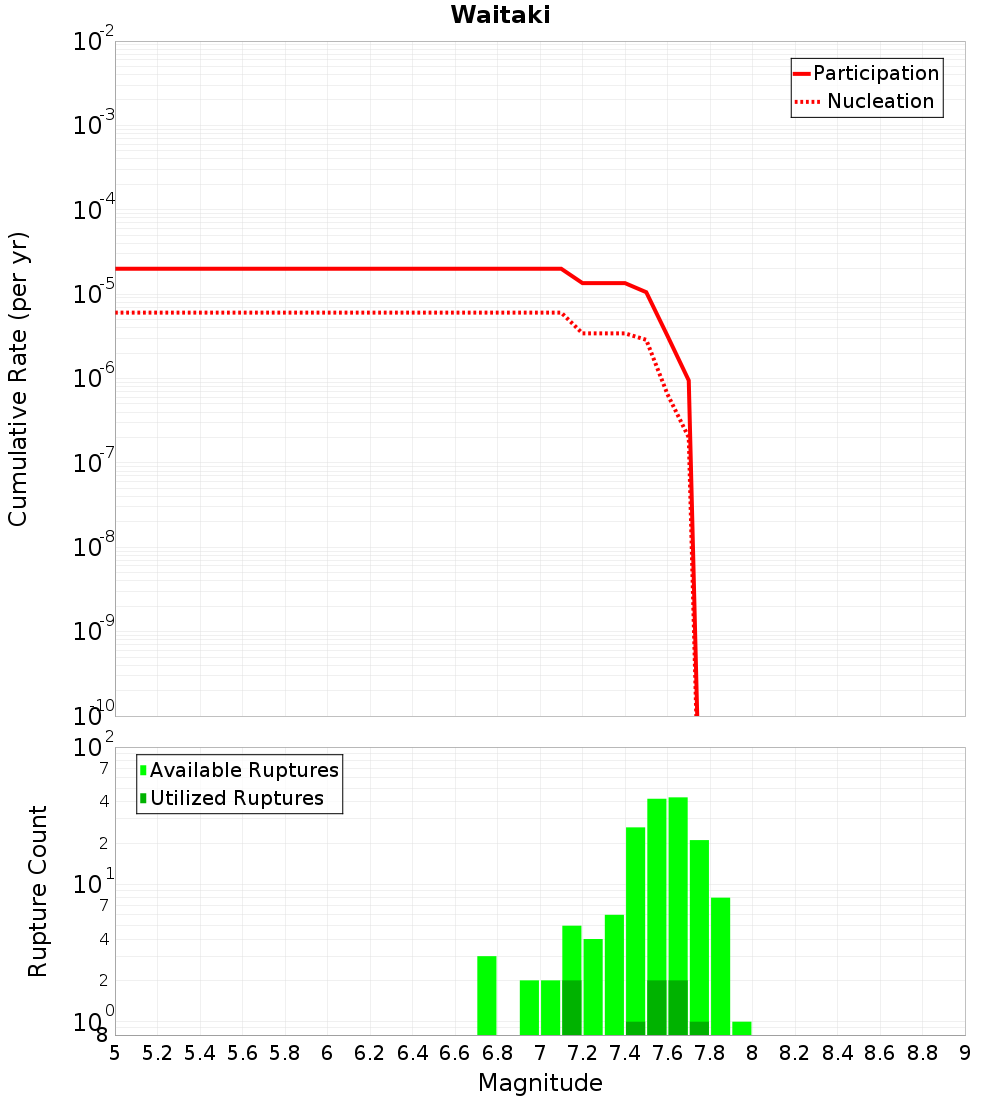

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

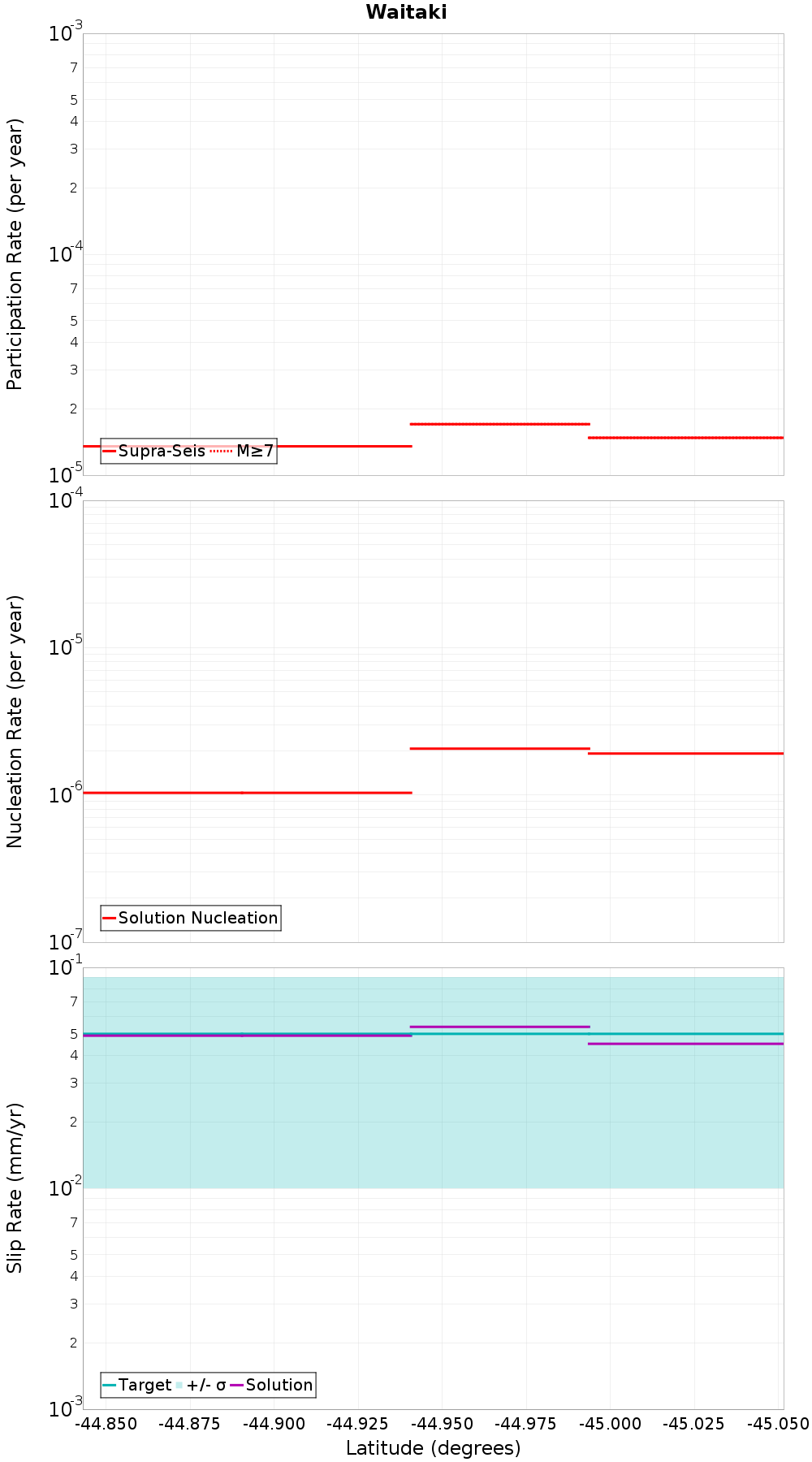

Along-Strike Values

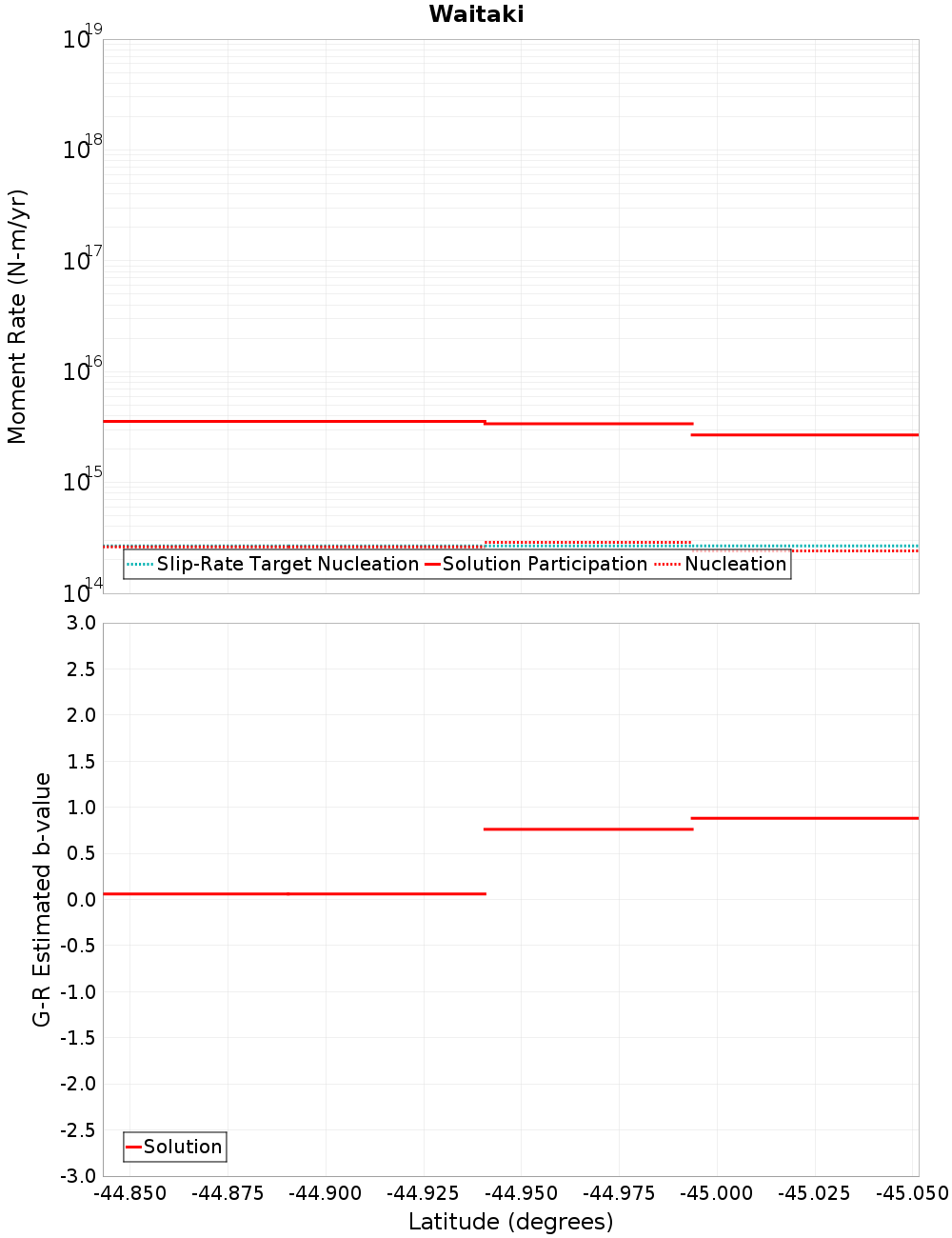

Moment-Rates and b-Values

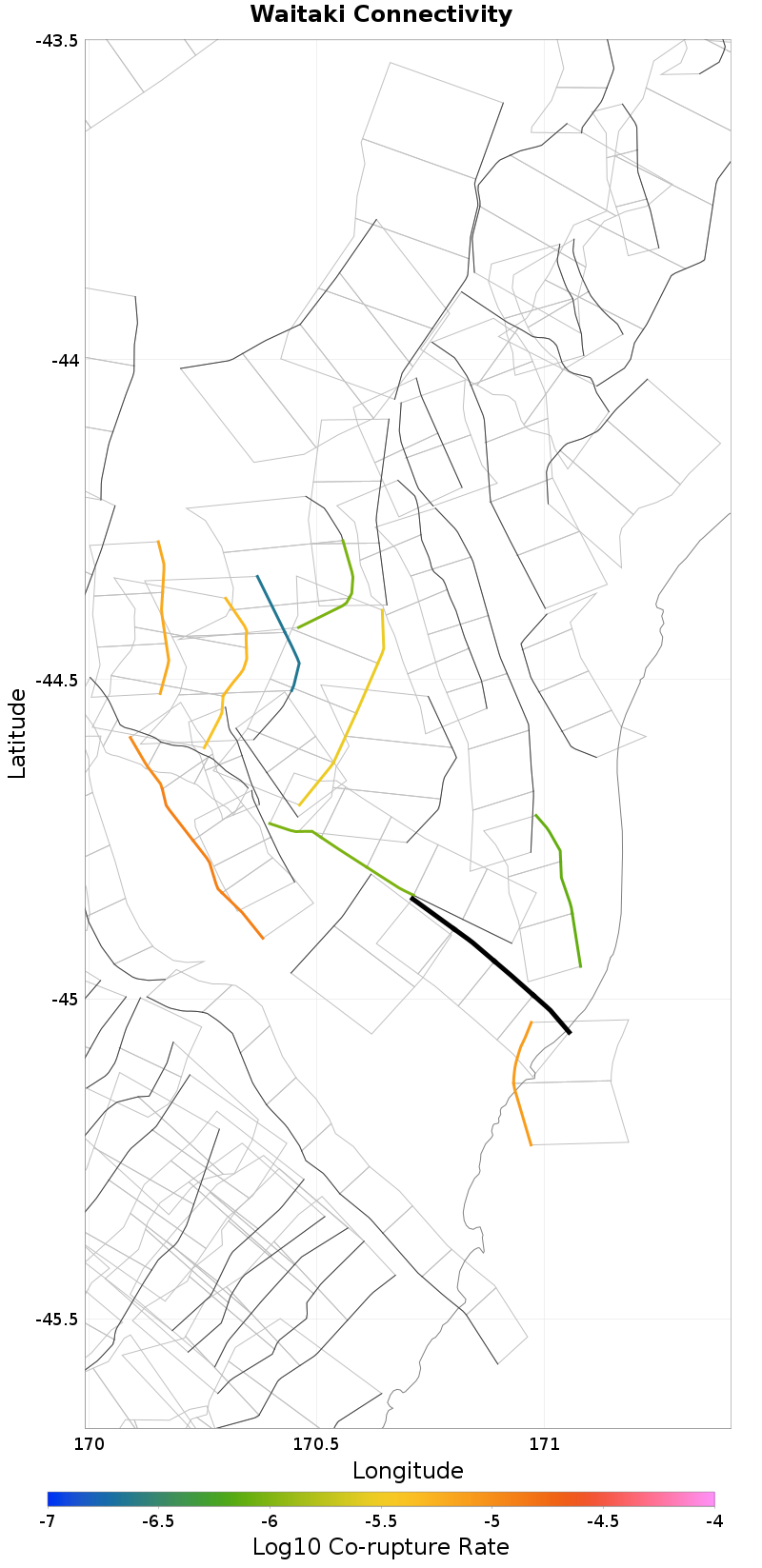

Connectivity
 |  |
|---|
Nearby Sections
Black Hill, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 63 |
| Co-rupture Rate | 0.0 |
Awamoa, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 7.951932E-6 |
Stonewall, 0.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 103 |
| Co-rupture Rate | 9.480658E-7 |
Waimate, 8.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 7.727469E-7 |
Campbell Hills, 9.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 0.0 |
Middle Range, 13.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 46 |
| Co-rupture Rate | 1.2554476E-5 |
Hunters, 16.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awahokomo, 19.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNTQuMGd0aVd1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
