Edgecumbe Coastal Details

Property	Value
Rupture Count	20,858
Ruptures Above Sect Min Mag	20,857
Ruptures w/ Nonzero Rates	103
Magnitude Range	[6.44, 8.34]
Length Range	[7, 608] km
Total Rate	7.78842E-4 /yr
Multi-Fault Rate	7.78842E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	90

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

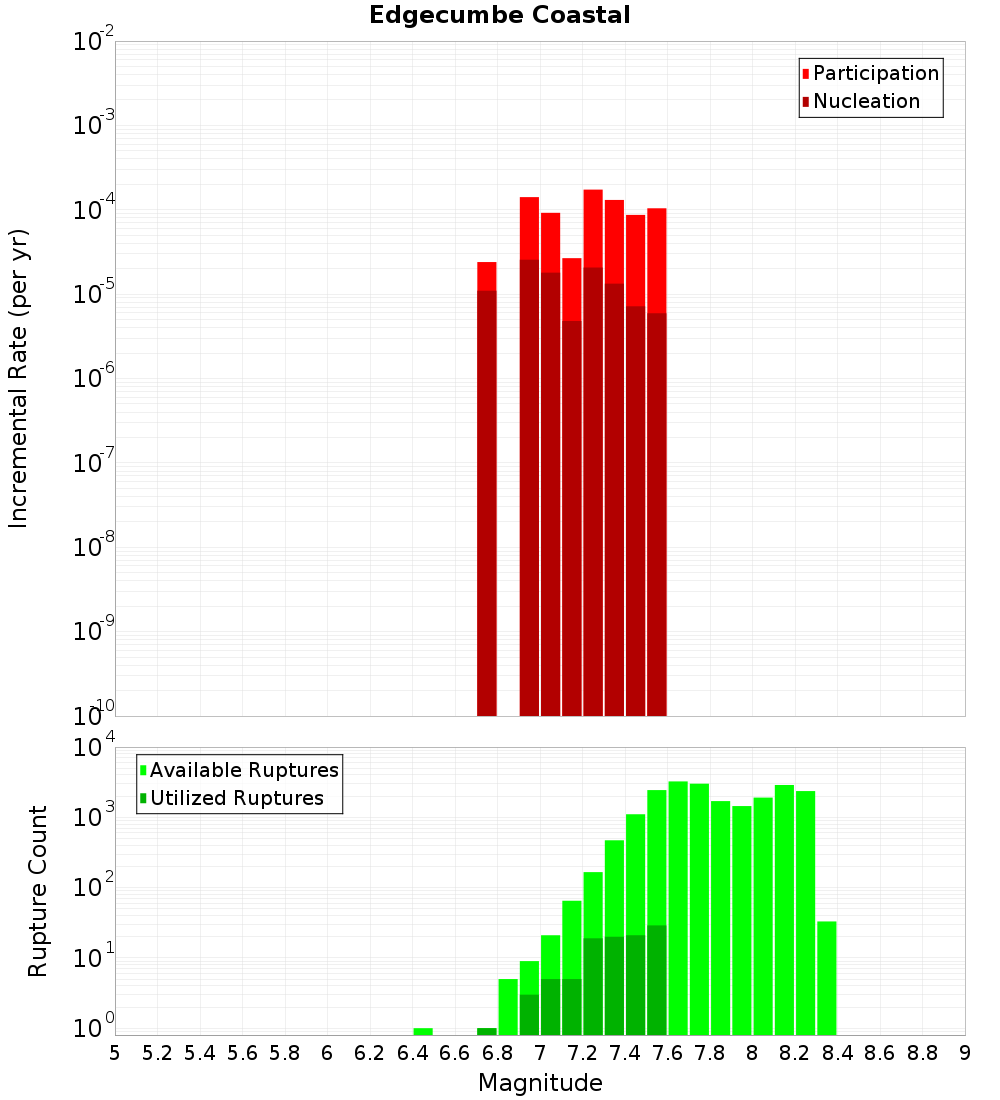

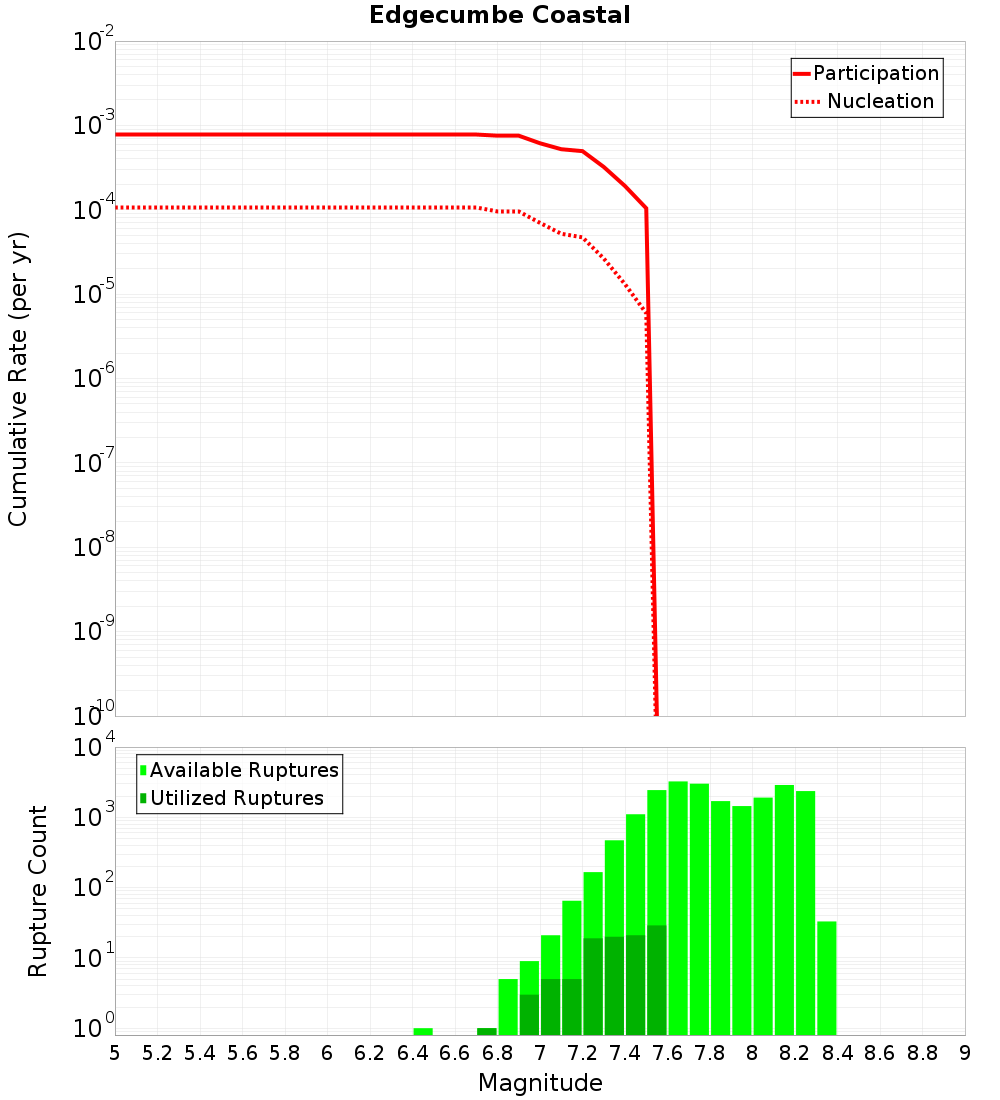

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

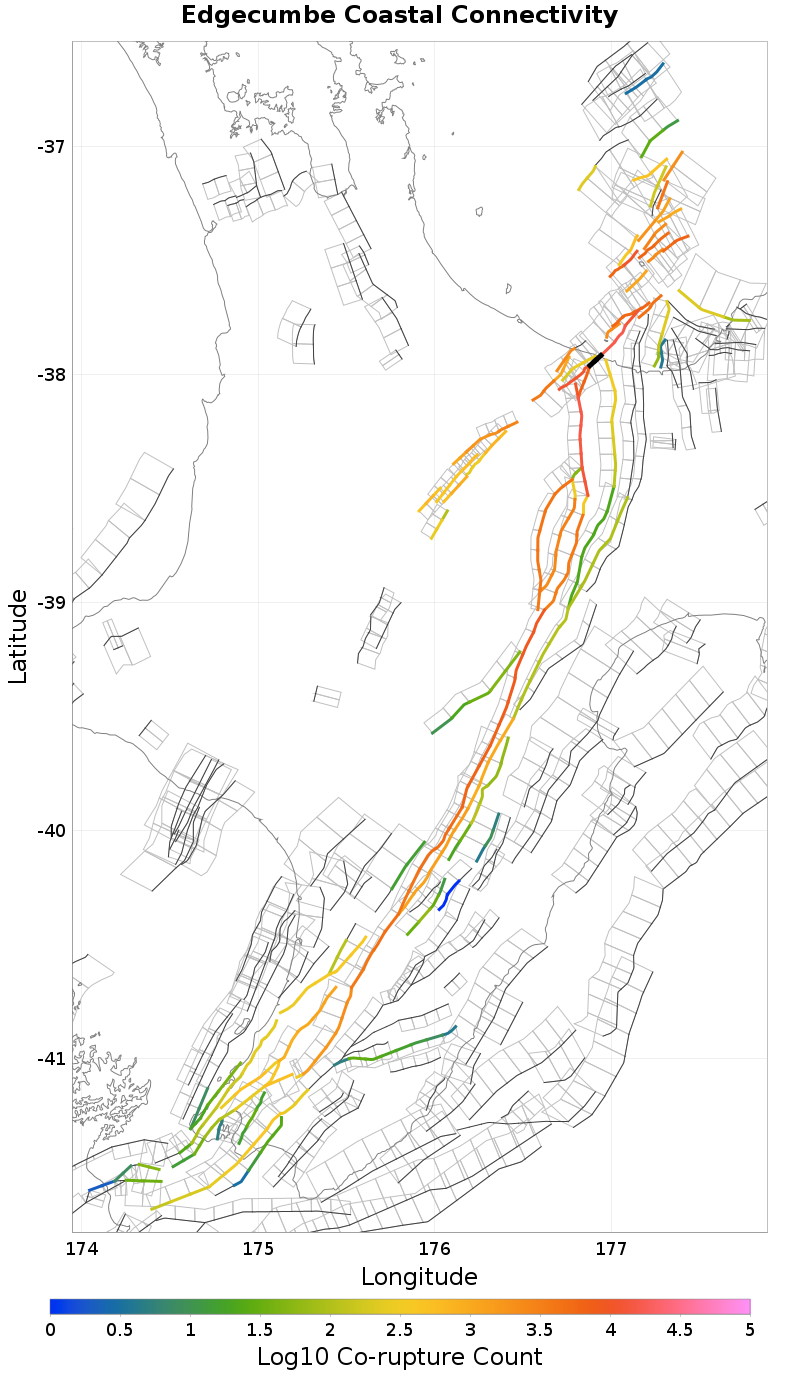

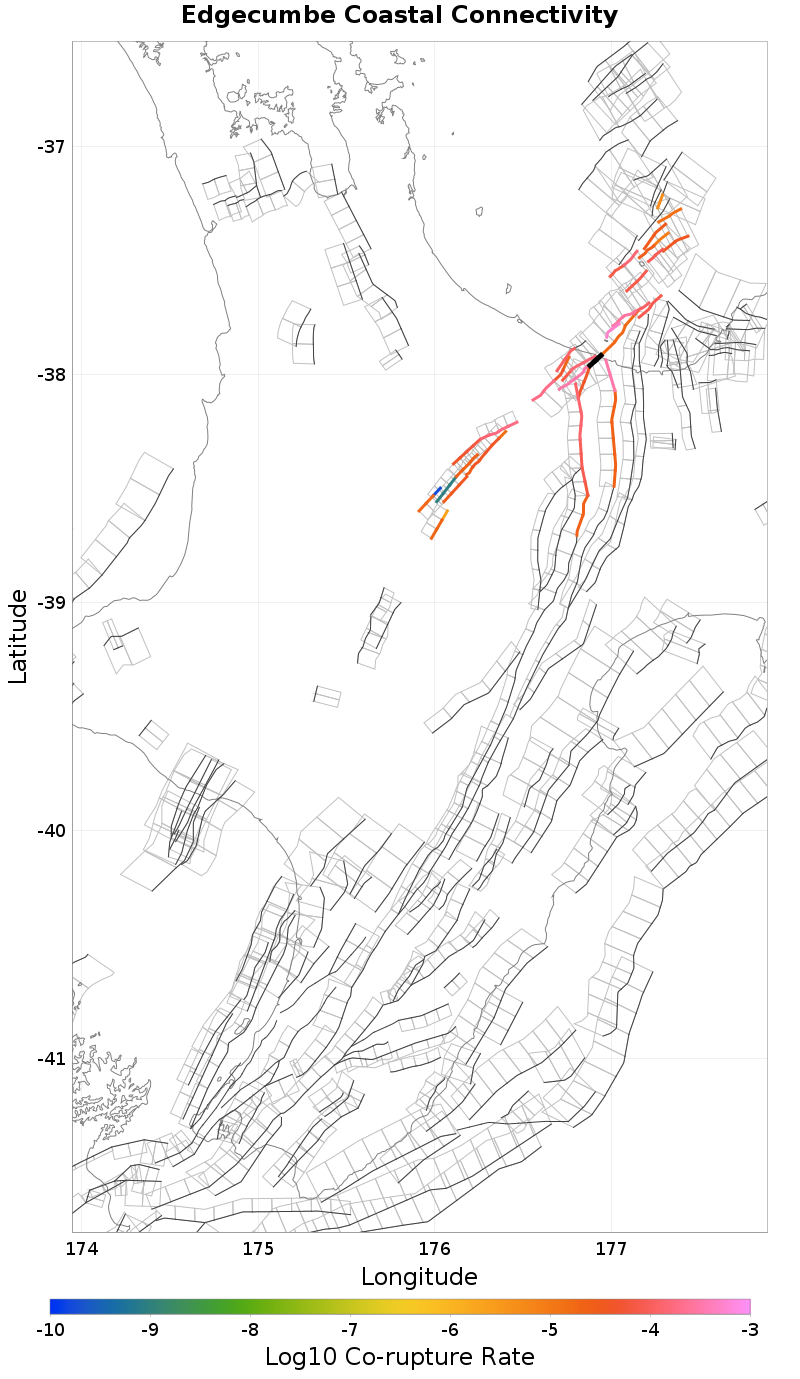

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimanawa - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	true
Co-rupture Count	16,283
Co-rupture Rate	1.7632667E-5

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	true
Co-rupture Count	11,626
Co-rupture Rate	3.2242527E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	true
Co-rupture Count	6,360
Co-rupture Rate	4.2794396E-5

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	true
Co-rupture Count	282
Co-rupture Rate	1.4622905E-4

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,389
Co-rupture Rate	1.0988045E-4

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	true
Co-rupture Count	301
Co-rupture Rate	3.1895857E-4

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	true
Co-rupture Count	4,714
Co-rupture Rate	2.0990781E-4

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,242
Co-rupture Rate	5.0296215E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	false
Co-rupture Count	16,038
Co-rupture Rate	1.3155171E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	true
Directly Connected?	false
Co-rupture Count	5,750
Co-rupture Rate	2.703579E-4

Waimana: North, 15.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 18.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
