Hutt Peel Details

PropertyValue
Rupture Count487
Ruptures Above Sect Min Mag483
Ruptures w/ Nonzero Rates26
Magnitude Range[7.06, 8.11]
Length Range[27, 345] km
Total Rate1.7102671E-4 /yr
Multi-Fault Rate1.7102671E-4 /yr (100.00%)
Directly-Connected Faults11
All Co-Rupturing Faults25

Table Of Contents

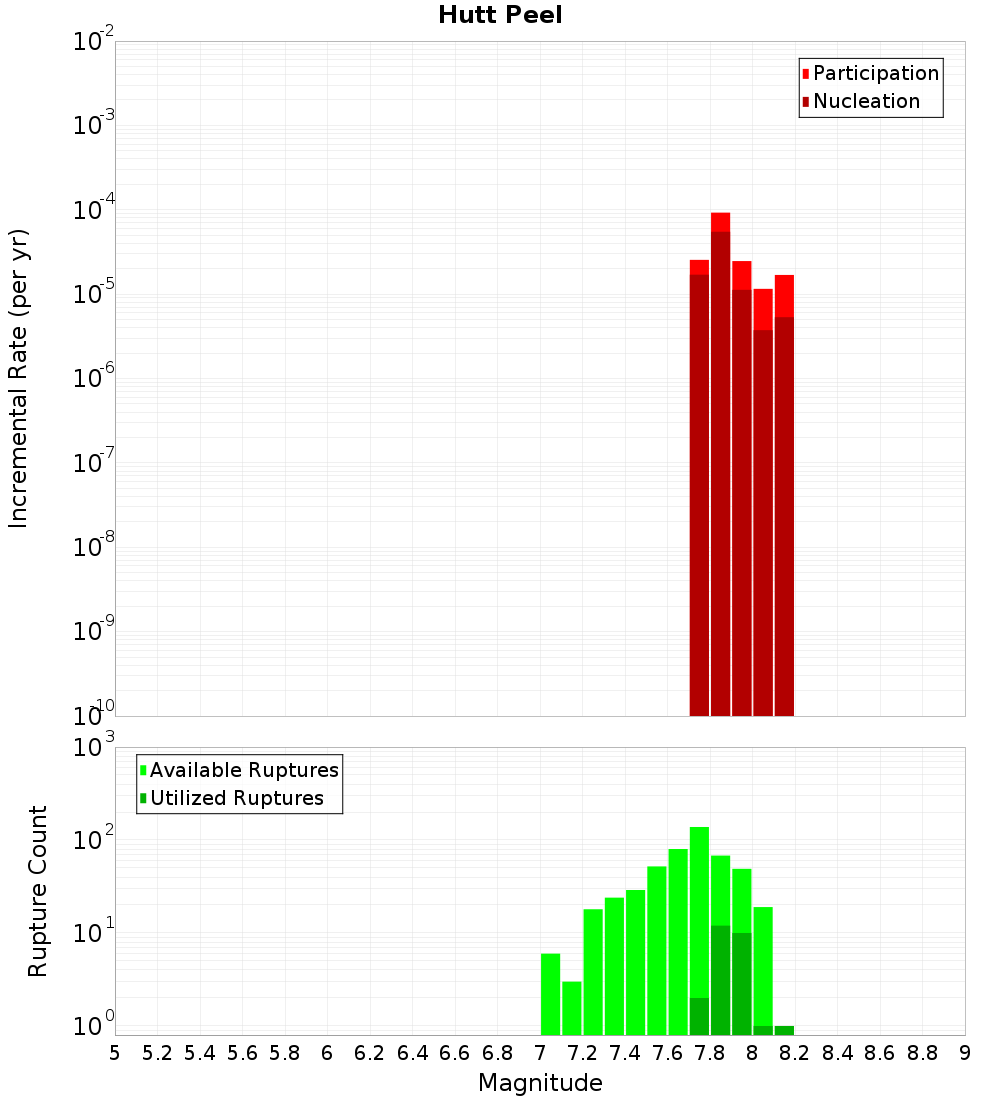

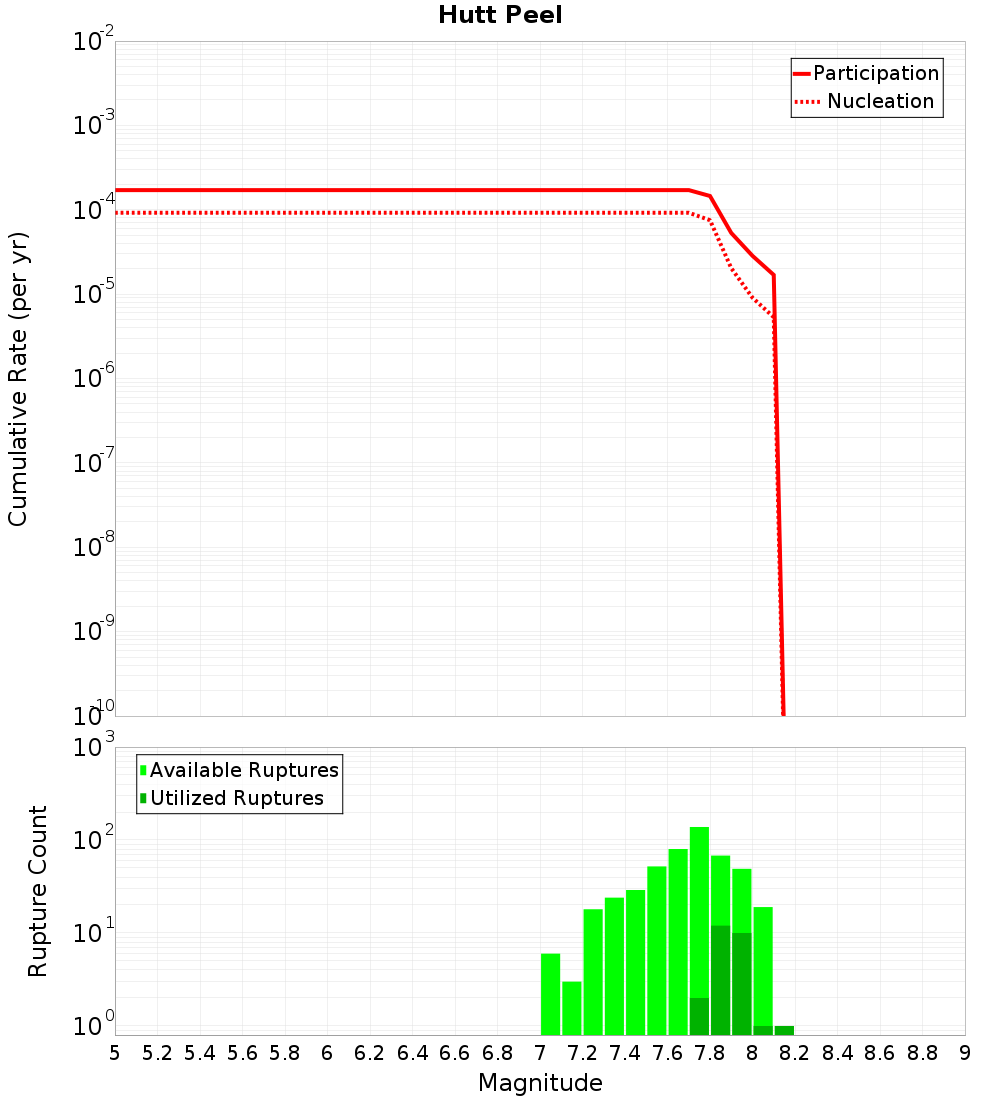

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

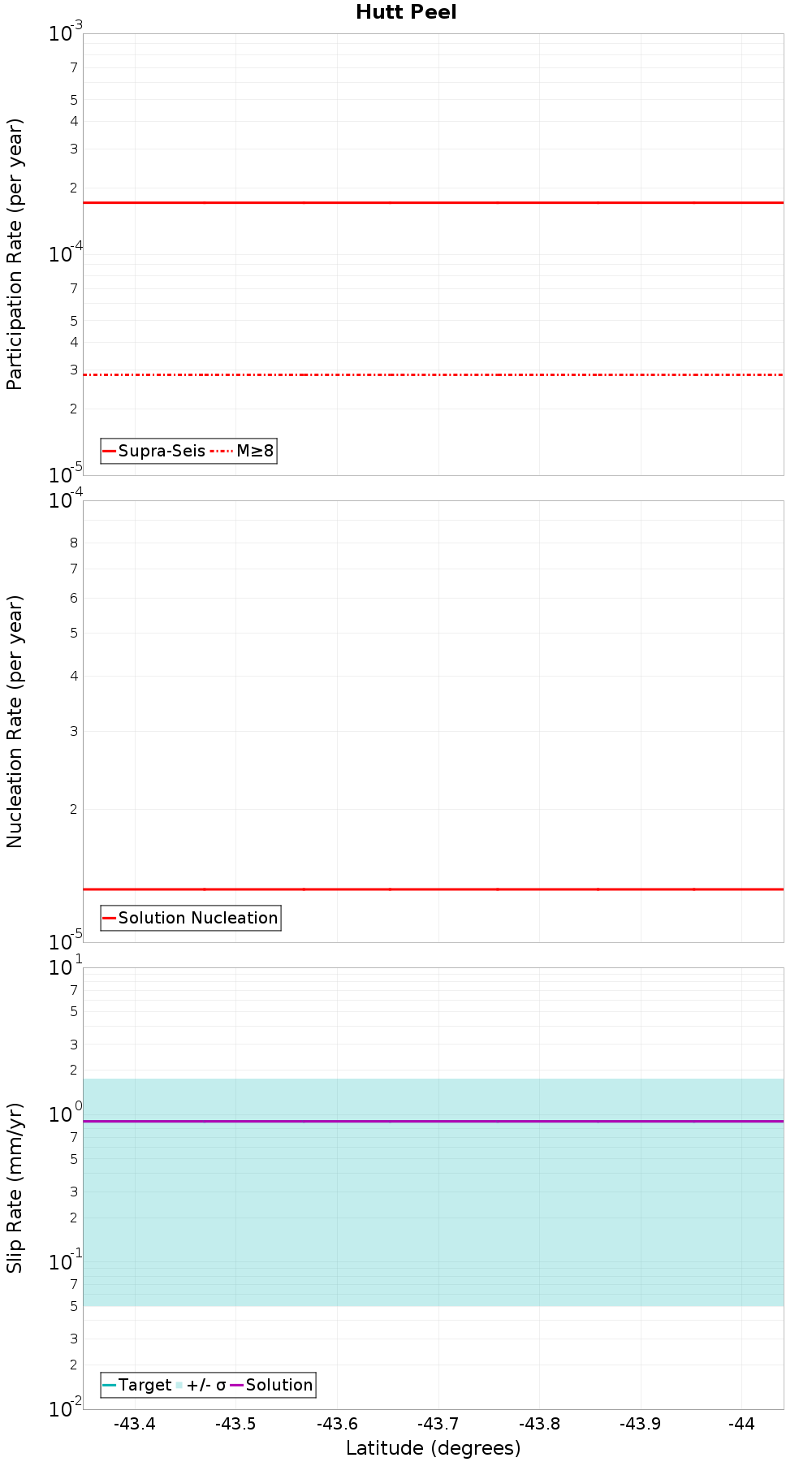

Along-strike plot

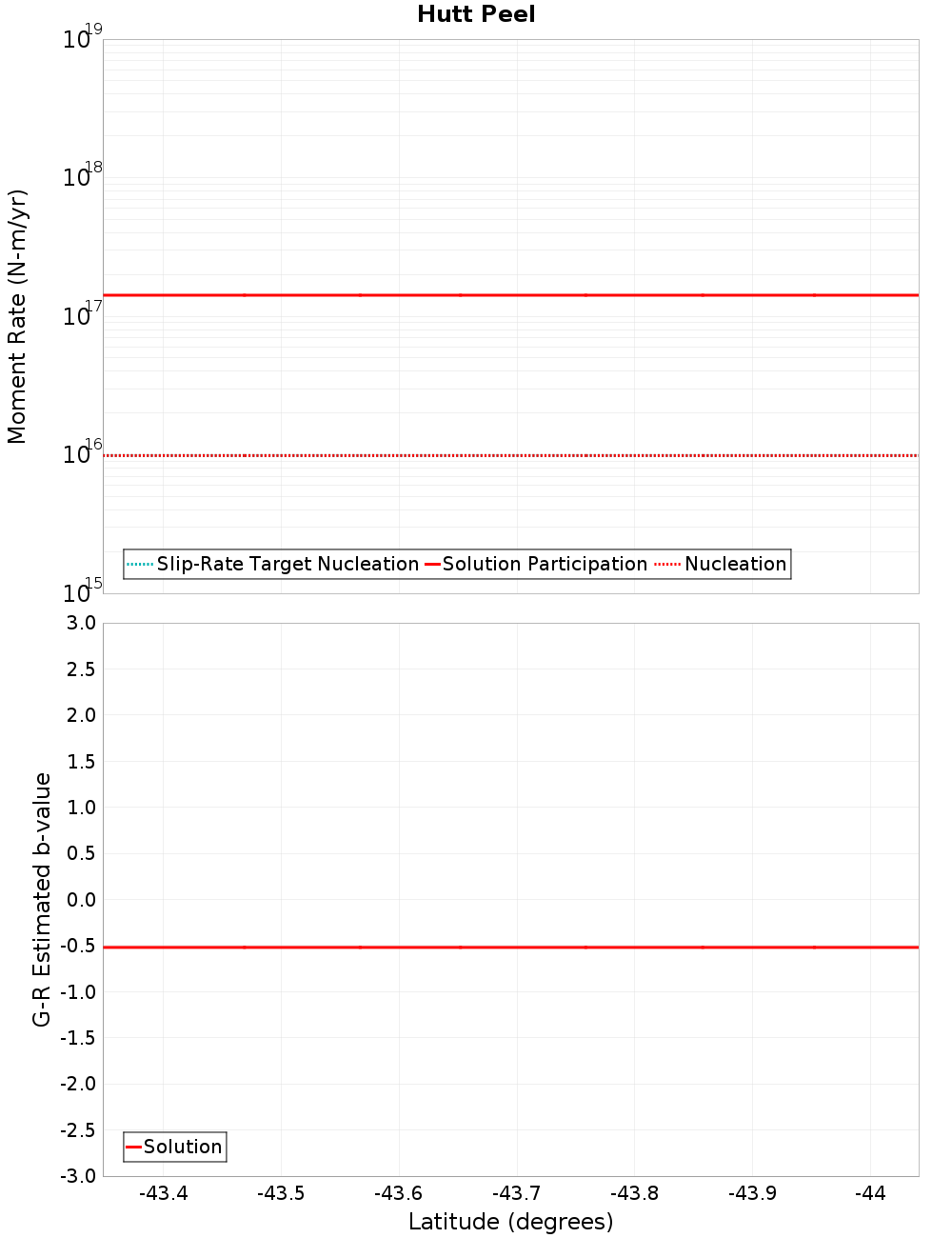

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
North Branch, 0.04 km awayBig Ben, 2.07 km away
Ben McLeod, 0.04 km awayRapuwai, 4.18 km away
Klondyke Moor, 0.09 km awayTorlesse, 6.36 km away
Edith, 0.18 km awayHigh Peak - Sheffield, 6.61 km away
Catherine, 0.25 km awayCheeseman, 7.5 km away
Double Hill, 0.26 km awayKowai - View Hill, 8.24 km away
Brothers, 0.26 km awayIrishman Creek, 9.61 km away
Redcliffe, 0.29 km awayOpawa, 9.67 km away
Sugarloaf, 0.39 km awayHororata, 10.65 km away
Porters Pass, 1.77 km awayLake Heron, 12.22 km away

North Branch, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate0.0

Ben McLeod, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count110
Co-rupture Rate1.5940498E-4

Klondyke Moor, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate0.0

Edith, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Catherine, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Double Hill, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate0.0

Brothers, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Redcliffe, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate0.0

Sugarloaf, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 1.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count244
Co-rupture Rate9.735183E-5

Big Ben, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate4.017897E-5

Rapuwai, 4.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count86
Co-rupture Rate1.1621723E-5

Torlesse, 6.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?false
Co-rupture Count115
Co-rupture Rate5.5330533E-5

High Peak - Sheffield, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count123
Co-rupture Rate3.0546038E-5

Cheeseman, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate2.9500454E-6

Kowai - View Hill, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.3029288E-6

Irishman Creek, 9.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opawa, 9.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate0.0

Hororata, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate2.6917758E-5

Lake Heron, 12.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwNjcuMFFUWVVq
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.8433307E-5
