Cluden Details
| Property | Value |
|---|---|
| Rupture Count | 74 |
| Ruptures Above Sect Min Mag | 73 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.84, 8.11] |
| Length Range | [17, 239] km |
| Total Rate | 2.9044357E-5 /yr |
| Multi-Fault Rate | 2.9044357E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 17 |
Table Of Contents

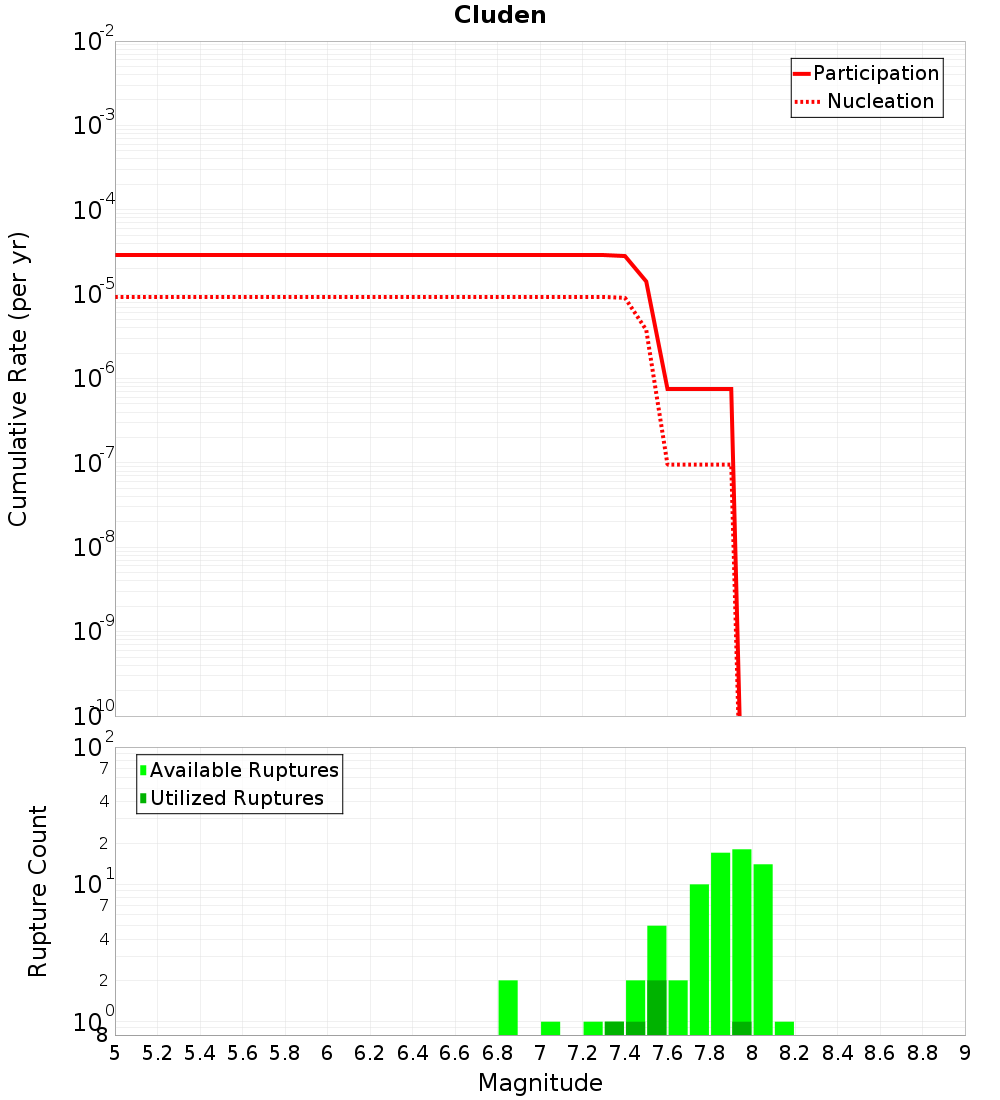

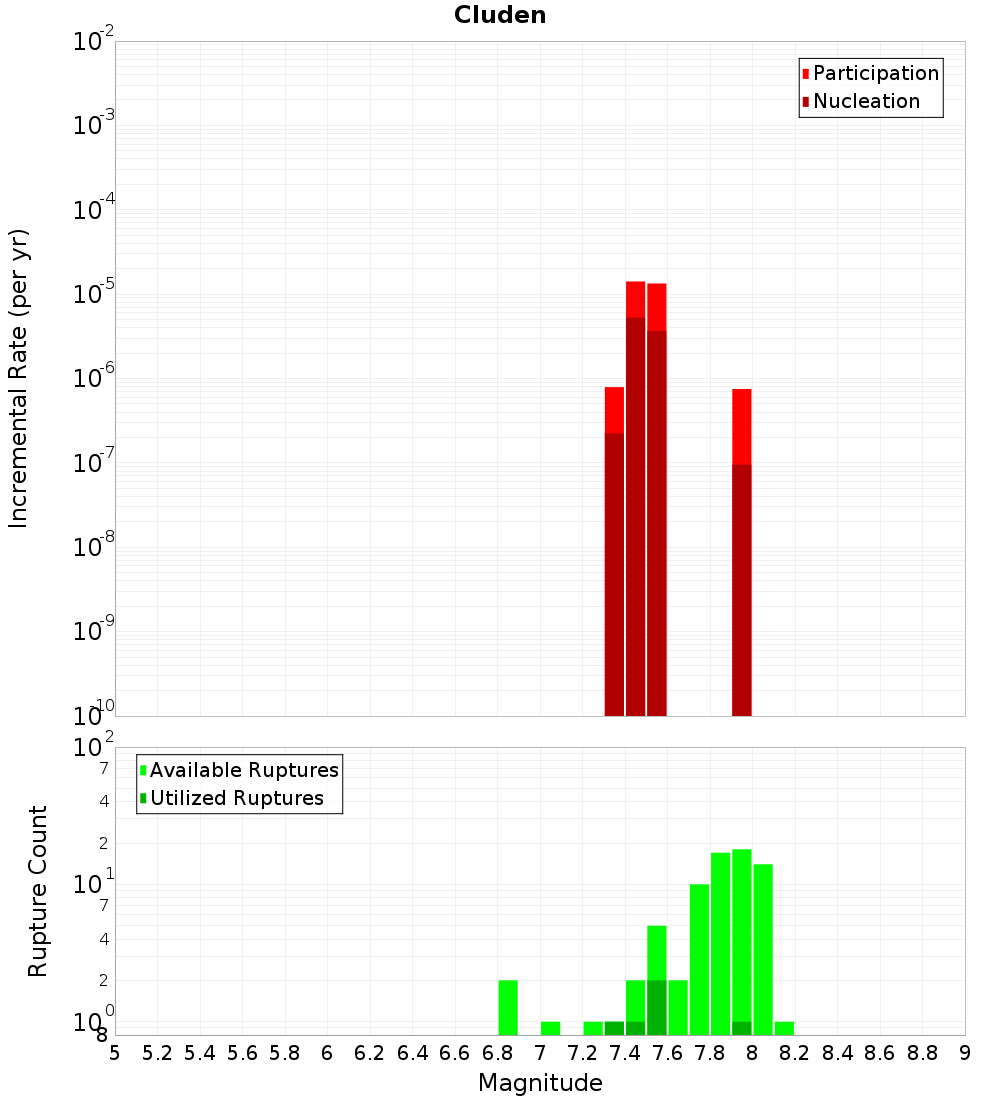

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

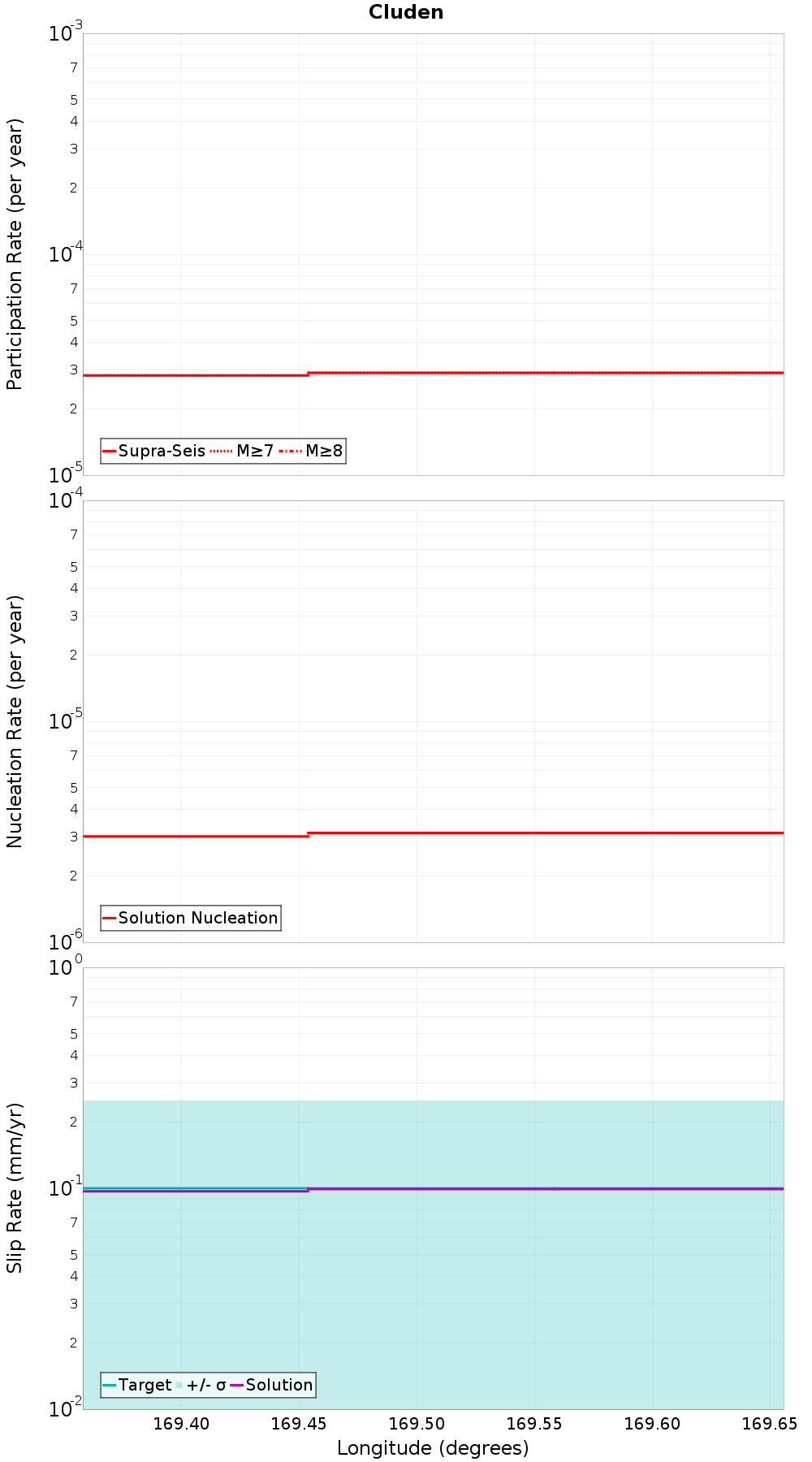

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Lindis River, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 7.500796E-7 |
Grandview, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Goodger, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dromedary, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pisa, 1.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 61 |
| Co-rupture Rate | 7.500796E-7 |
Dunstan, 3.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 23 |
| Co-rupture Rate | 2.9044357E-5 |
Paddys Ridge, 5.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Blue Lake, 7.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motatapu, 8.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wanaka, 12.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Omarama Saddle, 13.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raggedy - Blackstone, 15.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cardrona - Hawea, 18.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
NW Cardrona North, 19.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
