Whangamoa Details
| Property | Value |
|---|---|
| Rupture Count | 645 |
| Ruptures Above Sect Min Mag | 639 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.97, 8.54] |
| Length Range | [23, 856] km |
| Total Rate | 4.554992E-5 /yr |
| Multi-Fault Rate | 2.1407359E-5 /yr (47.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 42 |
Table Of Contents

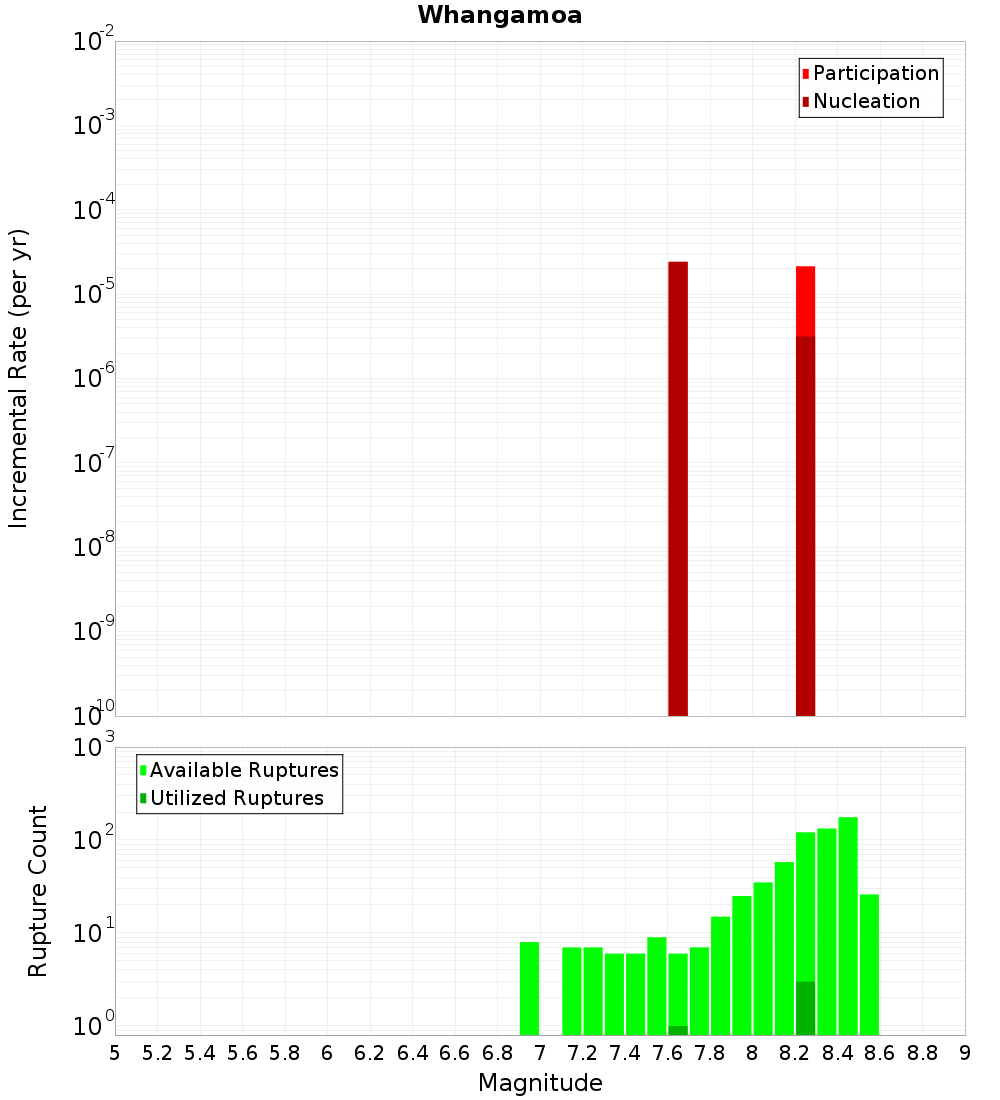

Magnitude-Frequency Distribution

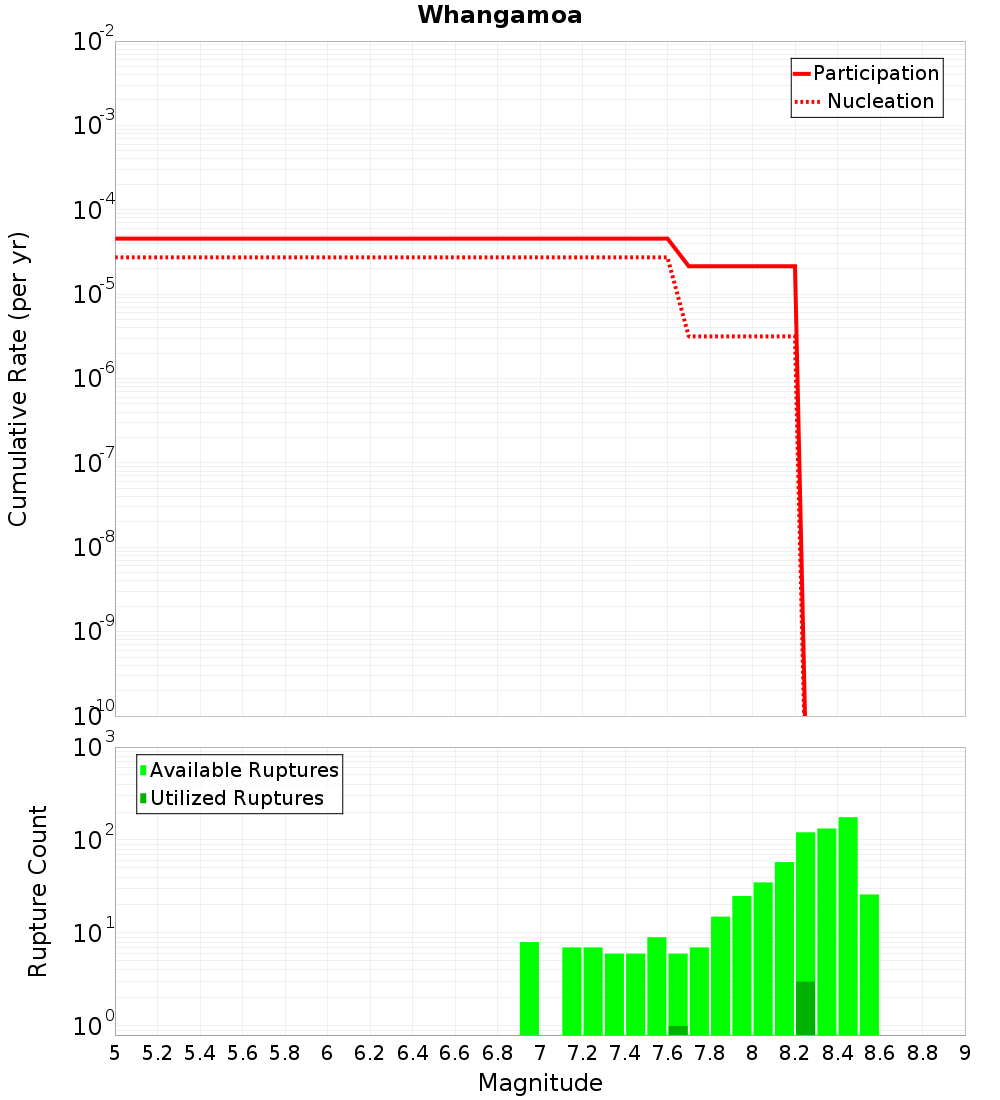

| Incremental | Cumulative |
|---|---|
 |  |

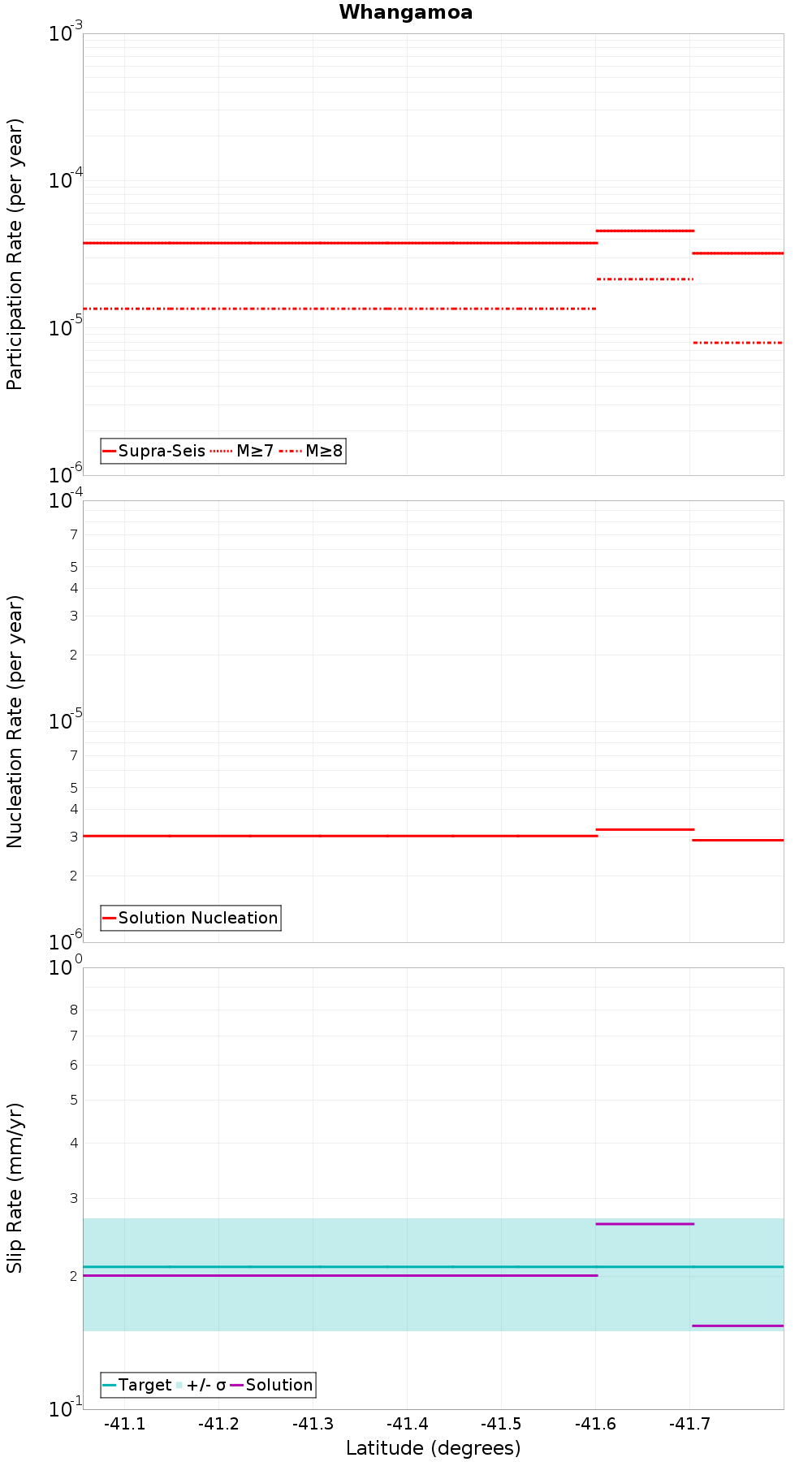

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Alpine: Springs Junction to Tophouse, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 609 |
| Co-rupture Rate | 2.1407359E-5 |
Wairau, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Waimea Offshore, 0.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Flaxmore - Waimea - Tahunanui, 2.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Surville, 14.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tutaki, 14.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ruby Bay - Moutere, 15.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODEuMFpXS3ph | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
