Pihama Details
| Property | Value |
|---|---|
| Rupture Count | 128 |
| Ruptures Above Sect Min Mag | 127 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.81, 7.92] |
| Length Range | [17, 206] km |
| Total Rate | 1.0808936E-4 /yr |
| Multi-Fault Rate | 1.0808936E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

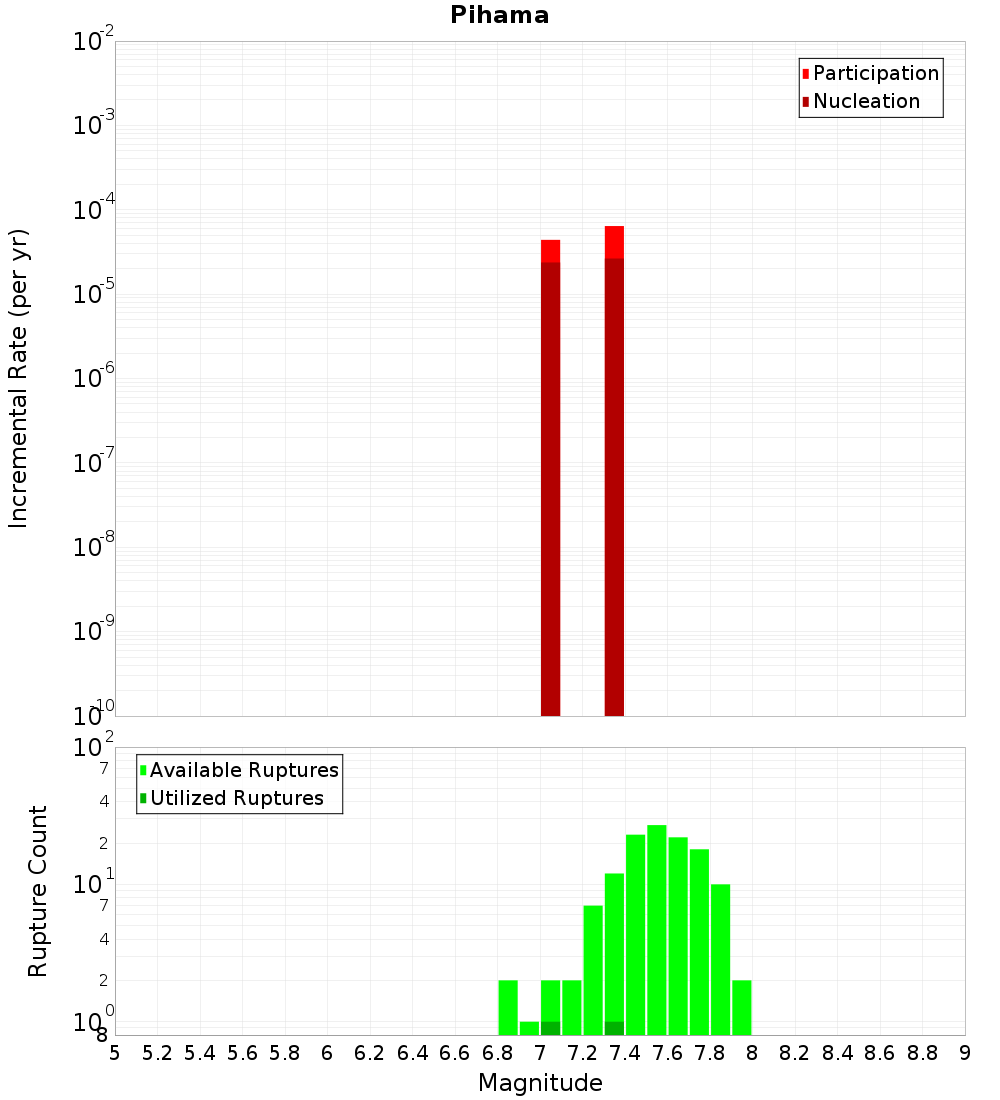

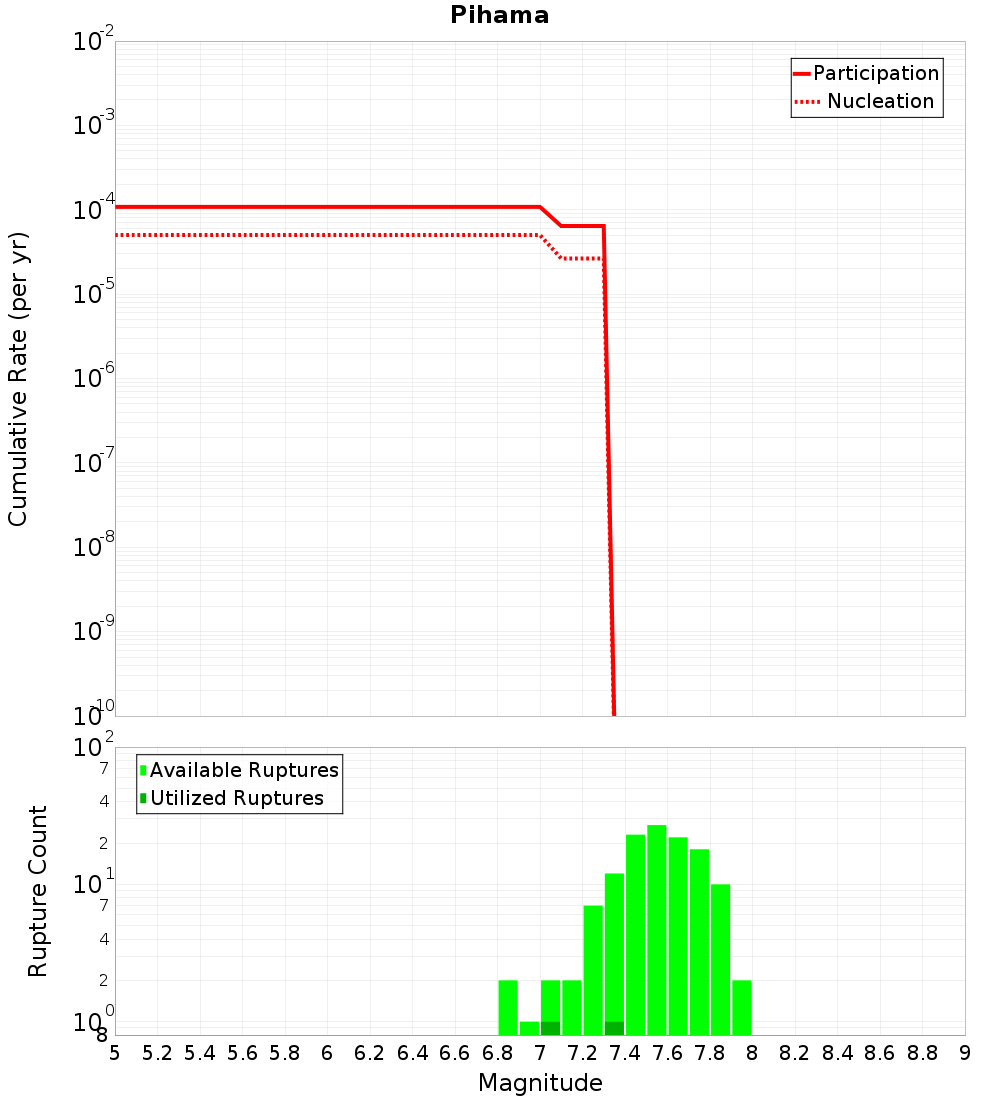

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

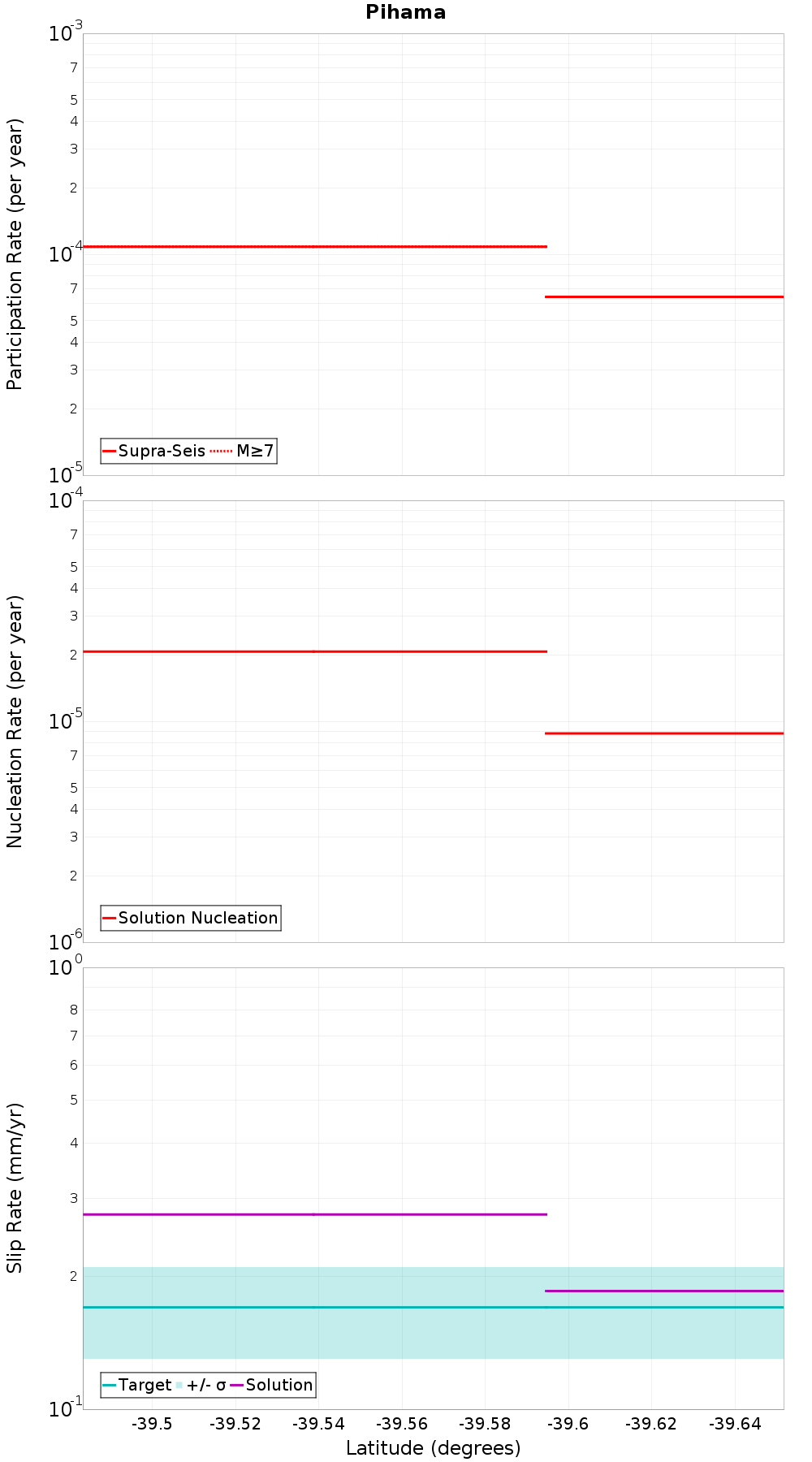

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Manahi 1, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Egmont: South, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 92 |
| Co-rupture Rate | 6.4100204E-5 |
Cape Egmont: Central, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Egmont: North, 0.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 0.0 |
Rahotu, 1.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Kiri, 2.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 47 |
| Co-rupture Rate | 1.0808936E-4 |
Manahi 2, 4.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Ihaia, 6.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 70 |
| Co-rupture Rate | 0.0 |
Warea, 9.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 89 |
| Co-rupture Rate | 0.0 |
Oaonui, 13.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODIuMGFWWDRQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
