Kereu Details
| Property | Value |
|---|---|
| Rupture Count | 12 |
| Ruptures Above Sect Min Mag | 12 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.91, 7.70] |
| Length Range | [17, 103] km |
| Total Rate | 5.3121483E-5 /yr |
| Multi-Fault Rate | 5.3121483E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 9 |
Table Of Contents

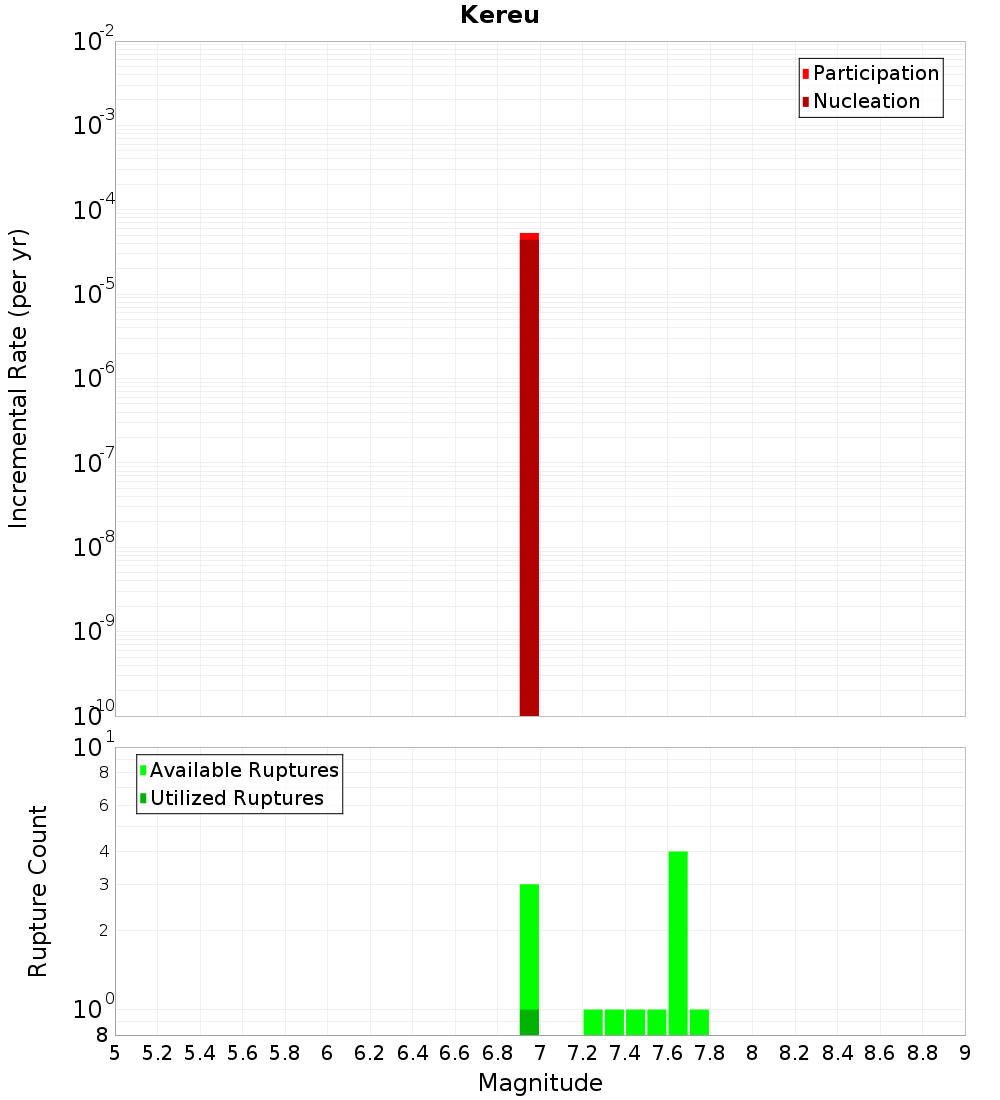

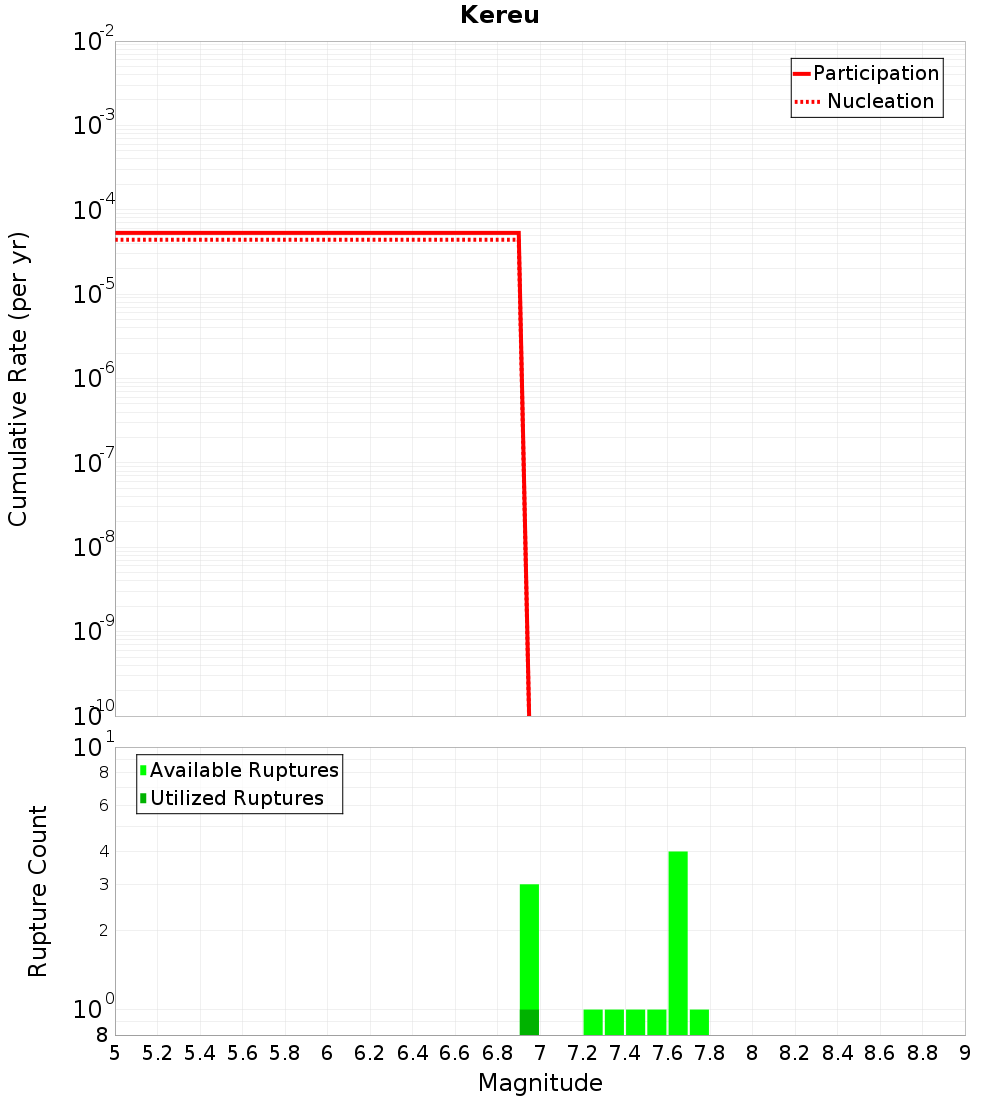

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

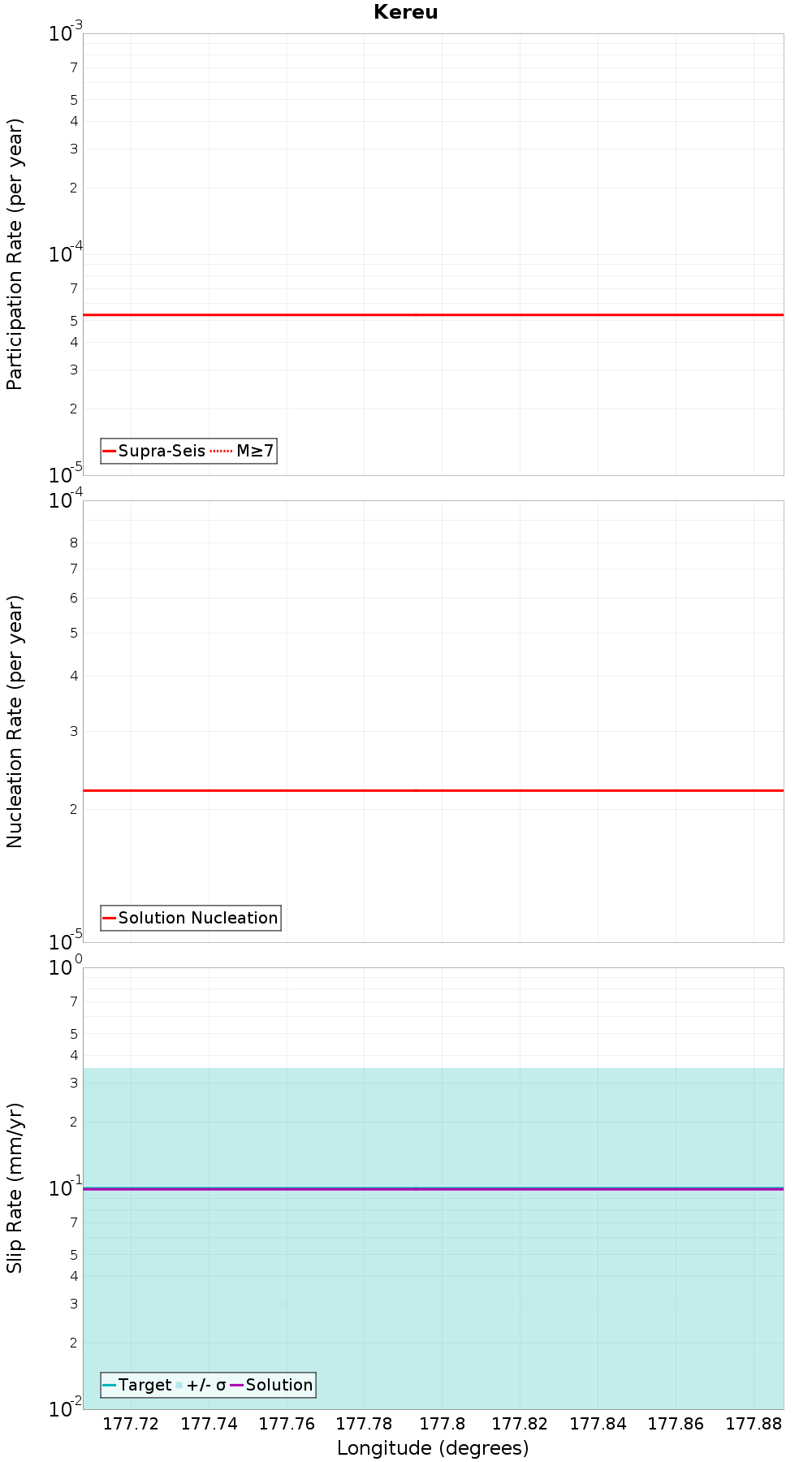

Along-Strike Values
Moment-Rates and b-Values

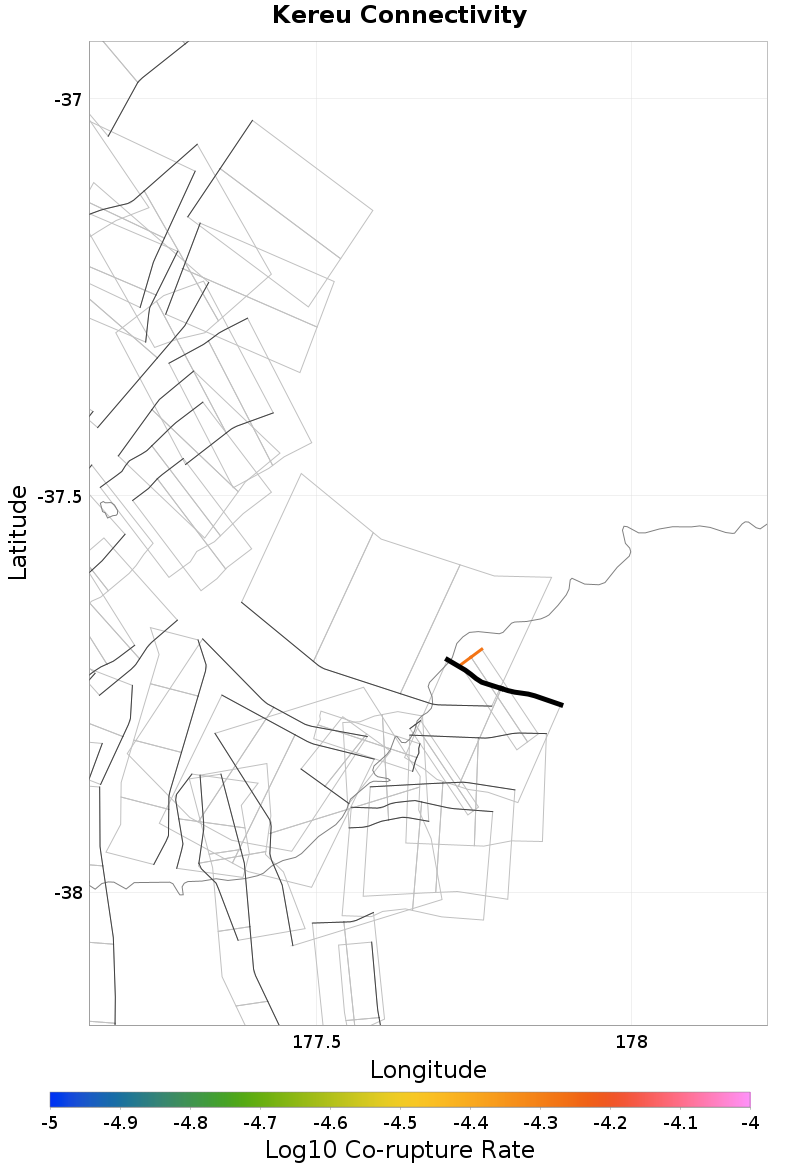

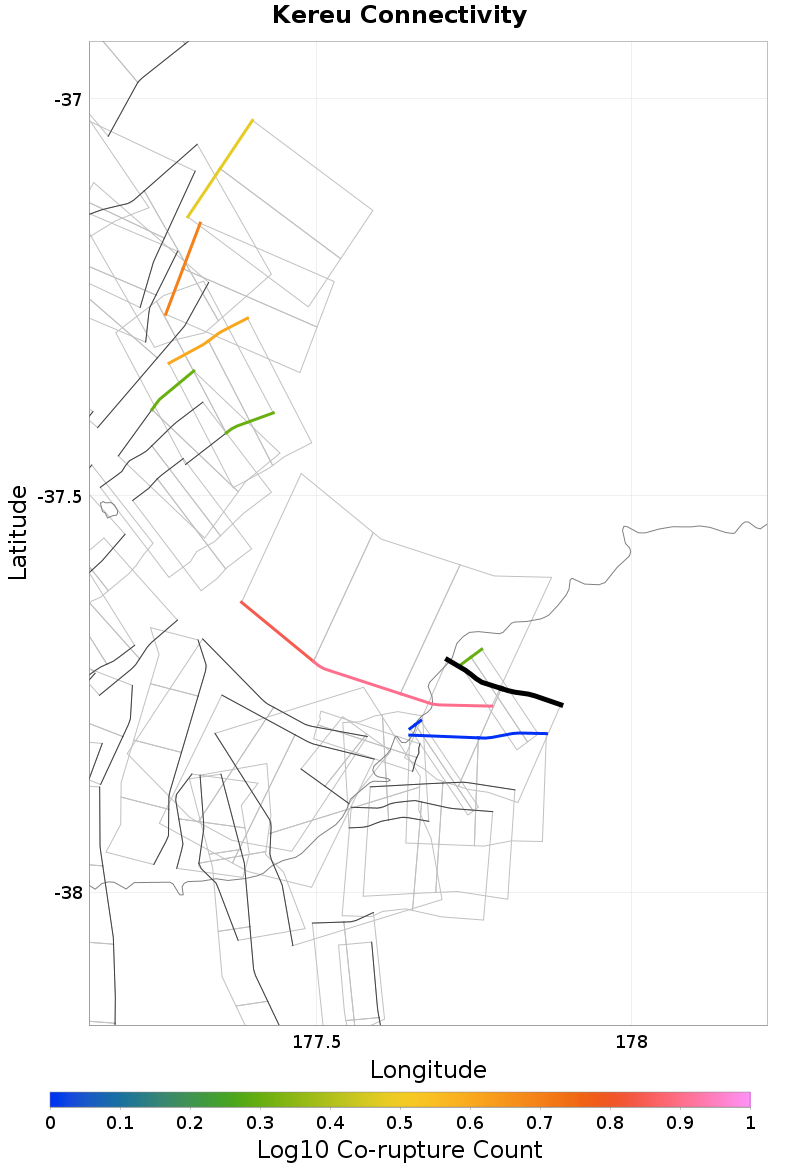

Connectivity
 |  |
|---|
Nearby Sections
Opape 1, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 24, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 5.3121483E-5 |
Hariki, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 0.0 |
Raukumara 17, 0.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 3, 2.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 25, 2.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Raukumara 21, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Raukumara 20, 7.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu River, 11.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 1, 13.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 18, 14.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 2, 15.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tirohanga, 19.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwODYuME10d3NS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
