Lyell South Details

PropertyValue
Rupture Count339
Ruptures Above Sect Min Mag334
Ruptures w/ Nonzero Rates12
Magnitude Range[6.80, 8.16]
Length Range[19, 419] km
Total Rate1.948936E-4 /yr
Multi-Fault Rate1.948936E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults31

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

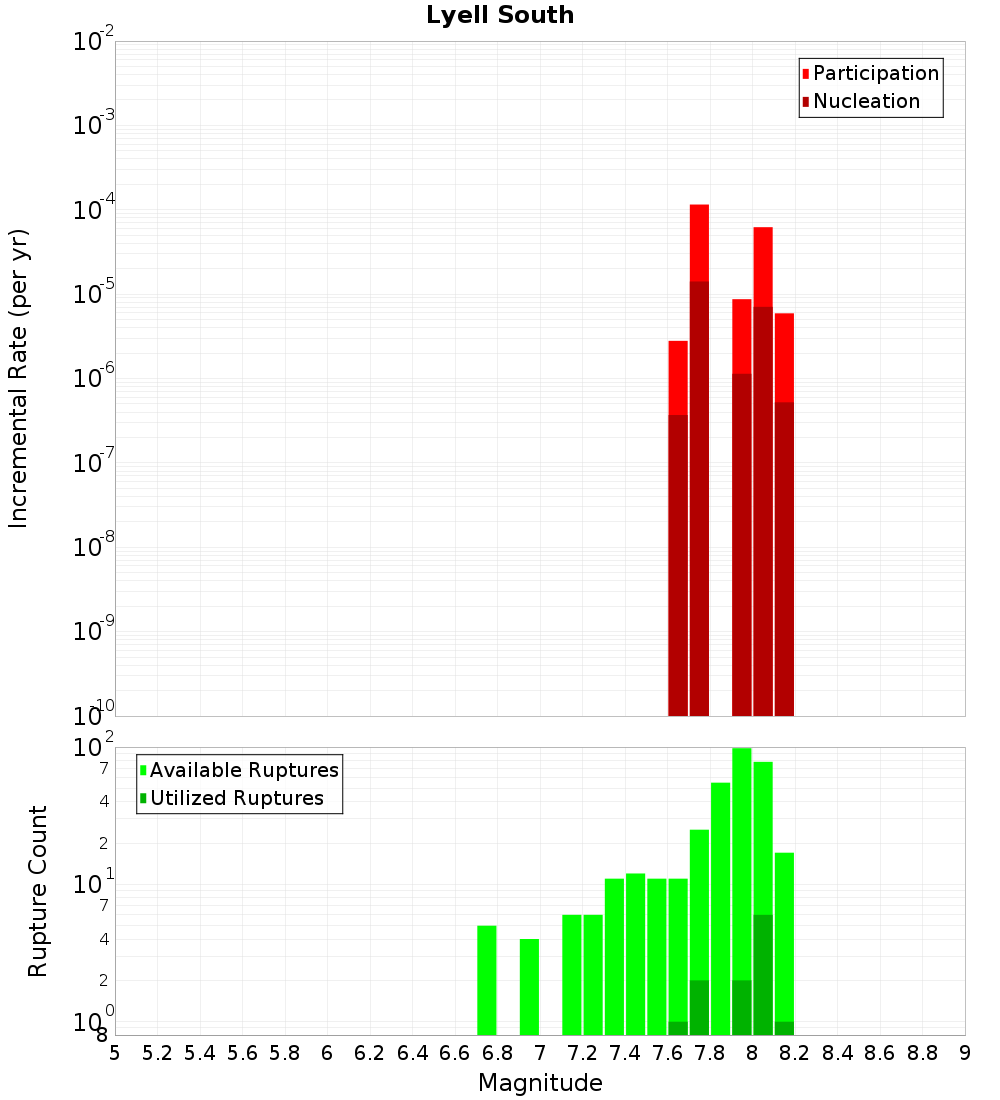

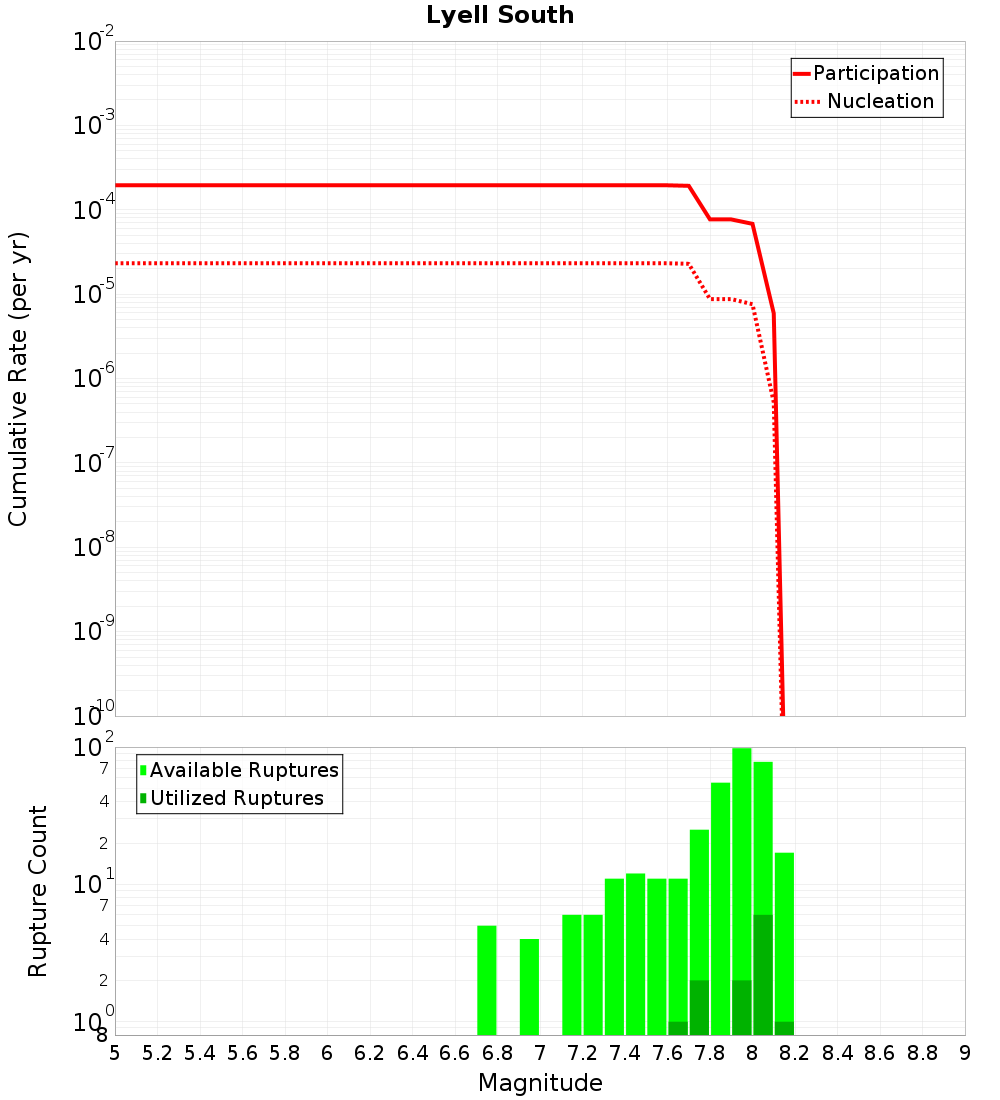

Incremental PlotCumulative Plot

Along-Strike Values

(top)

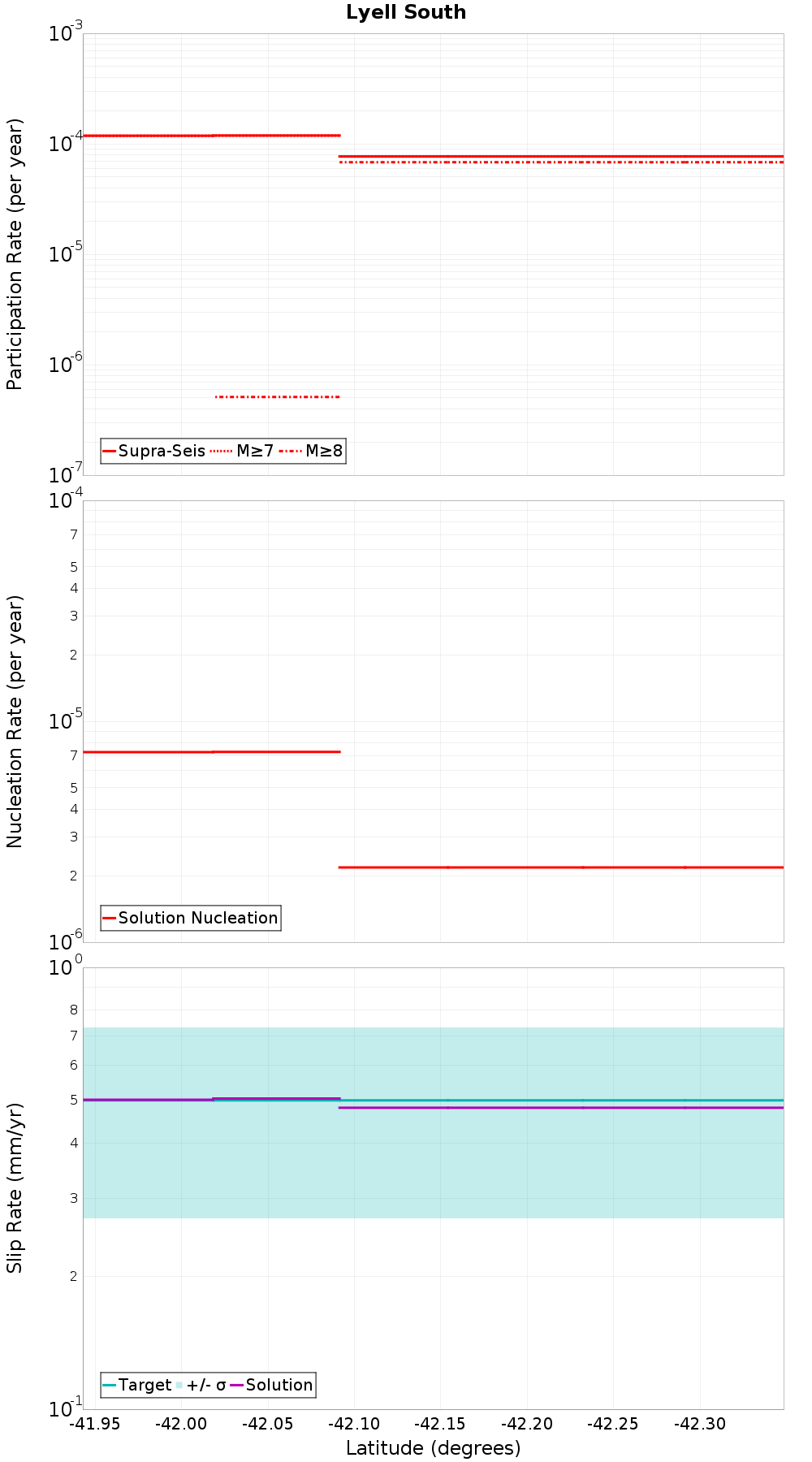

Along-strike plot

Moment-Rates and b-Values

(top)

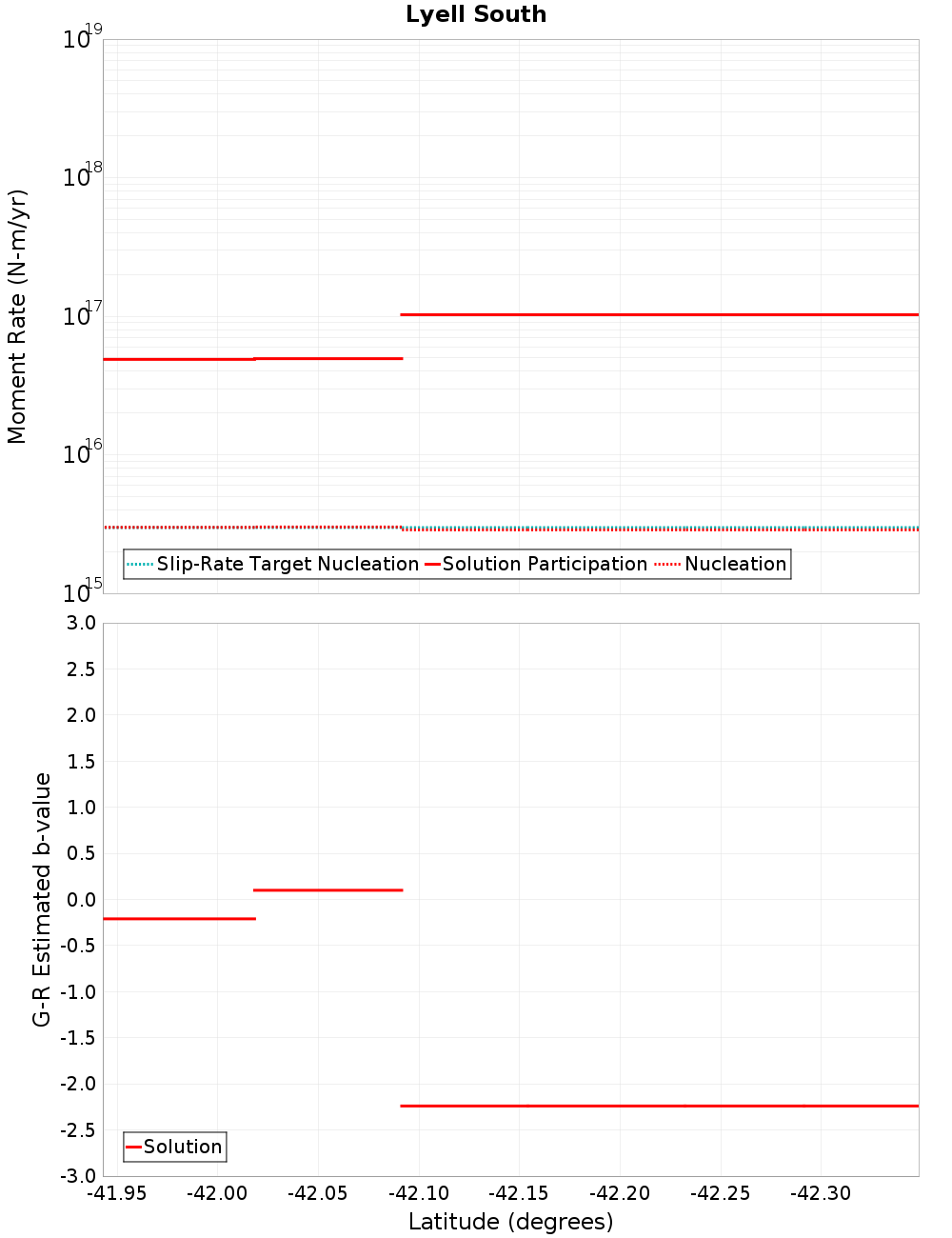

Along-strike plot

Connectivity

(top)

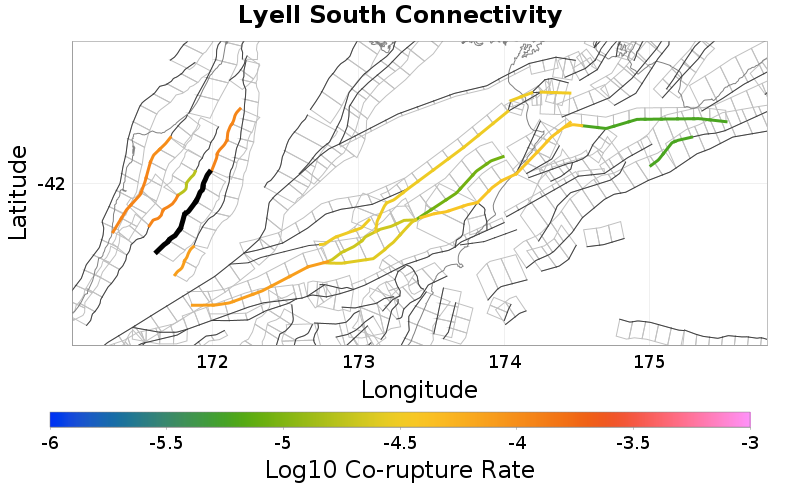

MapMap

Nearby Sections

(top)

Fault Section
Lyell, 1.51 km away
White Creek, 6.32 km away
Maimai: North, 7.01 km away
White Creek - buried, 7.39 km away
Inangahua, 9 km away
Maimai, 9.15 km away
Maimai: South, 11.15 km away
Maimai: Brunner Anticline, 17.1 km away
Clarence: Southwest, 19.36 km away

Lyell, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate1.181206E-4

White Creek, 6.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: North, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.6960943E-5

White Creek - buried, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count276
Co-rupture Rate7.677299E-5

Inangahua, 9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate1.181206E-4

Maimai: South, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: Brunner Anticline, 17.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 19.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?false
Co-rupture Count273
Co-rupture Rate7.677299E-5
