Ruahine: North Details

PropertyValue
Rupture Count56,499
Ruptures Above Sect Min Mag56,496
Ruptures w/ Nonzero Rates20
Magnitude Range[6.97, 8.60]
Length Range[24, 1,113] km
Total Rate0.0010054741 /yr
Multi-Fault Rate3.4242932E-4 /yr (34.06%)
Directly-Connected Faults8
All Co-Rupturing Faults130

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

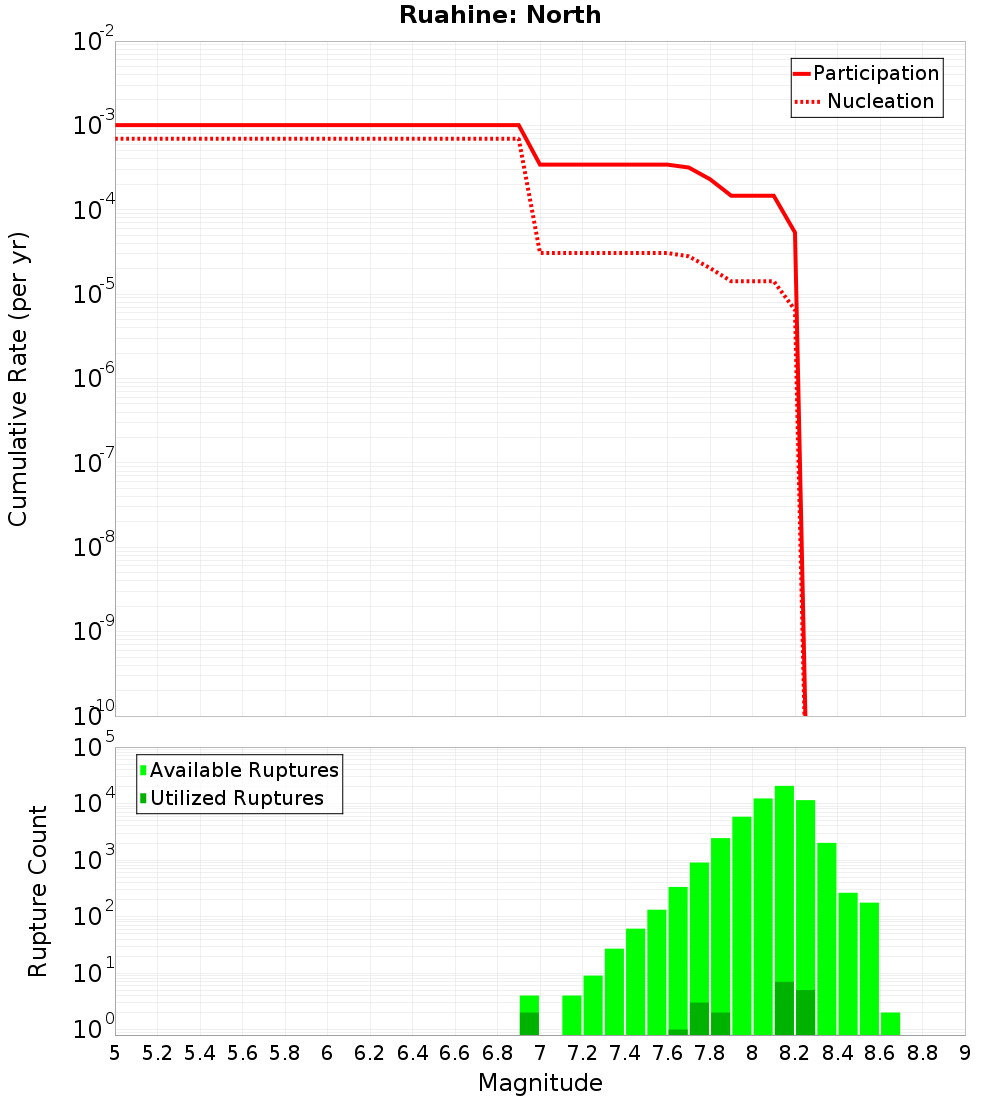

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 17.89 km away
Te Heka, 19.72 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count16,905
Co-rupture Rate1.5043885E-4

Ruahine: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count41,554
Co-rupture Rate1.4657491E-4

Kaweka, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count339
Co-rupture Rate1.9585442E-4

Wheao: South, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count17,937
Co-rupture Rate4.439717E-5

Wakarara, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count2,790
Co-rupture Rate0.0

Mohaka: South, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count17,937
Co-rupture Rate1.6839223E-5

Mohaka: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count6,544
Co-rupture Rate6.537255E-5

Patoka - Rangiora, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0

Te Whaiti South, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?true
Co-rupture Count9,335
Co-rupture Rate1.0074419E-4

Whakatane: South, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?false
Co-rupture Count2,006
Co-rupture Rate9.229099E-5

Waimana: South, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?true
Directly Connected?false
Co-rupture Count4,482
Co-rupture Rate2.4077228E-5

Awanui, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQwOTYuMDZWVjM3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
