Puketerata North Details

Property	Value
Rupture Count	1,684
Ruptures Above Sect Min Mag	1,681
Ruptures w/ Nonzero Rates	75
Magnitude Range	[6.22, 7.85]
Length Range	[10, 215] km
Total Rate	7.7179115E-4 /yr
Multi-Fault Rate	7.7179115E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	29

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

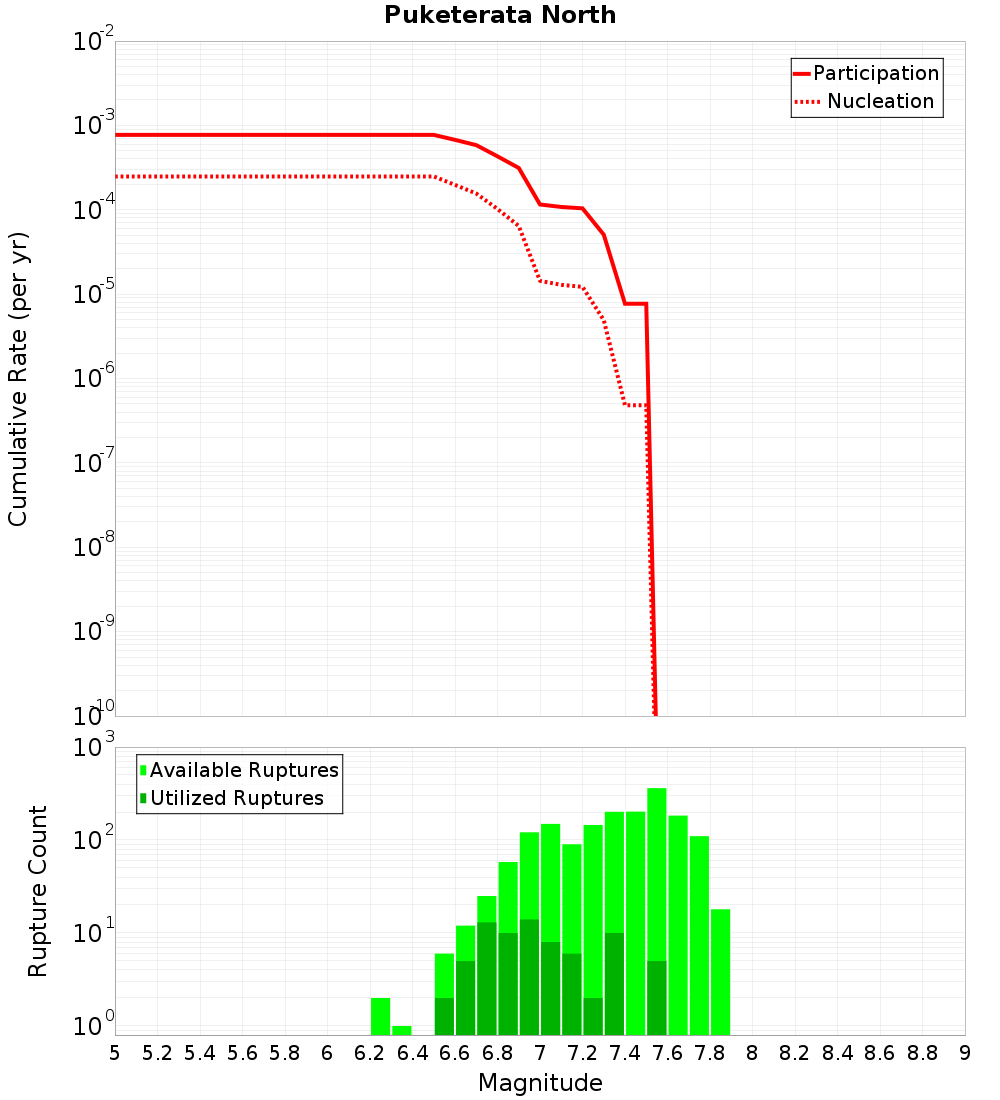

Magnitude-Frequency Distribution

Incremental	Cumulative

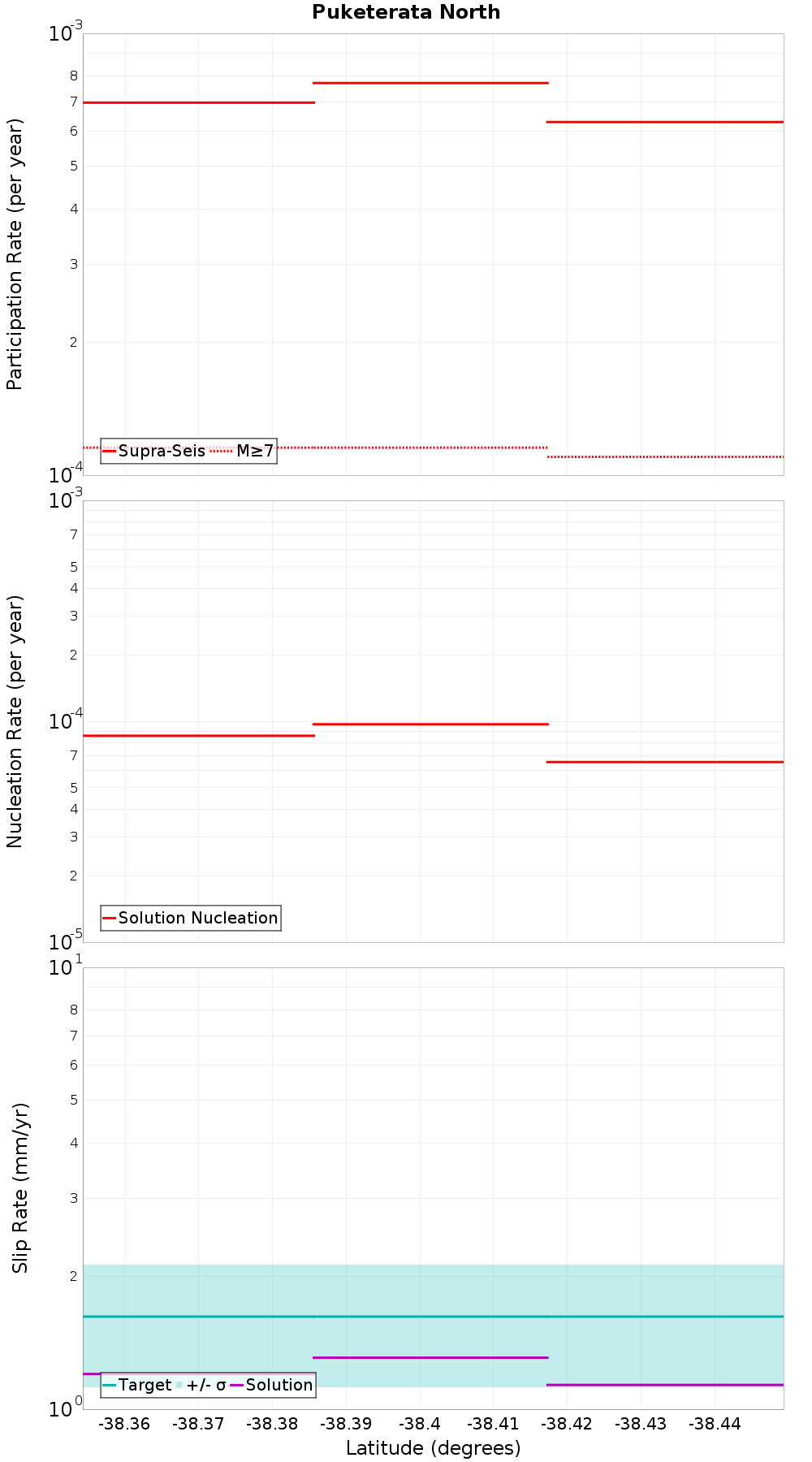

Along-Strike Values

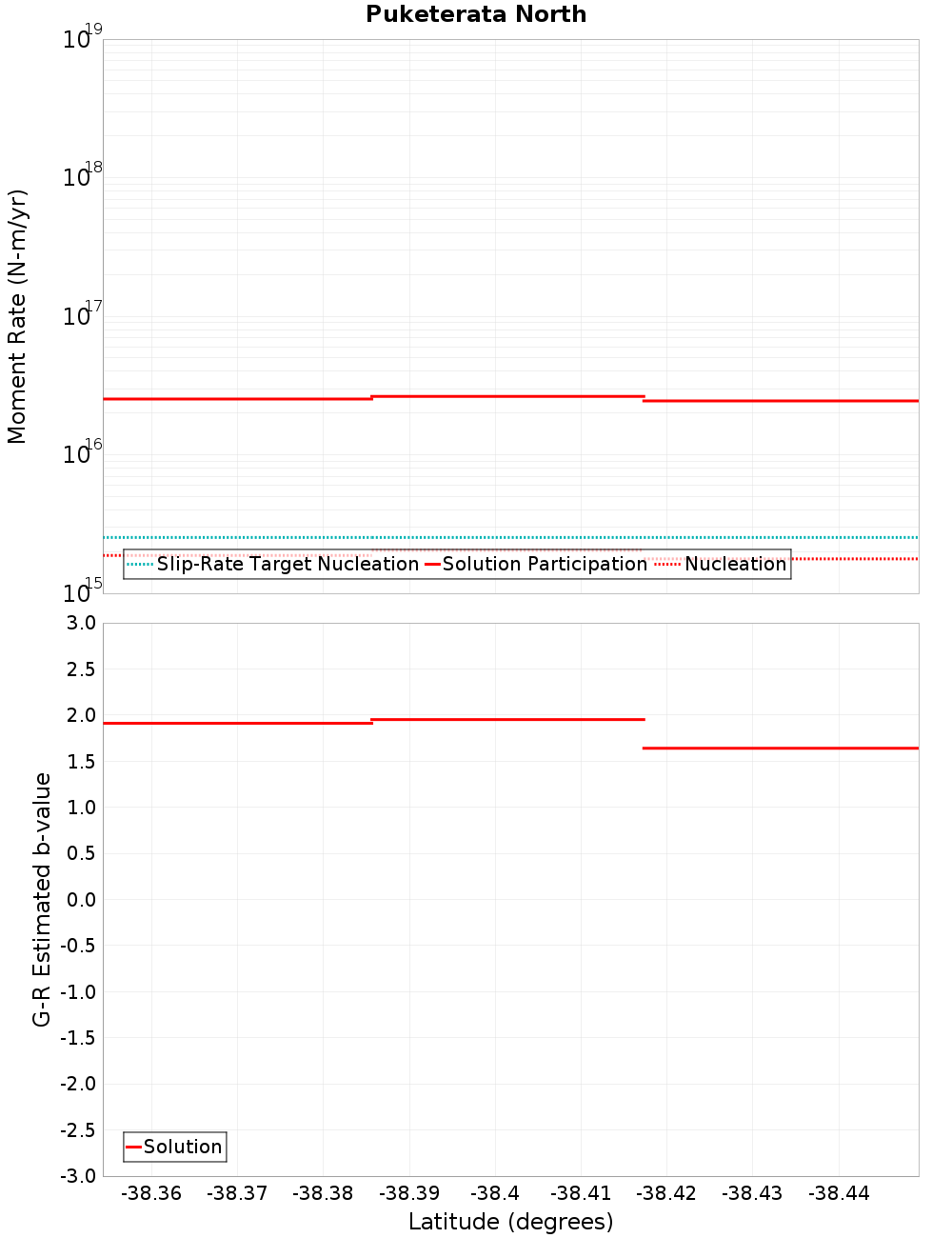

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.1 km away
Maleme, 0.15 km away
Paeroa, 2.13 km away
Orakeikorako, 3.3 km away
EarthquakeFlat - Tumunui, 7.65 km away
Whangamata West, 9.6 km away
Kaiapo, 17.13 km away

Puketerata, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w
Connected?	true
Directly Connected?	true
Co-rupture Count	663
Co-rupture Rate	2.5564816E-4

Maleme, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w
Connected?	true
Directly Connected?	true
Co-rupture Count	1,374
Co-rupture Rate	2.6871634E-4

Paeroa, 2.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w
Connected?	true
Directly Connected?	true
Co-rupture Count	692
Co-rupture Rate	3.4819808E-4

Orakeikorako, 3.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w
Connected?	true
Directly Connected?	true
Co-rupture Count	604
Co-rupture Rate	2.1788388E-4

EarthquakeFlat - Tumunui, 7.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w
Connected?	true
Directly Connected?	false
Co-rupture Count	1,429
Co-rupture Rate	1.7071406E-4

Whangamata West, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w
Connected?	true
Directly Connected?	false
Co-rupture Count	615
Co-rupture Rate	2.3339308E-4

Kaiapo, 17.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w
Connected?	true
Directly Connected?	false
Co-rupture Count	358
Co-rupture Rate	1.6364973E-4
