Volkner 3 Details
| Property | Value |
|---|---|
| Rupture Count | 1,300 |
| Ruptures Above Sect Min Mag | 1,300 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.89, 8.31] |
| Length Range | [17, 578] km |
| Total Rate | 5.006063E-9 /yr |
| Multi-Fault Rate | 5.006063E-9 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 52 |
Table Of Contents

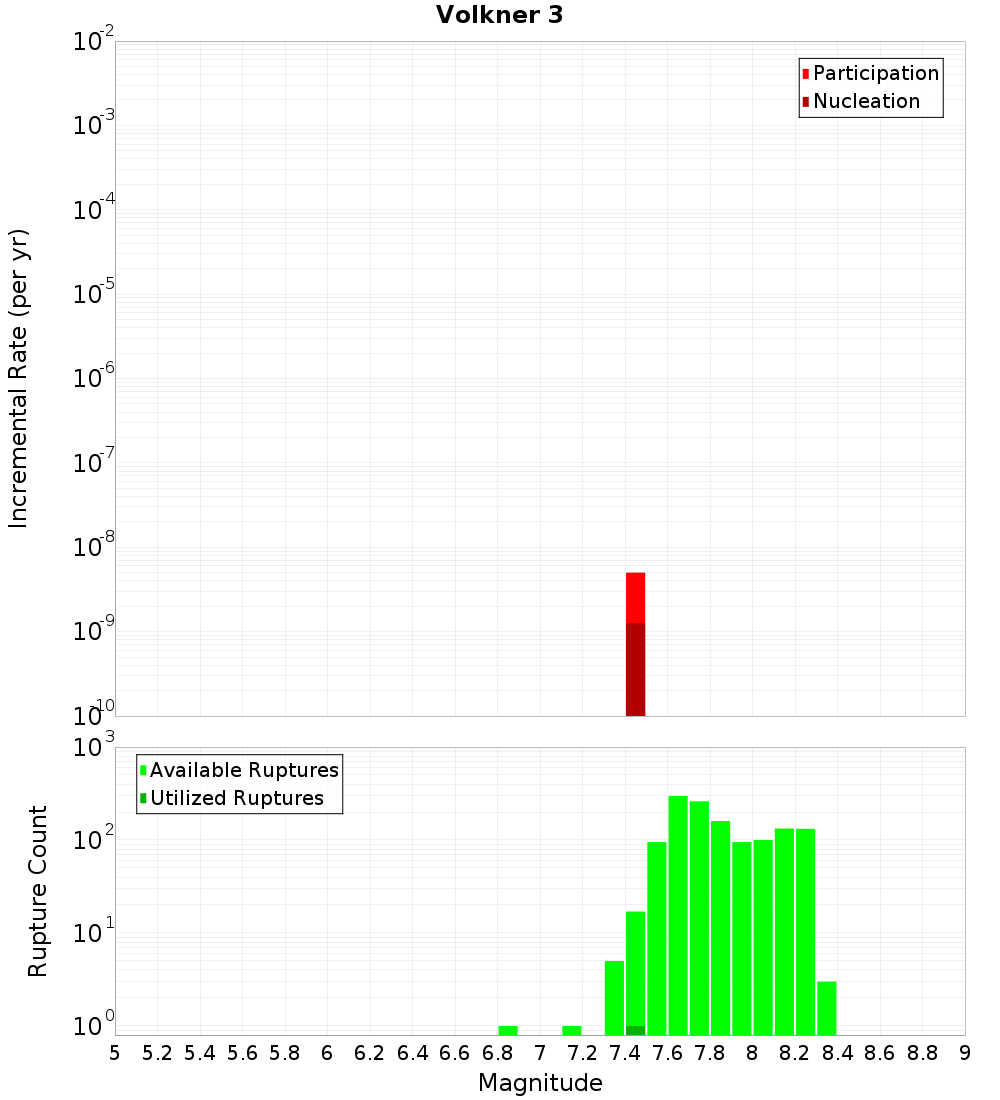

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

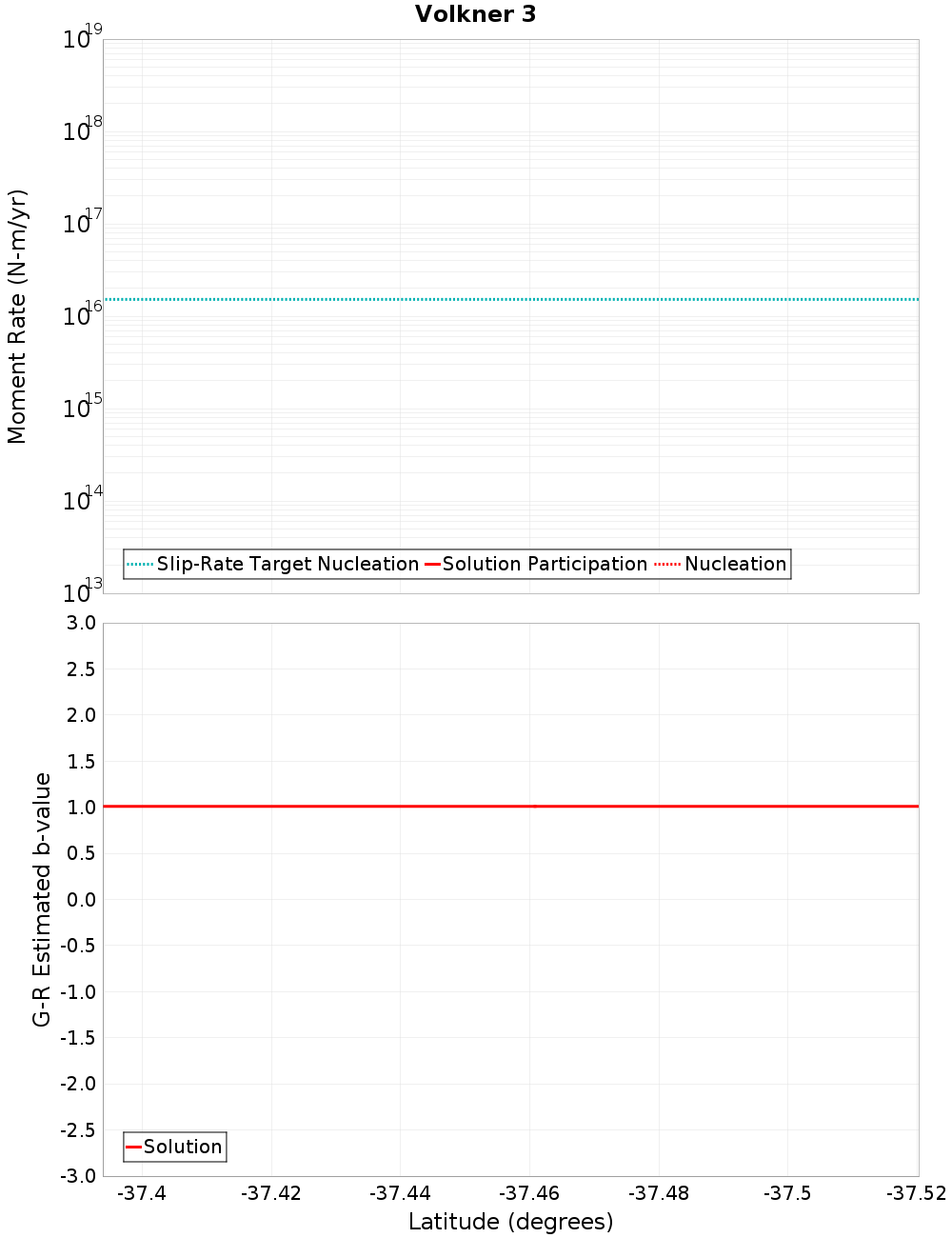

Moment-Rates and b-Values

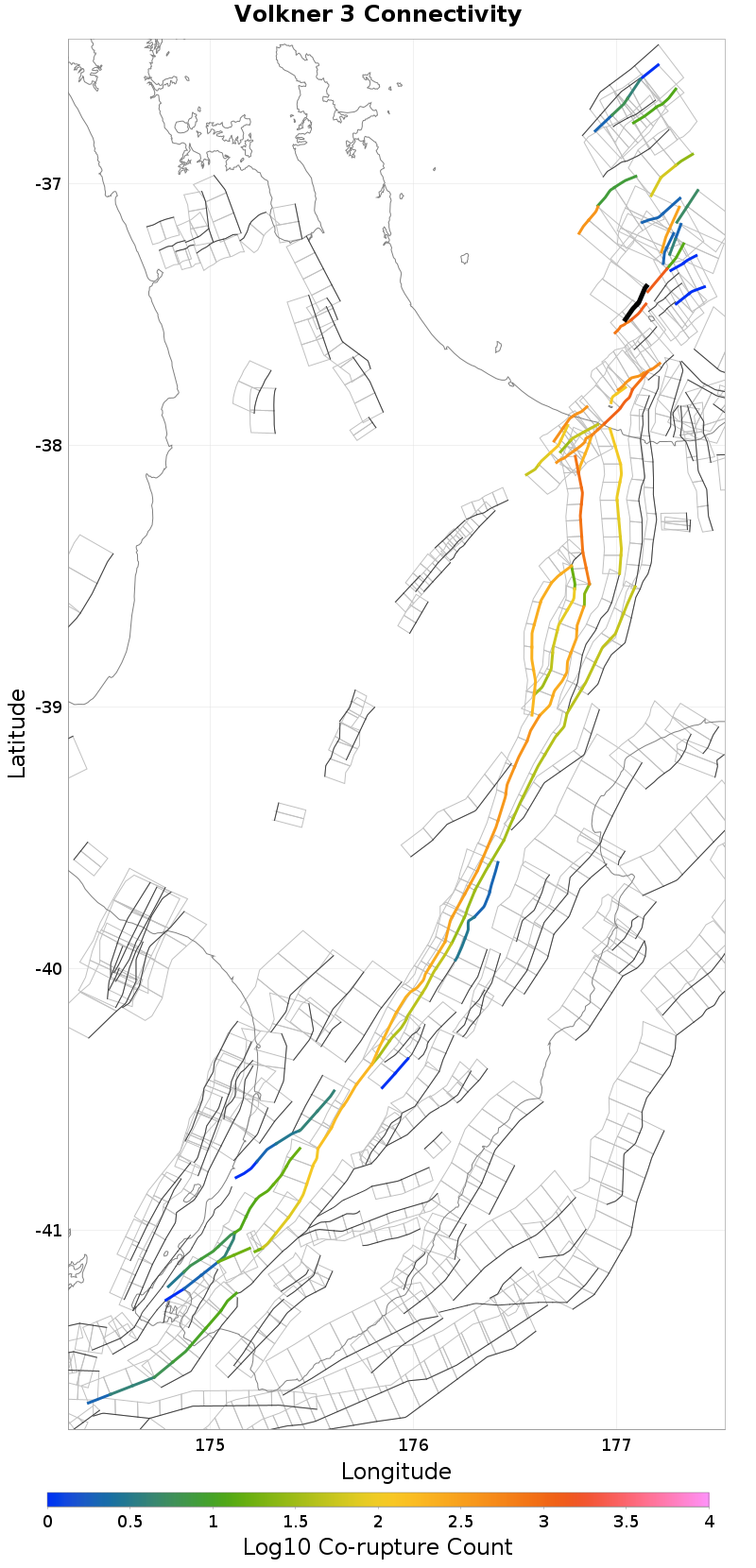

Connectivity
 |  |
|---|
Nearby Sections
Tuakana 6, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 404 |
| Co-rupture Rate | 5.006063E-9 |
Volkner 4, 1.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,282 |
| Co-rupture Rate | 0.0 |
Whakaari 4, 1.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,269 |
| Co-rupture Rate | 0.0 |
Te Arawa 1, 5.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 2, 6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 1, 8.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 5.006063E-9 |
Calypso 2, 9.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 7, 9.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 0.0 |
Tuatoru 1, 10.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuatoru 2, 12.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Te Arawa 3, 12.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Otara West 2, 12.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 298 |
| Co-rupture Rate | 0.0 |
Otara West 3, 16.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Otara East 1, 17.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Ohiwa 1, 17.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 522 |
| Co-rupture Rate | 0.0 |
Rangitaiki 2, 17.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 401 |
| Co-rupture Rate | 0.0 |
White Island 2, 19.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 1, 19.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTIuMFltTG5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,144 |
| Co-rupture Rate | 0.0 |
