Beacon Hill Details

PropertyValue
Rupture Count173
Ruptures Above Sect Min Mag173
Ruptures w/ Nonzero Rates6
Magnitude Range[6.99, 8.25]
Length Range[20, 333] km
Total Rate8.954201E-6 /yr
Multi-Fault Rate8.954201E-6 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults32

Table Of Contents

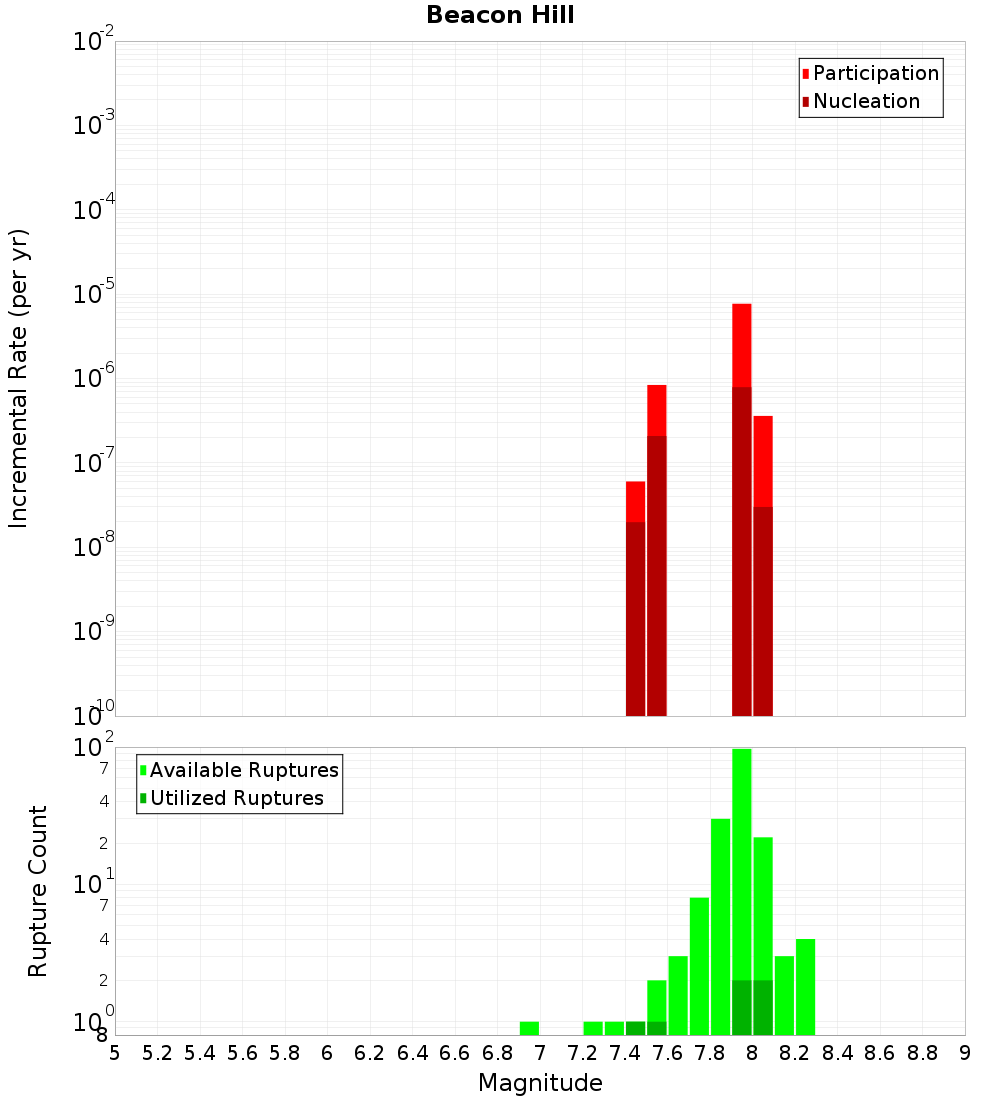

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

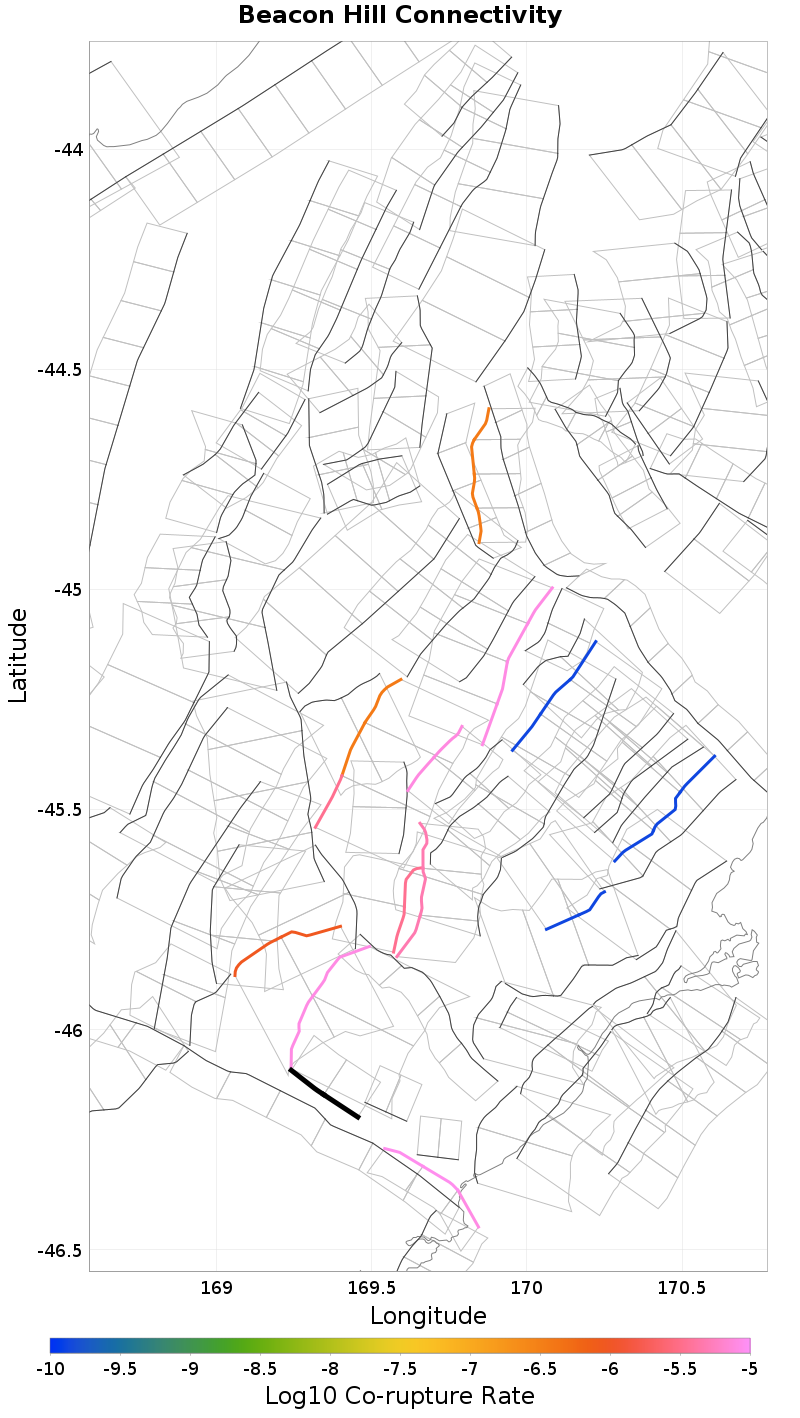

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Blue Mountain, 0.18 km away
Spylaw, 0.19 km away
Clifton, 3.64 km away
Hillfoot, 4.04 km away
Little Hillfoot, 10.39 km away
Otanomomo, 13.03 km away
Wendon Valley, 13.85 km away
Tuapeka, 14.81 km away
Teviot, 16.42 km away

Blue Mountain, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?true
Directly Connected?true
Co-rupture Count161
Co-rupture Rate8.055284E-6

Spylaw, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate8.990502E-7

Clifton, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hillfoot, 4.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Hillfoot, 10.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate8.893852E-6

Otanomomo, 13.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wendon Valley, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuapeka, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Teviot, 16.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMTYuMEE1ckRS
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0
