Wellington: Tararua 3 Details

Property	Value
Rupture Count	56,089
Ruptures Above Sect Min Mag	56,087
Ruptures w/ Nonzero Rates	118
Magnitude Range	[6.77, 8.60]
Length Range	[16, 1,119] km
Total Rate	0.0017246758 /yr
Multi-Fault Rate	0.0017246758 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	139

Table Of Contents

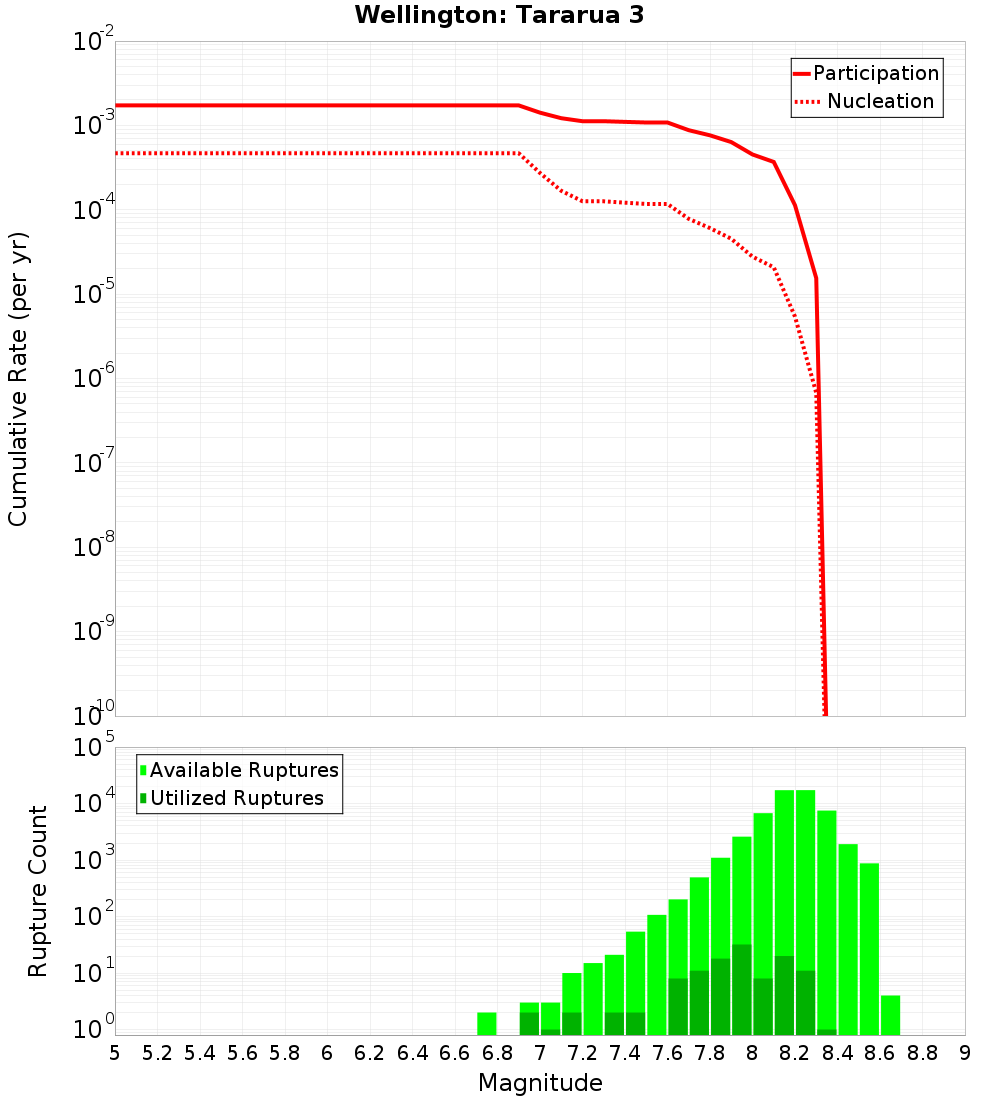

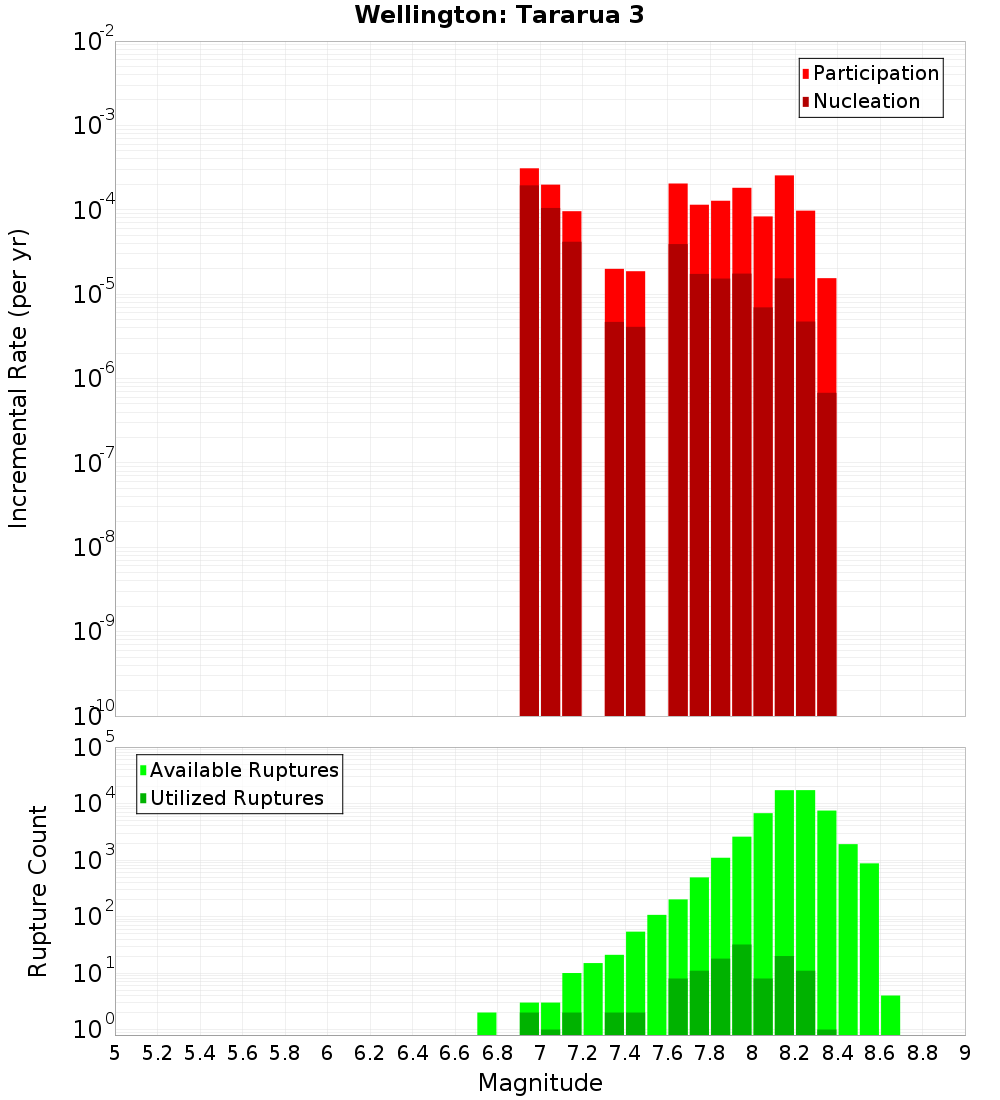

Magnitude-Frequency Distribution

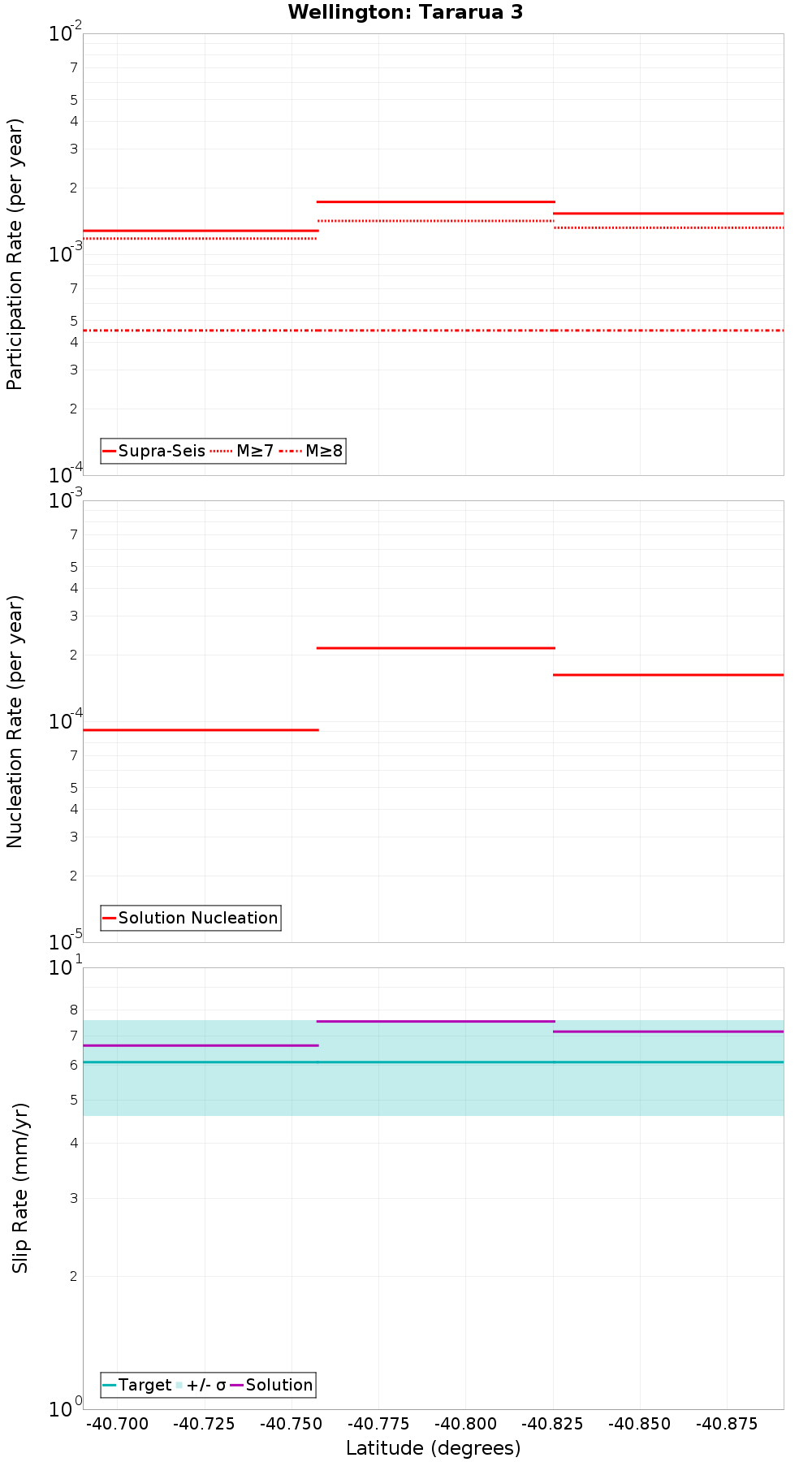

Along-Strike Values
- Moment-Rates and b-Values

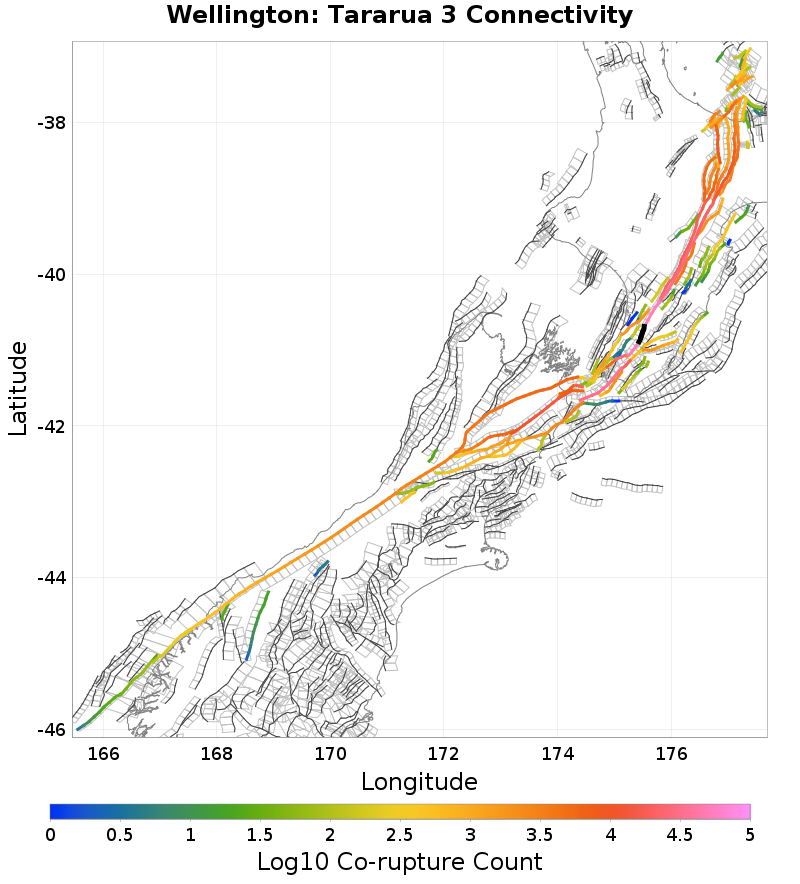

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wellington: Tararua 2, 0 km away
Wellington: Pahiatua, 0.03 km away
Otaki Forks: 2, 0.3 km away
Tokomaru, 1.29 km away
Northern Ohariu, 1.86 km away
Wairarapa: 3, 9.13 km away
Mokonui Southwest, 9.81 km away
Otaki Forks: 1, 11.36 km away
Masterton, 11.85 km away
Carterton, 13.79 km away
Wairarapa: 2, 14.29 km away
Dreyers Rock, 16.17 km away
Ohariu, 17.34 km away
Wellington: Tararua 1, 18.44 km away
Levin Anticline, 18.68 km away

Wellington: Tararua 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	true
Co-rupture Count	51,431
Co-rupture Rate	0.0011013055

Wellington: Pahiatua, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	true
Co-rupture Count	55,080
Co-rupture Rate	0.0011333388

Otaki Forks: 2, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	true
Co-rupture Count	139
Co-rupture Rate	0.0

Tokomaru, 1.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	3.5256242E-5

Northern Ohariu, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,775
Co-rupture Rate	1.873724E-5

Wairarapa: 3, 9.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	false
Co-rupture Count	77
Co-rupture Rate	0.0

Mokonui Southwest, 9.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	true
Co-rupture Count	631
Co-rupture Rate	5.913369E-4

Otaki Forks: 1, 11.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Masterton, 11.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Carterton, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	false
Co-rupture Count	2,201
Co-rupture Rate	2.6116232E-4

Wairarapa: 2, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	false
Co-rupture Count	19,312
Co-rupture Rate	3.3265058E-4

Dreyers Rock, 16.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu, 17.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,669
Co-rupture Rate	0.0

Wellington: Tararua 1, 18.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,918
Co-rupture Rate	1.1960003E-4

Levin Anticline, 18.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMENuY2RY
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0
