Alexander Details

Property	Value
Rupture Count	401
Ruptures Above Sect Min Mag	398
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.75, 8.49]
Length Range	[16, 877] km
Total Rate	3.6353675E-5 /yr
Multi-Fault Rate	3.6353675E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	37

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

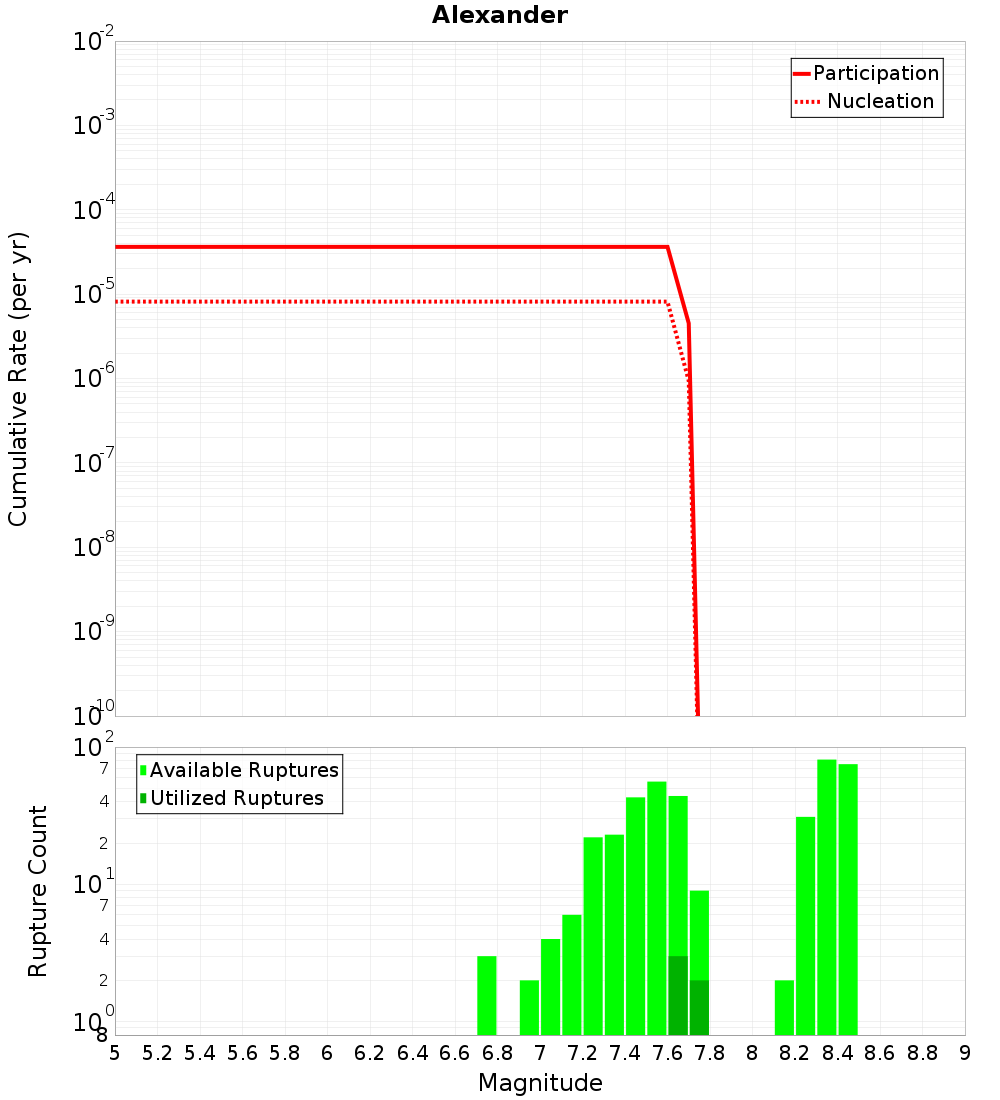

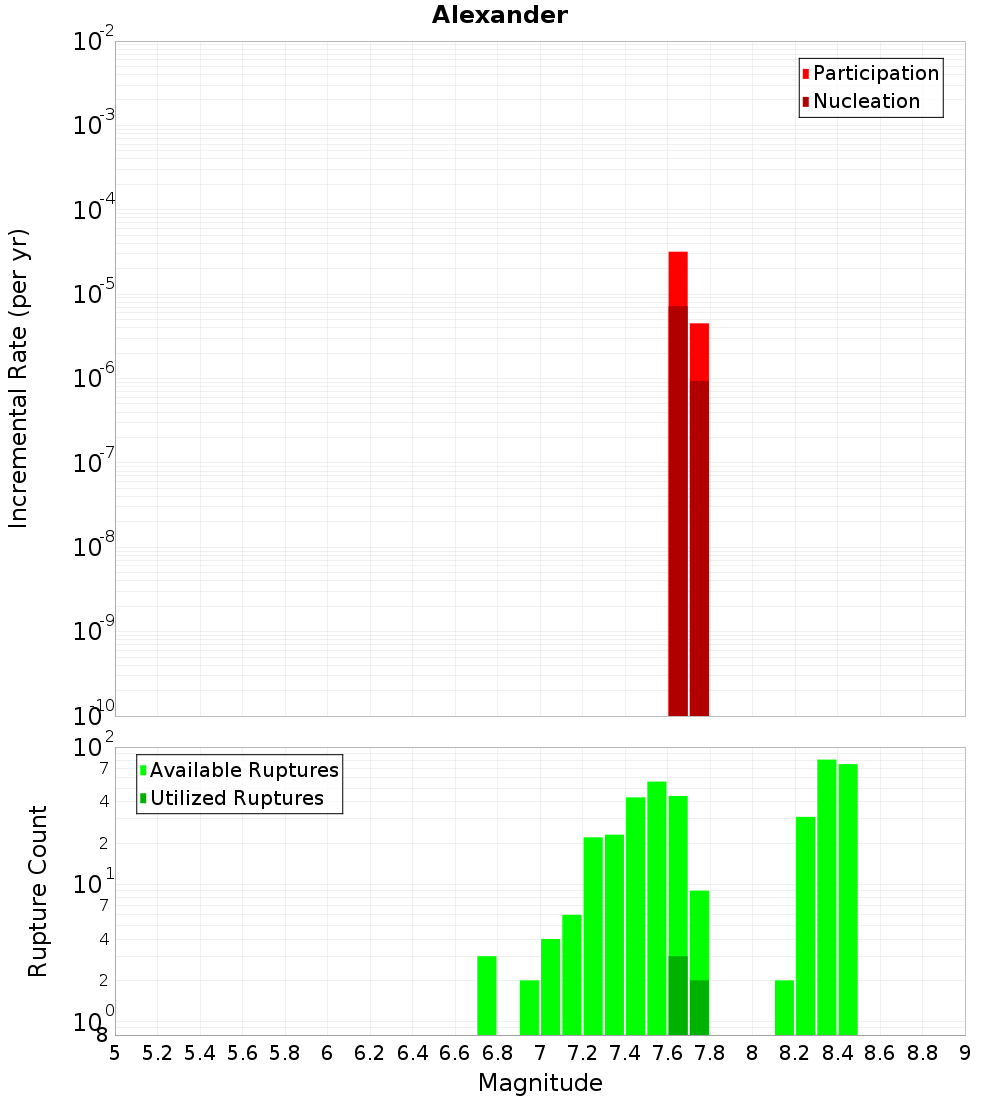

Magnitude-Frequency Distribution

Incremental	Cumulative

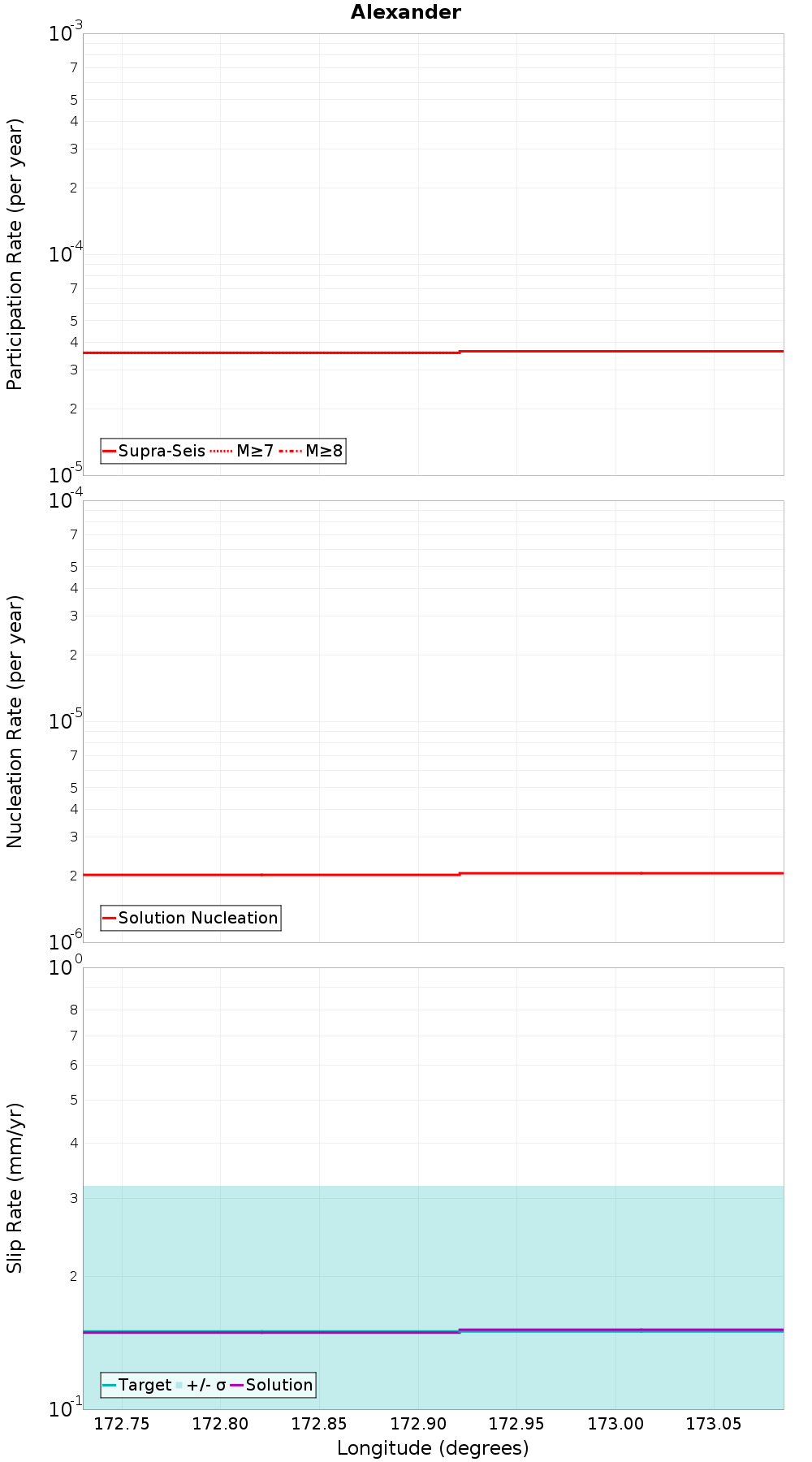

Along-Strike Values

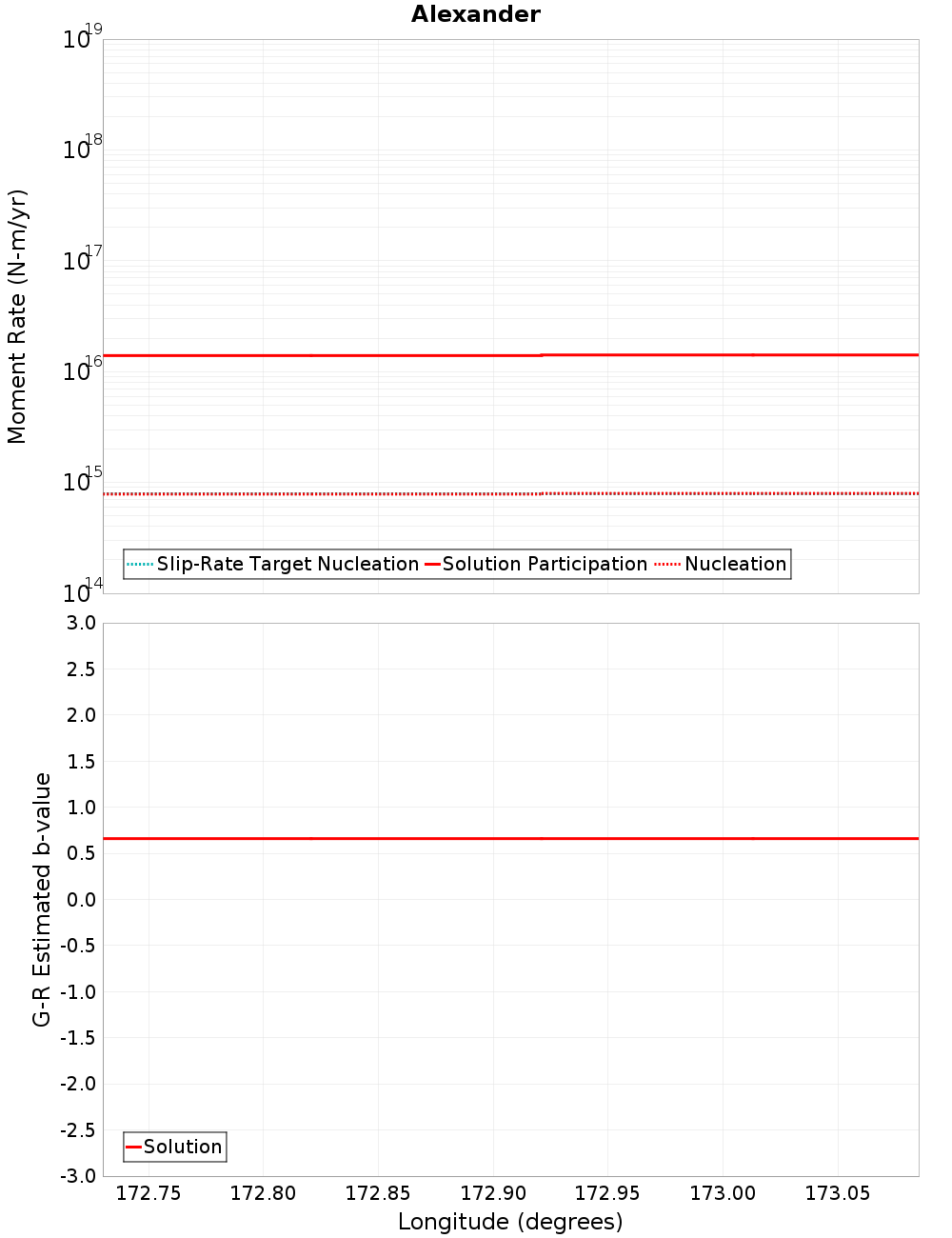

Moment-Rates and b-Values

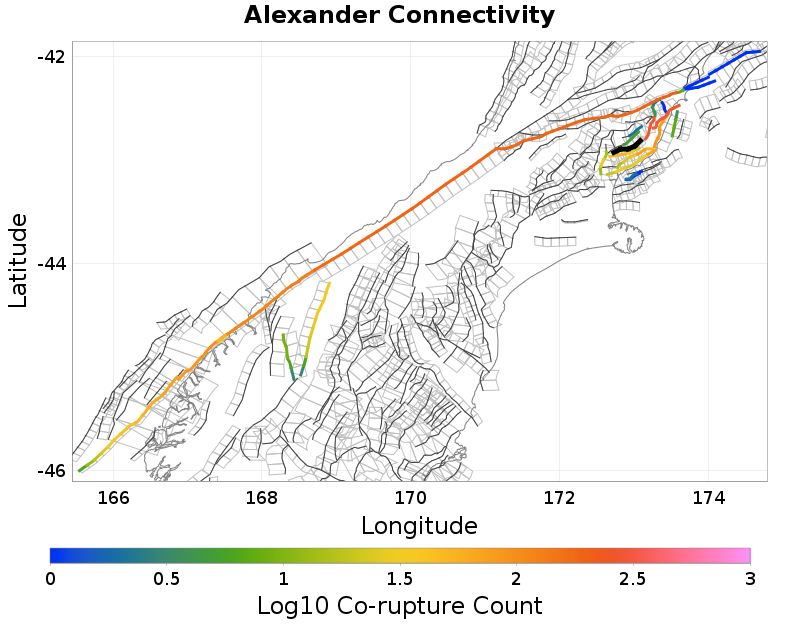

Connectivity

Nearby Sections

Fault Section	Fault Section
Lowry, 2.38 km away	Hawkswood, 15.05 km away
Kaiwara South, 2.77 km away	Hurunui Peak, 15.89 km away
Balmoral, 4.21 km away	Mt Arden, 15.91 km away
Doctors, 4.38 km away	Virginia, 16.14 km away
Kaiwara North, 5.18 km away	The Humps, 16.22 km away
OmihiLwrHuru, 6.66 km away	Leader: South, 19.28 km away
Leonard Mound, 8.1 km away	Pancake, 19.35 km away
Boby Stream, 10.71 km away	Motunau, 19.72 km away
AmberBlyth, 11.84 km away	Point Gibson, 19.75 km away
Mt Culverden, 14.58 km away	Hundalee, 19.86 km away

Lowry, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	0.0

Kaiwara South, 2.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	60
Co-rupture Rate	0.0

Balmoral, 4.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 4.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	3.5784502E-5

Kaiwara North, 5.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	272
Co-rupture Rate	3.6353675E-5

OmihiLwrHuru, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	0.0

Leonard Mound, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Boby Stream, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

AmberBlyth, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	true
Co-rupture Count	75
Co-rupture Rate	5.6917224E-7

Mt Culverden, 14.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkswood, 15.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	false
Co-rupture Count	87
Co-rupture Rate	0.0

Hurunui Peak, 15.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Arden, 15.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Virginia, 16.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

The Humps, 16.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: South, 19.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pancake, 19.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motunau, 19.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Point Gibson, 19.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hundalee, 19.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxMjAuMHFYQ2Zl
Connected?	true
Directly Connected?	false
Co-rupture Count	302
Co-rupture Rate	3.6353675E-5
