Gibson Details

PropertyValue
Rupture Count30
Ruptures Above Sect Min Mag29
Ruptures w/ Nonzero Rates4
Magnitude Range[6.94, 7.73]
Length Range[19, 142] km
Total Rate1.5701358E-5 /yr
Multi-Fault Rate1.5701358E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults9

Table Of Contents

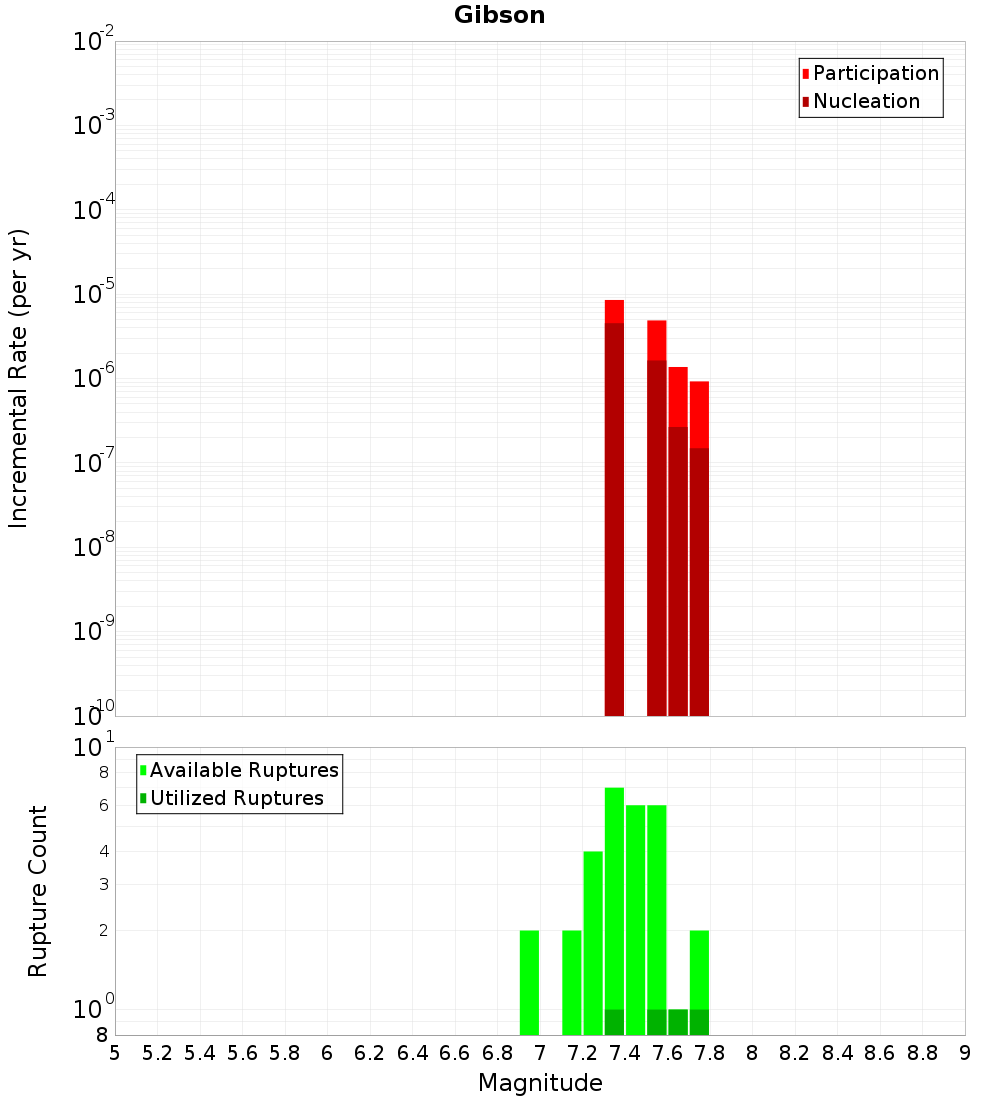

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

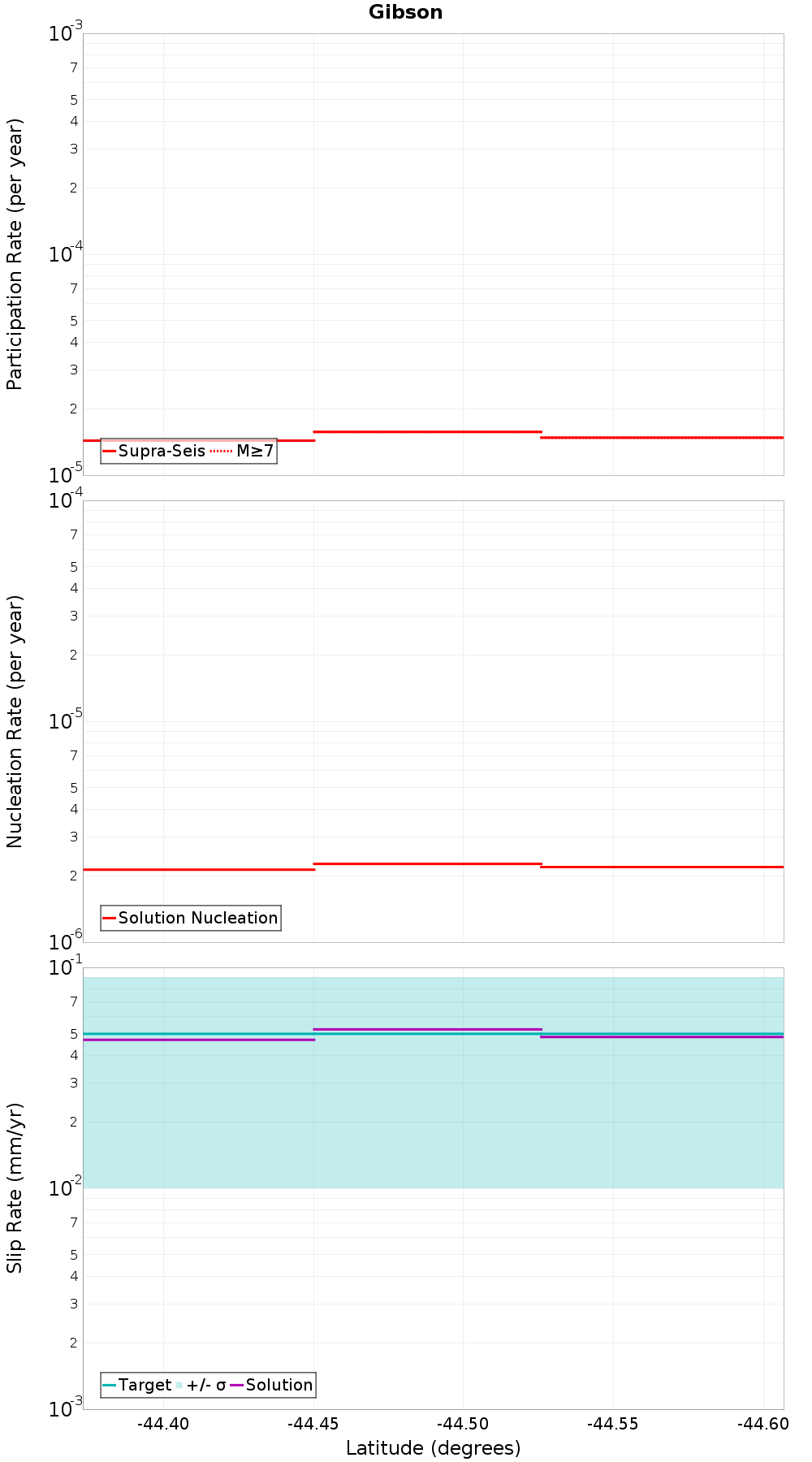

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

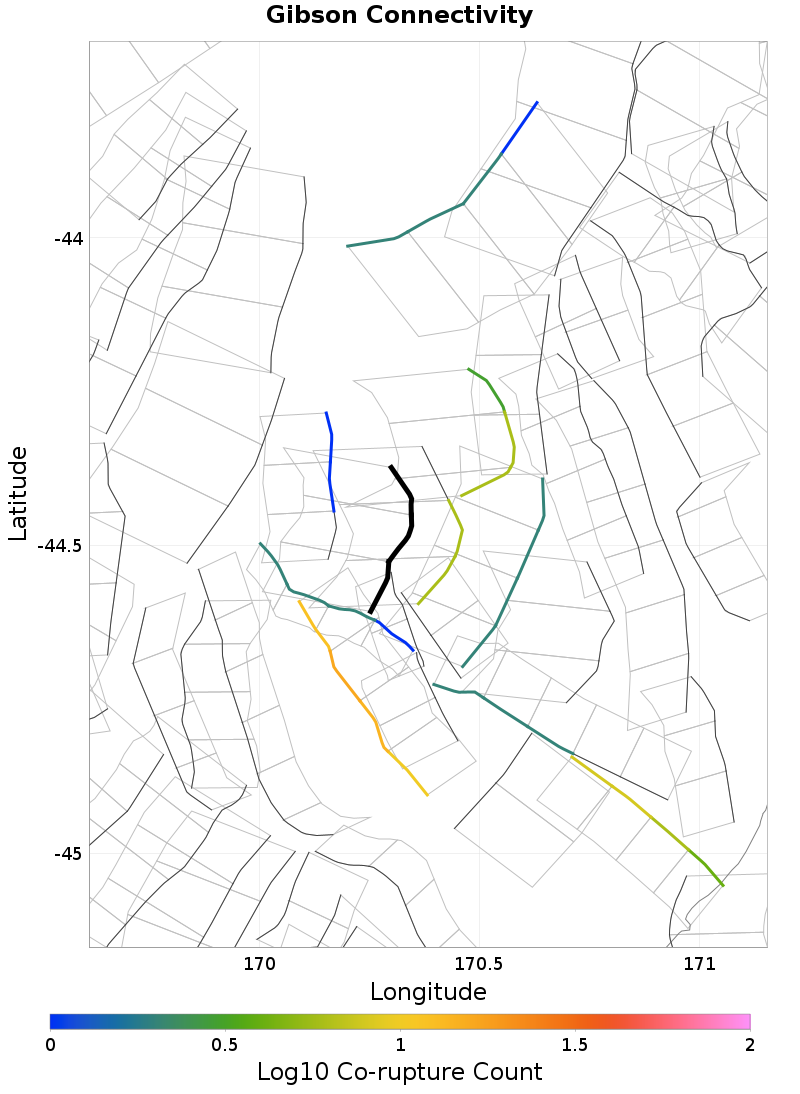

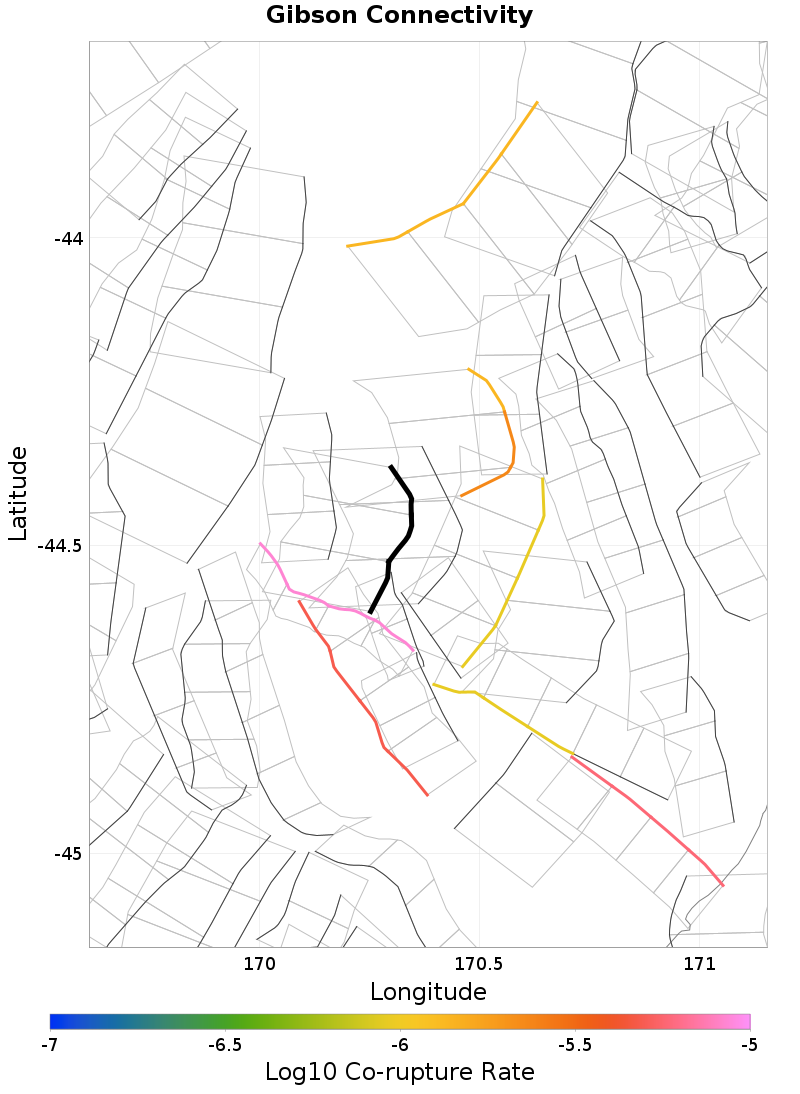

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fern Gully, 0.31 km away
Middle Range, 0.32 km away
Waitangi, 0.56 km away
Omarama Saddle, 1.5 km away
Falstone, 1.61 km away
Hawkdun, 2.41 km away
Mt Sutton, 2.87 km away
Dryburgh, 3.37 km away
Grampian, 6.29 km away
Awahokomo, 10.93 km away
Blue Lake, 13.94 km away
Kirkliston, 14.93 km away
Ostler South, 16.59 km away
Stonewall, 17.07 km away

Fern Gully, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate8.528579E-6

Middle Range, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate4.879288E-6

Waitangi, 0.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 1.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Hawkdun, 2.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Sutton, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate0.0

Dryburgh, 3.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grampian, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate2.293491E-6

Awahokomo, 10.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 14.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate9.2421527E-7

Ostler South, 16.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQxNTUuMEVLR2tq
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate9.2421527E-7
