Green Island Details

Property	Value
Rupture Count	41
Ruptures Above Sect Min Mag	41
Ruptures w/ Nonzero Rates	16
Magnitude Range	[6.97, 7.88]
Length Range	[18, 154] km
Total Rate	1.4575281E-4 /yr
Multi-Fault Rate	9.1868074E-5 /yr (63.03%)
Directly-Connected Faults	5
All Co-Rupturing Faults	9

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

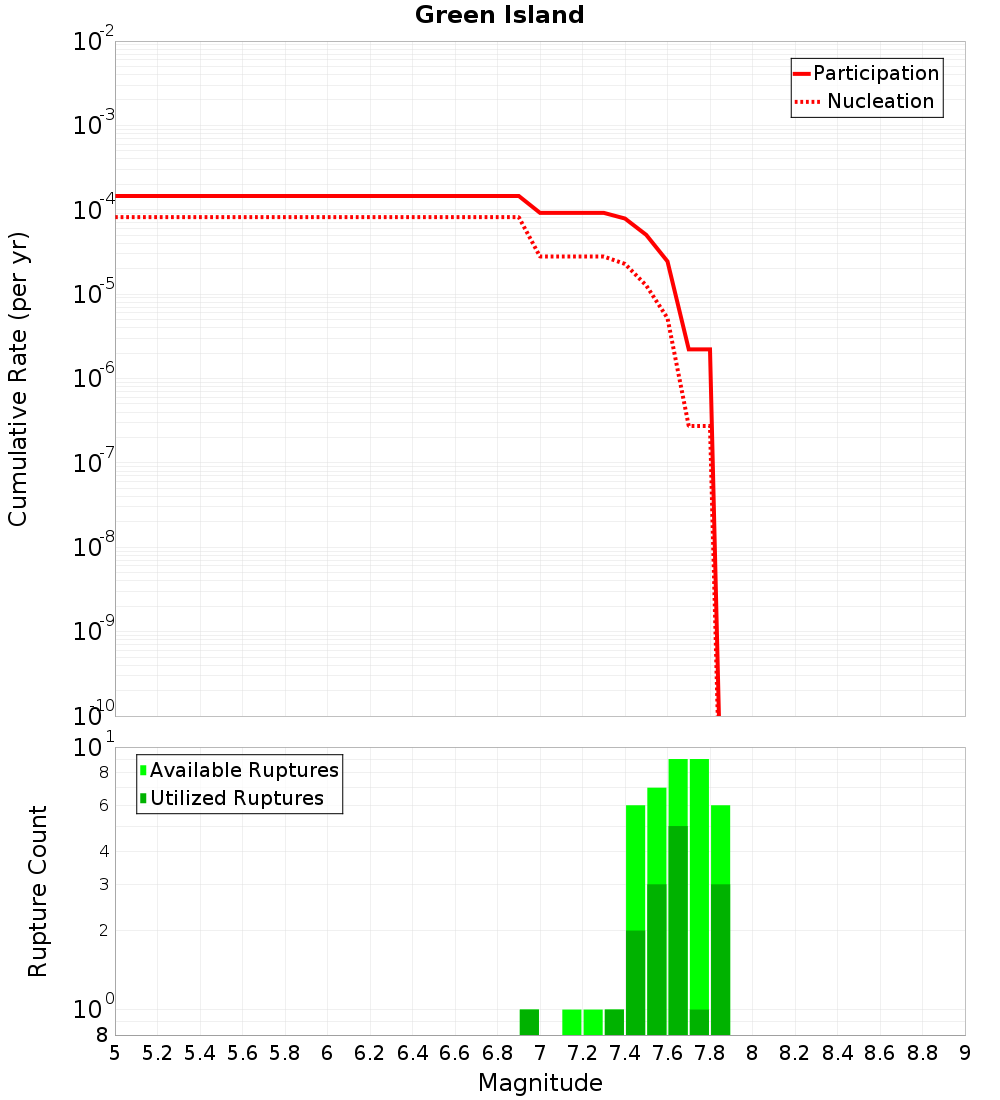

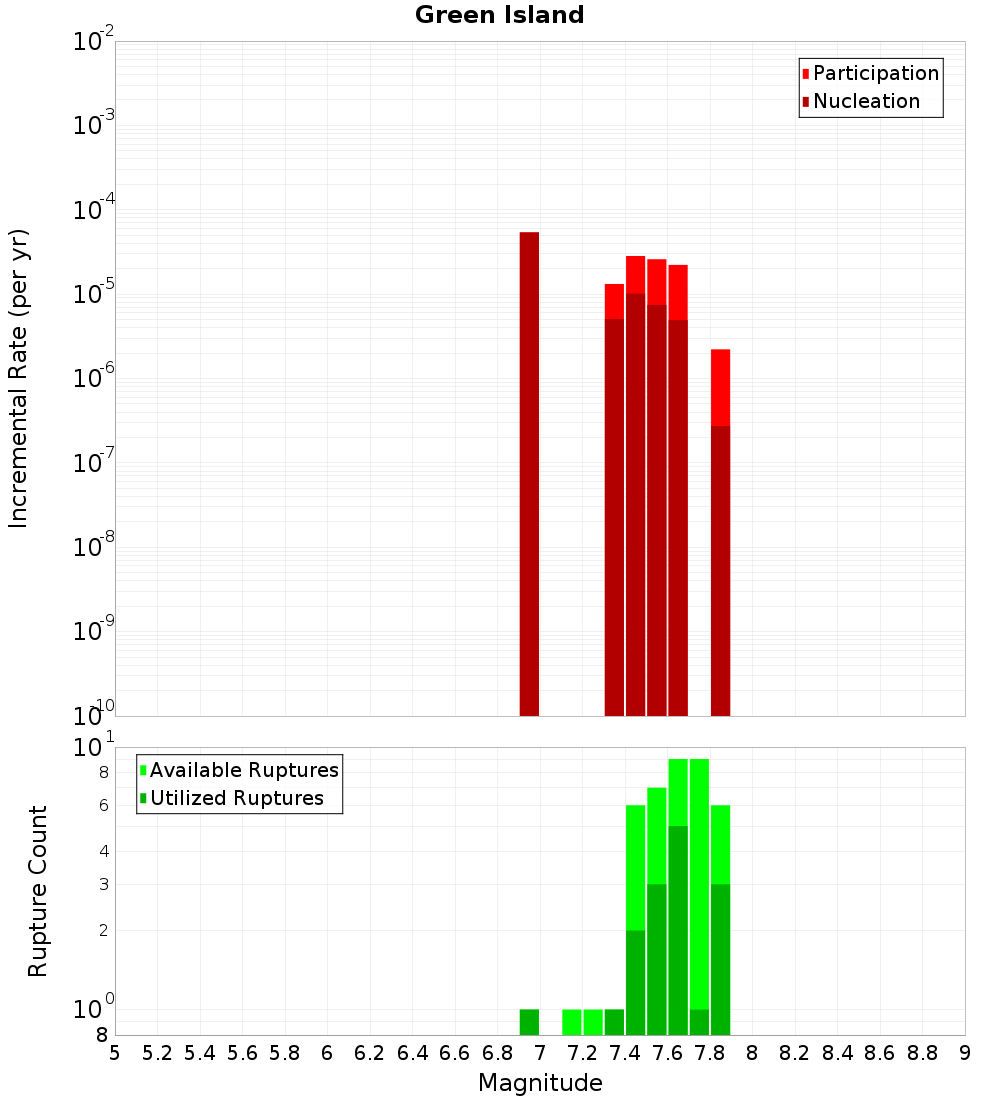

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

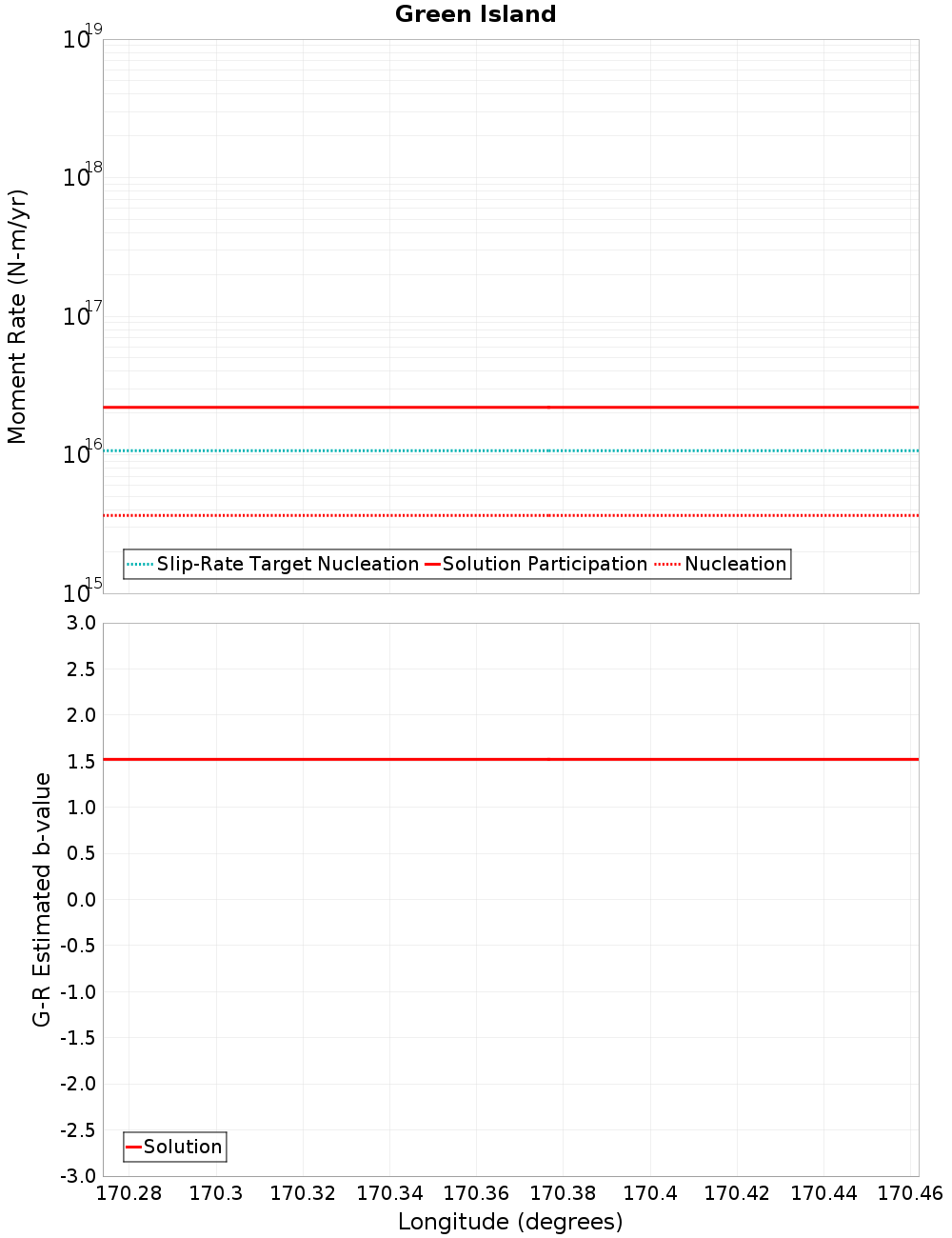

Moment-Rates and b-Values

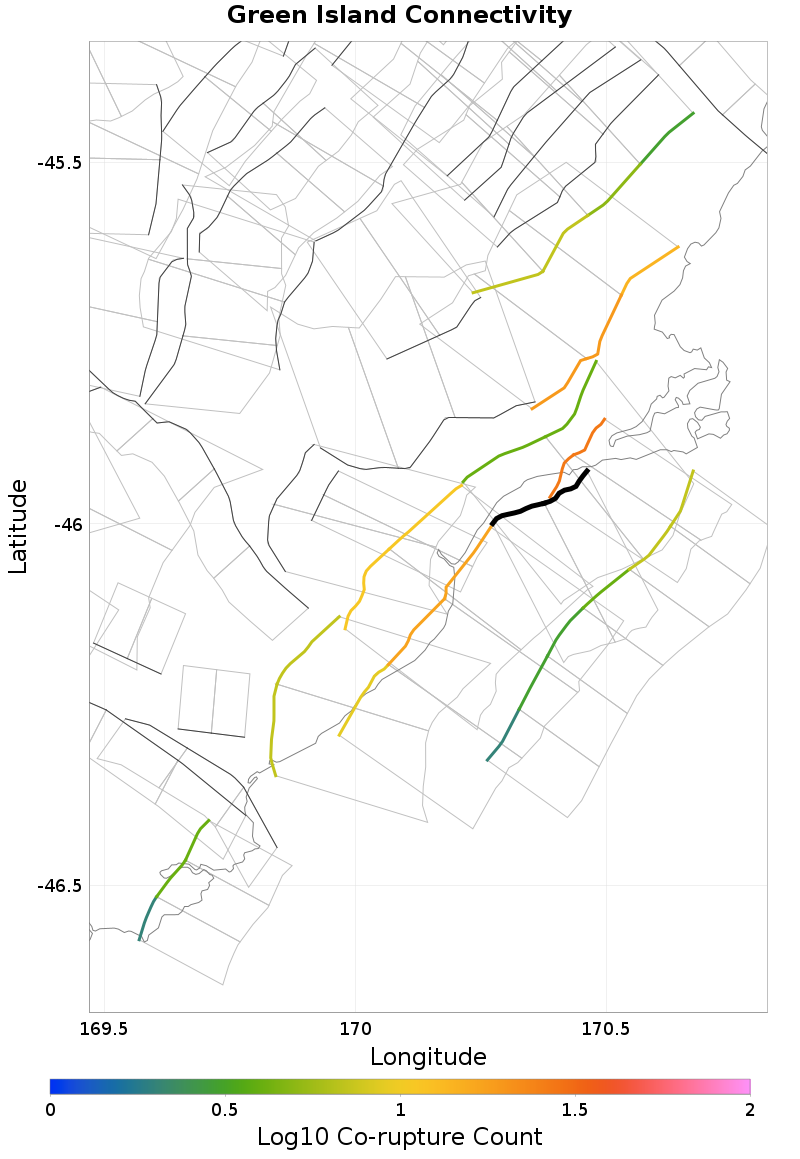

Connectivity

Nearby Sections

Fault Section
Akatore, 0.19 km away
Kaikorai, 0.54 km away
Titri Central, 5.11 km away
Titri North, 5.36 km away
Takapu, 10.64 km away
Titri South, 10.73 km away
Sliver Stream - Merton, 12.64 km away
Maungatua - North Taieri, 13.31 km away
Waitahuna 2, 15.74 km away
Waitahuna 1, 17.12 km away

Akatore, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	4.9679013E-5

Kaikorai, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	true
Directly Connected?	true
Co-rupture Count	27
Co-rupture Rate	1.3797302E-5

Titri Central, 5.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	4.1857886E-5

Titri North, 5.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	3.3117882E-7

Takapu, 10.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	true
Directly Connected?	true
Co-rupture Count	7
Co-rupture Rate	4.1559047E-6

Titri South, 10.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	1.3866148E-5

Sliver Stream - Merton, 12.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	2.2162826E-6

Maungatua - North Taieri, 13.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 15.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 1, 17.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
