Wanaka Details

PropertyValue
Rupture Count359
Ruptures Above Sect Min Mag356
Ruptures w/ Nonzero Rates9
Magnitude Range[6.97, 8.26]
Length Range[22, 361] km
Total Rate1.7543085E-5 /yr
Multi-Fault Rate6.0454595E-6 /yr (34.46%)
Directly-Connected Faults2
All Co-Rupturing Faults17

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

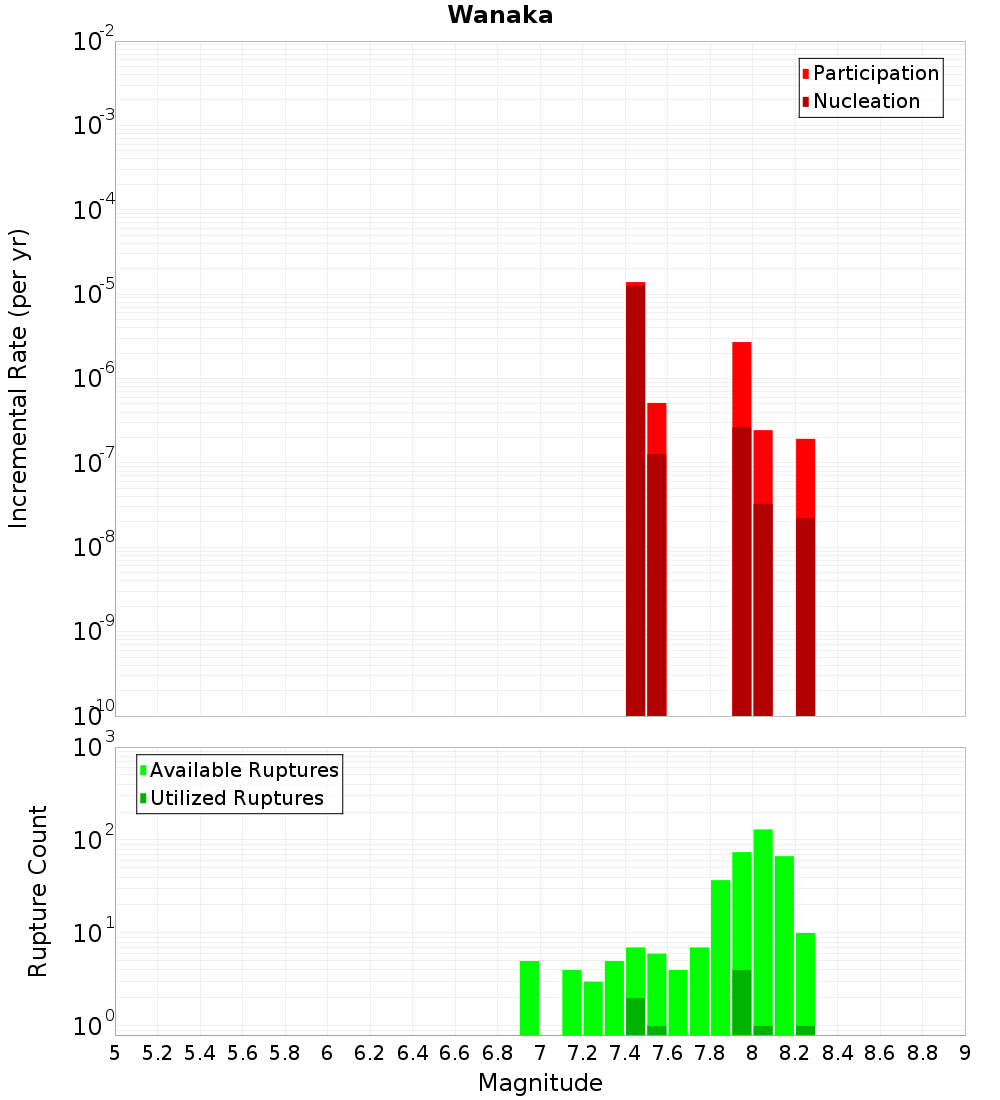

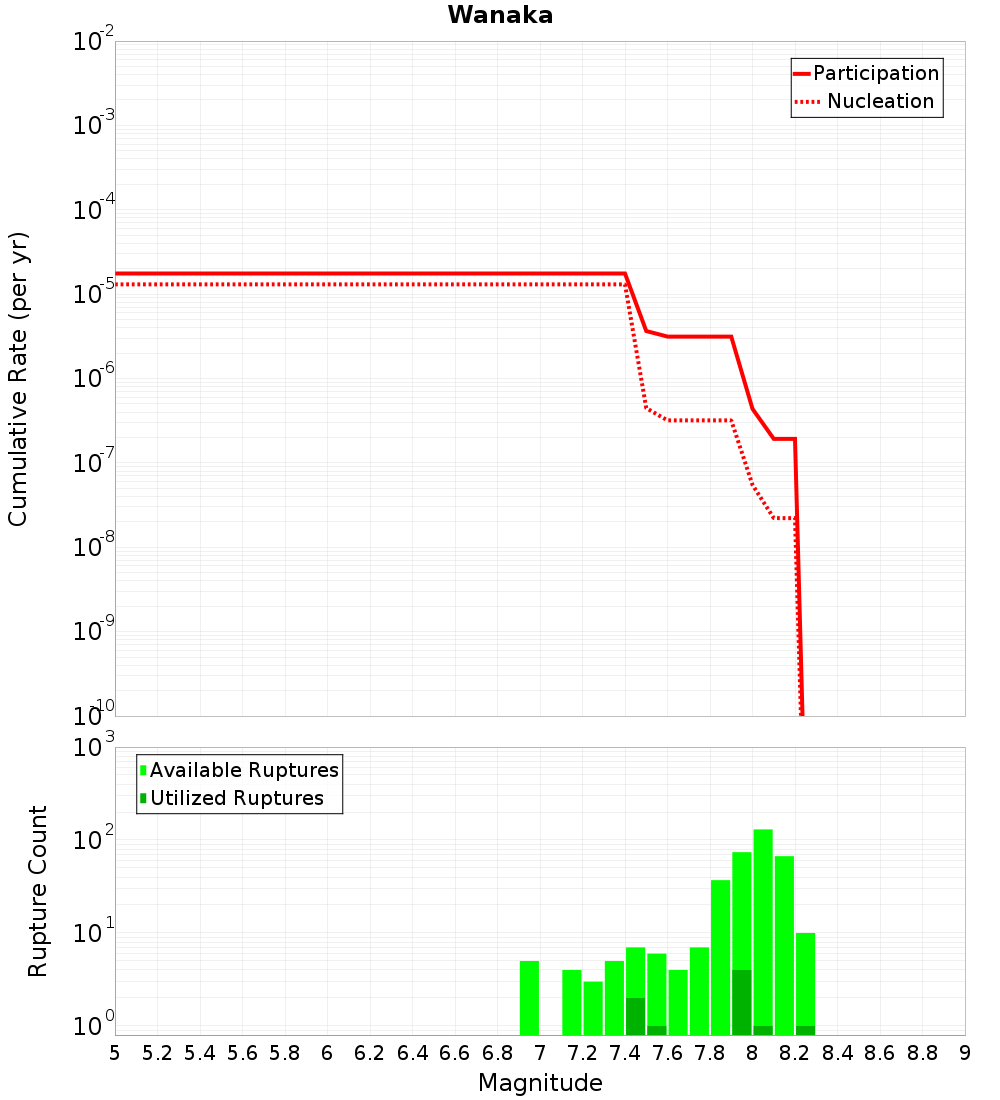

Incremental PlotCumulative Plot

Along-Strike Values

(top)

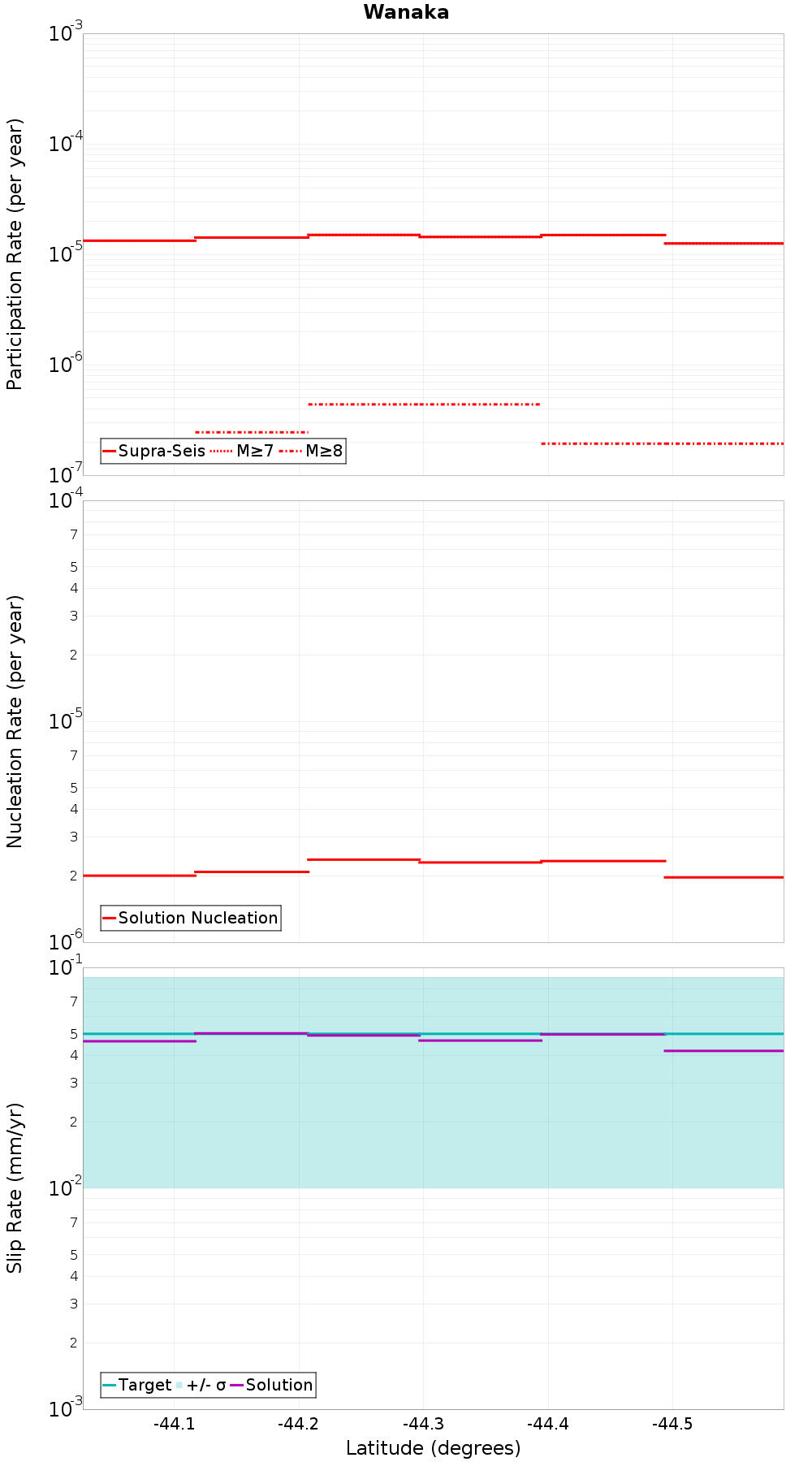

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

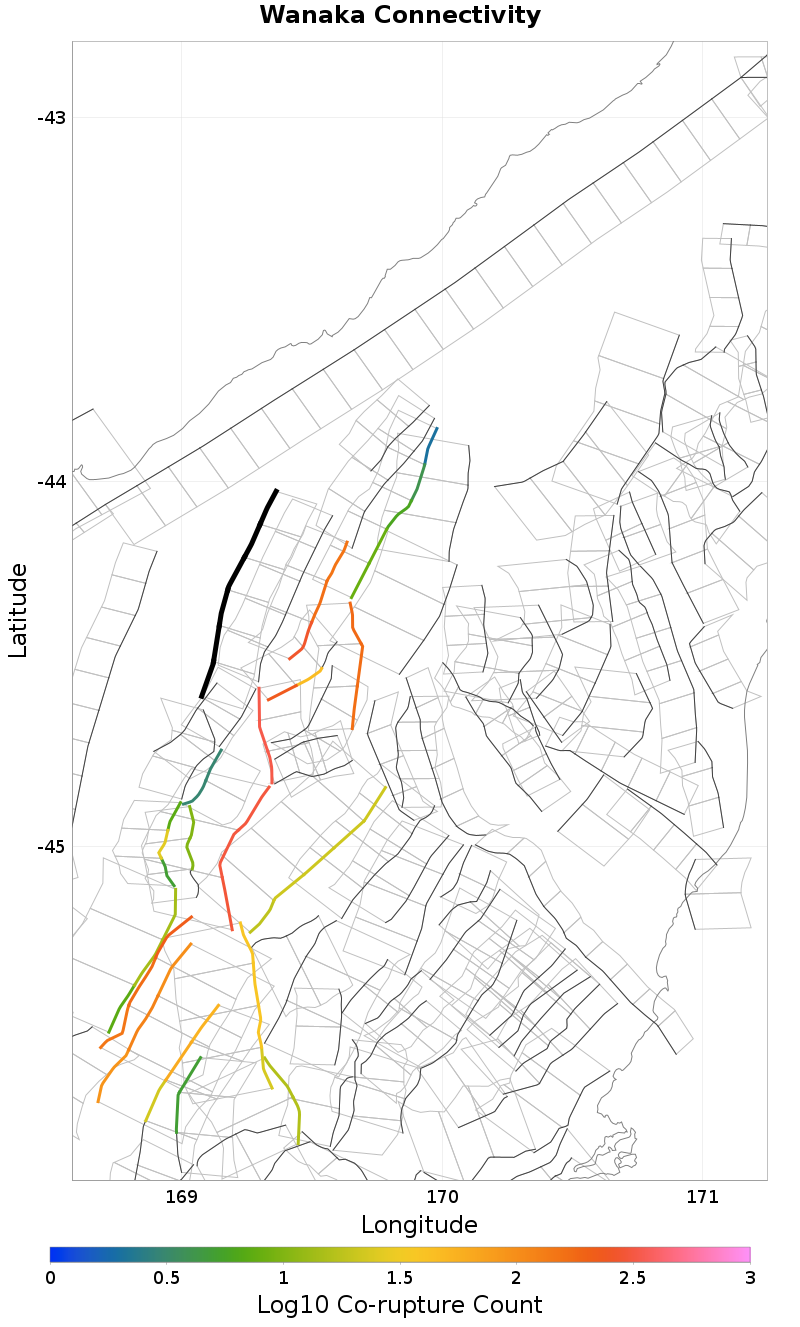

MapMap

Nearby Sections

(top)

Fault Section
Dingle, 0.06 km away
Cardrona - Hawea, 0.24 km away
Hunter Valley, 0.32 km away
Timaru Creek, 0.46 km away
Motatapu, 1.15 km away
Hopkins, 1.91 km away
NW Cardrona North, 3.89 km away
Barrier Range, 8.72 km away
Dromedary, 10.85 km away
Cluden, 12.39 km away
Grandview, 12.54 km away
Alpine: Jacksons to Kaniere, 15.21 km away
Paddys Ridge, 16.65 km away
Huxley, 19.24 km away

Dingle, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?true
Directly Connected?true
Co-rupture Count291
Co-rupture Rate3.4603513E-6

Cardrona - Hawea, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunter Valley, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Timaru Creek, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?true
Directly Connected?false
Co-rupture Count228
Co-rupture Rate2.947061E-6

Motatapu, 1.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hopkins, 1.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona North, 3.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barrier Range, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate1.1634448E-7

Dromedary, 10.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?true
Directly Connected?true
Co-rupture Count177
Co-rupture Rate3.214743E-6

Cluden, 12.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grandview, 12.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?true
Directly Connected?false
Co-rupture Count333
Co-rupture Rate3.1396653E-6

Alpine: Jacksons to Kaniere, 15.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Paddys Ridge, 16.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Huxley, 19.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMTQuNTdIZUtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
