Kahurangi Details

PropertyValue
Rupture Count250
Ruptures Above Sect Min Mag243
Ruptures w/ Nonzero Rates5
Magnitude Range[6.86, 7.96]
Length Range[21, 246] km
Total Rate9.476521E-5 /yr
Multi-Fault Rate9.476521E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults7

Table Of Contents

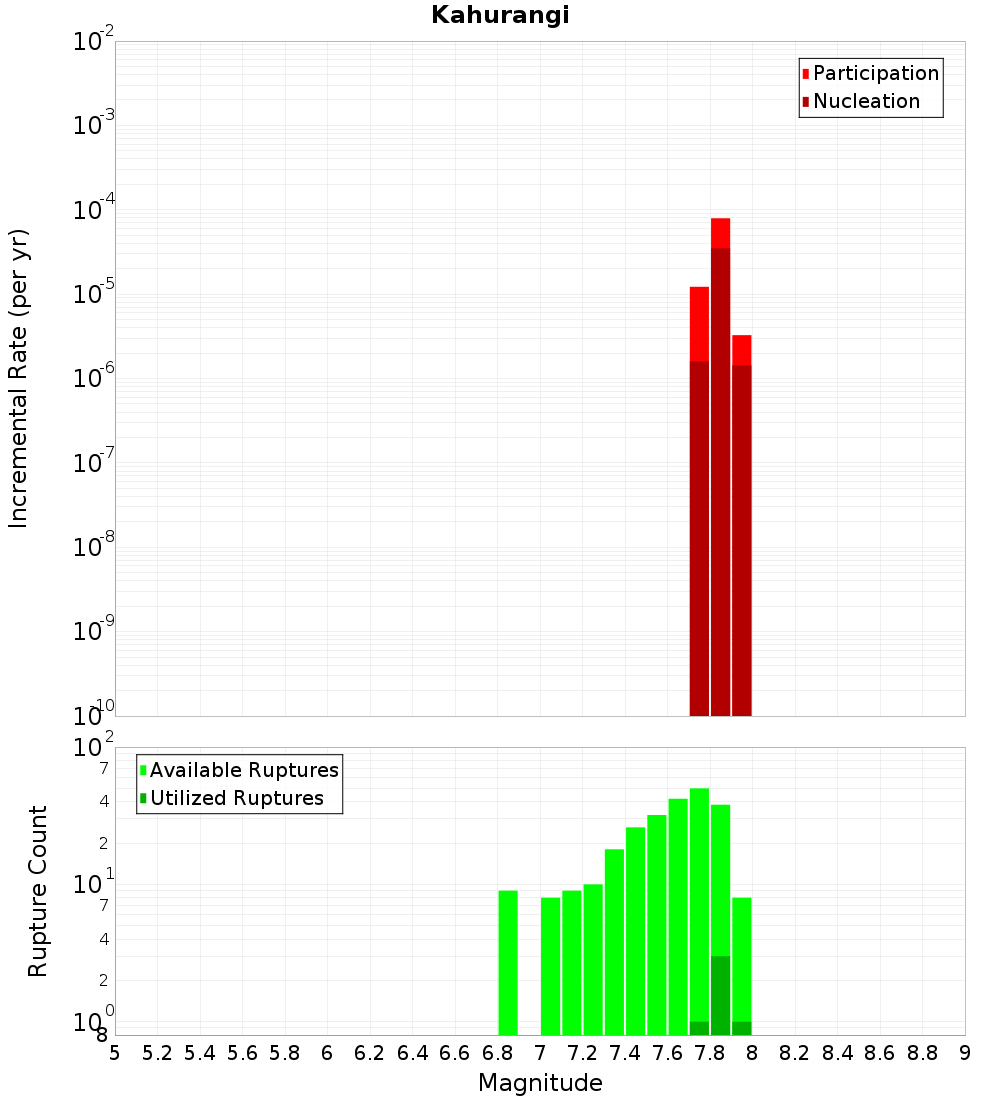

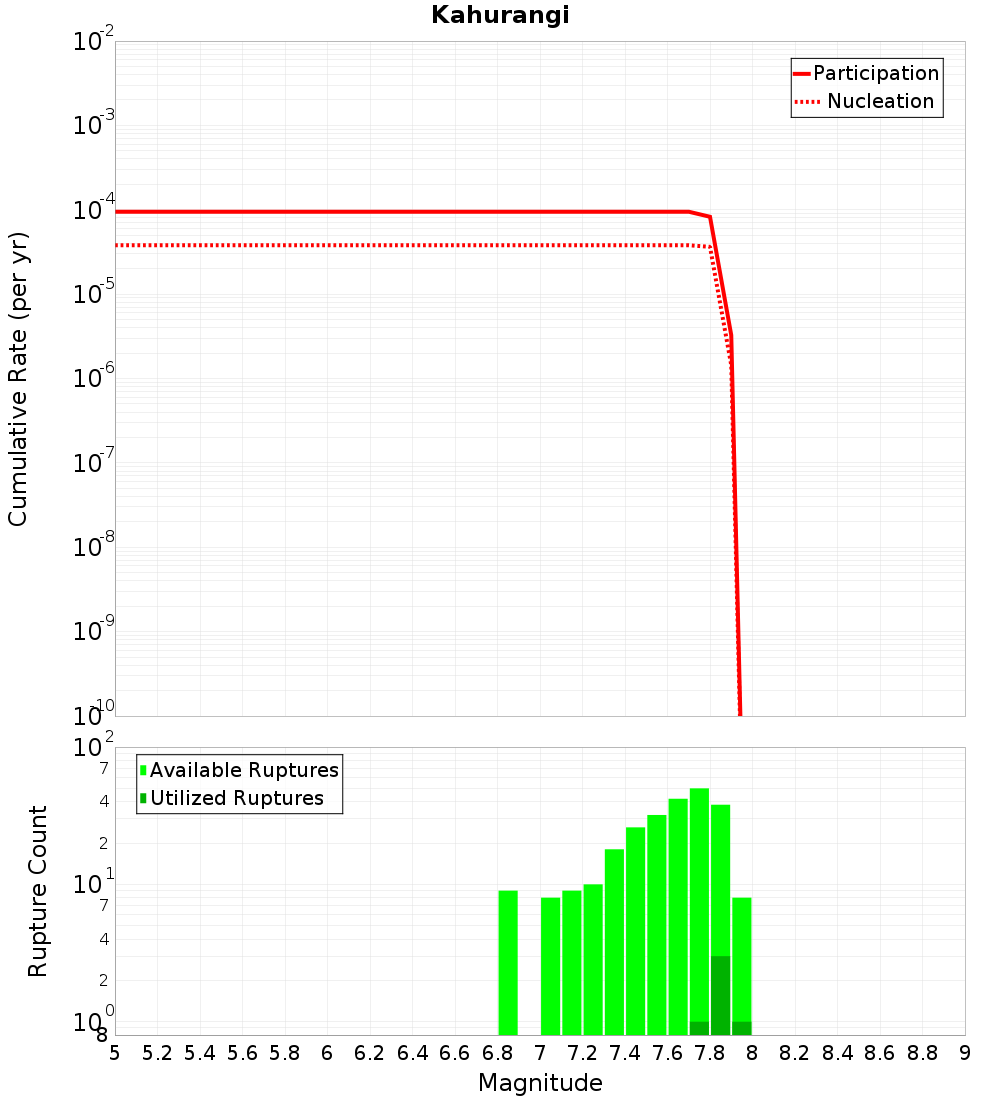

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

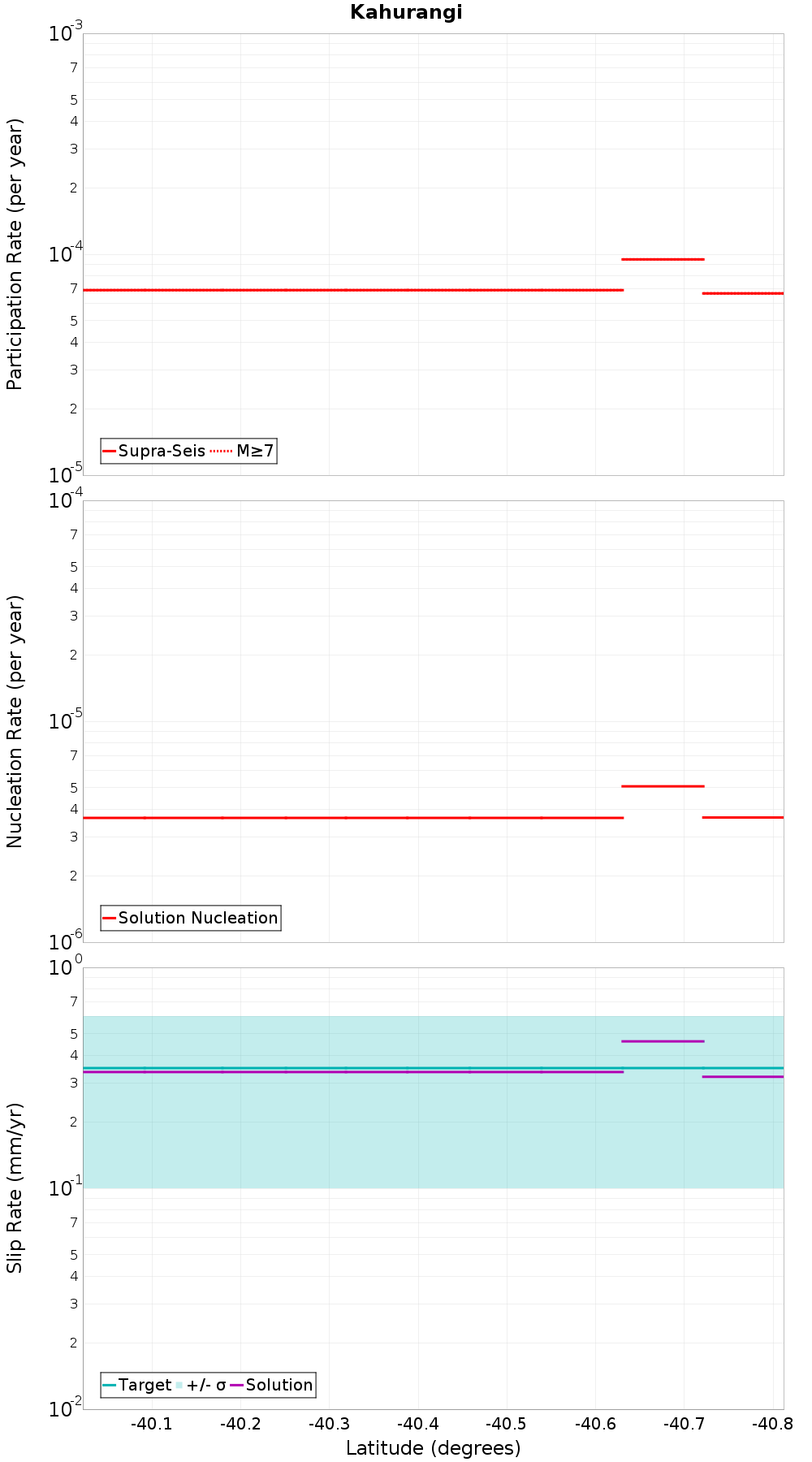

Along-Strike Values

(top)

Along-strike plot

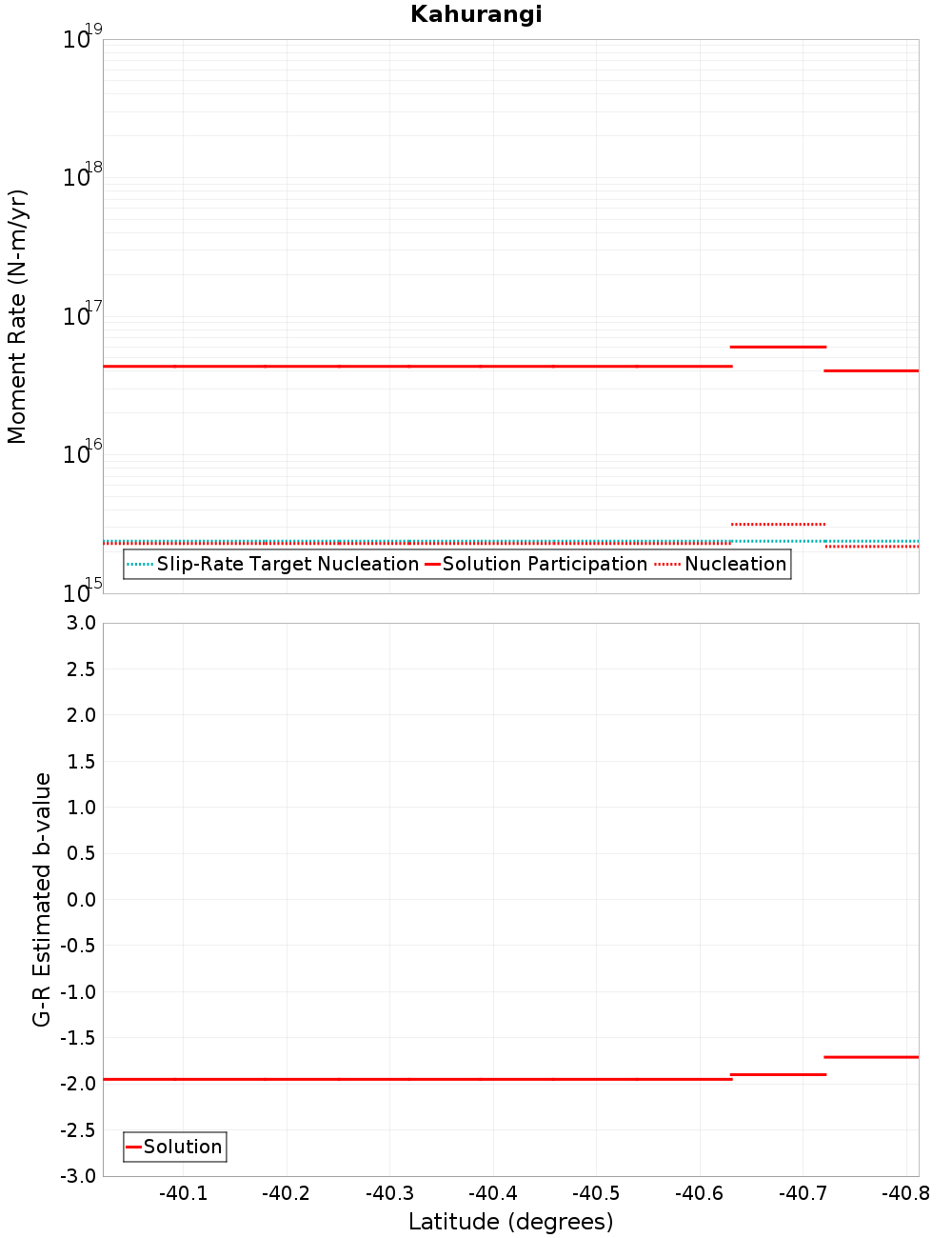

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wakamarama, 0.07 km away
Farewell, 0.25 km away
Kongahau, 0.31 km away
Cape Foulwind 4, 0.46 km away
Kohaihai, 11.7 km away
Wakamarama Offshore, 15.74 km away

Wakamarama, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate3.2645376E-6

Farewell, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate1.221863E-5

Kongahau, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?true
Co-rupture Count115
Co-rupture Rate4.537393E-5

Cape Foulwind 4, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate4.9391278E-5

Kohaihai, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wakamarama Offshore, 15.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0
