Volkner 3 Details

PropertyValue
Rupture Count1,300
Ruptures Above Sect Min Mag1,300
Ruptures w/ Nonzero Rates9
Magnitude Range[6.89, 8.31]
Length Range[17, 578] km
Total Rate4.207697E-4 /yr
Multi-Fault Rate3.3959292E-4 /yr (80.71%)
Directly-Connected Faults2
All Co-Rupturing Faults52

Table Of Contents

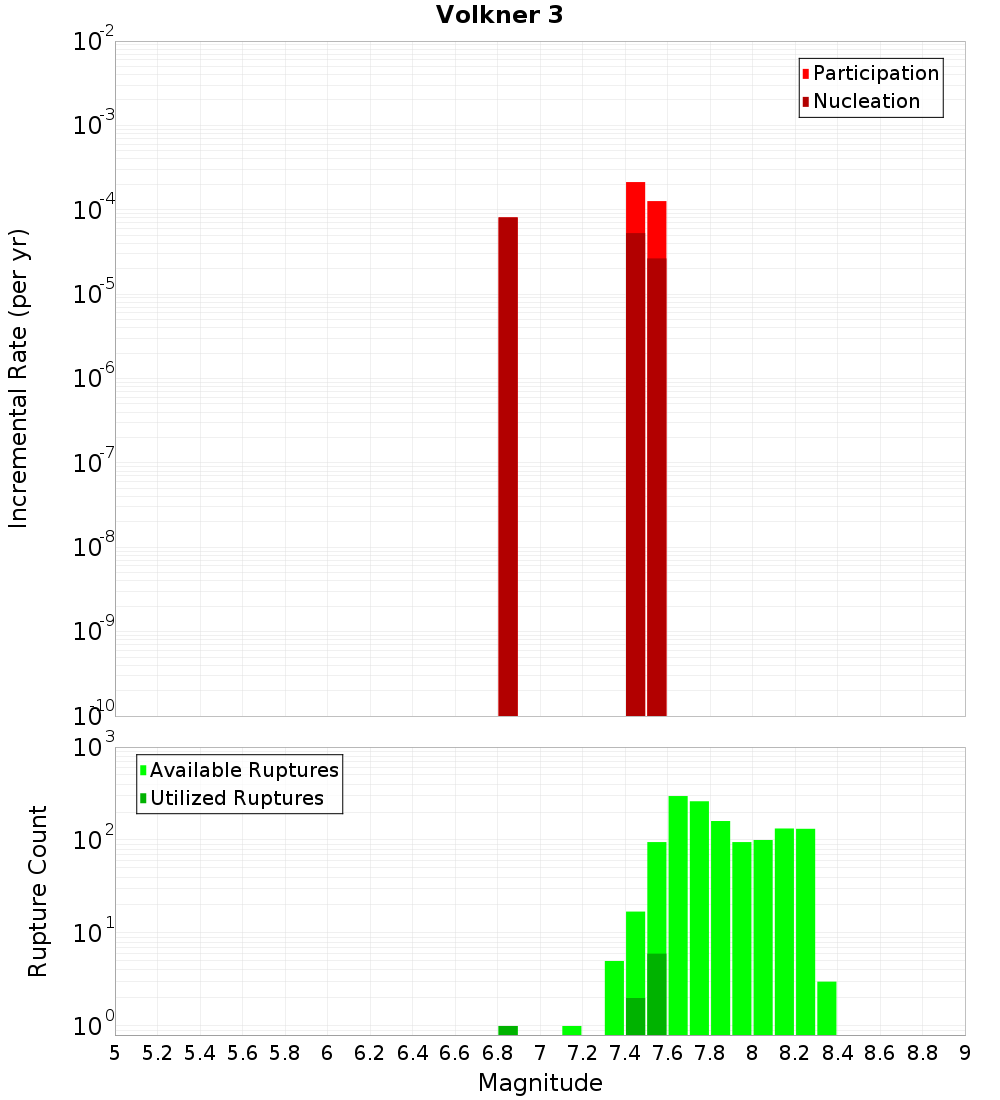

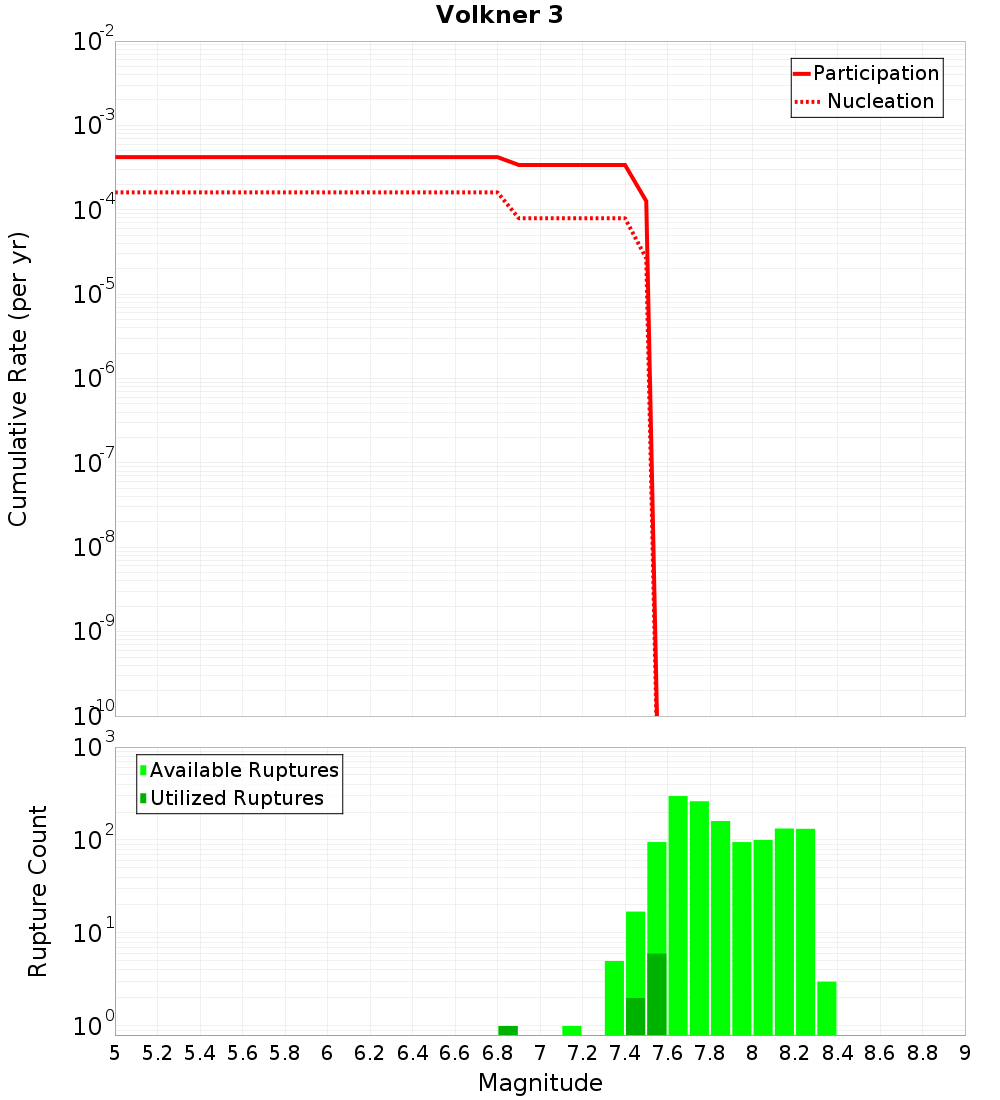

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

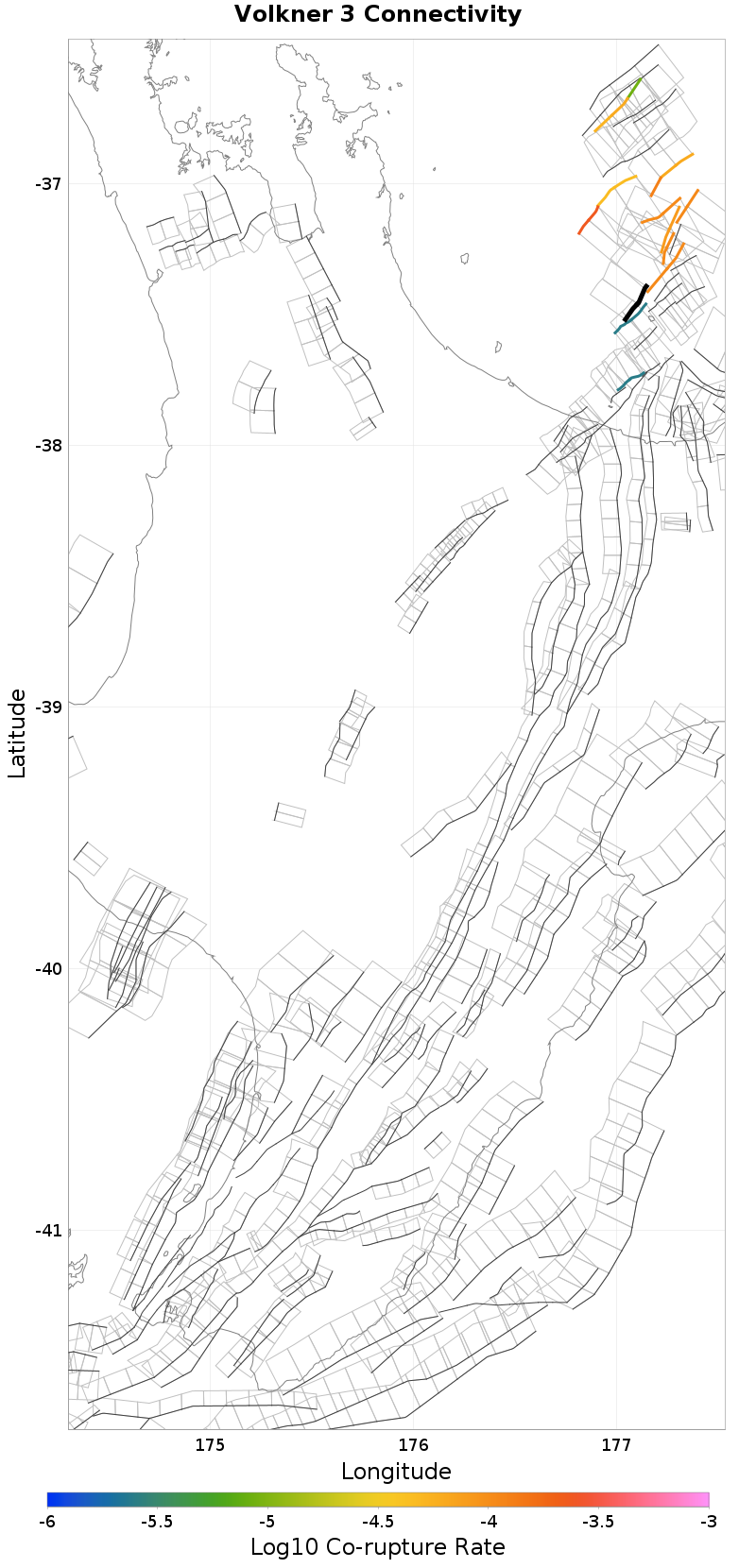

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tuakana 6, 0.32 km awayTuatoru 2, 12.56 km away
Volkner 4, 1.38 km awayTe Arawa 3, 12.62 km away
Whakaari 4, 1.58 km awayOtara West 2, 12.93 km away
Te Arawa 1, 5.74 km awayOtara West 3, 16.79 km away
Te Arawa 2, 6 km awayOtara East 1, 17.03 km away
Otara West 1, 8.3 km awayOhiwa 1, 17.93 km away
Calypso 2, 9.04 km awayRangitaiki 2, 17.97 km away
Tuakana 7, 9.15 km awayWhite Island 2, 19.24 km away
Tuatoru 1, 10.46 km awayWhite Island 1, 19.53 km away

Tuakana 6, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?true
Co-rupture Count404
Co-rupture Rate2.3425078E-4

Volkner 4, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?true
Co-rupture Count1,282
Co-rupture Rate1.0777727E-4

Whakaari 4, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count1,269
Co-rupture Rate2.435143E-6

Te Arawa 1, 5.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.07566084E-4

Calypso 2, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 7, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate4.5816272E-5

Tuatoru 1, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 2, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Te Arawa 3, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Otara West 2, 12.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count298
Co-rupture Rate8.086843E-5

Otara West 3, 16.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.0534212E-4

Otara East 1, 17.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Ohiwa 1, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count522
Co-rupture Rate0.0

Rangitaiki 2, 17.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count401
Co-rupture Rate2.435143E-6

White Island 2, 19.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 19.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQyMzYuMEtFZ3hk
Connected?true
Directly Connected?false
Co-rupture Count1,144
Co-rupture Rate0.0
