Hopkins Details

Property	Value
Rupture Count	3,274
Ruptures Above Sect Min Mag	3,271
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.89, 8.37]
Length Range	[24, 838] km
Total Rate	1.8816286E-4 /yr
Multi-Fault Rate	1.8816286E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	88

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

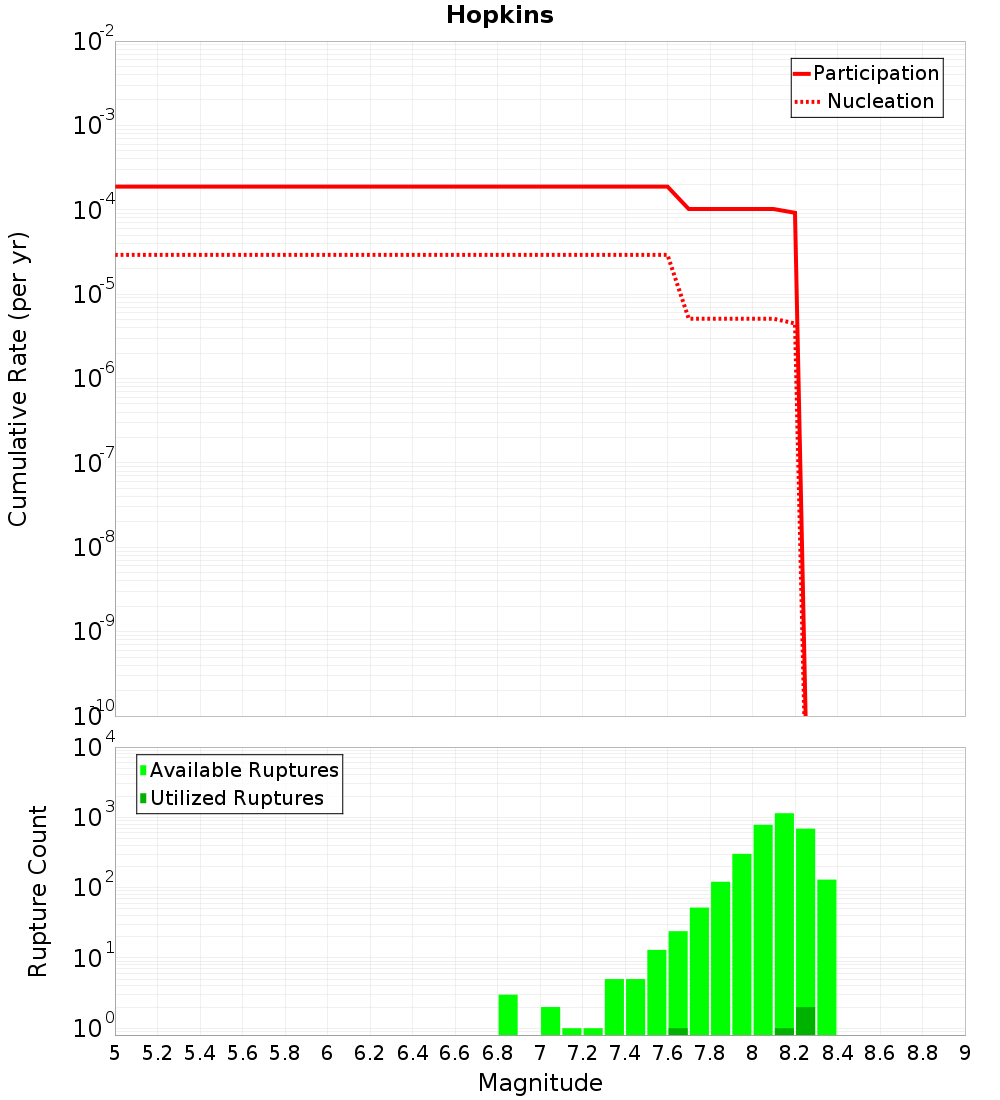

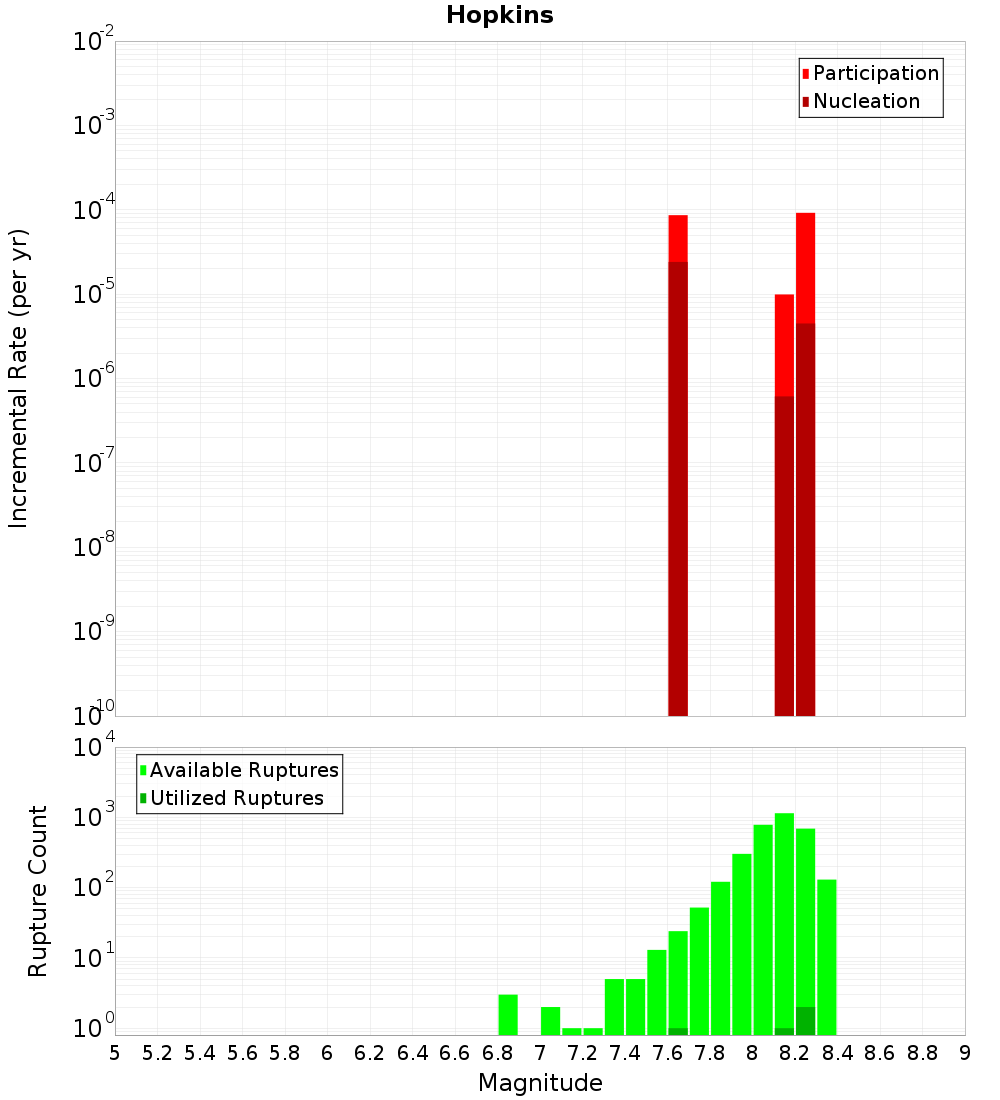

Magnitude-Frequency Distribution

Incremental	Cumulative

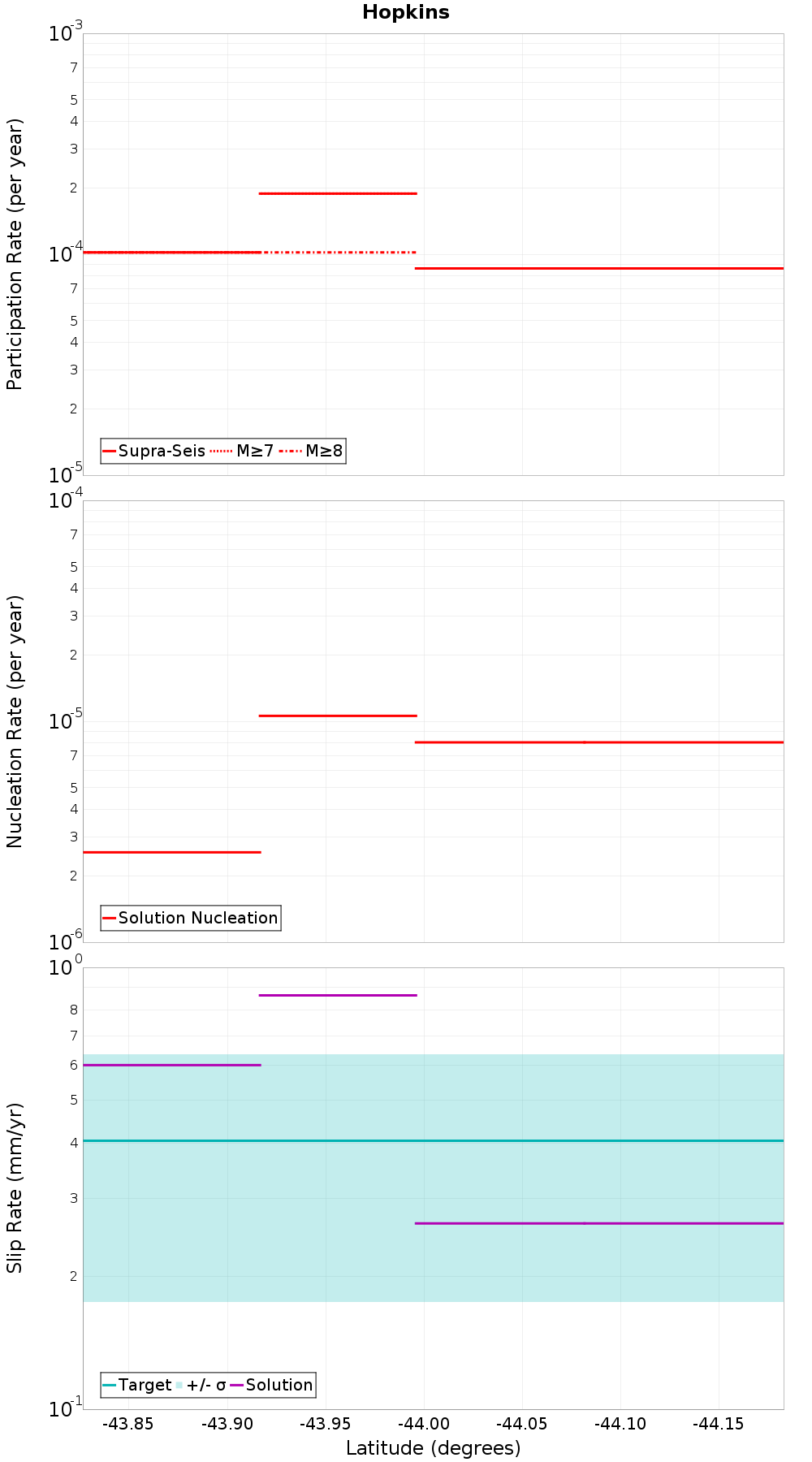

Along-Strike Values

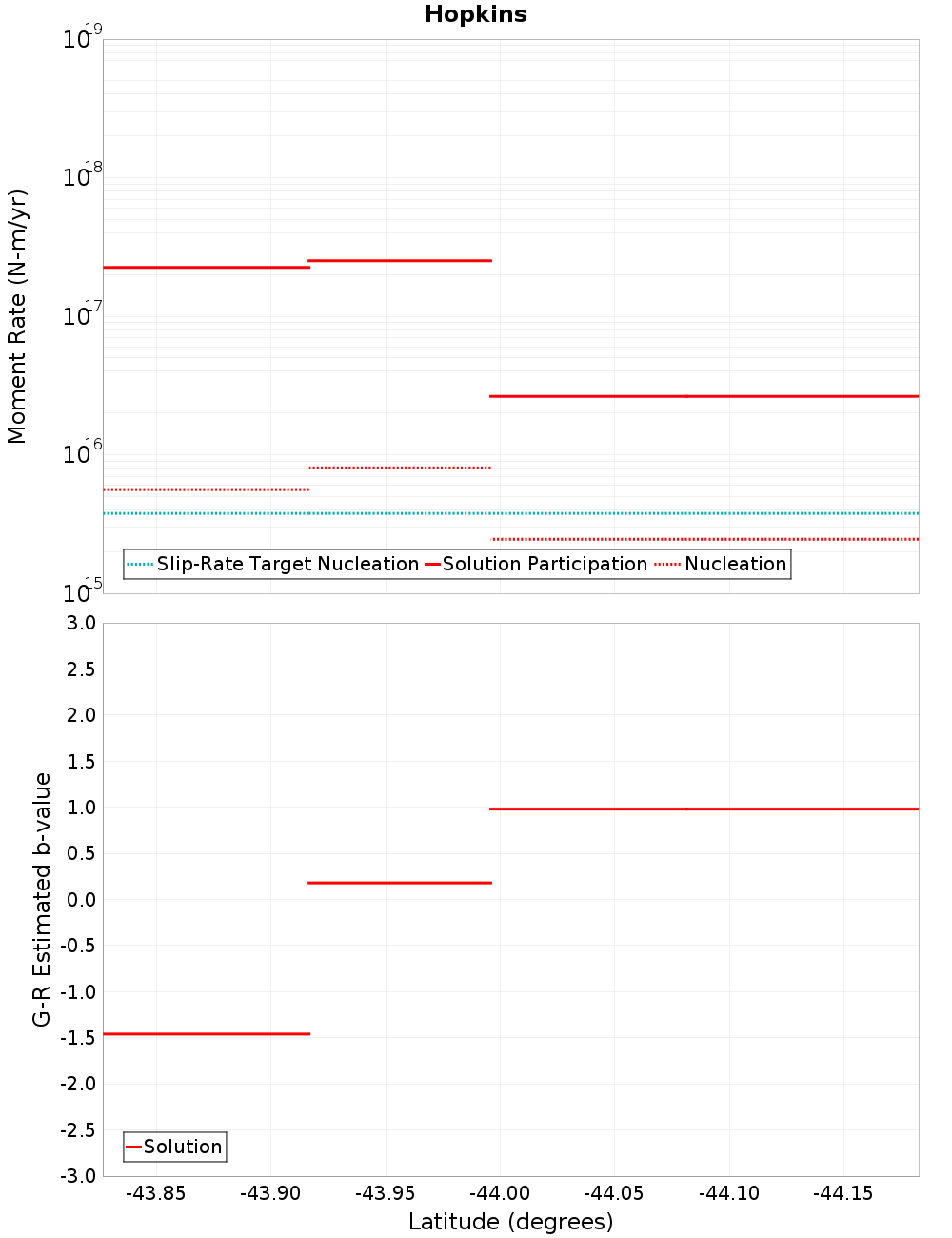

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dingle, 1.8 km away
Barrier Range, 1.83 km away
Wanaka, 1.91 km away
Huxley, 3.39 km away
Ostler North, 4.64 km away
Alpine: Jacksons to Kaniere, 5.91 km away
Hunter Valley, 7.71 km away
Dromedary, 16.74 km away
Ostler South, 19.15 km away

Dingle, 1.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Barrier Range, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wanaka, 1.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Huxley, 3.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ostler North, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,643
Co-rupture Rate	1.8816286E-4

Alpine: Jacksons to Kaniere, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	true
Directly Connected?	true
Co-rupture Count	3,218
Co-rupture Rate	1.0189915E-4

Hunter Valley, 7.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dromedary, 16.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	true
Directly Connected?	false
Co-rupture Count	561
Co-rupture Rate	9.912617E-6

Ostler South, 19.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MjEuMGNnQXB0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,073
Co-rupture Rate	1.8816286E-4
