Alpine: Resolution - Dagg Details

PropertyValue
Rupture Count47,226
Ruptures Above Sect Min Mag47,223
Ruptures w/ Nonzero Rates51
Magnitude Range[6.83, 8.53]
Length Range[22, 1,204] km
Total Rate0.00601157 /yr
Multi-Fault Rate0.00601157 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults118

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

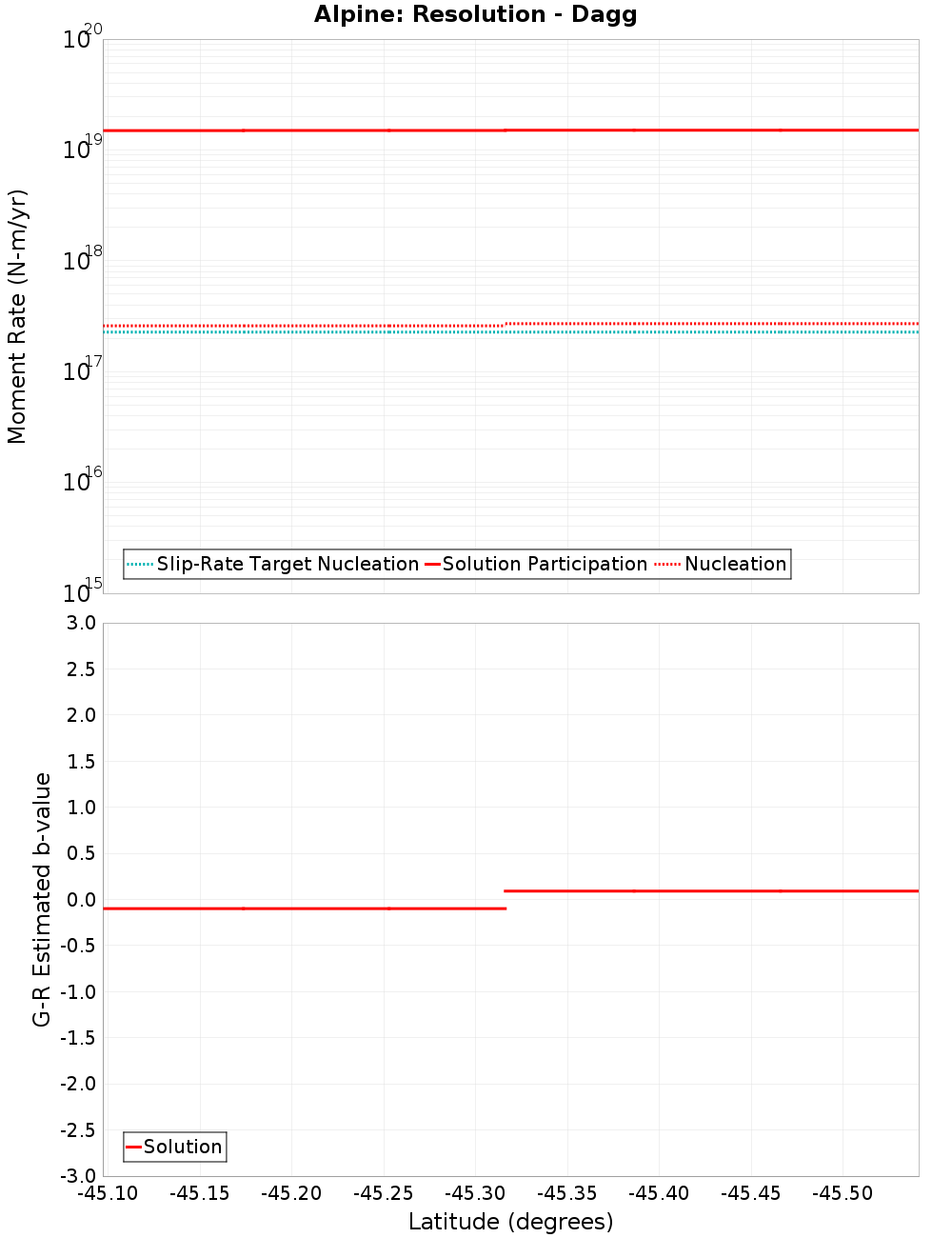

Moment-Rates and b-Values

(top)

Along-strike plot

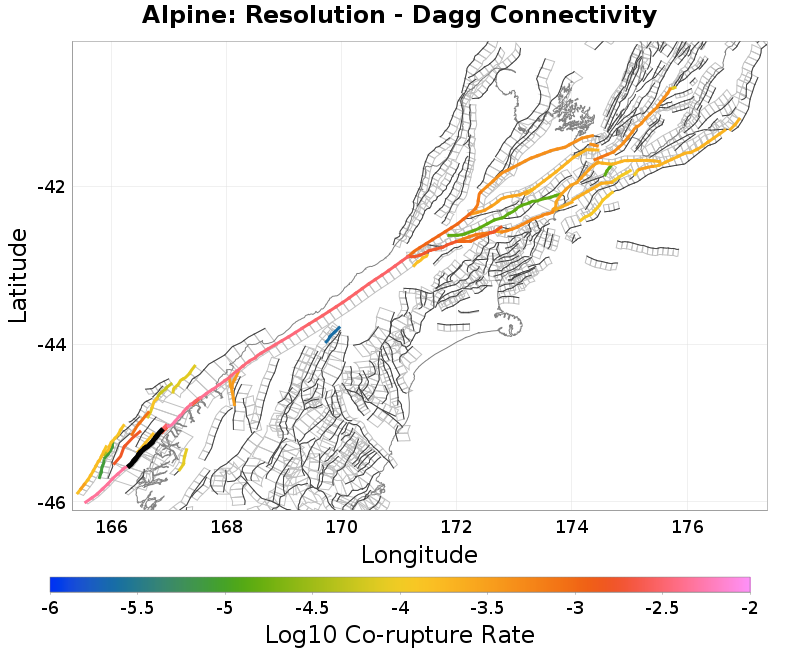

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 3-6-10, 0.1 km away
South Wedge 5, 0.13 km away
South Wedge 2, 0.16 km away
South Wedge 1, 0.22 km away
Central Wedge 4 - South Wedge 411, 0.24 km away
Alpine: Resolution - Five Fingers, 0.91 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 11.23 km away
Central Wedge 1 & 2 & 3, 12.75 km away
Five Fingers, 18.37 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count19,142
Co-rupture Rate0.002915175

South Wedge 3-6-10, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count4,722
Co-rupture Rate0.0015747008

South Wedge 5, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 2, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count1,552
Co-rupture Rate1.4934855E-4

Central Wedge 4 - South Wedge 411, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?false
Co-rupture Count538
Co-rupture Rate8.21121E-4

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count27,659
Co-rupture Rate0.004586218

Alpine: Nancy, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count27,885
Co-rupture Rate0.0021839244

Alpine: Caswell, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?false
Co-rupture Count46,896
Co-rupture Rate0.0050227735

Central Wedge 1 & 2 & 3, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?false
Co-rupture Count157
Co-rupture Rate1.3048042E-4

Five Fingers, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate0.0
