Mataikona Details

PropertyValue
Rupture Count1,249
Ruptures Above Sect Min Mag1,242
Ruptures w/ Nonzero Rates20
Magnitude Range[6.64, 8.18]
Length Range[18, 538] km
Total Rate0.0016233028 /yr
Multi-Fault Rate0.0016233028 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults55

Table Of Contents

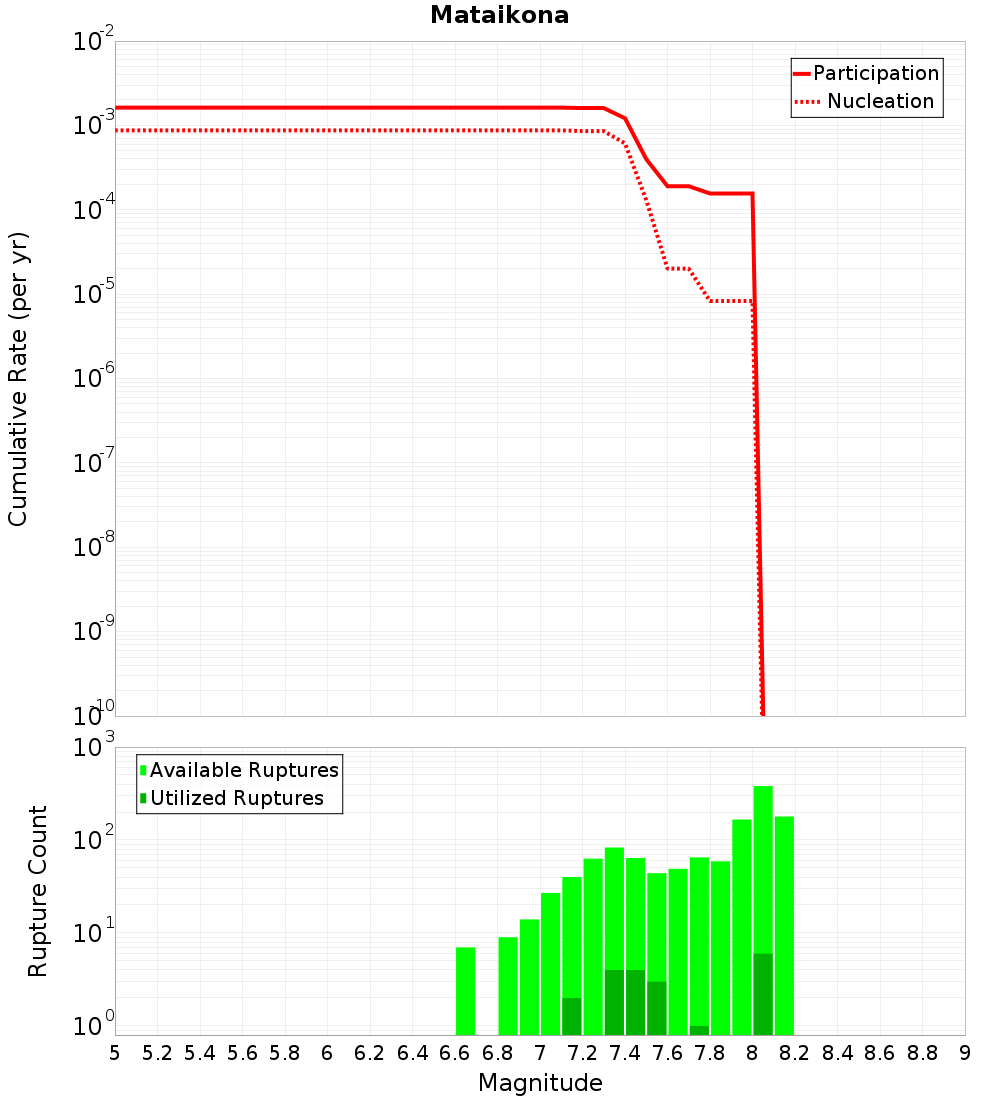

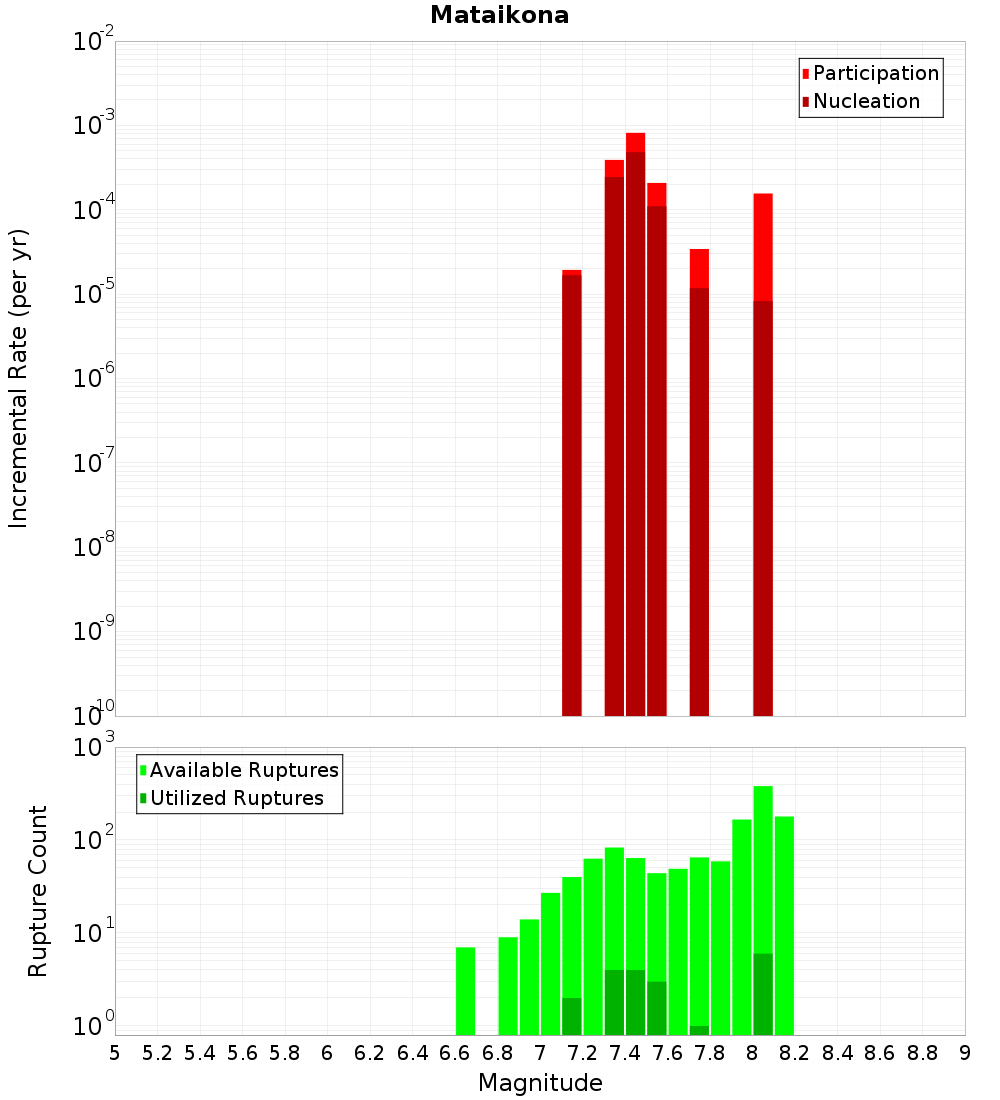

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

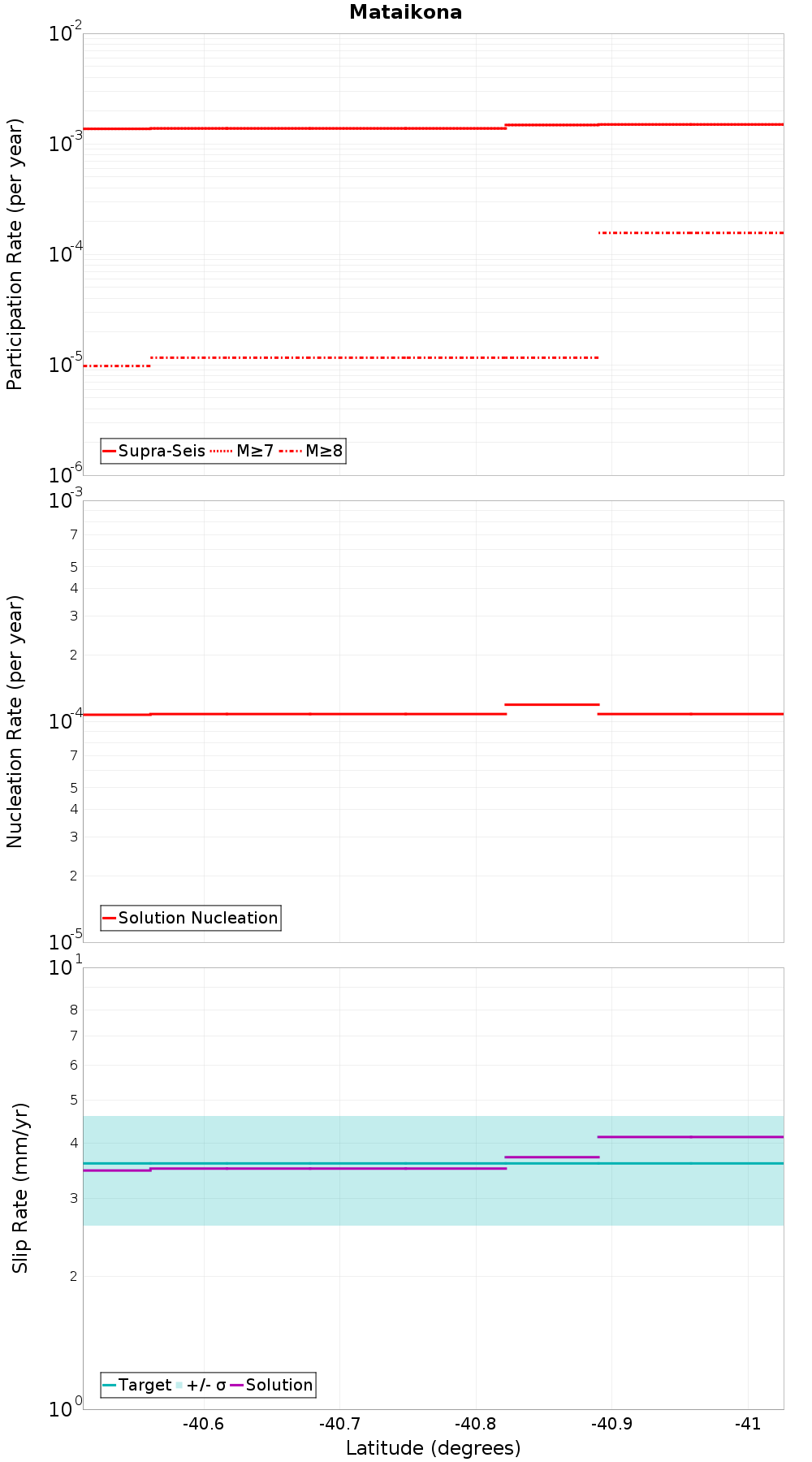

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

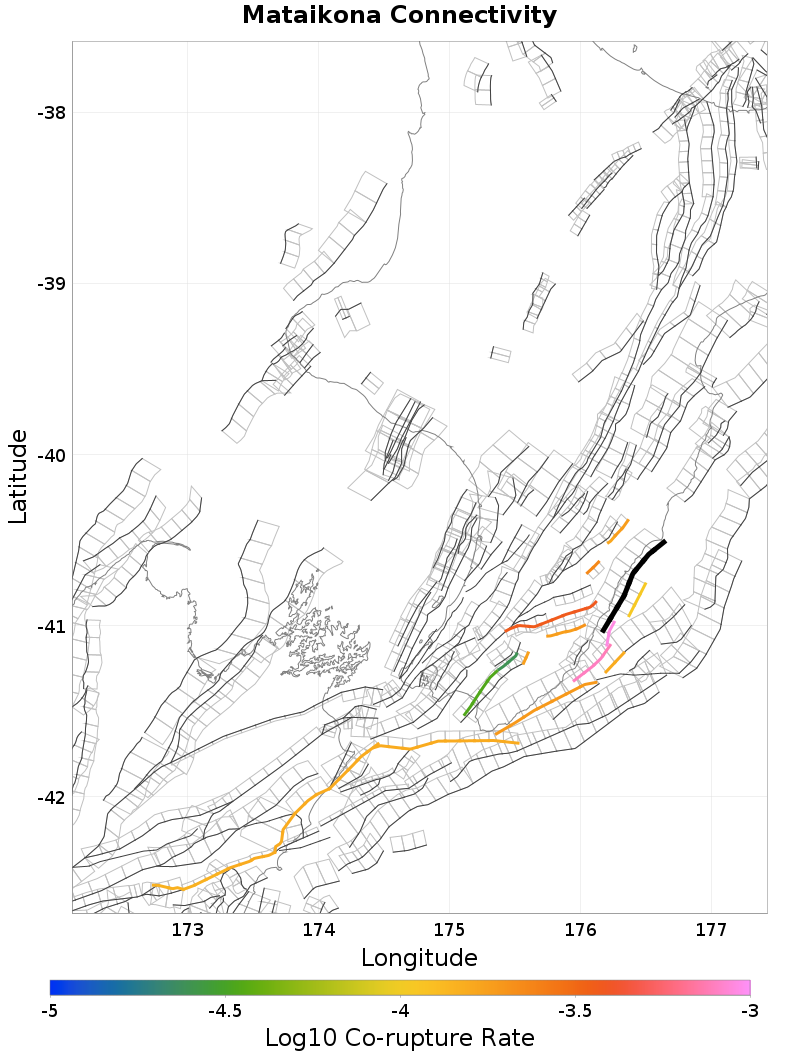

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Carterton, 0.32 km away
Kaumingi, 1.19 km away
Riversdale North, 2.18 km away
Mokonui Northeast, 3.45 km away
Waitawhiti, 4.15 km away
Mataikona East, 5.61 km away
Riversdale, 6.53 km away
Uruti Point, 11.35 km away
Whareama Bank, 12.73 km away
Pongaroa - Weber, 12.8 km away
Waipukaka, 15.32 km away
Saunders Road, 17.63 km away

Carterton, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count596
Co-rupture Rate3.7732223E-4

Kaumingi, 1.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count138
Co-rupture Rate2.1430377E-4

Riversdale North, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count303
Co-rupture Rate9.1322785E-4

Mokonui Northeast, 3.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count131
Co-rupture Rate0.0

Waitawhiti, 4.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate2.2914636E-4

Mataikona East, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate1.08512104E-4

Riversdale, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?false
Co-rupture Count123
Co-rupture Rate7.9163763E-4

Uruti Point, 11.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate0.0

Whareama Bank, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?false
Co-rupture Count296
Co-rupture Rate1.5584736E-4

Pongaroa - Weber, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate1.8337877E-4

Waipukaka, 15.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Saunders Road, 17.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0MzkuMG5XTWhO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
