Motatapu Details

PropertyValue
Rupture Count88
Ruptures Above Sect Min Mag87
Ruptures w/ Nonzero Rates8
Magnitude Range[6.93, 8.13]
Length Range[19, 272] km
Total Rate1.21957695E-4 /yr
Multi-Fault Rate1.9967321E-5 /yr (16.37%)
Directly-Connected Faults3
All Co-Rupturing Faults23

Table Of Contents

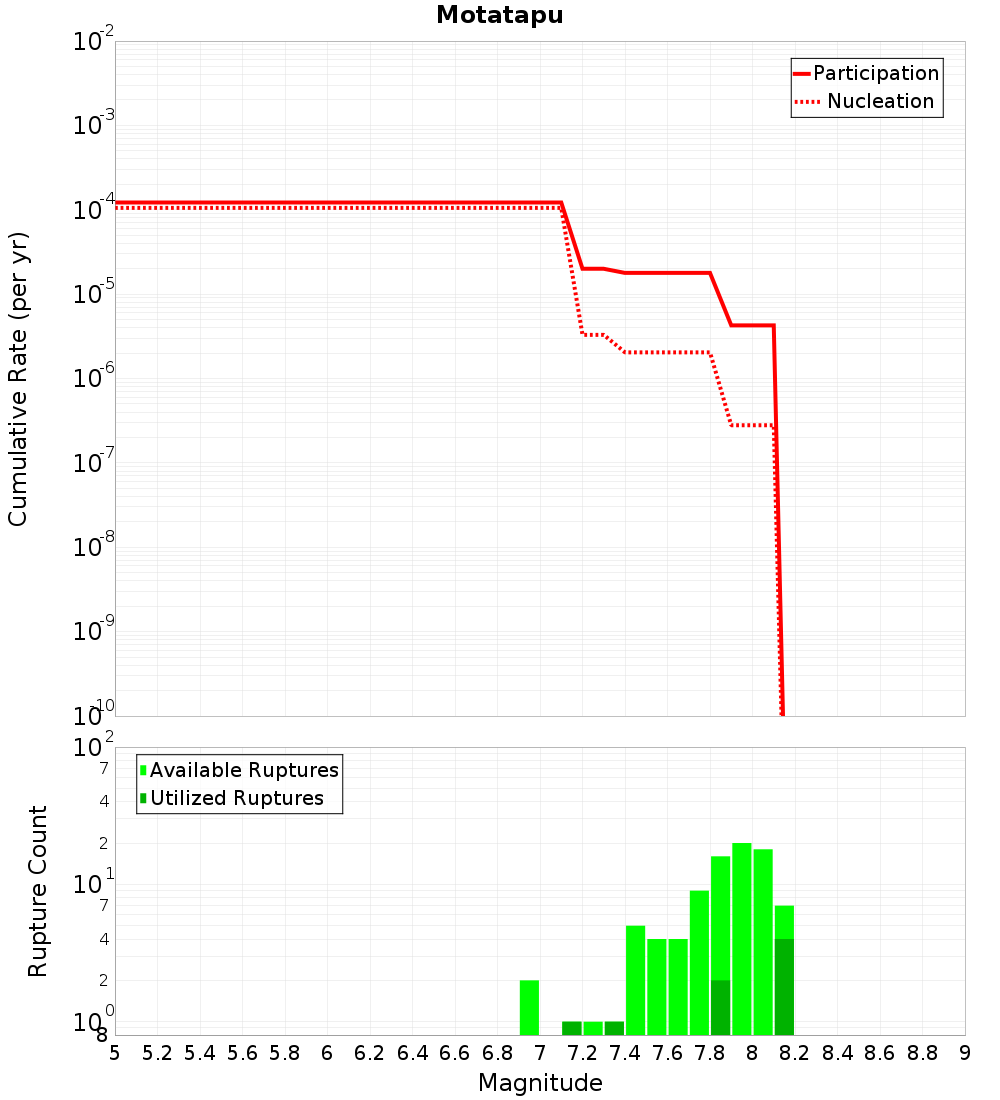

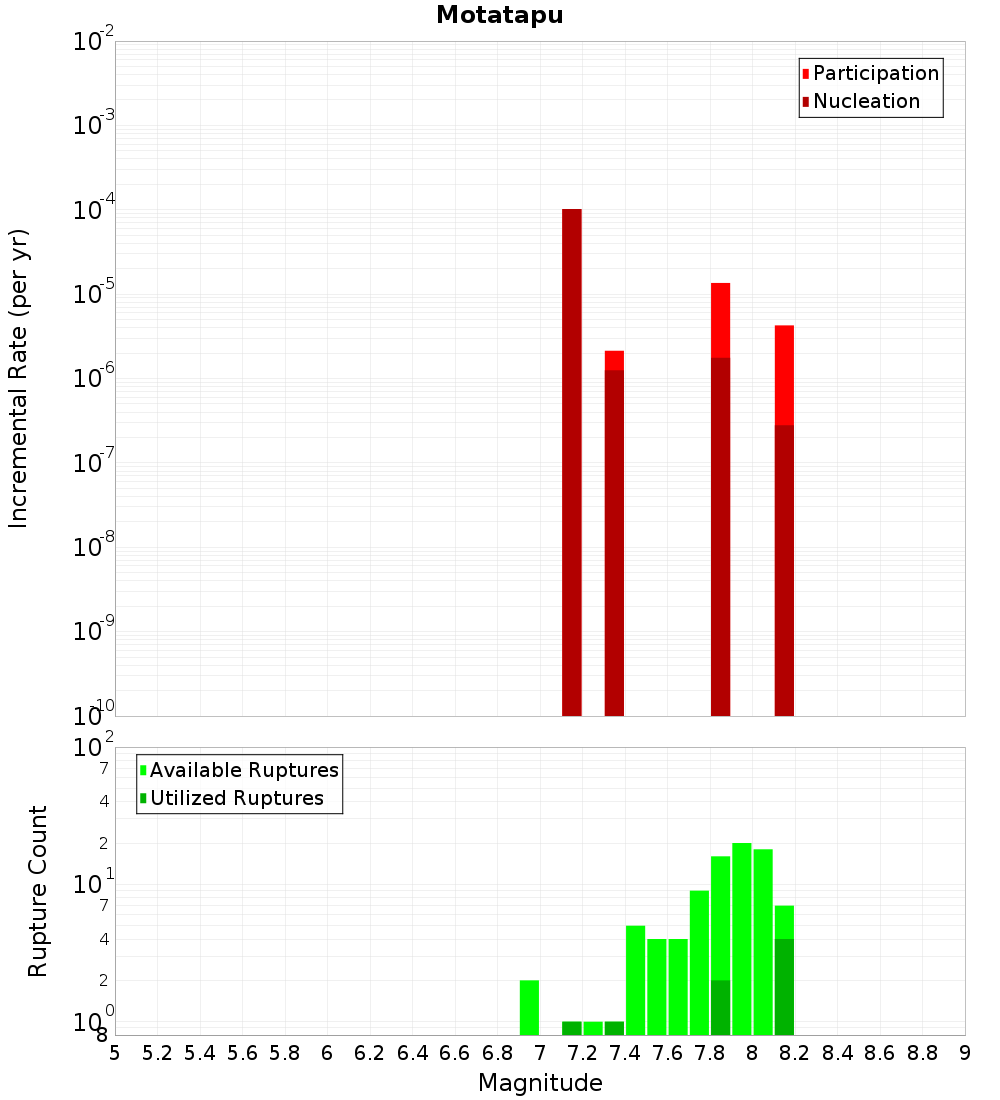

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

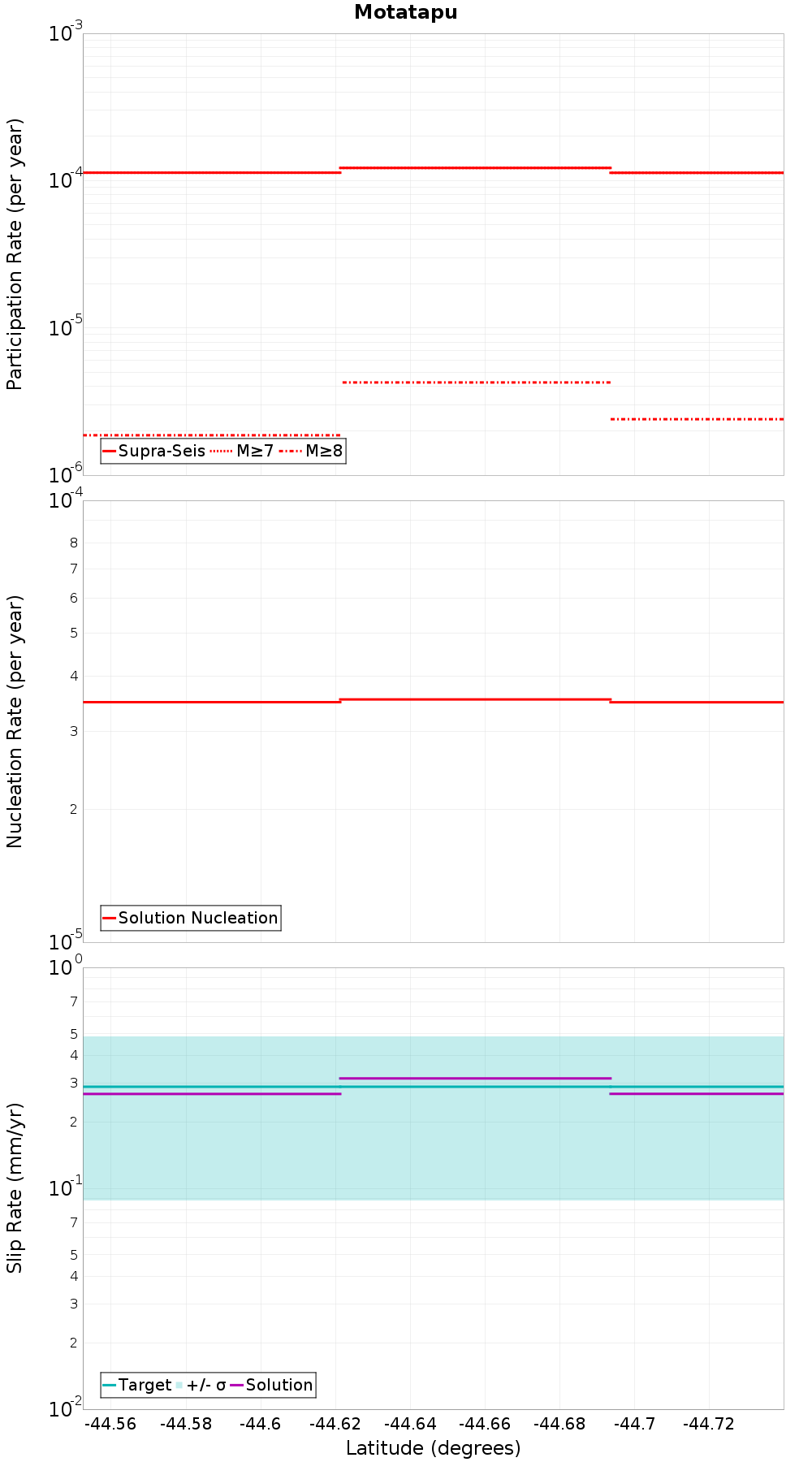

Along-Strike Values

(top)

Along-strike plot

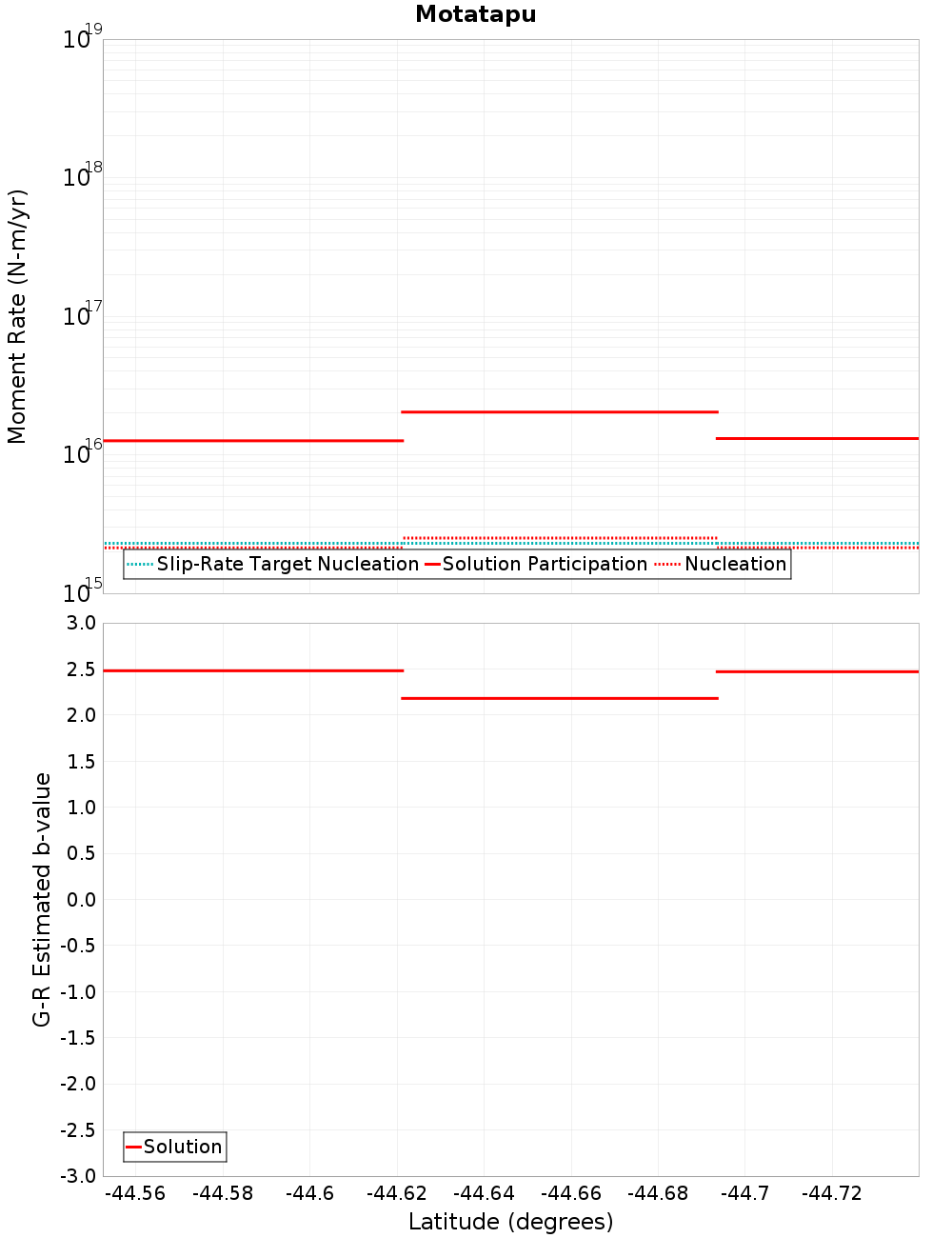

Moment-Rates and b-Values

(top)

Along-strike plot

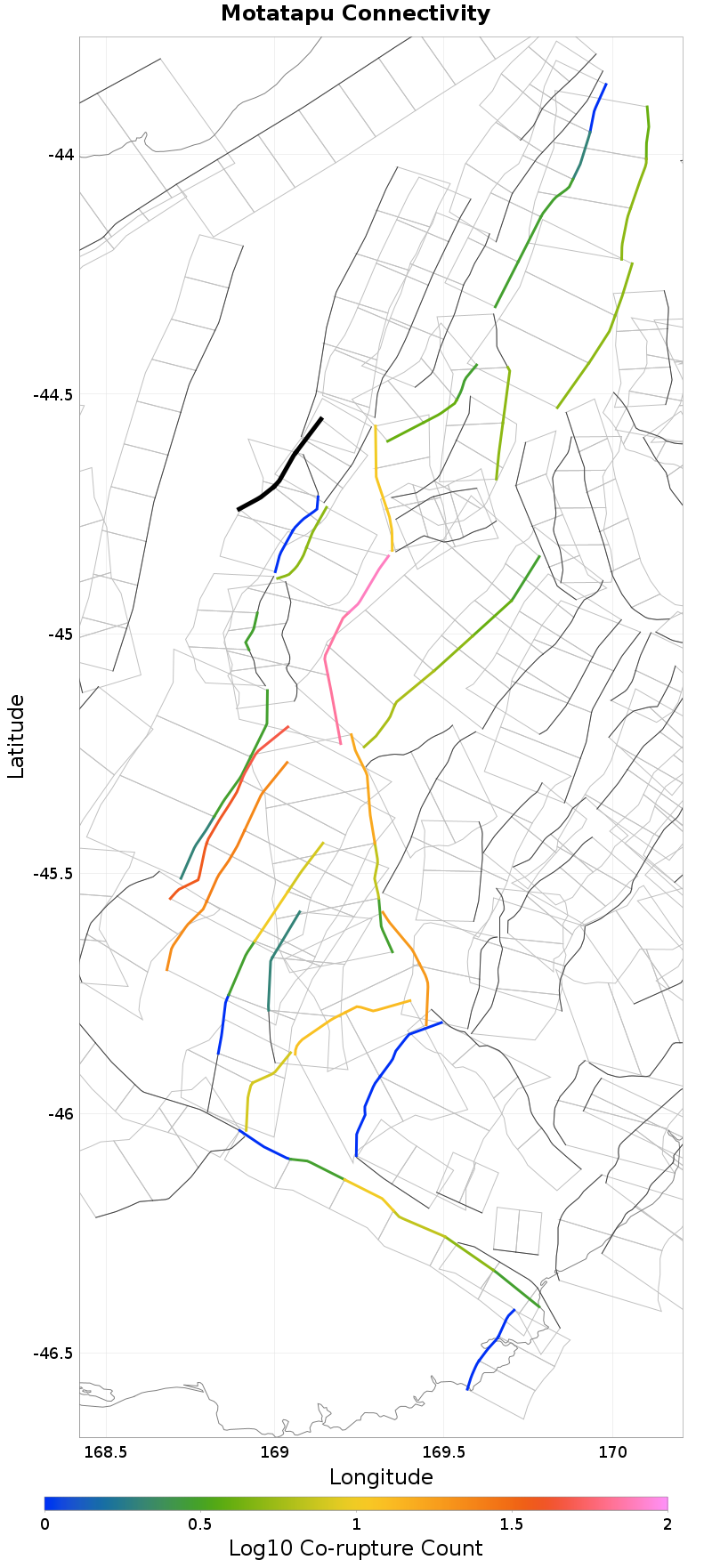

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
NW Cardrona North, 0.08 km away
Pisa, 0.13 km away
Cardrona - Hawea, 0.37 km away
Wanaka, 1.15 km away
Hunter Valley, 6.65 km away
Timaru Creek, 7.02 km away
Cluden, 8.83 km away
Paddys Ridge, 10.98 km away
Grandview, 11.63 km away
NW Cardrona South, 11.75 km away
Roaring Meg, 13.14 km away
Dingle, 17.28 km away
Dromedary, 17.34 km away
Moonlight North, 19.58 km away

NW Cardrona North, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate2.1333533E-6

Pisa, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate1.7833967E-5

Cardrona - Hawea, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wanaka, 1.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunter Valley, 6.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Timaru Creek, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Cluden, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Paddys Ridge, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate0.0

Grandview, 11.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate1.3279735E-6

NW Cardrona South, 11.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.3571483E-5

Roaring Meg, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dingle, 17.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.3279735E-6

Moonlight North, 19.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTEuMHpLWW1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
