Warea Details

Property	Value
Rupture Count	484
Ruptures Above Sect Min Mag	483
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.77, 7.93]
Length Range	[16, 208] km
Total Rate	6.3826585E-5 /yr
Multi-Fault Rate	6.3826585E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

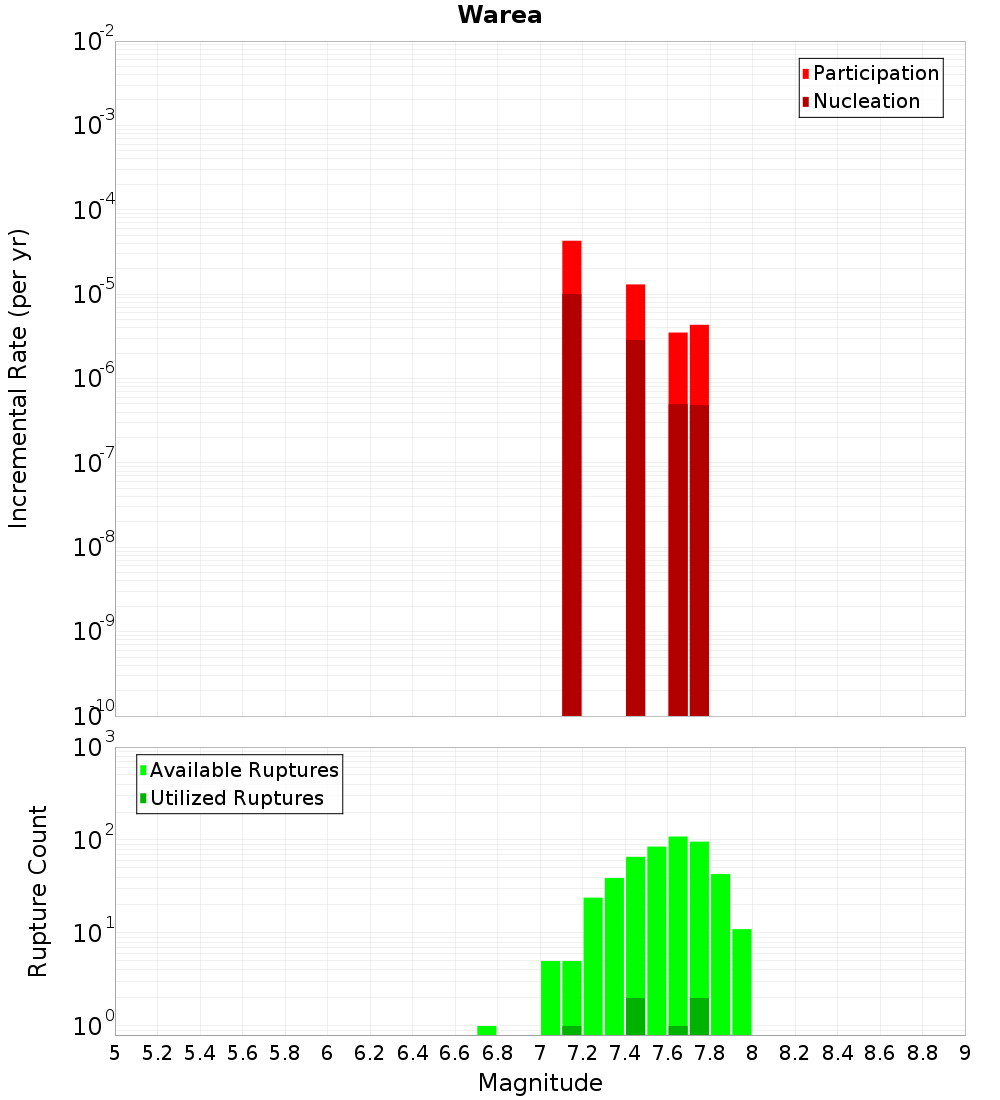

Magnitude-Frequency Distribution

Incremental	Cumulative

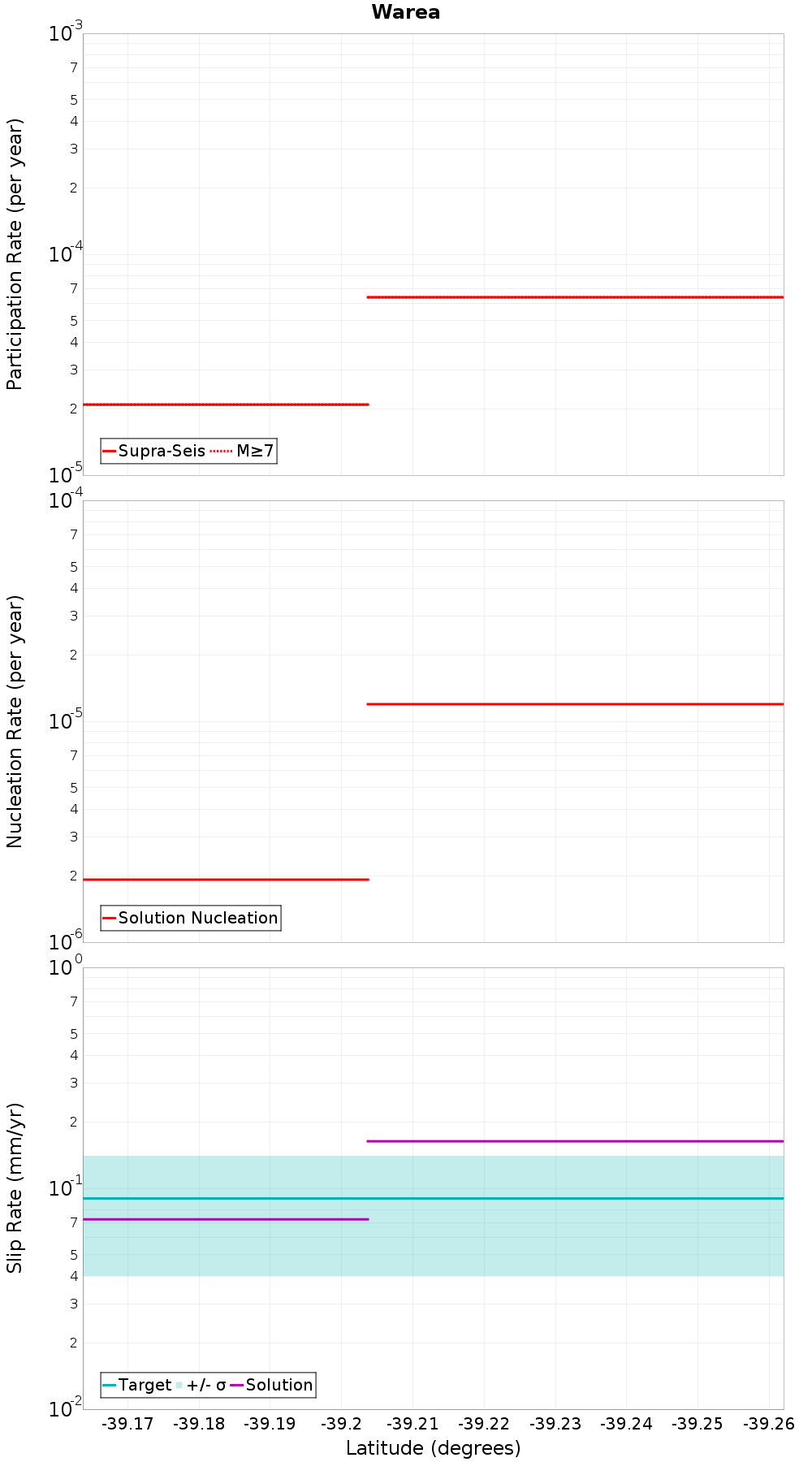

Along-Strike Values

Moment-Rates and b-Values

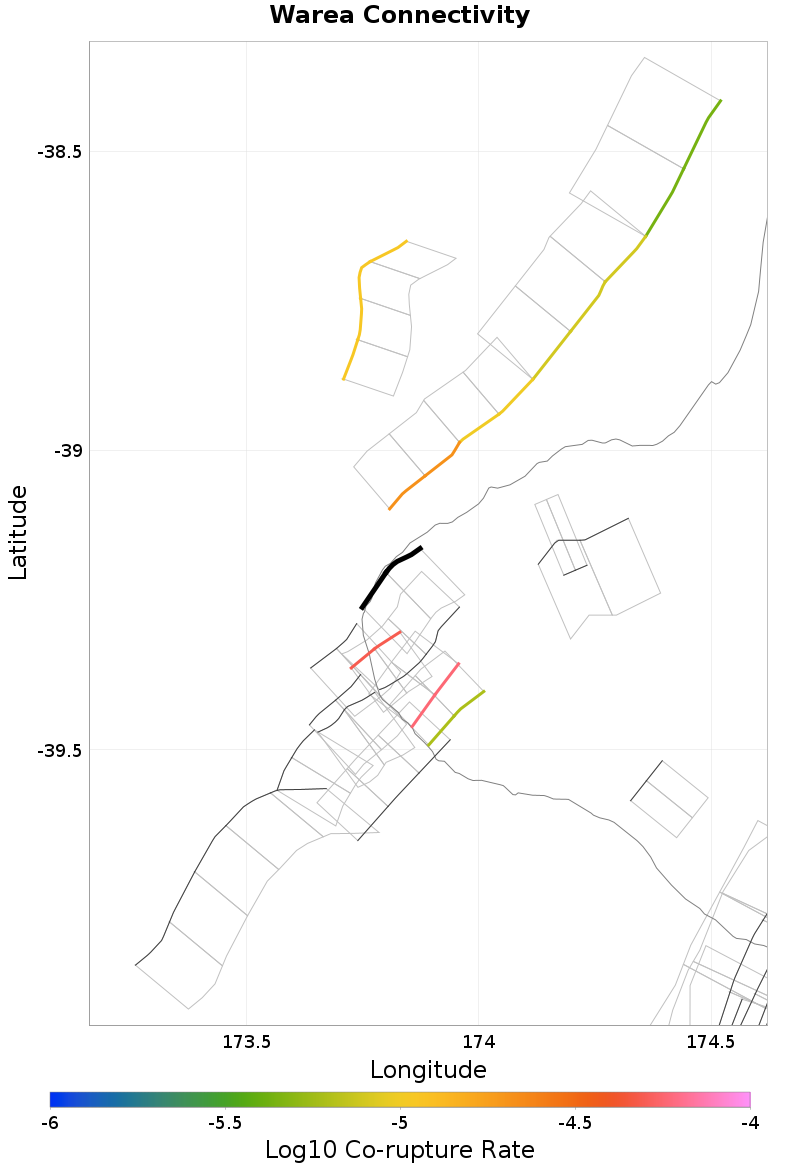

Connectivity

Nearby Sections

Fault Section
Oaonui, 0.31 km away
Ihaia, 0.33 km away
Manahi 2, 3.13 km away
Kiri, 4.19 km away
Rahotu, 5.06 km away
Pihama, 9.09 km away
Turi: South, 9.28 km away
Cape Egmont: North, 11.71 km away
Manahi 1, 14.59 km away
Inglewood, 18.12 km away
Norfolk, 19.52 km away

Oaonui, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ihaia, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	234
Co-rupture Rate	5.773509E-5

Manahi 2, 3.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	69
Co-rupture Rate	0.0

Kiri, 4.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	183
Co-rupture Rate	6.0914895E-6

Rahotu, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	54
Co-rupture Rate	4.904555E-5

Pihama, 9.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	true
Directly Connected?	false
Co-rupture Count	89
Co-rupture Rate	0.0

Turi: South, 9.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	409
Co-rupture Rate	2.0872521E-5

Cape Egmont: North, 11.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	true
Directly Connected?	false
Co-rupture Count	222
Co-rupture Rate	0.0

Manahi 1, 14.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	true
Directly Connected?	false
Co-rupture Count	146
Co-rupture Rate	0.0

Inglewood, 18.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Norfolk, 19.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NTcuMFpHY3Fw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
