Opape 1 Details

Property	Value
Rupture Count	60
Ruptures Above Sect Min Mag	60
Ruptures w/ Nonzero Rates	10
Magnitude Range	[7.24, 7.73]
Length Range	[32, 117] km
Total Rate	4.5000223E-5 /yr
Multi-Fault Rate	4.5000223E-5 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	11

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

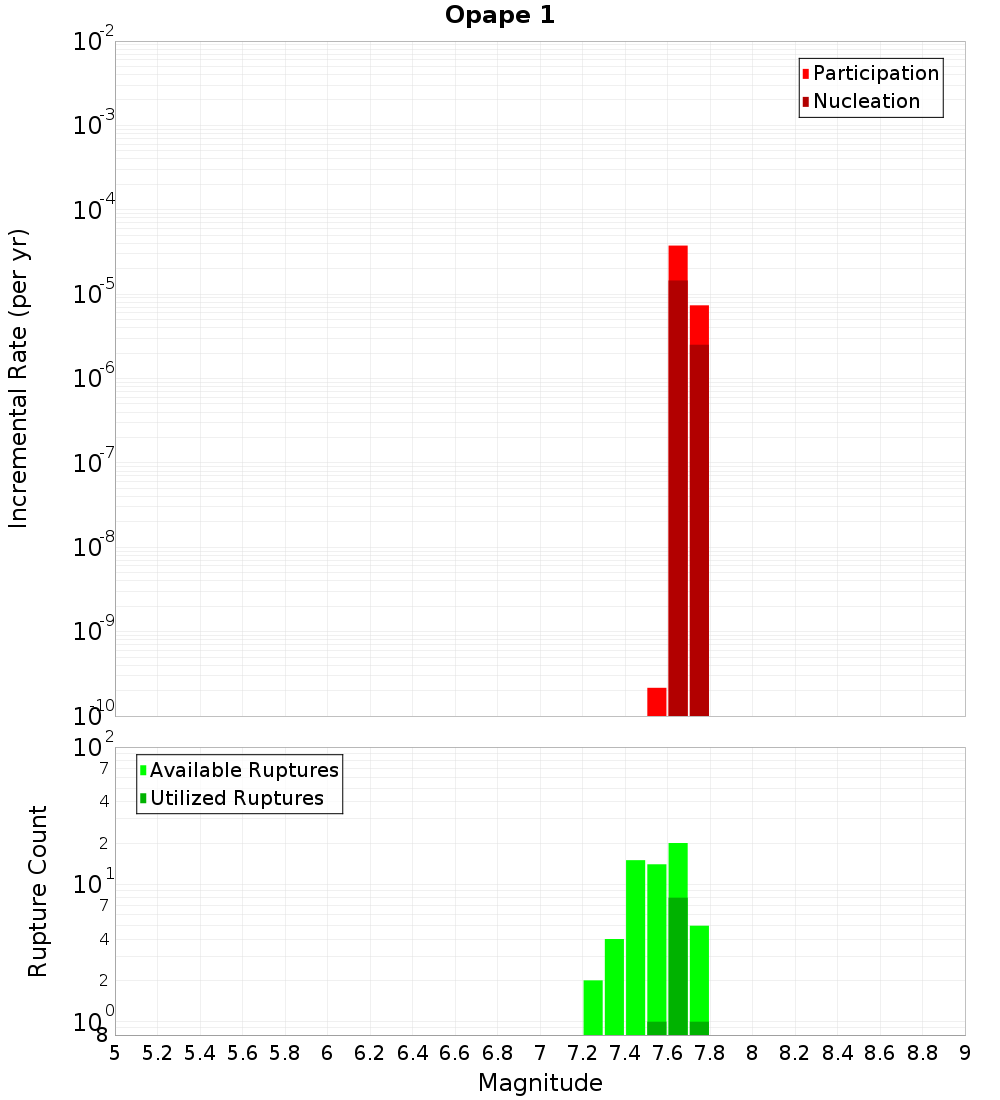

Magnitude-Frequency Distribution

Incremental	Cumulative

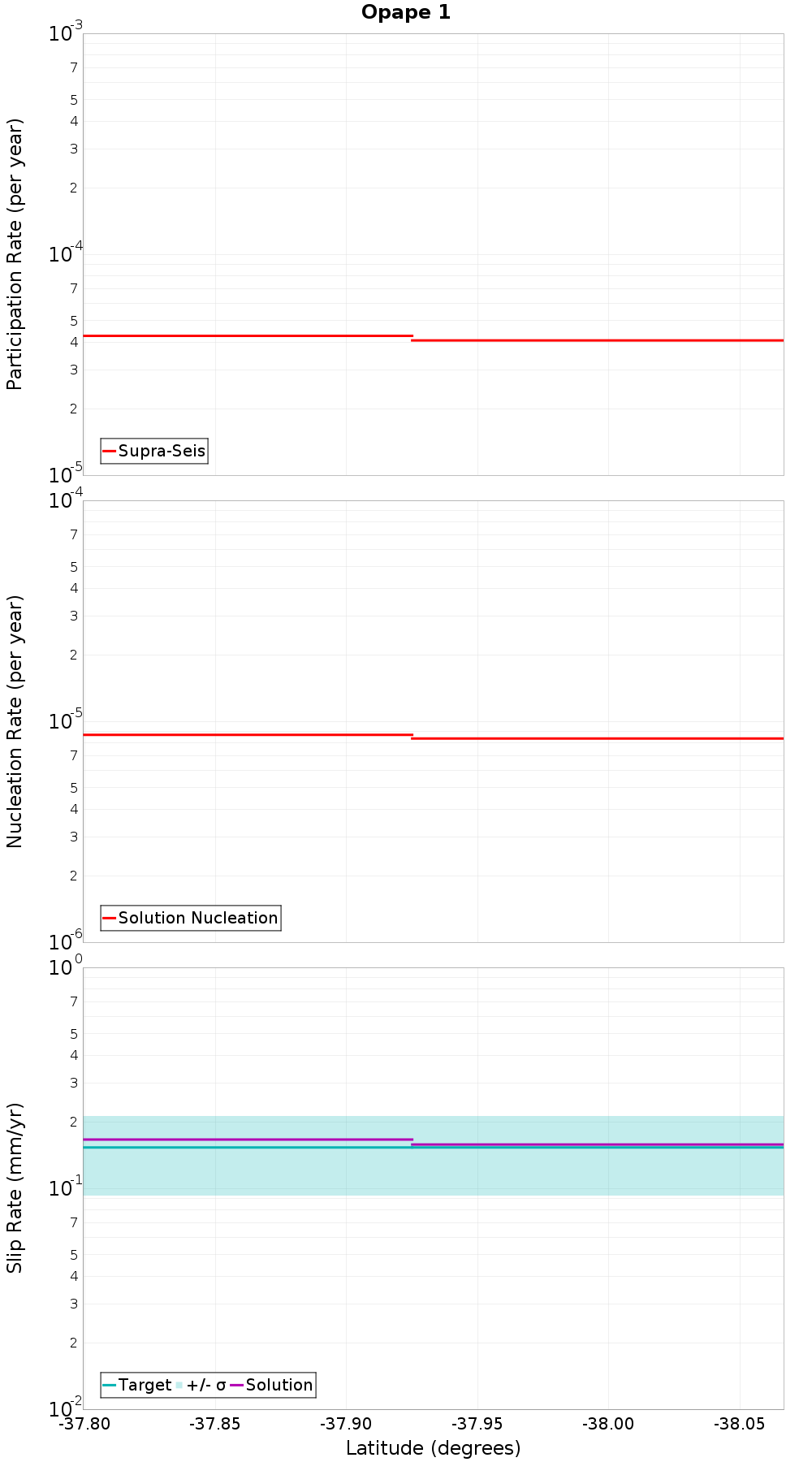

Along-Strike Values

Moment-Rates and b-Values

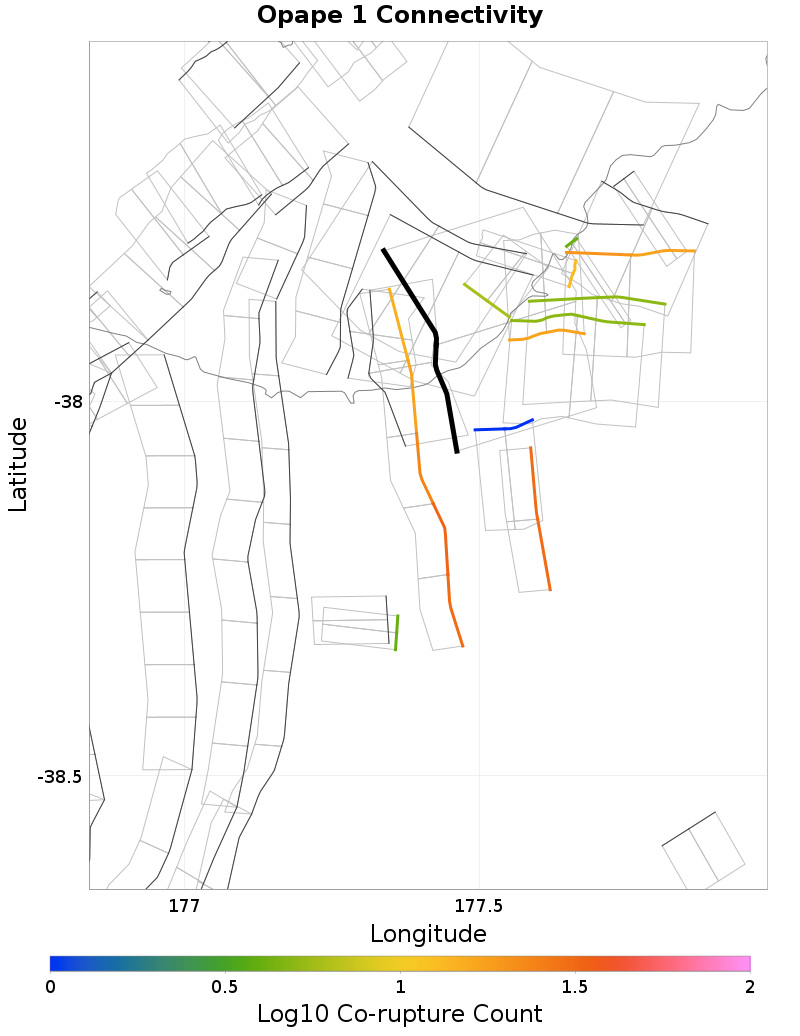

Connectivity

Nearby Sections

Fault Section	Fault Section
Ohae 1, 0.09 km away	Opotiki 3, 3.74 km away
Motu River, 0.1 km away	Tirohanga, 4.65 km away
Raukumara 18, 0.12 km away	Opotiki 2, 5.57 km away
Ohae 3, 0.13 km away	Raukumara 25, 6.05 km away
Ohae 2, 0.15 km away	Waimanawa - Waikaremoana, 11.99 km away
Raukumara 21, 0.21 km away	Hariki, 13.53 km away
Kereu, 0.22 km away	Raukumara 24, 14.1 km away
Raukumara 20, 0.24 km away	White Island 2, 14.68 km away
Raukumara 17, 0.33 km away	Waimana: North, 15.8 km away
Raukumara 16, 0.44 km away	Ohiwa 1, 16.67 km away
Kotare - Moutuhora, 2.38 km away	Waiotahi: North, 17.76 km away
Motu, 2.39 km away	White Island 1, 18.74 km away

Ohae 1, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	0.0

Raukumara 18, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	7.370246E-6

Ohae 3, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	0.0

Ohae 2, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 21, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	6.7085507E-6

Kereu, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 20, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	6.2626157E-7

Raukumara 17, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	3.4860994E-5

Raukumara 16, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Kotare - Moutuhora, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	35
Co-rupture Rate	4.5000223E-5

Motu, 2.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	3.336104E-5

Opotiki 3, 3.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tirohanga, 4.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 2, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 25, 6.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	7.0117185E-6

Waimanawa - Waikaremoana, 11.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hariki, 13.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 24, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 2, 14.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana: North, 15.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 16.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 17.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 18.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
