Tukituki Thrust Details

PropertyValue
Rupture Count213
Ruptures Above Sect Min Mag207
Ruptures w/ Nonzero Rates8
Magnitude Range[6.77, 8.29]
Length Range[19, 516] km
Total Rate3.4133976E-4 /yr
Multi-Fault Rate9.54916E-5 /yr (27.98%)
Directly-Connected Faults4
All Co-Rupturing Faults25

Table Of Contents

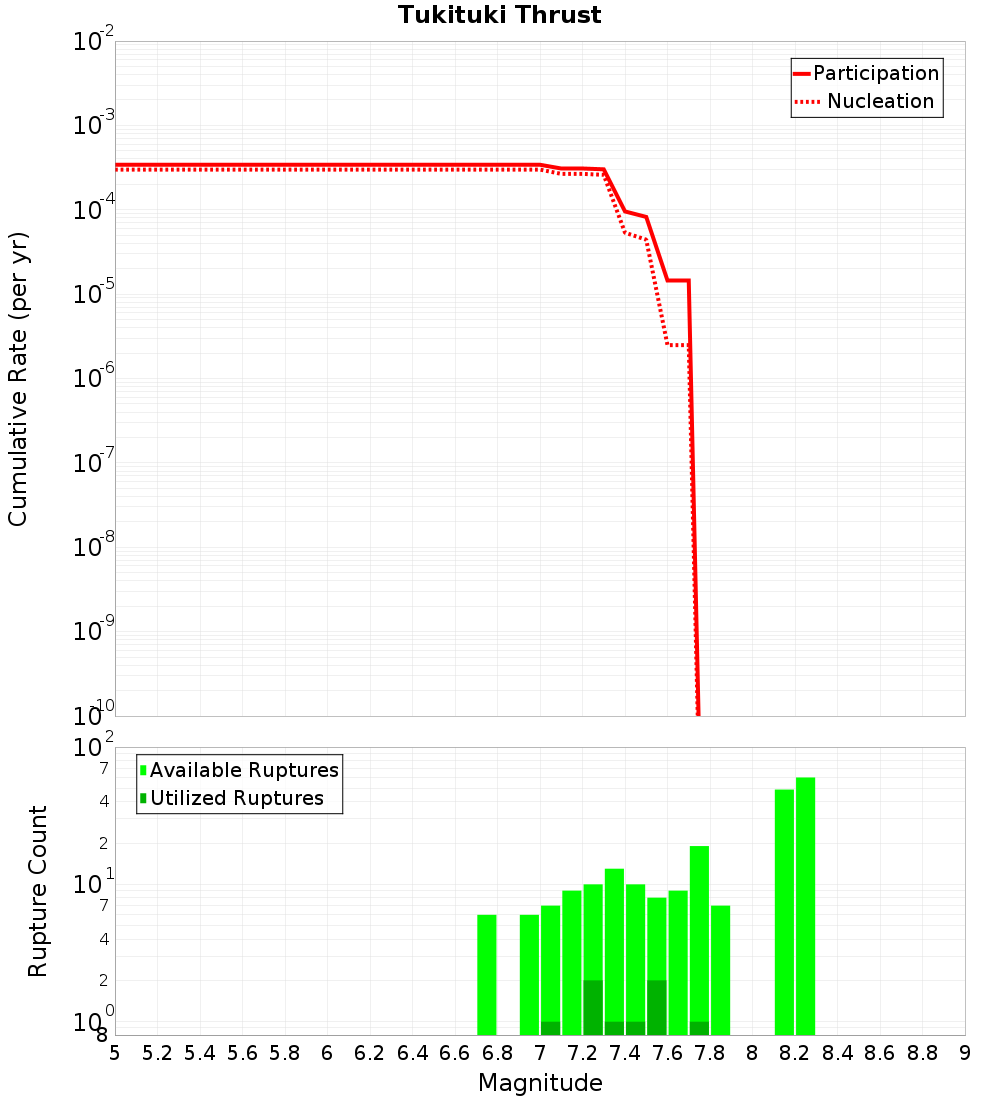

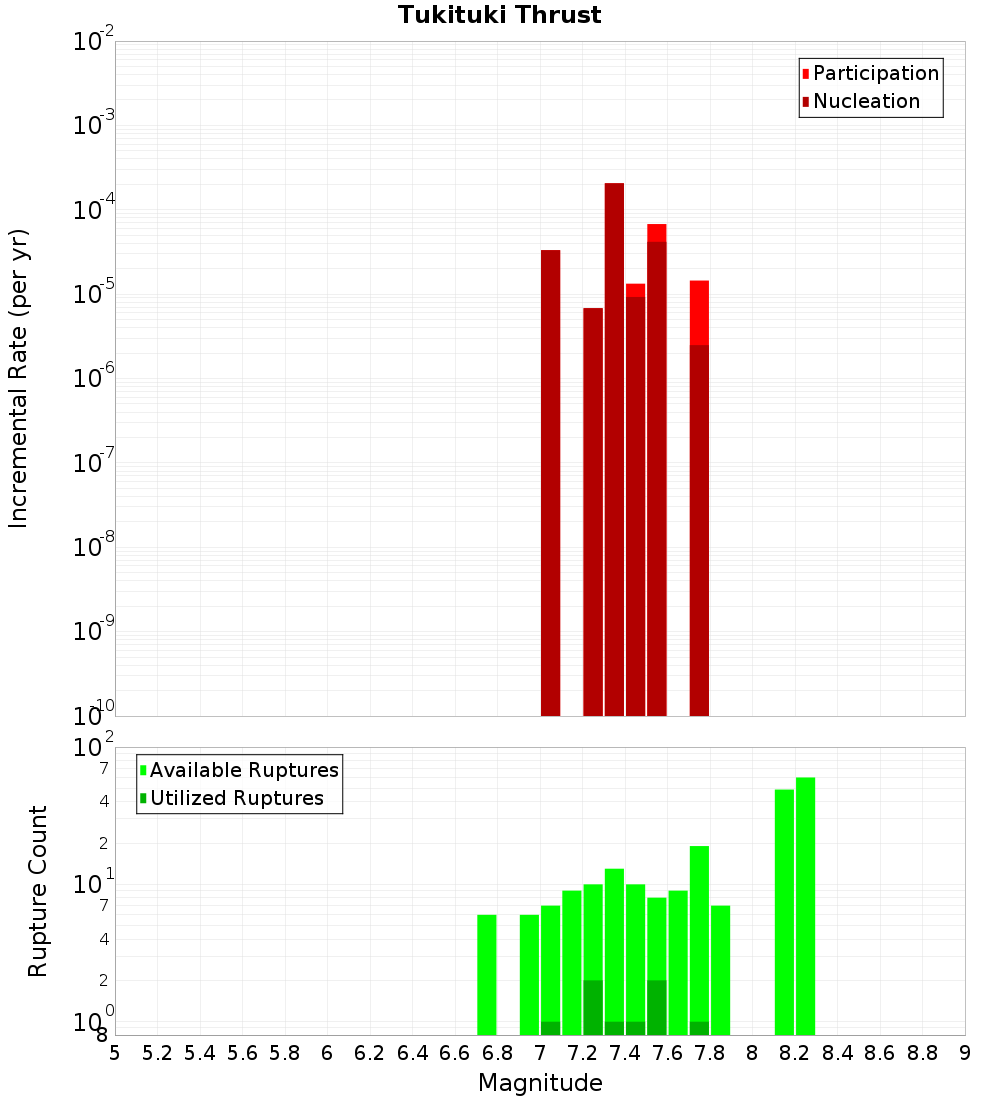

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

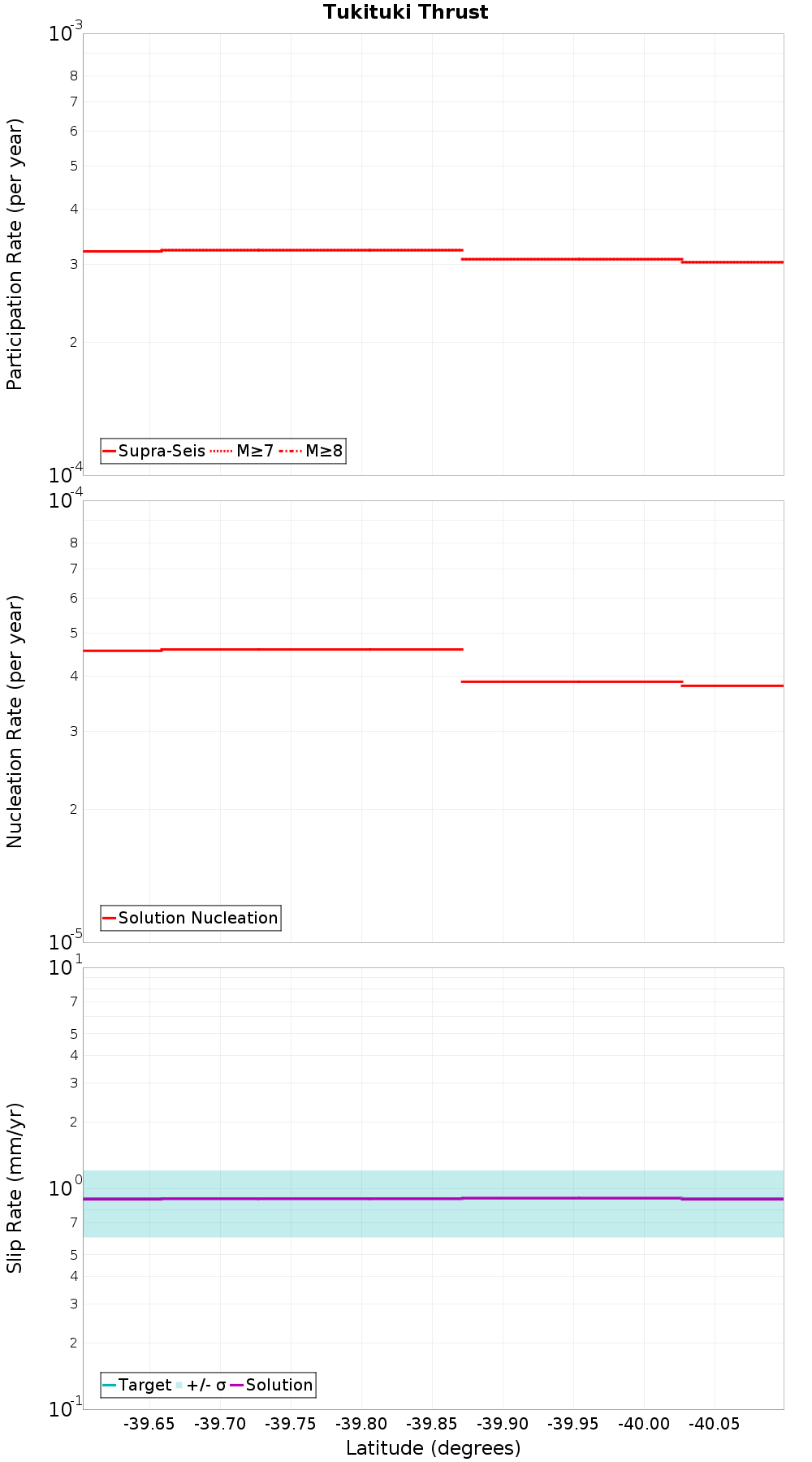

Along-Strike Values

(top)

Along-strike plot

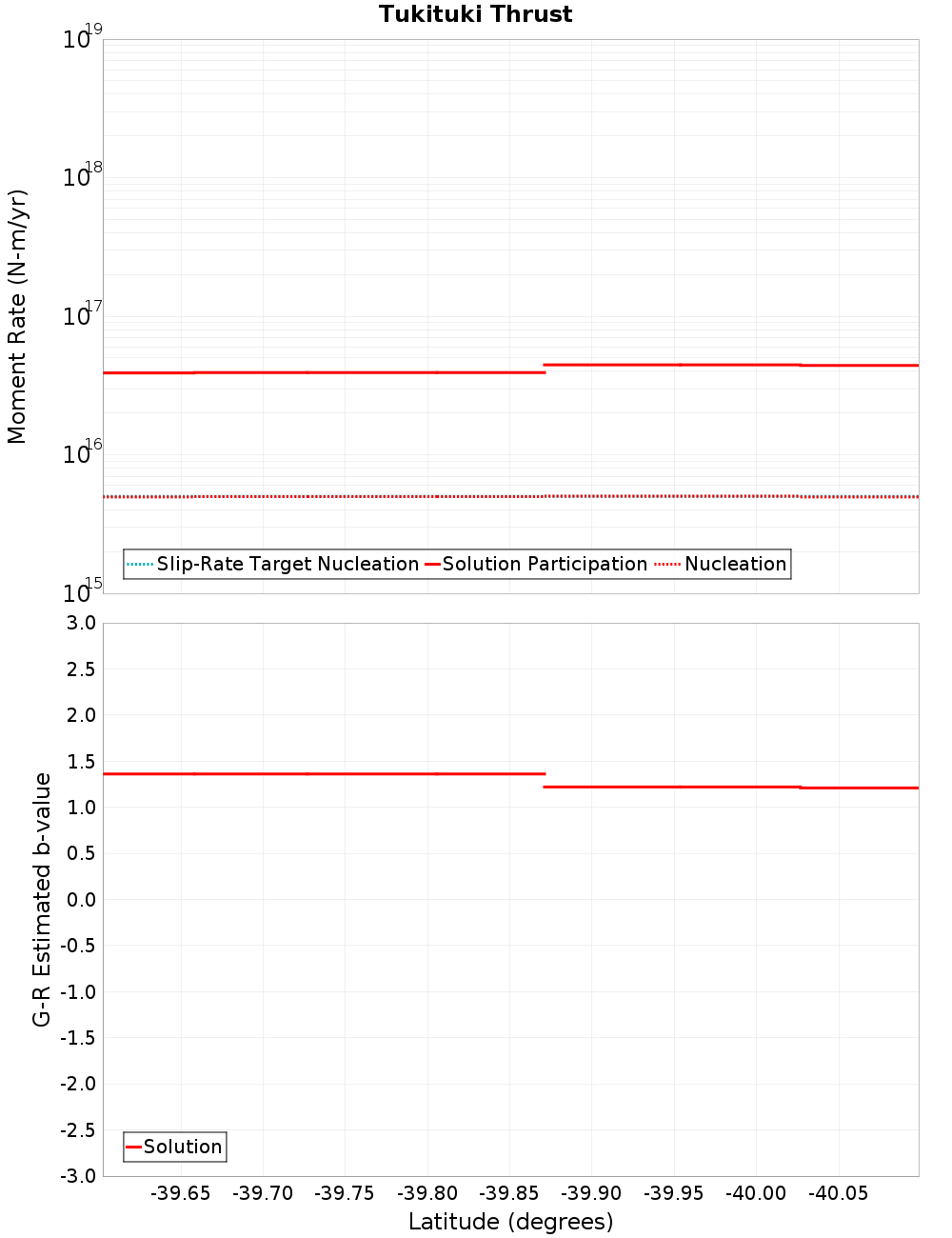

Moment-Rates and b-Values

(top)

Along-strike plot

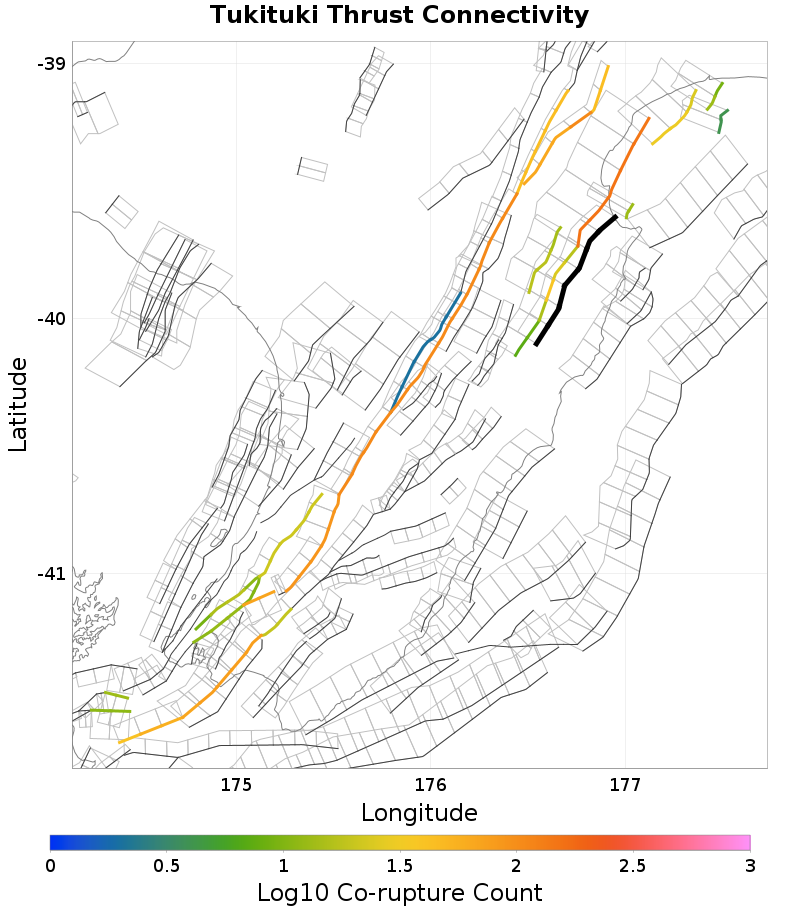

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawke Bay 8, 2 km away
Waipukurau - Poukawa, 3.57 km away
Awanui, 3.57 km away
Clear Hills - Waikopiro, 7.68 km away
Oruawharo - Mangatoro, 9.21 km away
Te Heka, 11.15 km away
Kidnappers Ridge, 11.24 km away
Waimarama 1 & 2, 13.06 km away
Waimarama 3 & 4, 16.07 km away
Ruataniwha, 18.16 km away
Kairakau South, 18.71 km away

Hawke Bay 8, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate6.381364E-5

Waipukurau - Poukawa, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate8.1002036E-5

Awanui, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?true
Directly Connected?true
Co-rupture Count152
Co-rupture Rate1.4489565E-5

Clear Hills - Waikopiro, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Oruawharo - Mangatoro, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.837155E-5

Kidnappers Ridge, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 13.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 3 & 4, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruataniwha, 18.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kairakau South, 18.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjMuMEx1OXhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
