Flaxmore - Waimea - Tahunanui Details

Property	Value
Rupture Count	4,548
Ruptures Above Sect Min Mag	4,541
Ruptures w/ Nonzero Rates	13
Magnitude Range	[6.95, 8.55]
Length Range	[23, 925] km
Total Rate	1.7025822E-4 /yr
Multi-Fault Rate	8.2759405E-5 /yr (48.61%)
Directly-Connected Faults	5
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

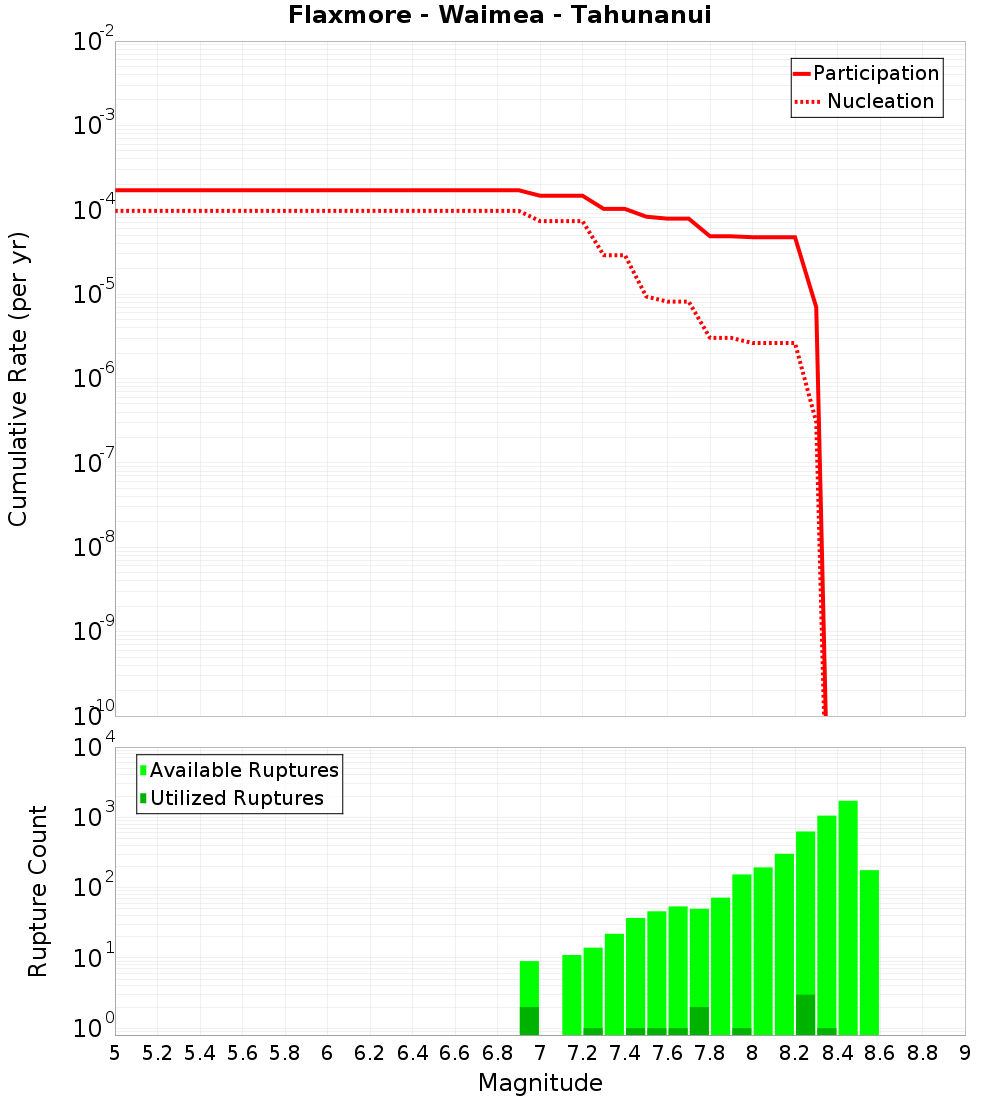

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

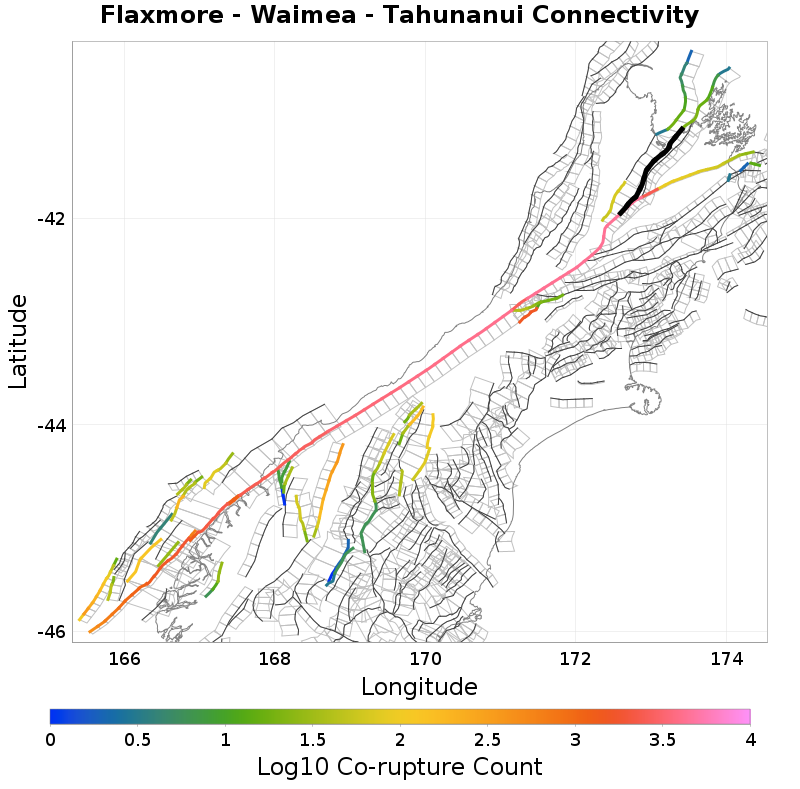

Connectivity

Nearby Sections

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	3.1102154E-5

Wairau, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE
Connected?	true
Directly Connected?	true
Co-rupture Count	2,456
Co-rupture Rate	2.0484043E-5

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE
Connected?	true
Directly Connected?	true
Co-rupture Count	4,389
Co-rupture Rate	4.729825E-5

Whangamoa, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tutaki, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE
Connected?	true
Directly Connected?	true
Co-rupture Count	65
Co-rupture Rate	5.577317E-6

Surville, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE
Connected?	true
Directly Connected?	true
Co-rupture Count	18
Co-rupture Rate	2.8826289E-10

Ruby Bay - Moutere, 9.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Southwest, 12.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
