Waitotara 10 & 11 Details
| Property | Value |
|---|---|
| Rupture Count | 35 |
| Ruptures Above Sect Min Mag | 33 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [7.18, 7.88] |
| Length Range | [28, 143] km |
| Total Rate | 9.1776514E-5 /yr |
| Multi-Fault Rate | 5.4397933E-5 /yr (59.27%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

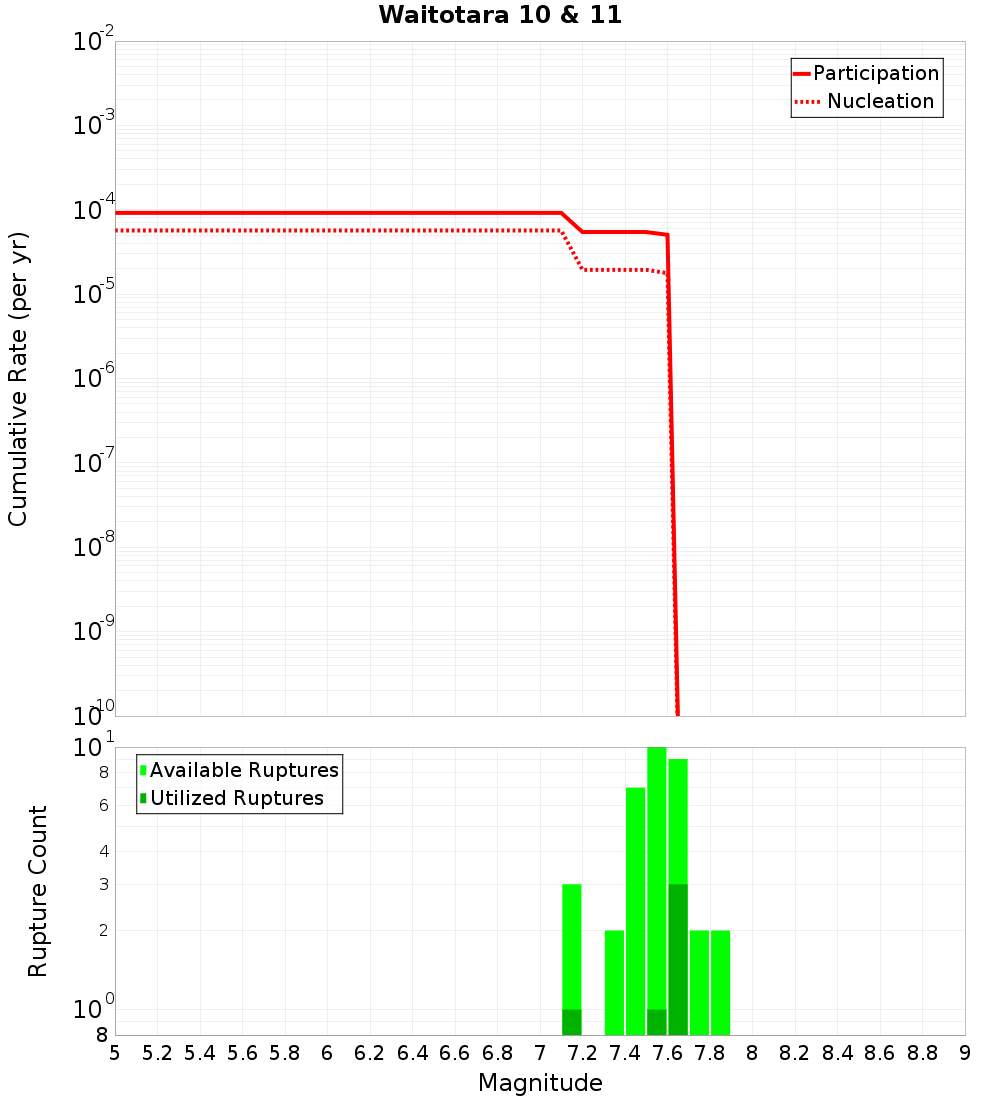

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

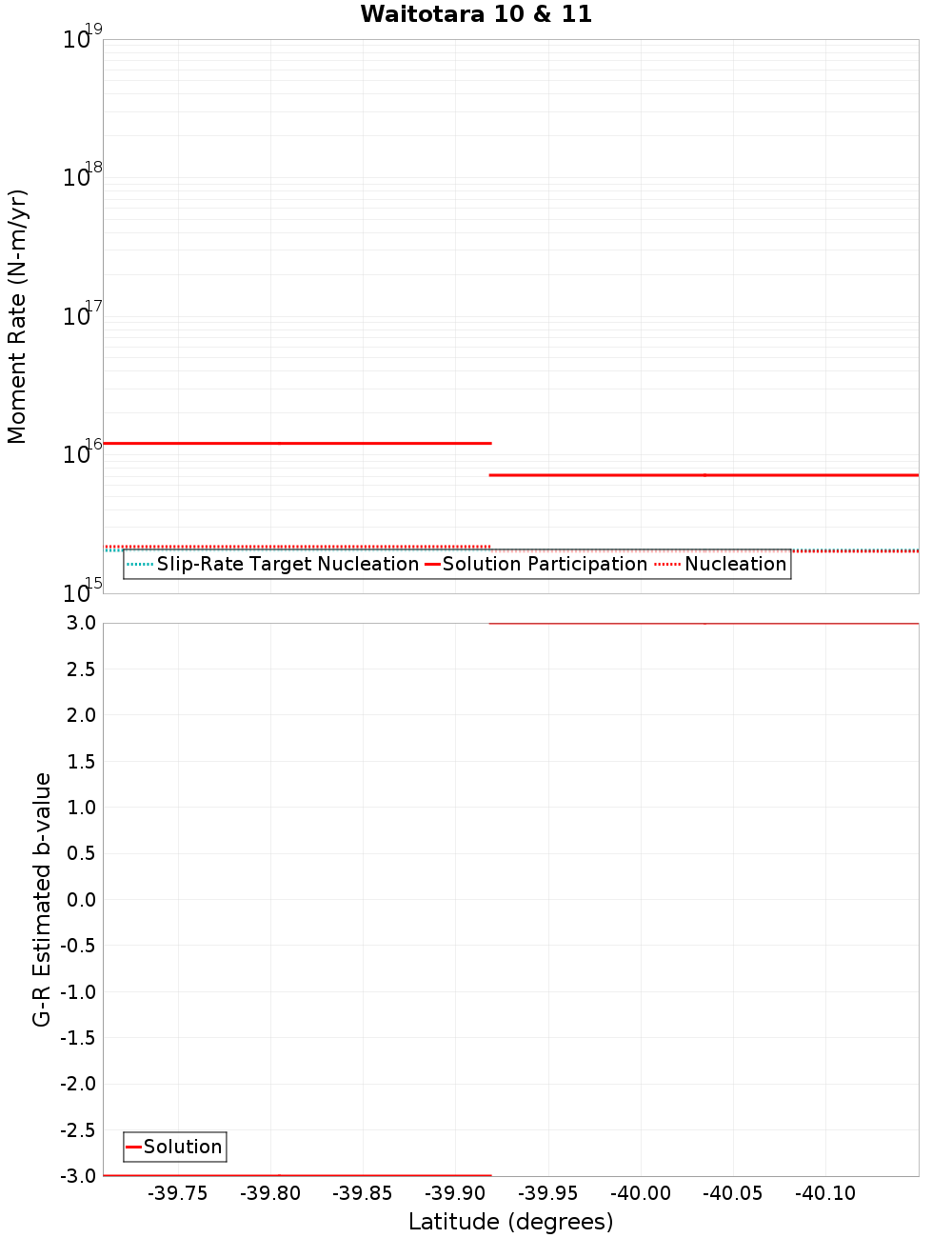

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Waverley - Okaia 1, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
Okaia 5, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Okaia 3, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 1.0461271E-5 |
Moumahaki - Okaia 4, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 3.9125043E-6 |
Ridge Road - Okaia 2, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Waitotara 8 & 9, 0.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 5.048543E-5 |
Nukumuru - Waitotara 1-6, 2.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Ararata, 11.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NjguMFBxTUNE | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
