Puketerata North Details
| Property | Value |
|---|---|
| Rupture Count | 3,234 |
| Ruptures Above Sect Min Mag | 3,162 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.15, 7.84] |
| Length Range | [7, 214] km |
| Total Rate | 6.390475E-4 /yr |
| Multi-Fault Rate | 6.390475E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

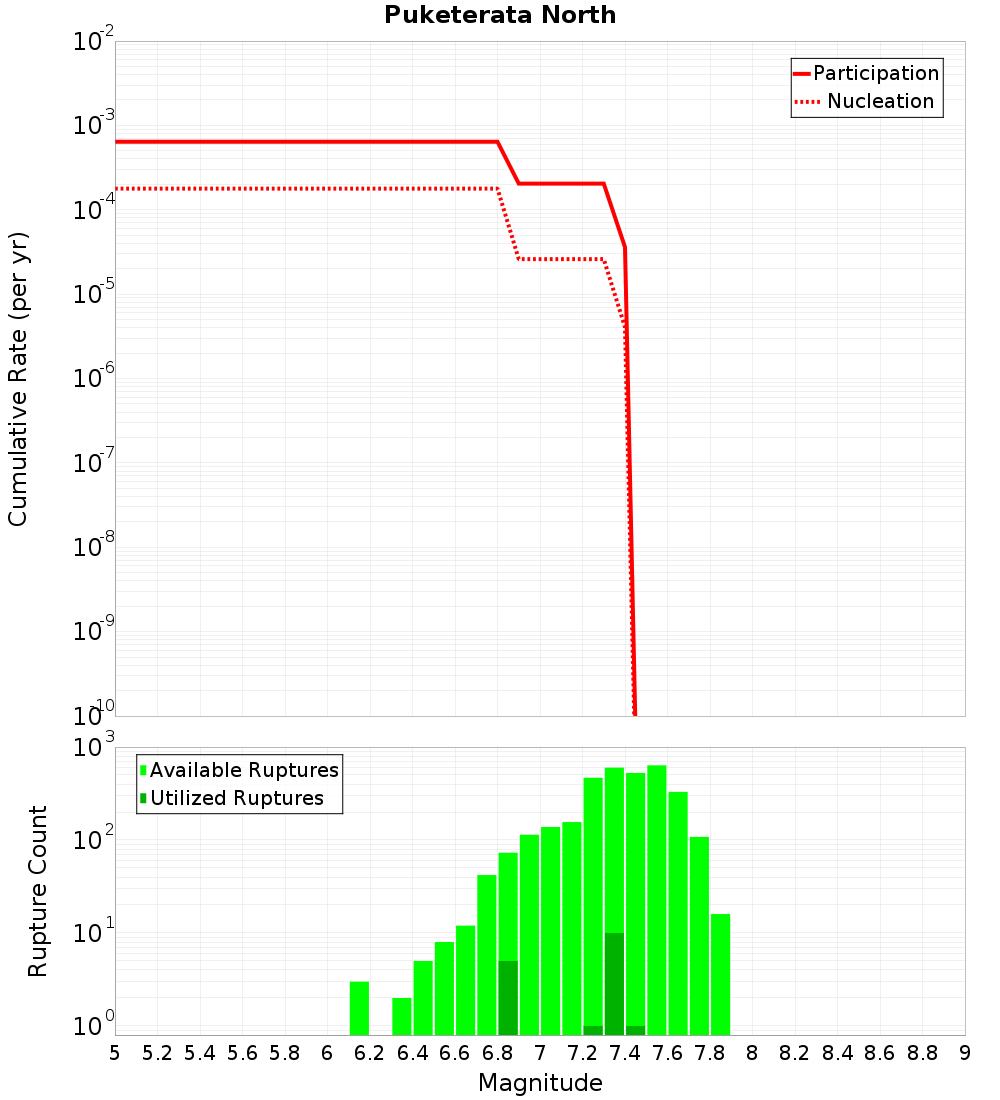

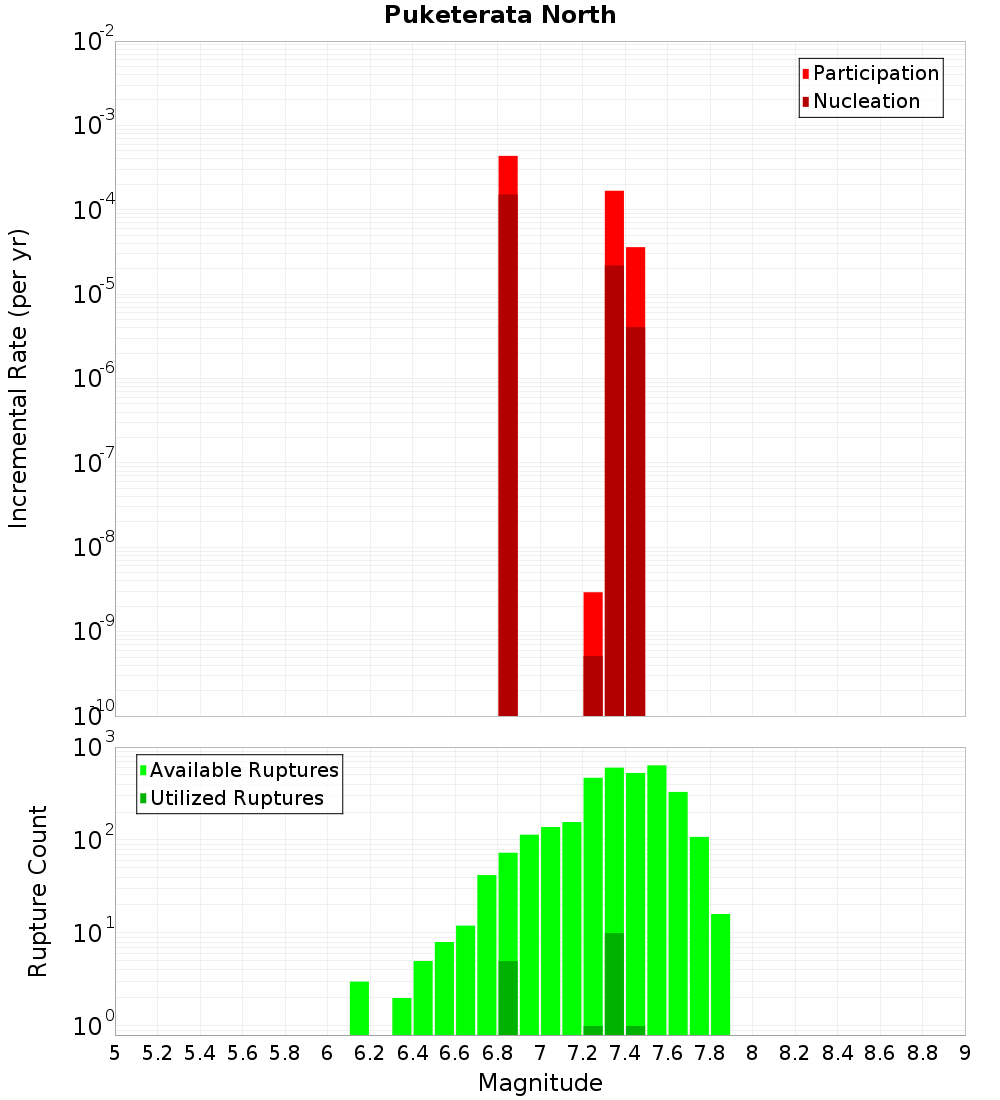

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

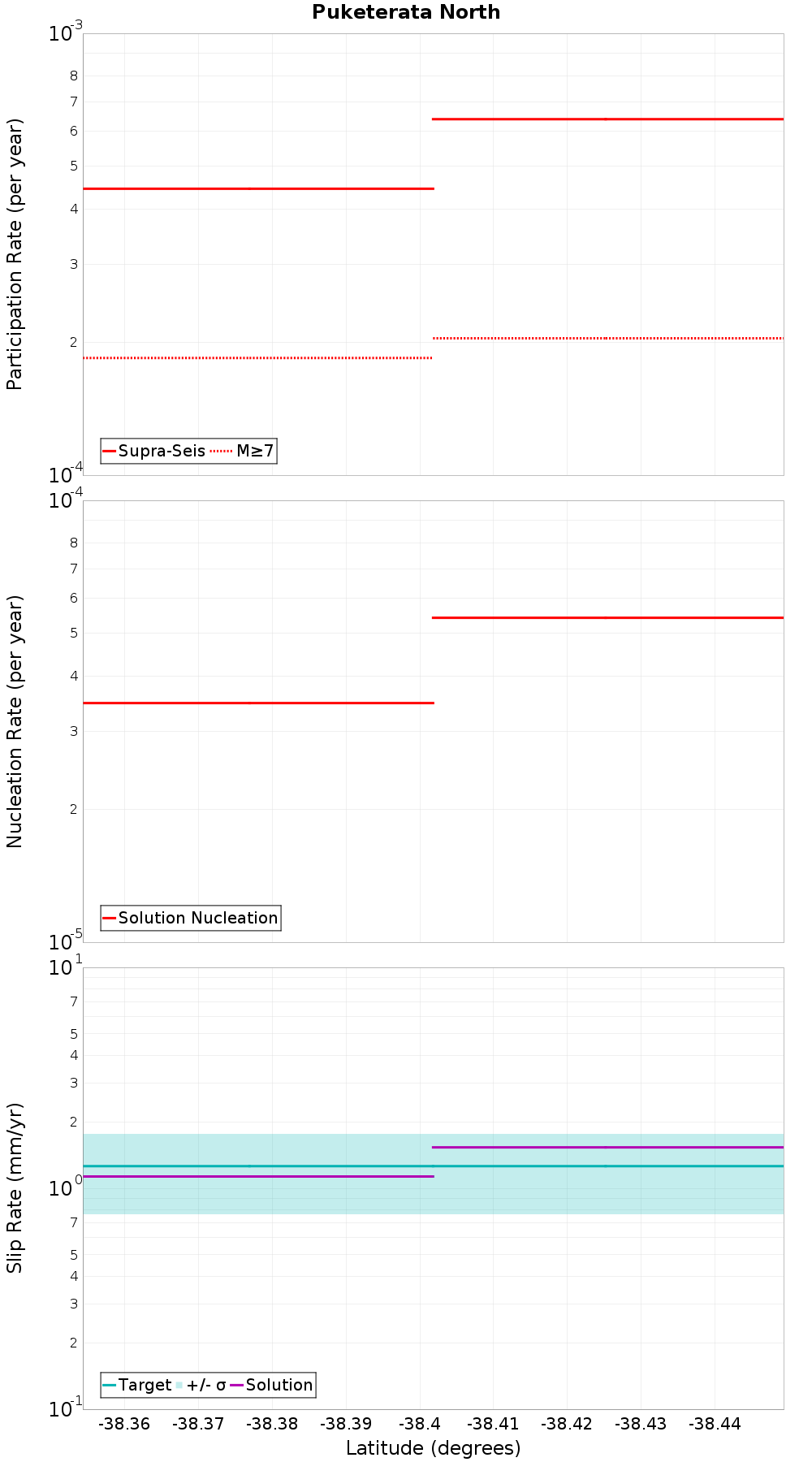

Along-Strike Values
Moment-Rates and b-Values

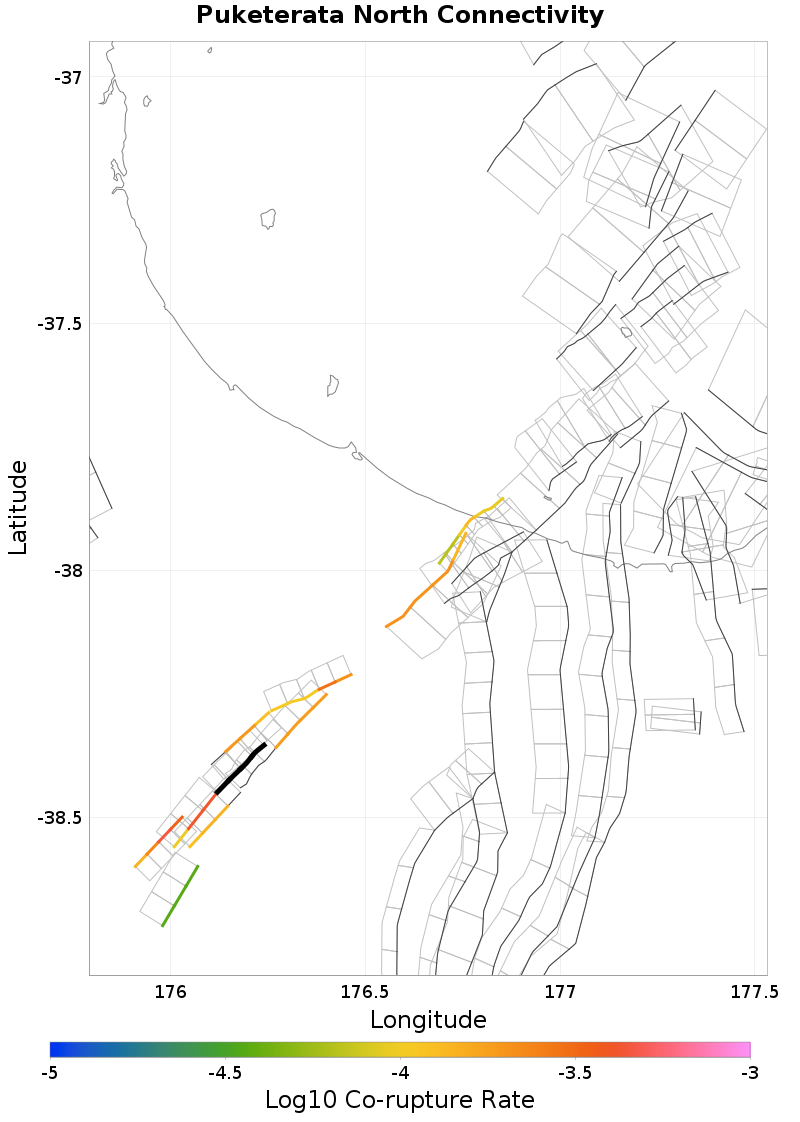

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Puketerata, 0.1 km away |
| Maleme, 0.17 km away |
| Paeroa, 2.15 km away |
| Orakeikorako, 3.28 km away |
| EarthquakeFlat - Tumunui, 7.65 km away |
| Whangamata West, 9.6 km away |
| Kaiapo, 17.13 km away |
Puketerata, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NzcuMEdDdzZS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,007 |
| Co-rupture Rate | 4.1335577E-4 |
Maleme, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NzcuMEdDdzZS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,134 |
| Co-rupture Rate | 1.9428432E-4 |
Paeroa, 2.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NzcuMEdDdzZS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,759 |
| Co-rupture Rate | 1.8411032E-4 |
Orakeikorako, 3.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NzcuMEdDdzZS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 734 |
| Co-rupture Rate | 1.411603E-4 |
EarthquakeFlat - Tumunui, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NzcuMEdDdzZS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,932 |
| Co-rupture Rate | 2.8855554E-4 |
Whangamata West, 9.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NzcuMEdDdzZS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,694 |
| Co-rupture Rate | 5.083503E-4 |
Kaiapo, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0NzcuMEdDdzZS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 420 |
| Co-rupture Rate | 3.603566E-5 |
